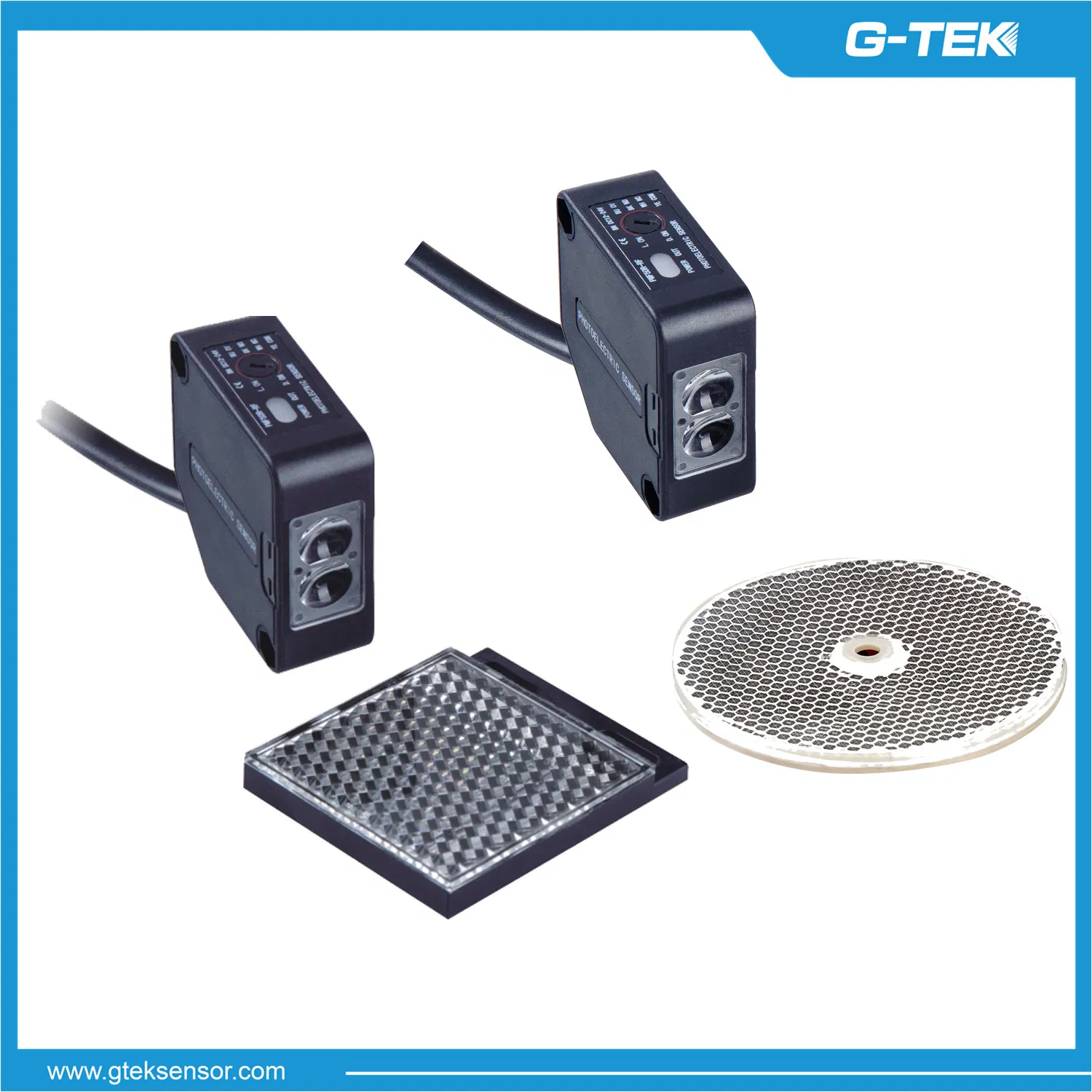

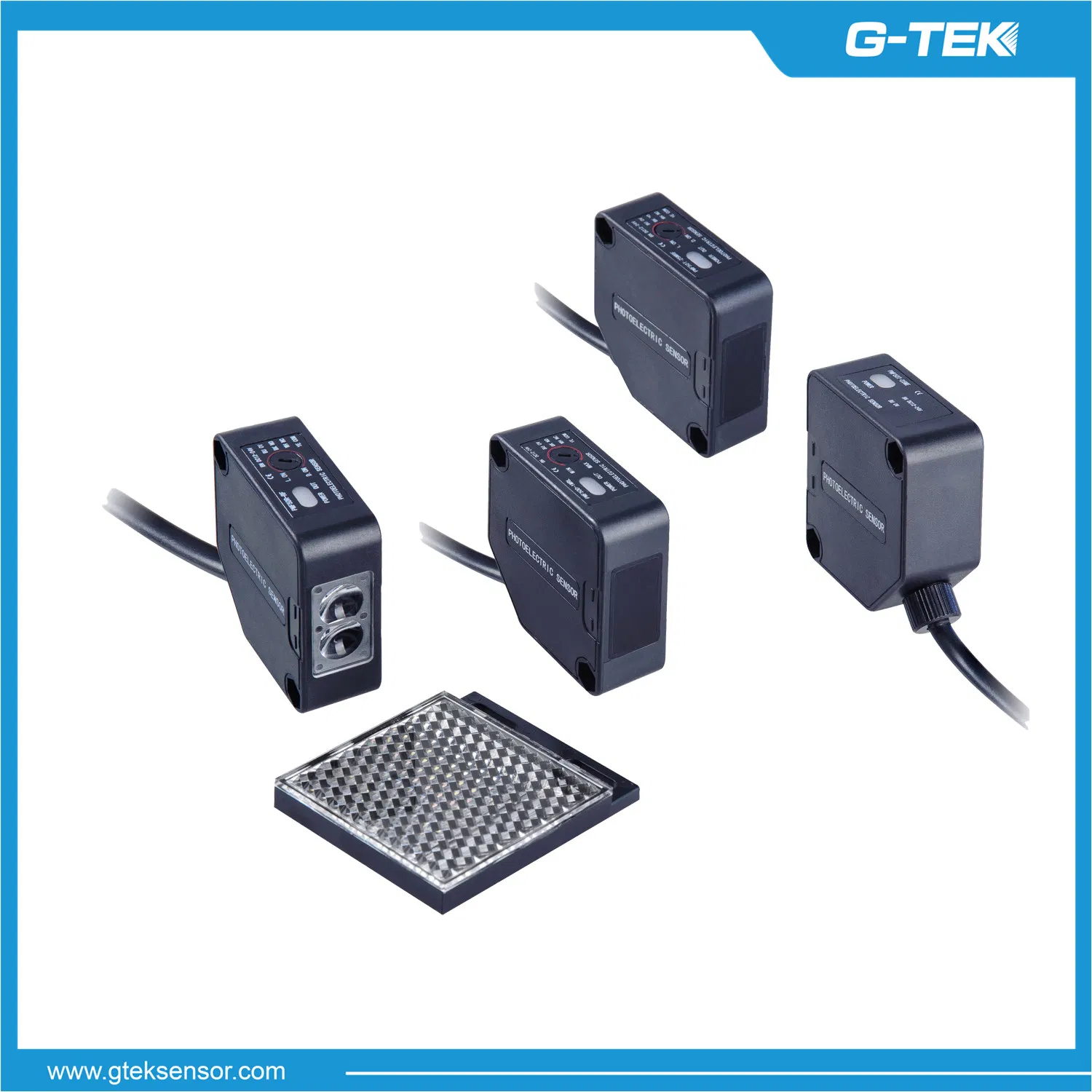

Pmf50r Reflective Photoelectric Sensor, Multiple Distance Infrared Sensor
Product DescriptionPMF50R retro-reflective photoelectric sensor is our one popular model used at industry door such as high speed door, roller shutter door, garage door and so on. There are different detection range can be selected as 7m, 12m and Supply voltage 10-30V DC & 12-240V DC/AC for sele......
Send Inquiry
Product Description

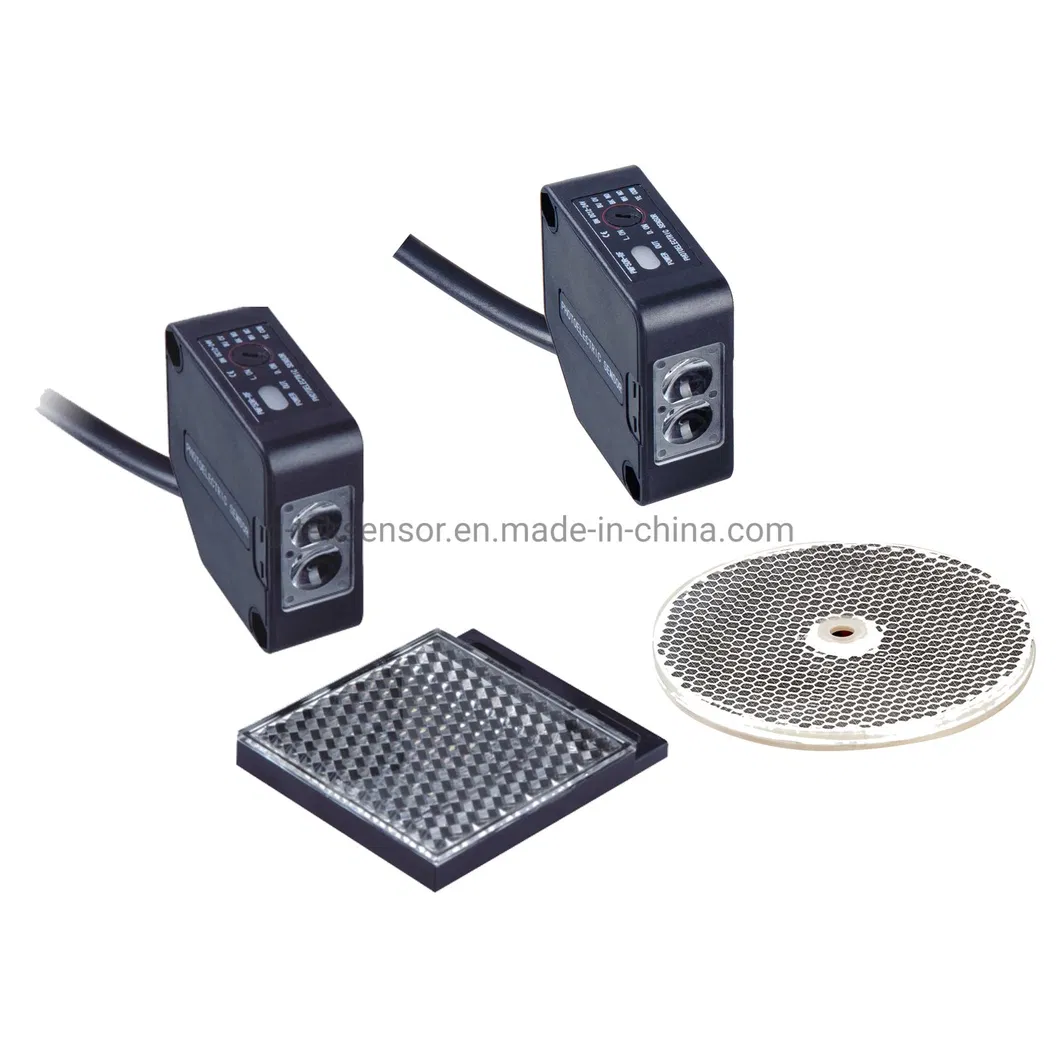

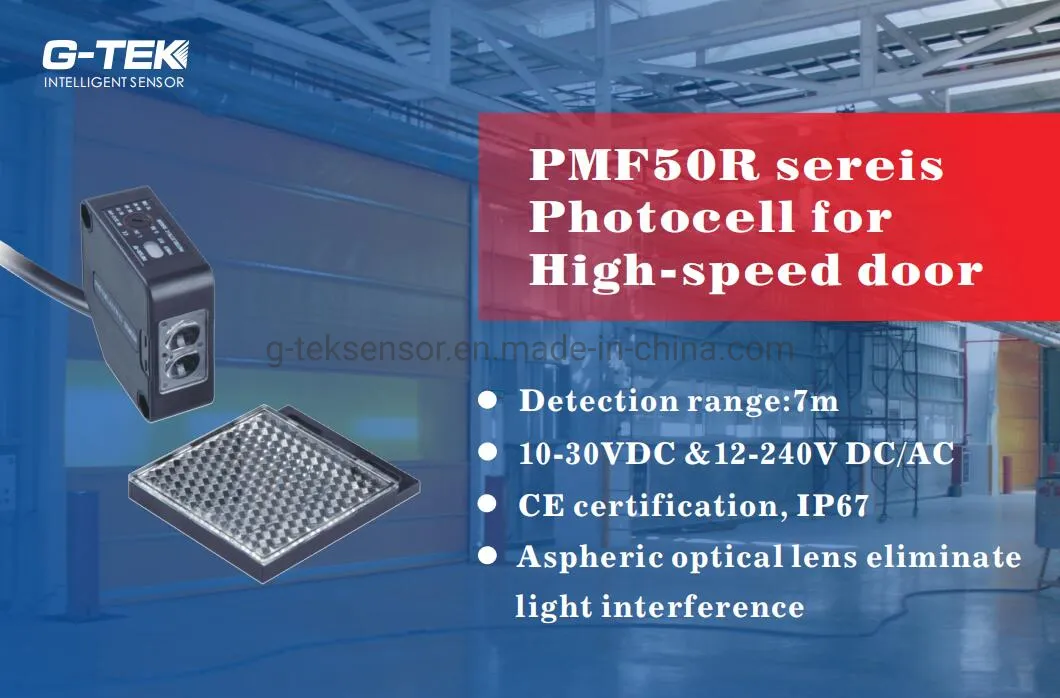

PMF50R retro-reflective photoelectric sensor is our one popular model used at industry door such as high speed door, roller shutter door, garage door and so on. There are different detection range can be selected as 7m, 12m and Supply voltage 10-30V DC & 12-240V DC/AC for selecting which can meet different demands of customers
Product Main Technique Parameter and Selection Guide
| Photoelectric sensor | PMF50RF-RF-2 |
| Detection Type | Retro-reflective |

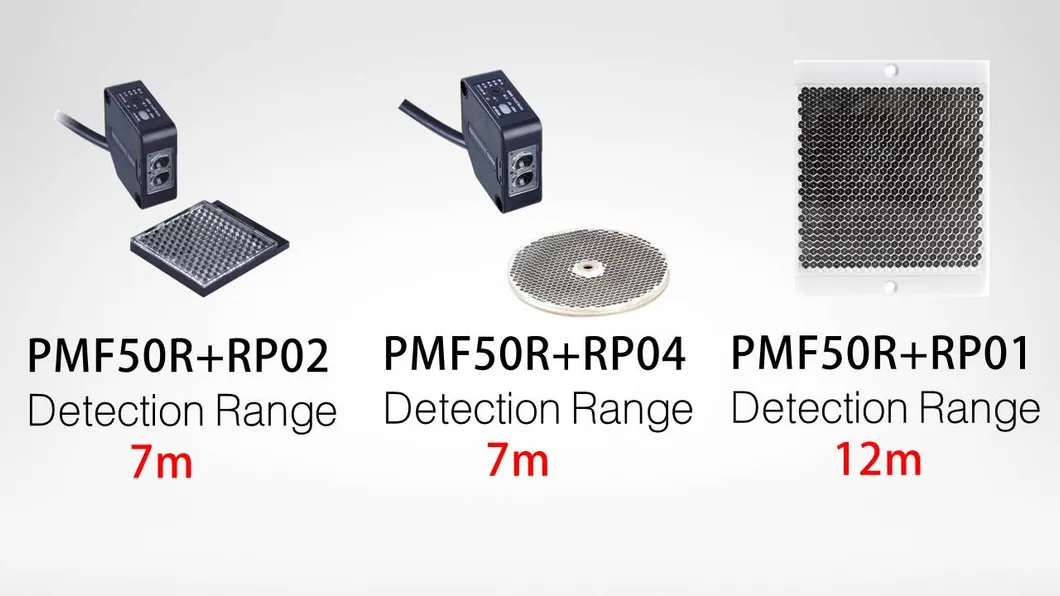

| Detection Range | RP02/RP05: 7m; RP01:12m |
| Light Source | 630mm red LED |
| Supply Voltage | 12~240V DC/AC |
| Power consumption | Max.3VA |
| Response Time | Max.20ms |
| Control Output | Relay output,(contact rating: 30VDC 3A resistance load, 250VAC,3A resistance load,contact component: 1C) |
| Action | Light on/Dark on for selecting by potentiometer |
| Indicator | Power indicator: Green, Action indicator: Red |
| Protection circuit | Reverse polarity protection |
| Ambient lightness | Sunlight: Max.30000Lux fluorescent: Max.3000Lux |
| Ambient Temperature | -20~+65ºC(Non-freezing) |
| Ambient Humidity | 0~90%RH |
| Material | Housing:ABS,Lens:PMMA |
| Protection Rate | IP67 |
| Cable | Φ5, 5×0.2mm² 2m |
| Accessory | Bracket: IB02, Screw: M4×25 |
Product Selection Guide
| Product Series | Product Model | Detection Object | Supply Voltage | Sensing Distance | Wire Connection |
| PMF50R | PMF50R-RF-2 | Min Φ30mm opaque object | 10~30V DC | 7m /12m | DC 5 wires |
| PMF50RF-RF-2 | 12-240V DC/AC | 7m /12m |

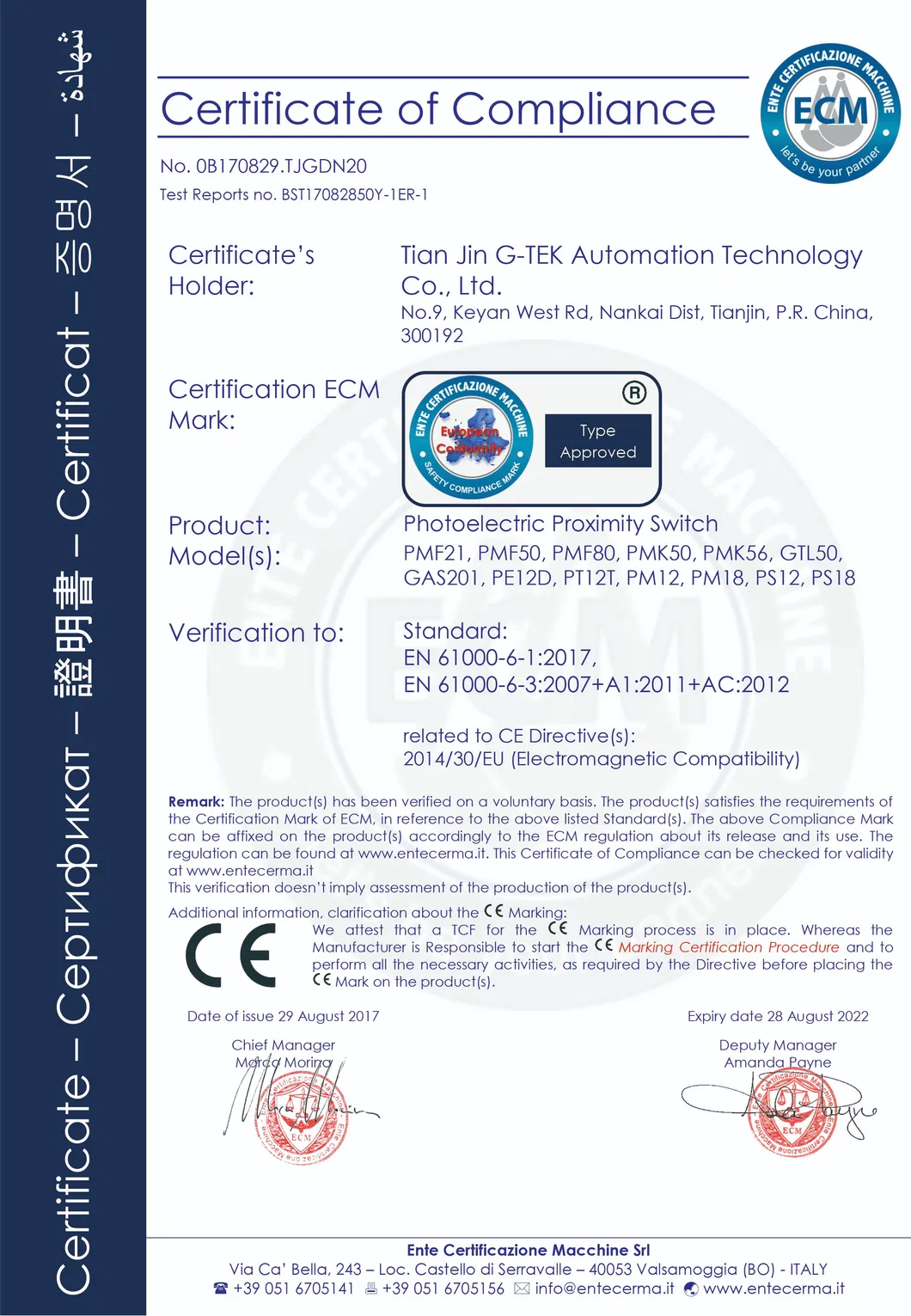

Product Certification

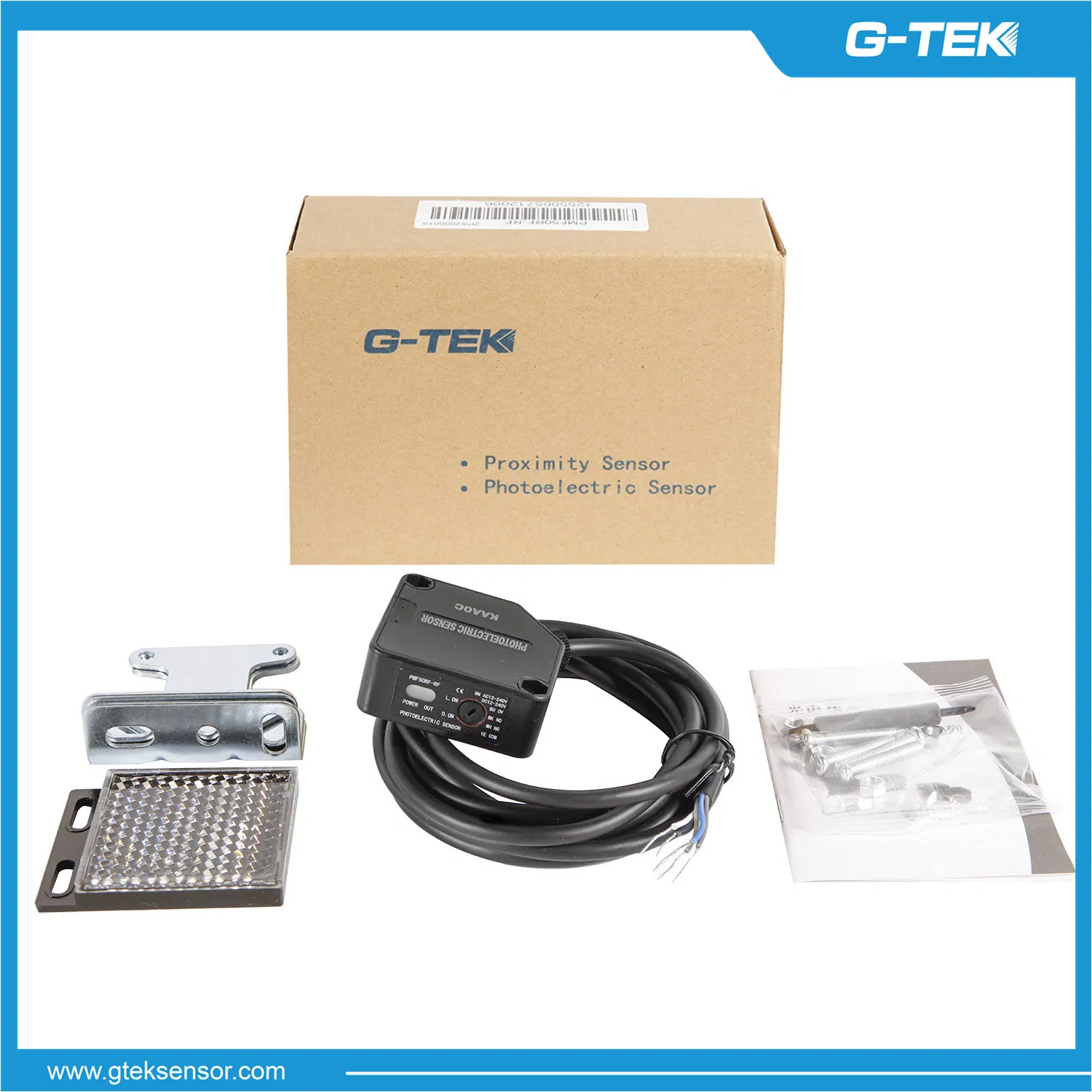

Product Package and Delivery
Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider, which was established in 2003 with business ranges from Proximity switch,photoelectric sensor,measurement and safety light curtain to Laser rangefinder sensor,laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.
Tianjin G-TEK sensor technology co.,ltd was established in 2014 at Xiqing district , Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacture base.
