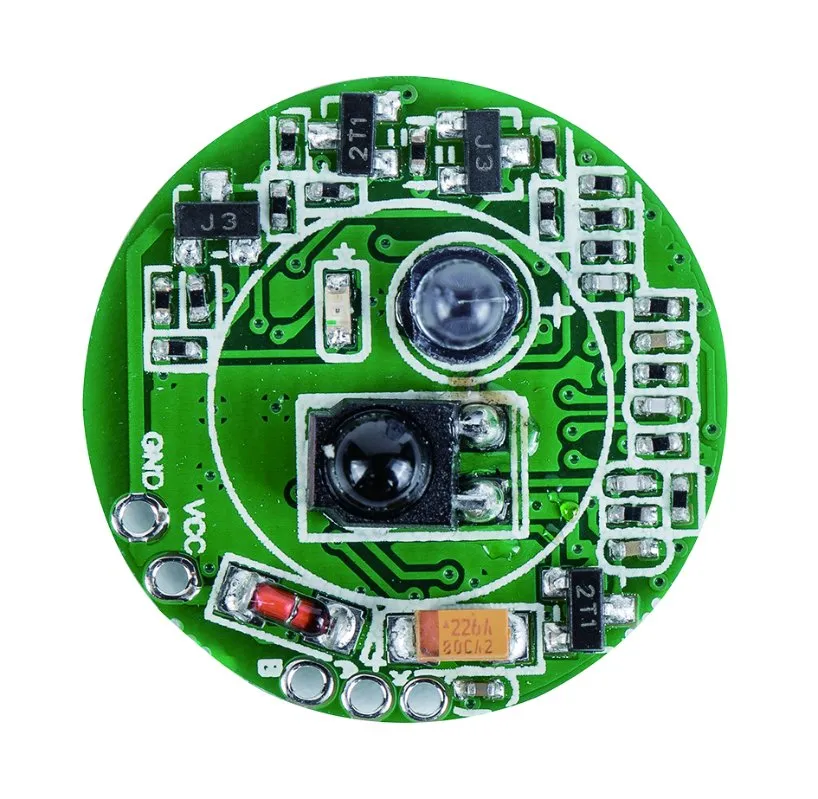

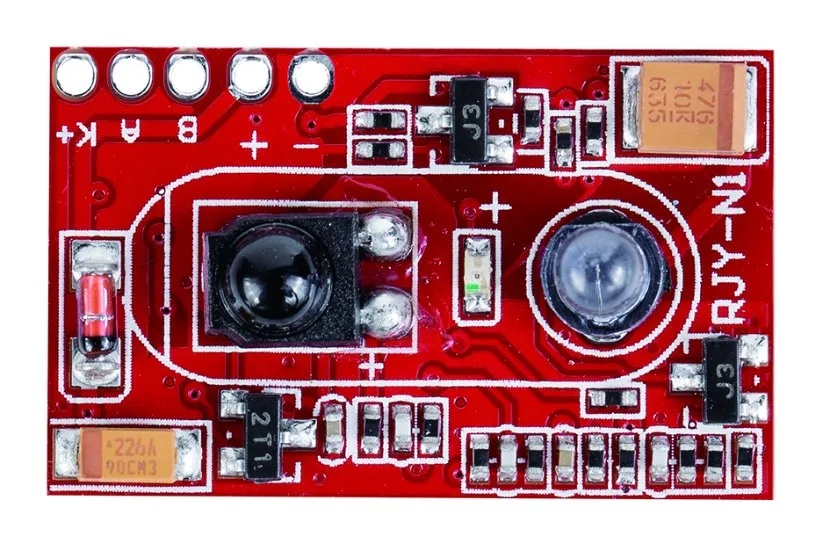

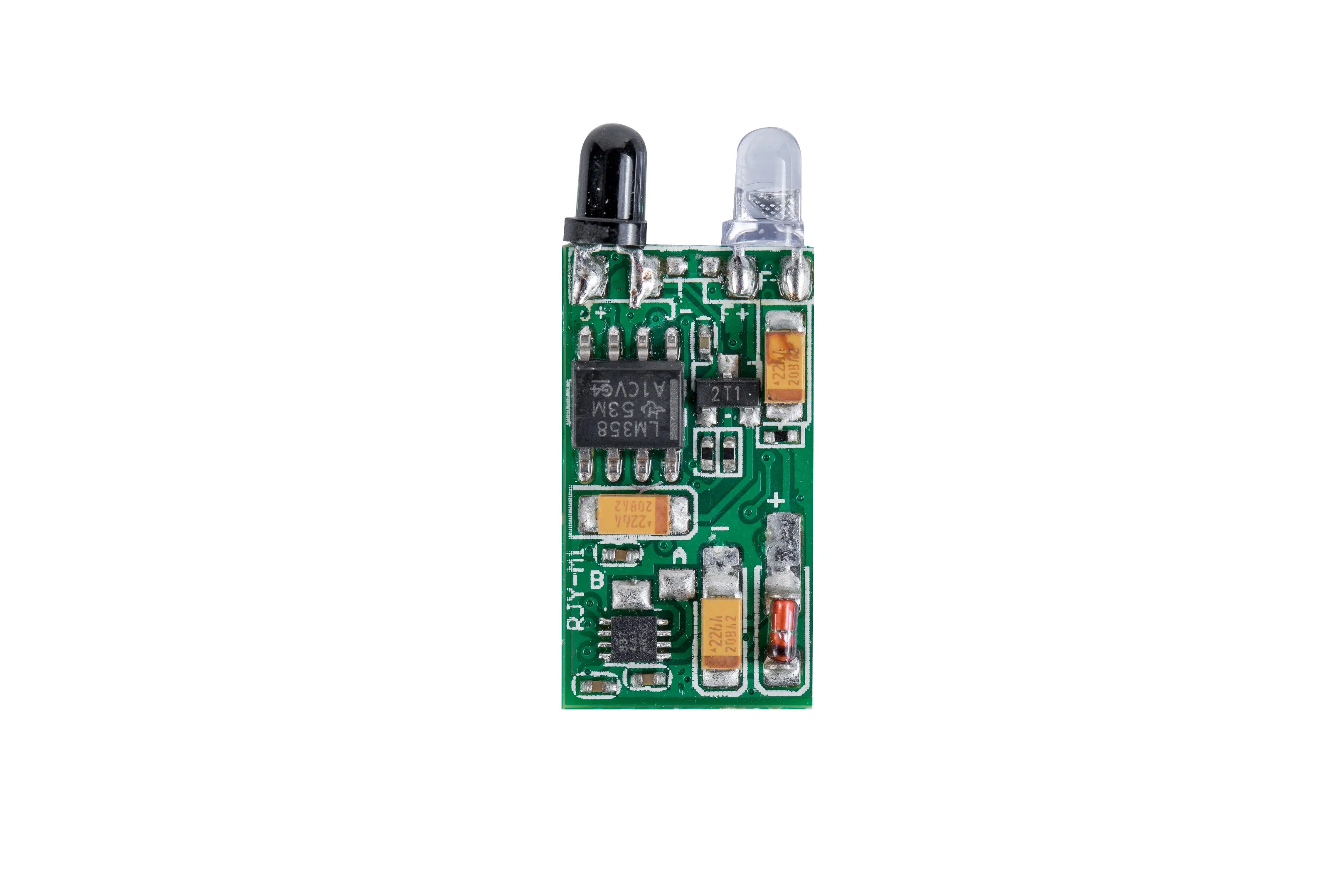

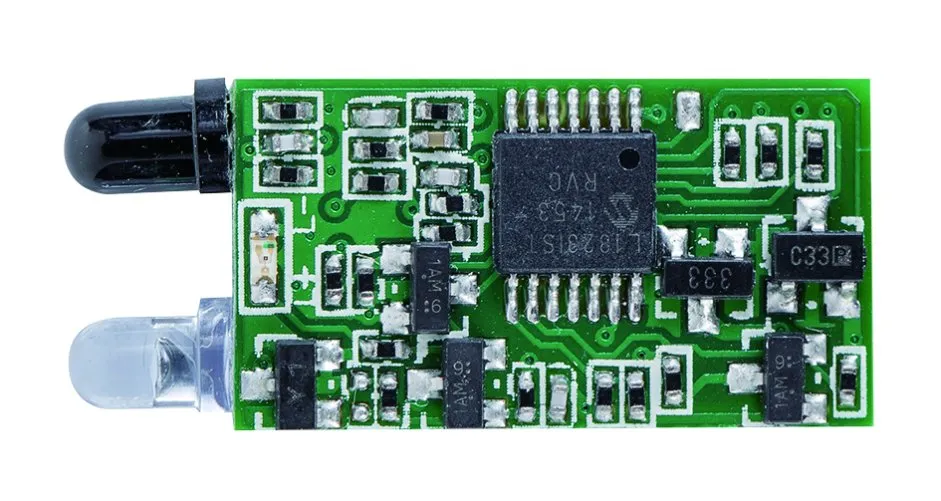

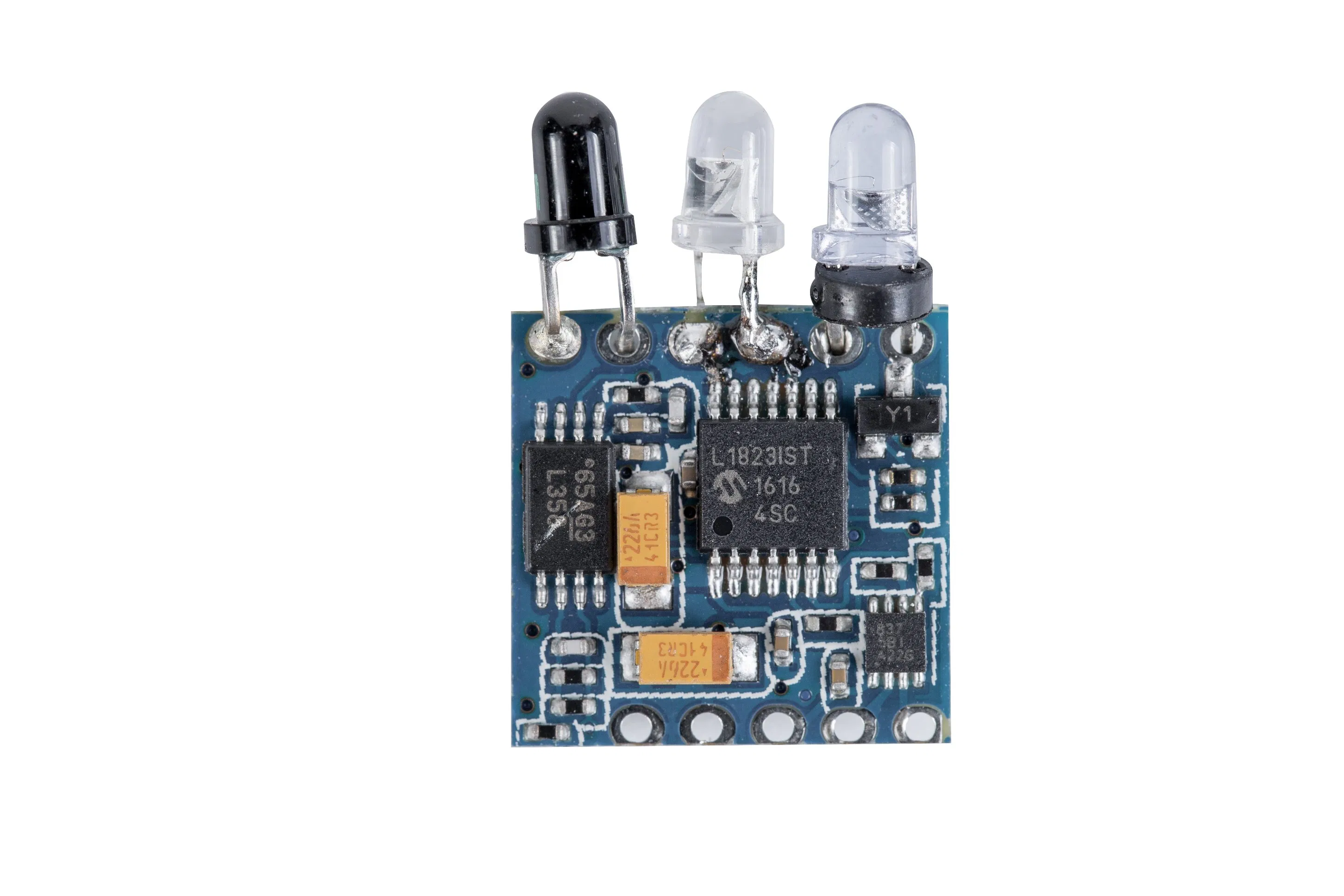

IR Tap Sensor PCB/ PIR Sensor Circuit/ Infrared Tap Sensor PCB for Urinal Toilet Flush Valve
Rajeyn Infrared Sensor Application?This infrared sensor can be used for automatic faucets, urinals, toilets, soap dispensers and water dispensers/water fountains.We have different sensor eyes and wires for your selection. You can choose the appropriate sensor eye/sensor case for your touchless syste......
Send Inquiry
Product Description
Rajeyn Infrared Sensor Application?
This infrared sensor can be used for automatic faucets, urinals, toilets, soap dispensers and water dispensers/water fountains.

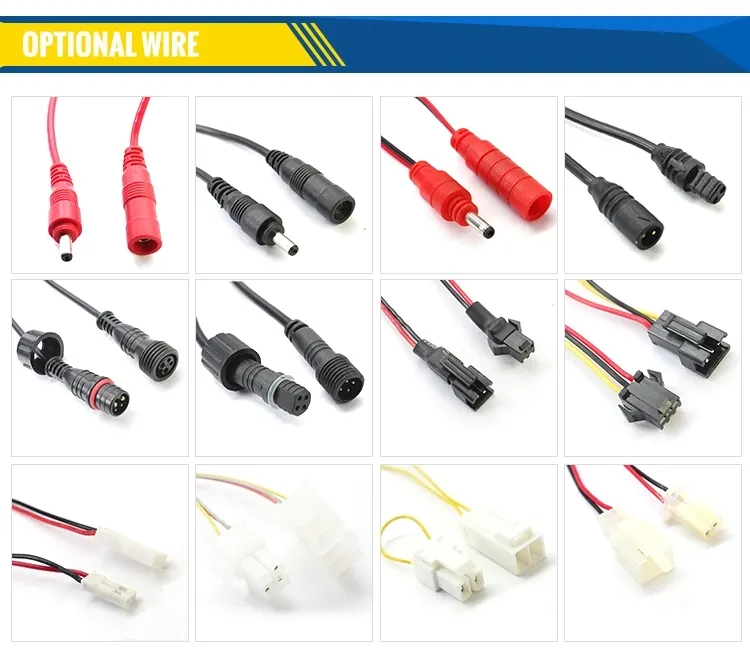

We have different sensor eyes and wires for your selection. You can choose the appropriate sensor eye/sensor case for your touchless system.
The sensors are very much popular in market for faucets, urinal toilet flush valve,soap dispensers and water fountains. We are capable of providing tailor-made functions for you!
Why Choose Rajeyn Infrared Sensor?
1. There are four different working modes in one PCB/Sensor, including sensor faucet, sensor urinal, sensor toilet and sensor shower, which can be automatically switched by a remote controller.
2. Adjustable sensor distance/flush duration/soap volume by remote controllers.
3. Low power consumption.4AA alkaline batteries will last about 1.5-2 years with 100 cirlces per day.
4. Glue potting with strong moistureproof function.Sensor waterproof grade IP67.
5. High anti-interference and anti-vibration performance.

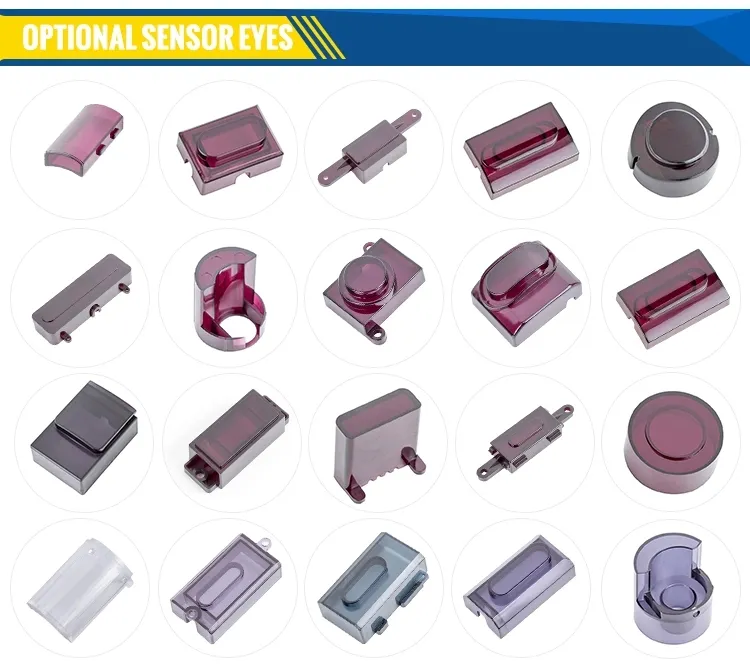

6. We have more than 50 different sensor eyes and different wires for selection.
This infrared sensor can be used for automatic faucets, urinals, toilets, soap dispensers and water dispensers/water fountains.
We have different sensor eyes and wires for your selection. You can choose the appropriate sensor eye/sensor case for your touchless system.
The sensors are very much popular in market for faucets, urinal toilet flush valve,soap dispensers and water fountains. We are capable of providing tailor-made functions for you!
| Power supply | DC 4.3~6.4V |
| Static power | ≤0.15mw(≤25uA) |
| Sensor distance | Reference: hand or human body |
| Sensor range can be tailor-made based on customer's request. | |
| We have a remote controller to adjust sensor range. | |
| Sensor range | 180mm-380mm (faucet) |
| 400mm-800mm (urinal) | |
| 400mm-800mm (toilet) | |
| Sensor range error | ±10% of the rated sensor range |
| Max output current | 800mA |
| Output pulse width | 35ms |
| Low voltage alarm | Working voltage≤4.4±0.2, sensor alarm |
| Security stop | 60s |
| Shock resistance | Hit or beat is not allowed |
| Usage | Used for sensor faucet, urinal, toilet, concealed cistern etc. |
| Sensor life circle | 500,000 circles |
| Warranty | 1 year |
| National Patent | ZL2007200068368 |
Why Choose Rajeyn Infrared Sensor?
1. There are four different working modes in one PCB/Sensor, including sensor faucet, sensor urinal, sensor toilet and sensor shower, which can be automatically switched by a remote controller.
2. Adjustable sensor distance/flush duration/soap volume by remote controllers.
3. Low power consumption.4AA alkaline batteries will last about 1.5-2 years with 100 cirlces per day.
4. Glue potting with strong moistureproof function.Sensor waterproof grade IP67.
5. High anti-interference and anti-vibration performance.
6. We have more than 50 different sensor eyes and different wires for selection.
