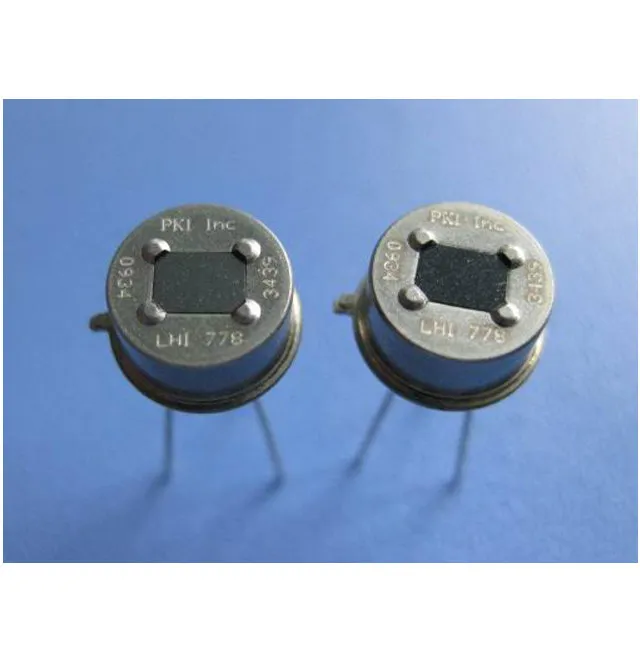

High End Dual Element Detector Designed for PIR Alarms Lhi968

Pyroelectric detector LHI968 Dual element detector PIR Sensor
High end dual element Detector designed for PIR alarms LHI968
Pyroelectric infrared sensor LHI968 (electronic component) LHI968

Brief Introduction:
1.  Element size: 2*1 mm2
2.  Output Impedance: 5-10 kW
3.  Operating Voltage: 2-15V
4.  Operating Temperature: -40 85 °C
5.  Storage Temperature: -40 85 °C

Pyroelectric detector LHI878 Dual element configuration including FET and optical window
RFI protection

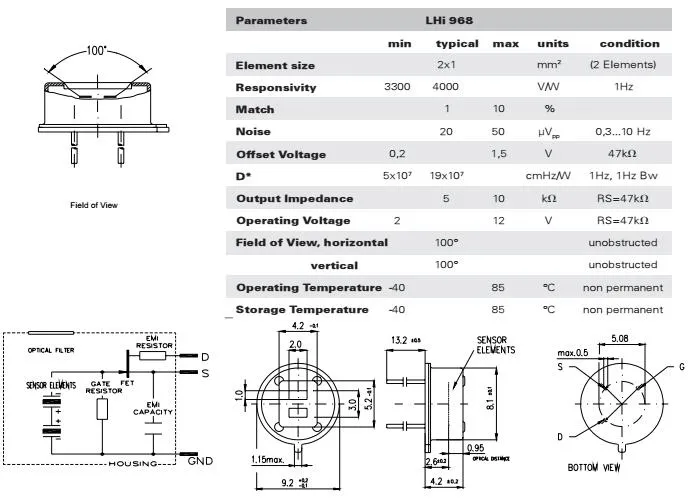

Specifaction

High end dual element Detector
designed for PIR alarms


Working Principle

Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.

Feature
1. Low noise, high detection
2. Excellent common mode balance- dual elements
3. To-39, To-5 encapsulation
4. Apply to both narrow and broad band filters
5. Signal channel or double channels pattern
6. Dual pattern apply to burglar alarm

Typical  Application
1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement

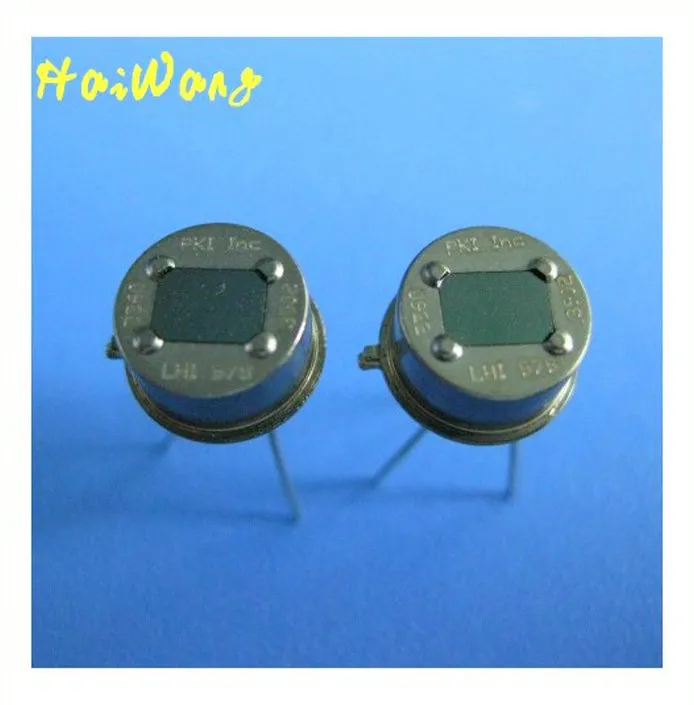

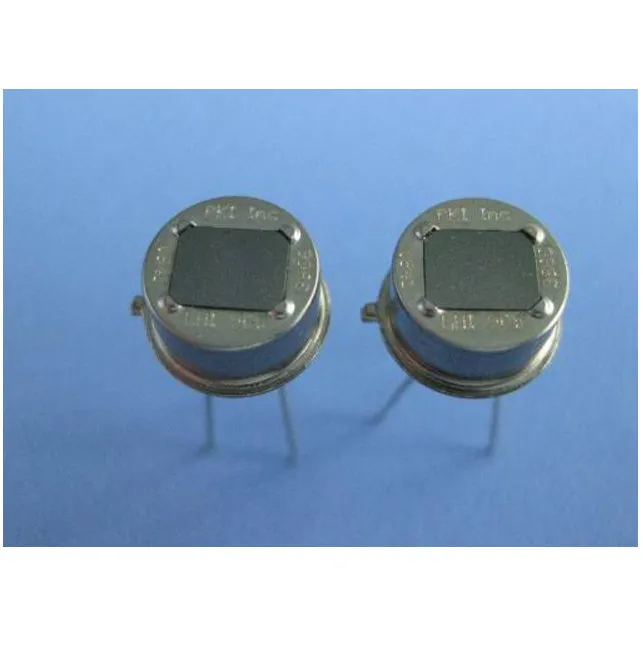

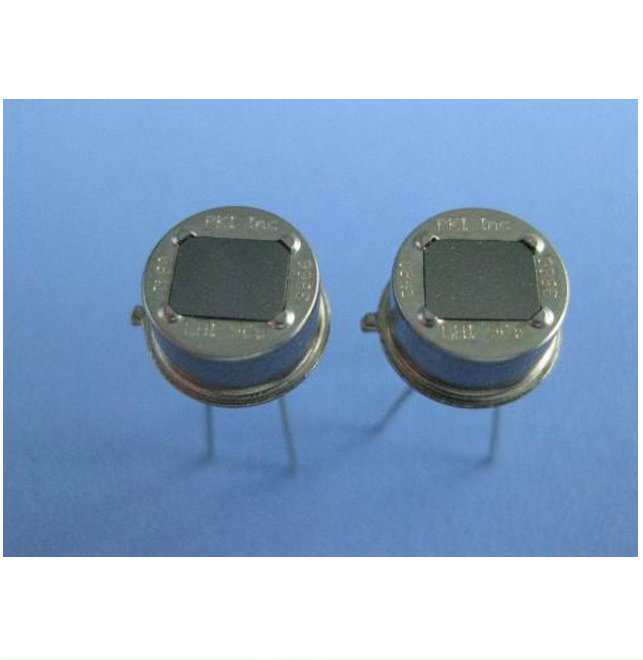

Picture Show

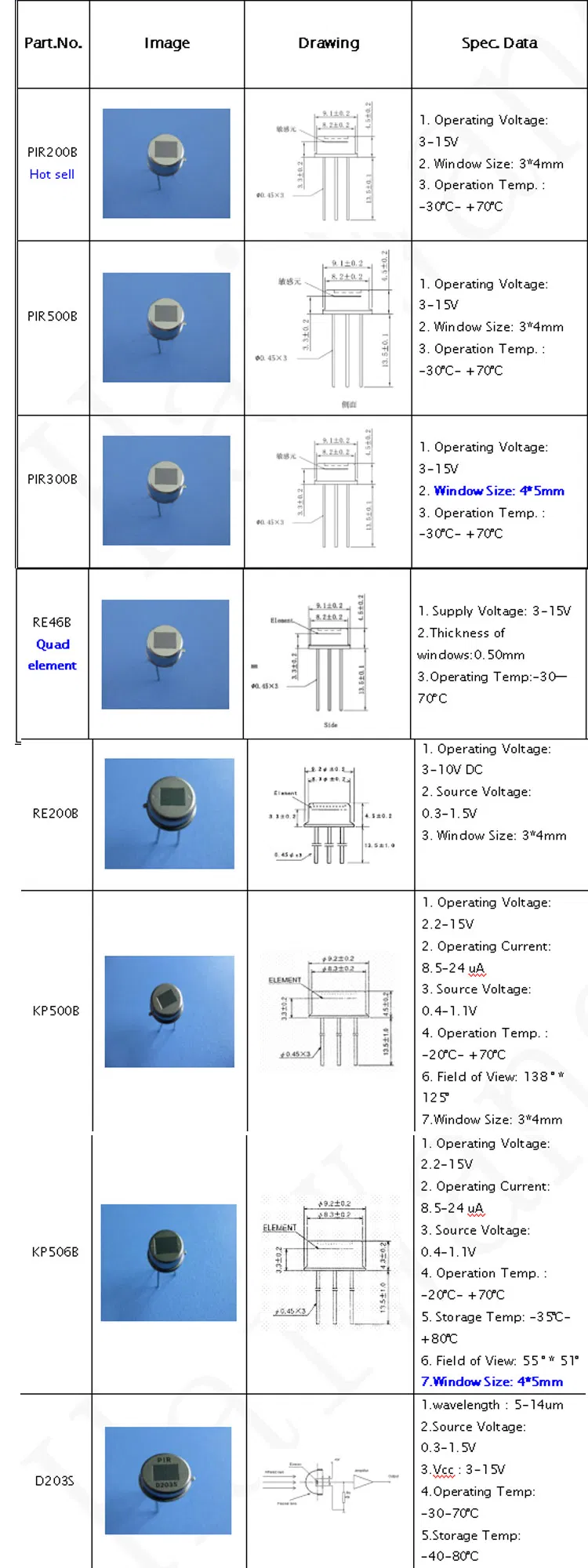

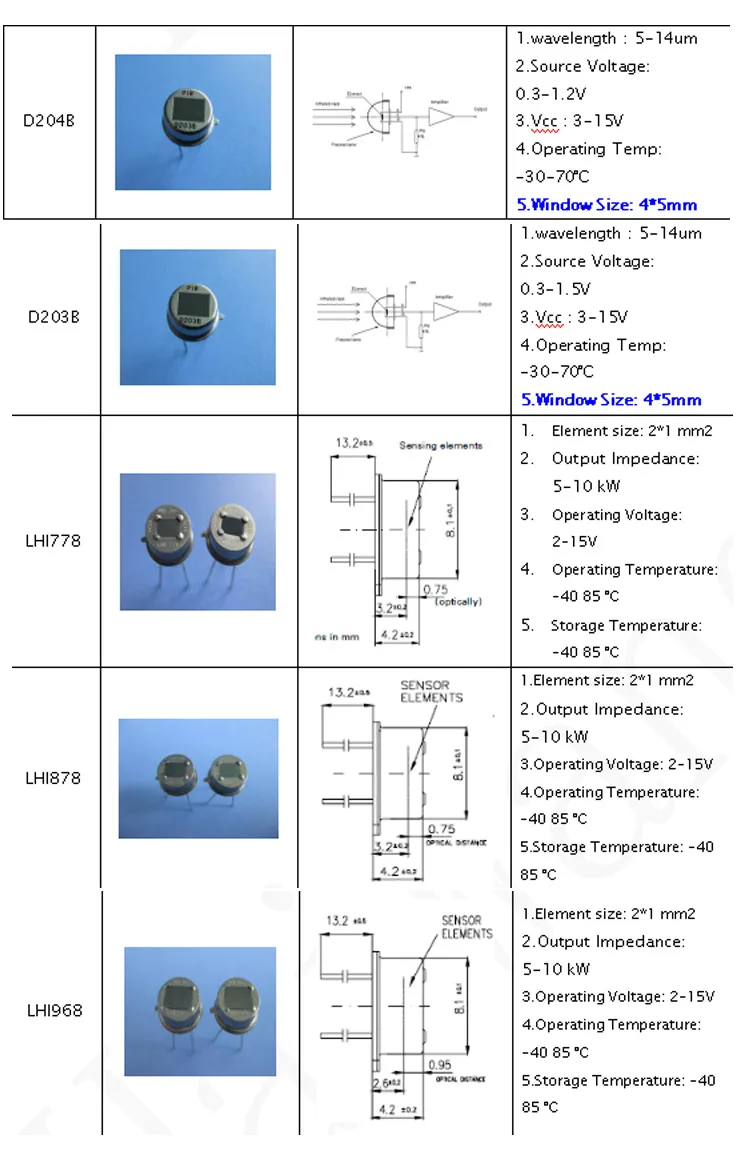

PIR Sensor Series for your choice:

Our Service
1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.
