Product Description

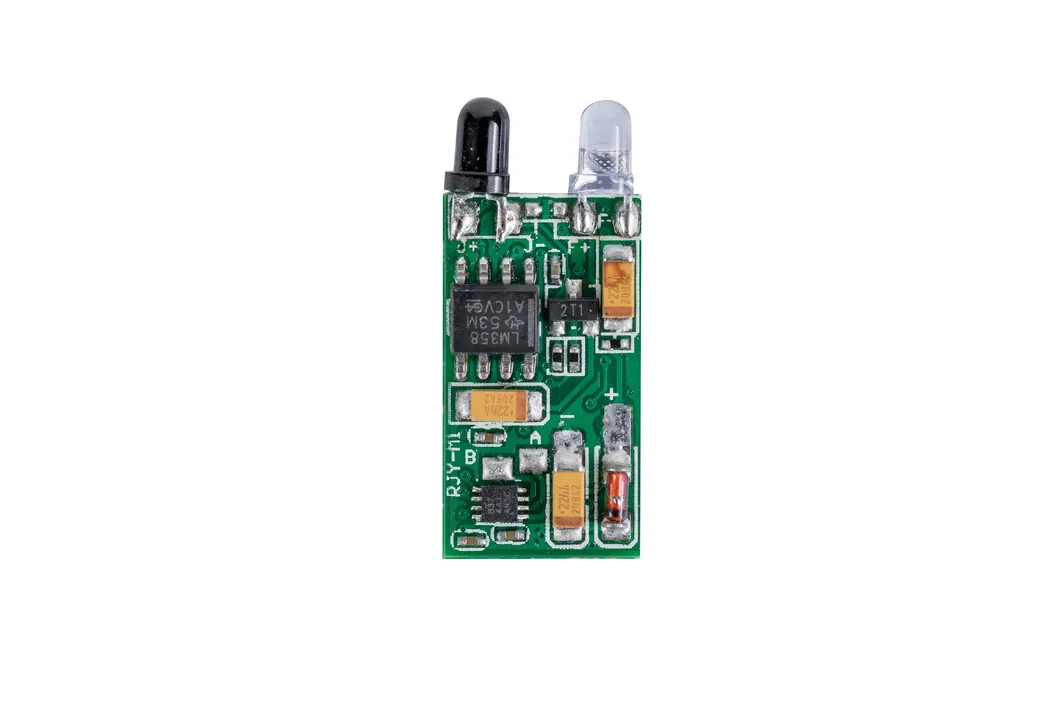

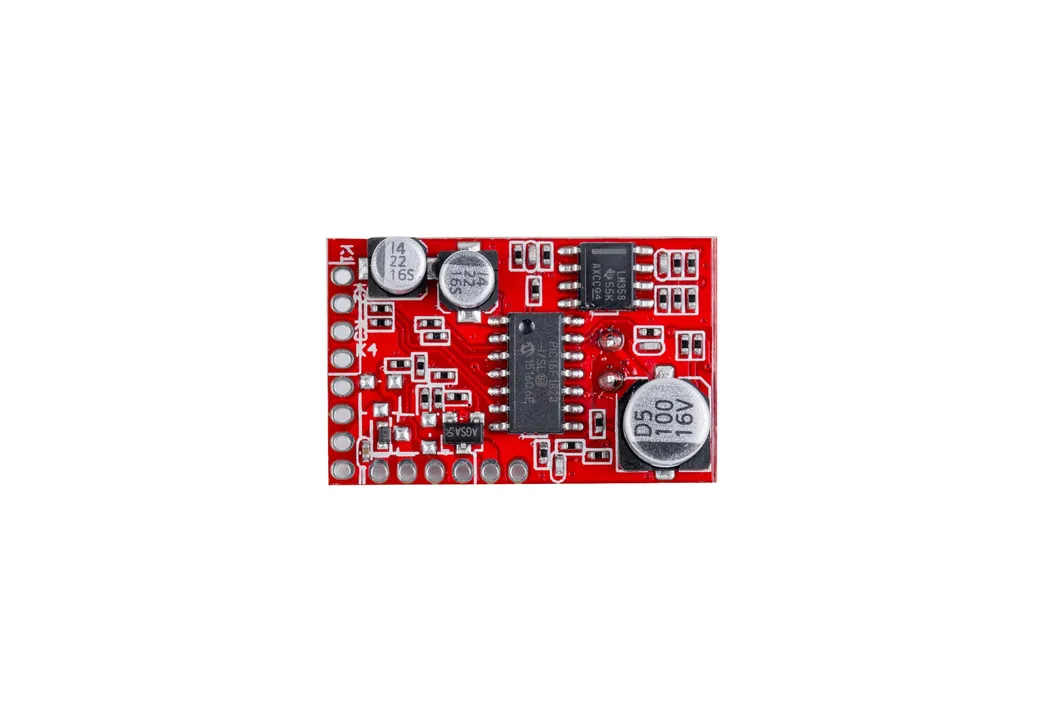

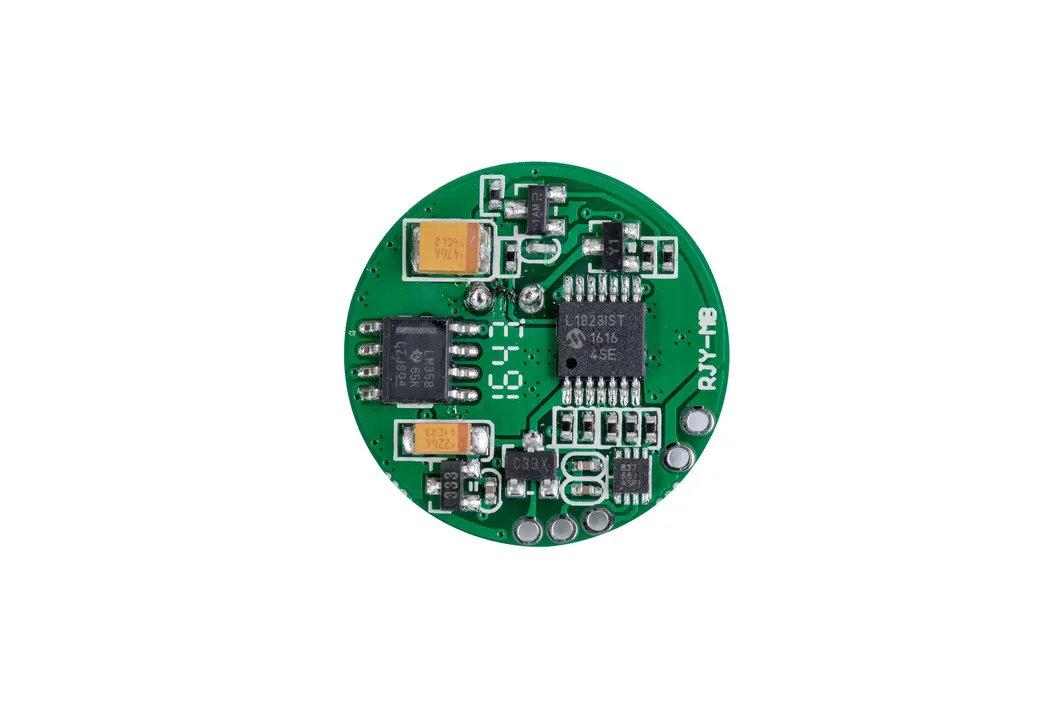

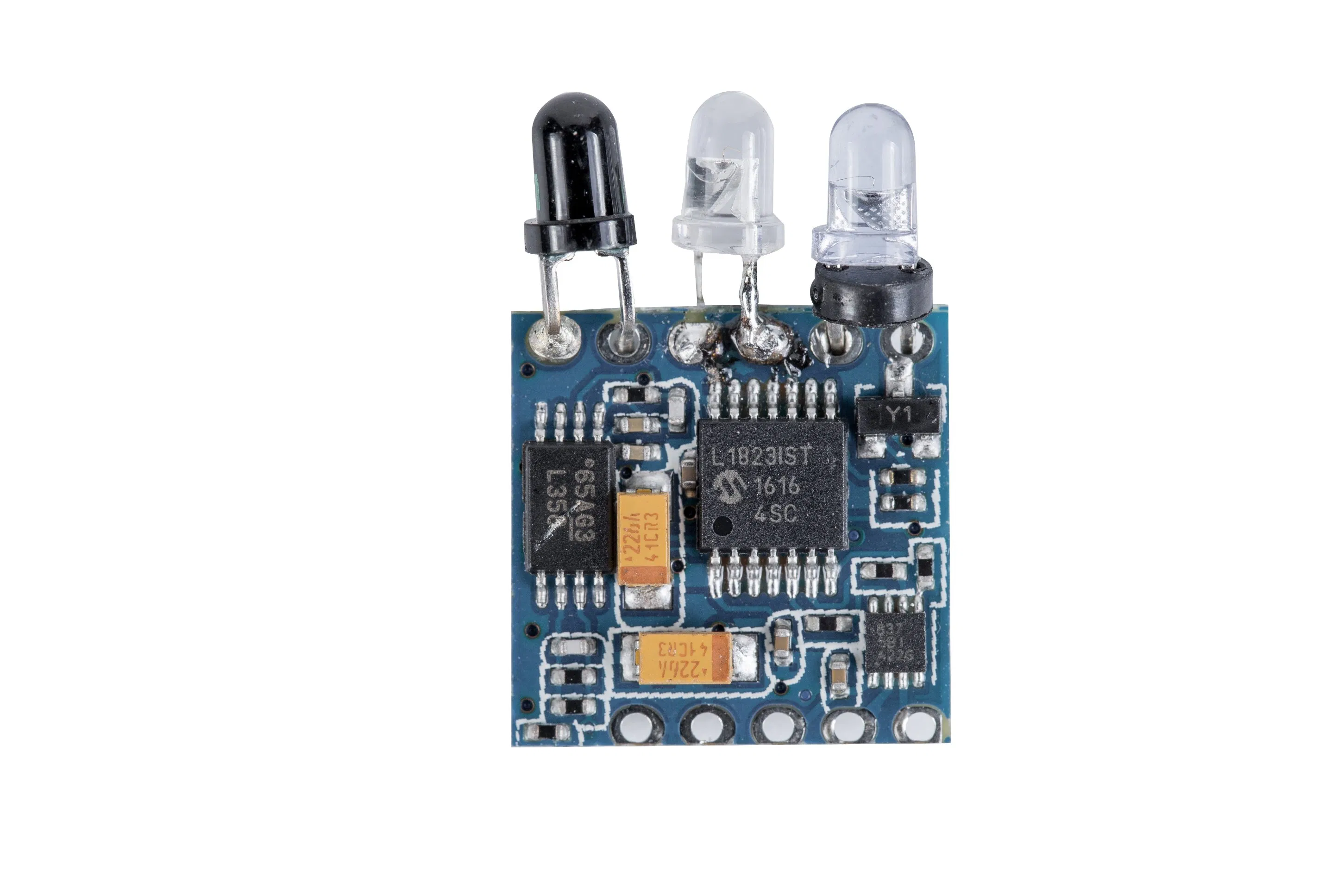

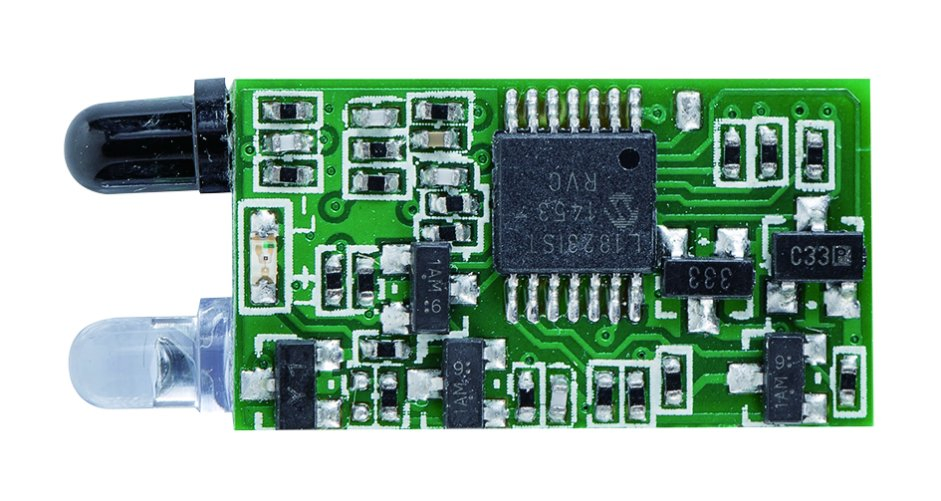

Infrared PIR Motion Sensor Switch PCBA for Automatic Taps and Flush Valves

Power supply	DC 4.3~6.4V
Static power	≤0.15mw(≤25uA)
Default sensor range	280mm (faucet)
	760mm (urinal)
	650mm (toilet)
Sensor range	180mm-380mm (faucet)
	150-200mm (soap dispenser)

Sensor range error	±10% of the rated sensor range
Max output current	800mA
Output pulse width	35ms
Low voltage alarm	Working voltage≤4.4±0.2, sensor alarm
Security stop	60s
Shock resistance	Hit or beat is not allowed
Usage	Used for sensor faucet, urinal, toilet, concealed cistern etc.
Sensor life circle	500,000 circles
Warranty	1 year
National Patent	ZL2007200068368

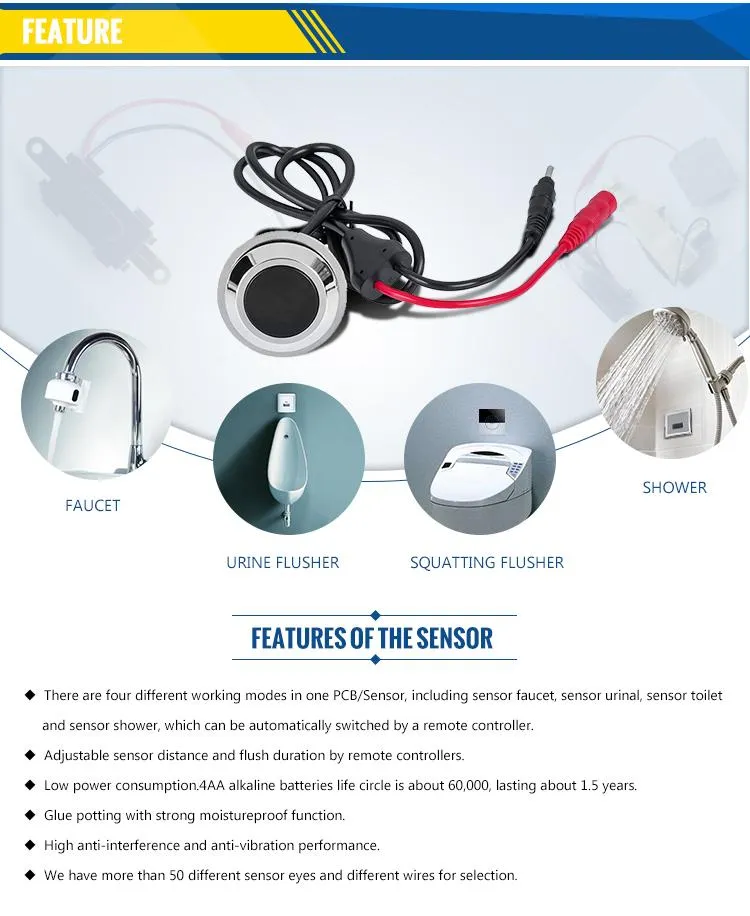

Why Choose Rajeyn Infrared Sensor?
1. PCB/Sensor, including sensor faucet, sensor urinal, sensor toilet and sensor shower, switched by a remote controller.
2. Adjustable sensor distance/flush duration/soap volume by remote controllers.
3. Low power consumption.4AA alkaline batteries will last about 1.5-2 years with 100 cirlces per day.
4. Glue potting with strong moistureproof function.Sensor waterproof grade IP67.
5. High anti-interference and anti-vibration performance.

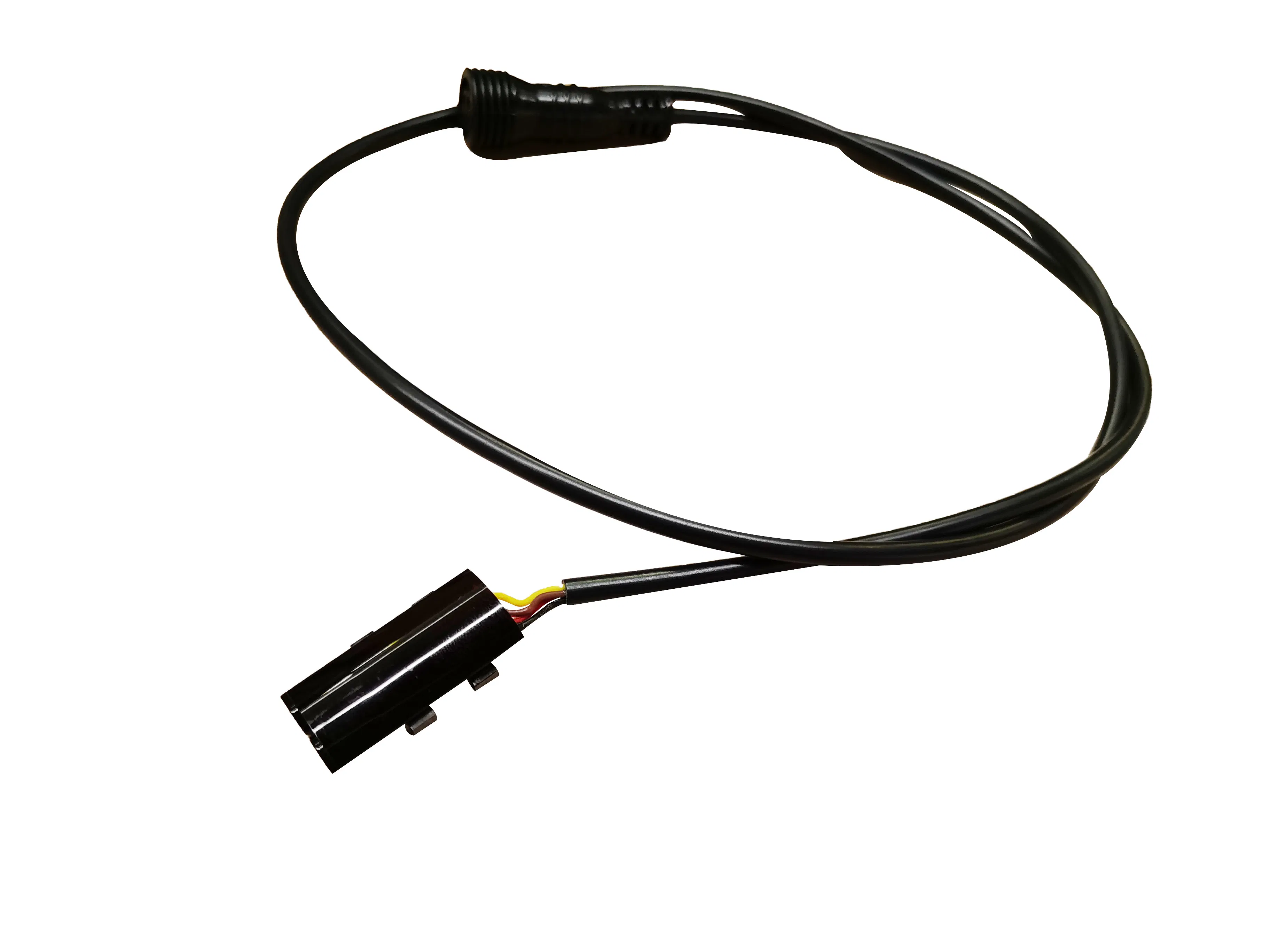

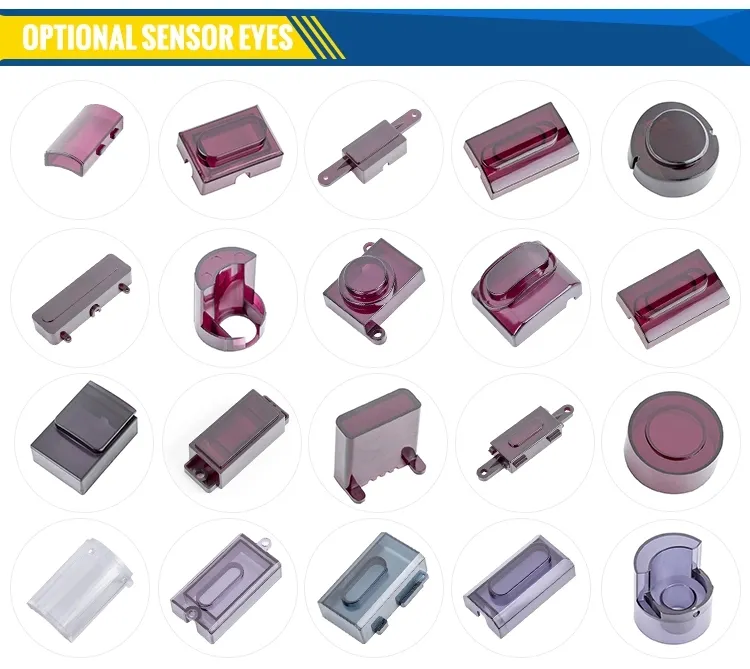

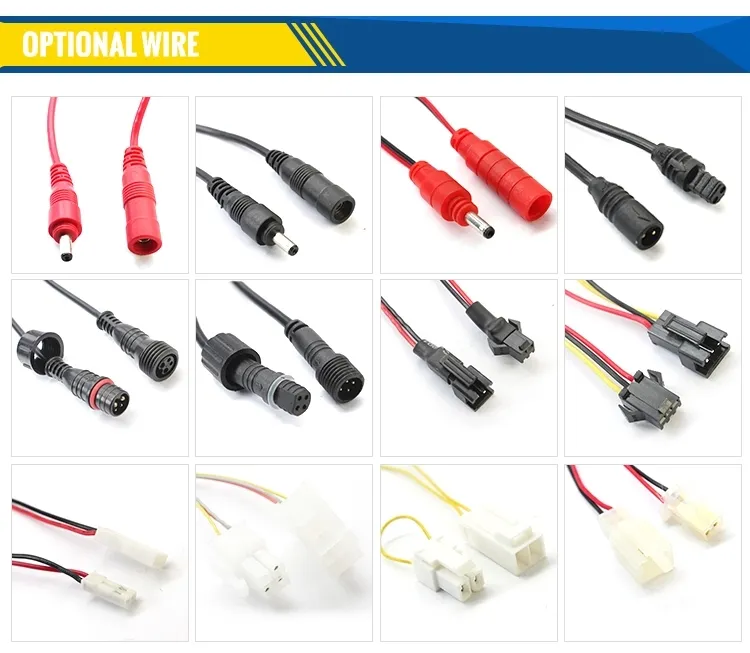

6. We have more than 50 different sensor eyes and different wires for selection.

Applications
Infrared active technology, this circuit is designed for a wide range of applications in automatic products such as sensor faucets, automatic urinal flush and WC toilet flush valves. A variety of sensor housings and wire connections are optional.
Anti-interference, to withstand sunlight, light, and other systems.
Customized setting: working modes and parameters can adjust with a remote.
