Motion Sensor for Water Dispenser Urinal

Product Description

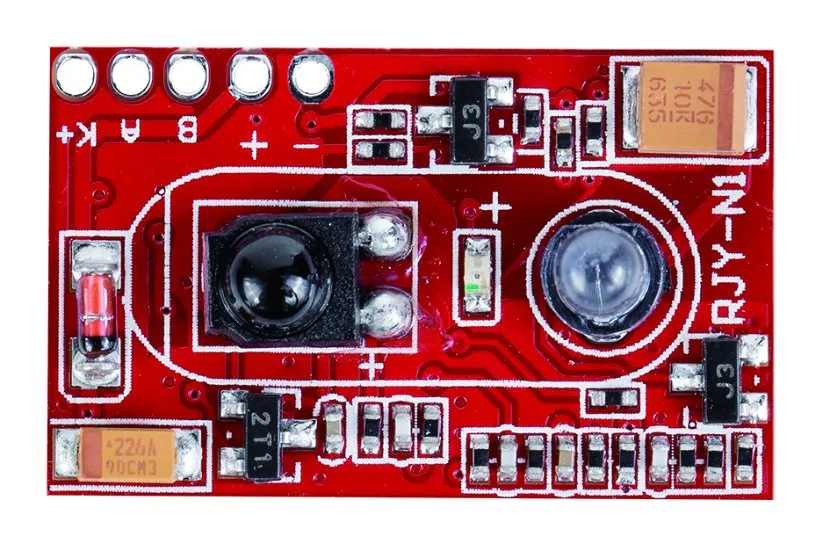

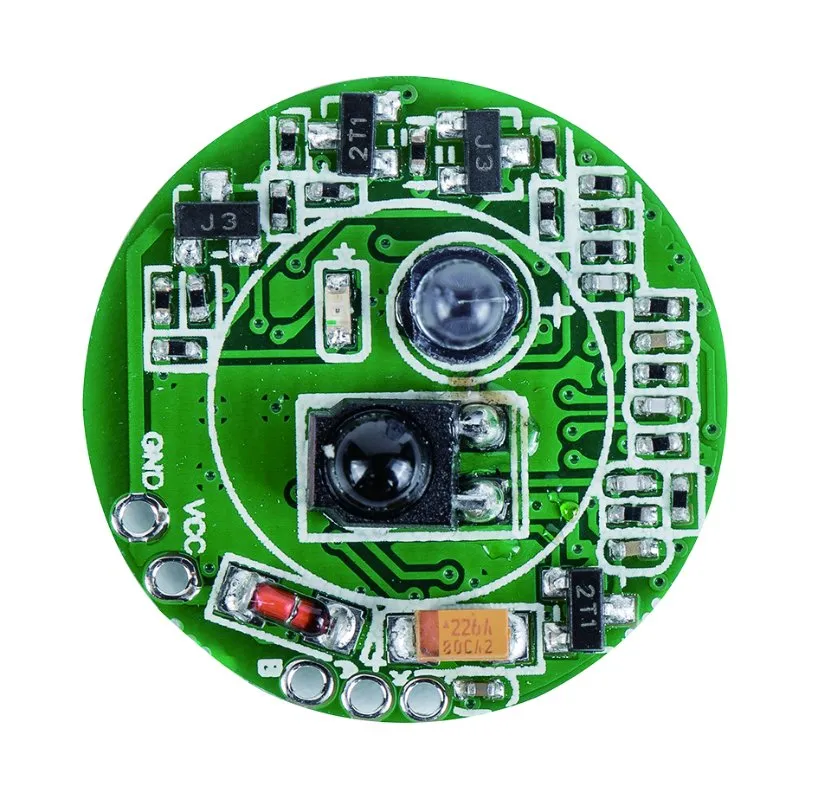

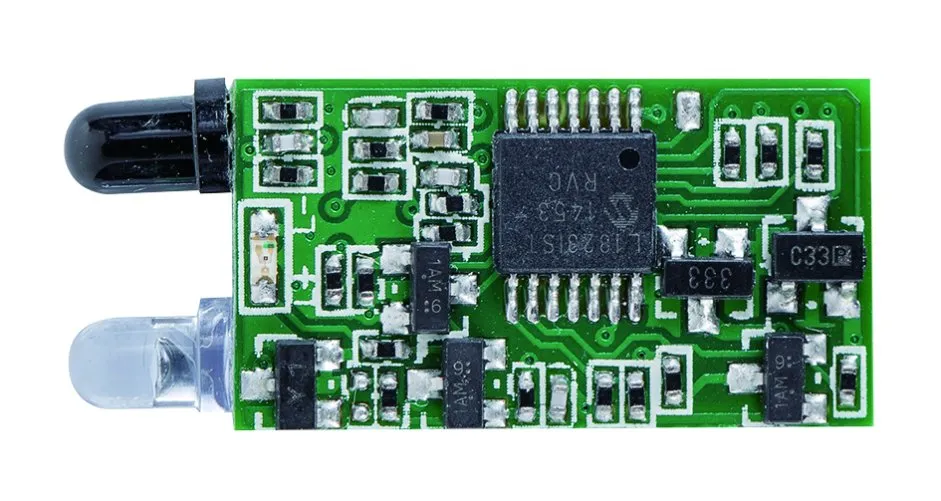

Automatic liquid foam soap dispenser sensor module pcb

Rajeyn Infrared Sensor Application?
This infrared sensor can be used for automatic faucets, urinals, toilets, soap dispensers and water dispensers/water fountains.
Sensor range and flush duration is adjustable by a remote controller.

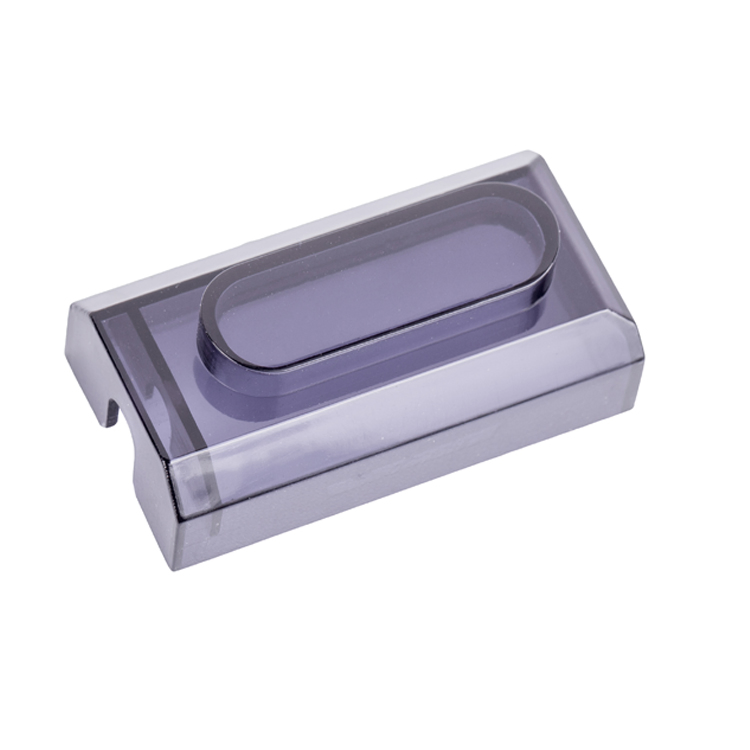

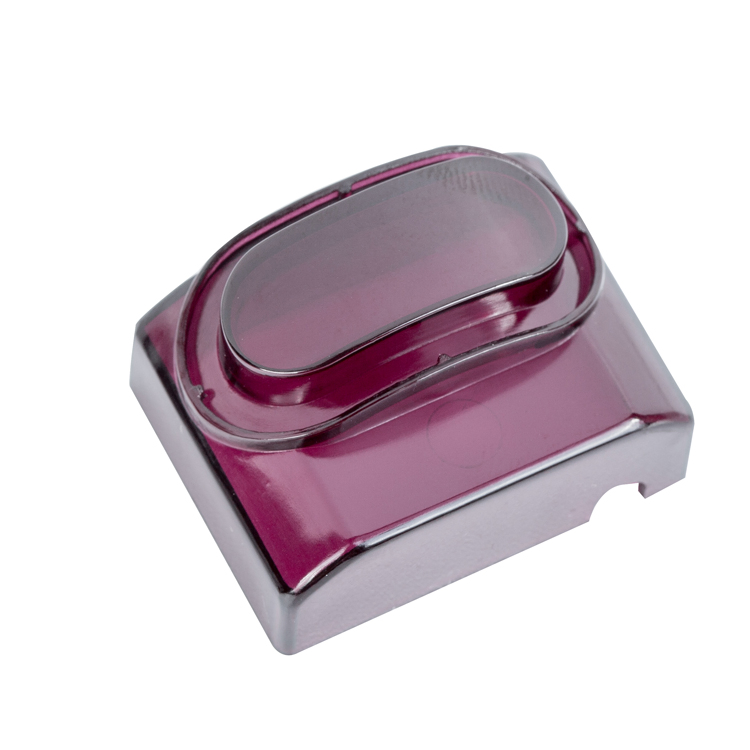

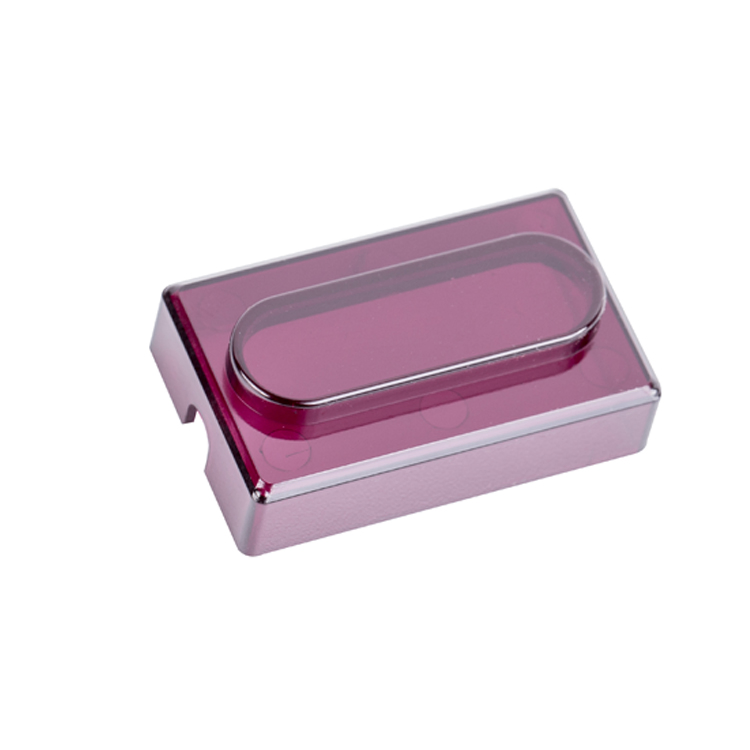

We have different sensor eyes and wires for your selection. You can choose the appropriate sensor eye/sensor case for your touchless system.

Automatic Tap Infrared Motion Sensor

Power supply	DC 4.3~6.4V
Static power	≤0.15mw(≤25uA)
Sensor distance	Reference: hand or human body
	Sensor range can be tailor-made based on customer's request.
	We have a remote controller to adjust sensor range.
Sensor range	180mm-380mm (faucet)
	400mm-800mm (urinal)
	400mm-800mm (toilet)
Sensor range error	±10% of the rated sensor range
Max output current	800mA
Output pulse width	35ms
Low voltage alarm	Working voltage≤4.4±0.2, sensor alarm
Security stop	60s
Shock resistance	Hit or beat is not allowed
Usage	Used for sensor faucet, urinal, toilet, concealed cistern etc.
Sensor life circle	500,000 circles
Warranty	1 year
National Patent	ZL2007200068368

Why Choose Rajeyn Infrared Sensor?
1. There are four different working modes in one PCB/Sensor, including sensor faucet, sensor urinal, sensor toilet and sensor shower, which can be automatically switched by a remote controller.
2. Adjustable sensor distance/flush duration/soap volume by remote controllers.
3. Low power consumption.4AA alkaline batteries will last about 1.5-2 years with 100 cirlces per day.
4. Glue potting with strong moistureproof function.Sensor waterproof grade IP67.
5. High anti-interference and anti-vibration performance.

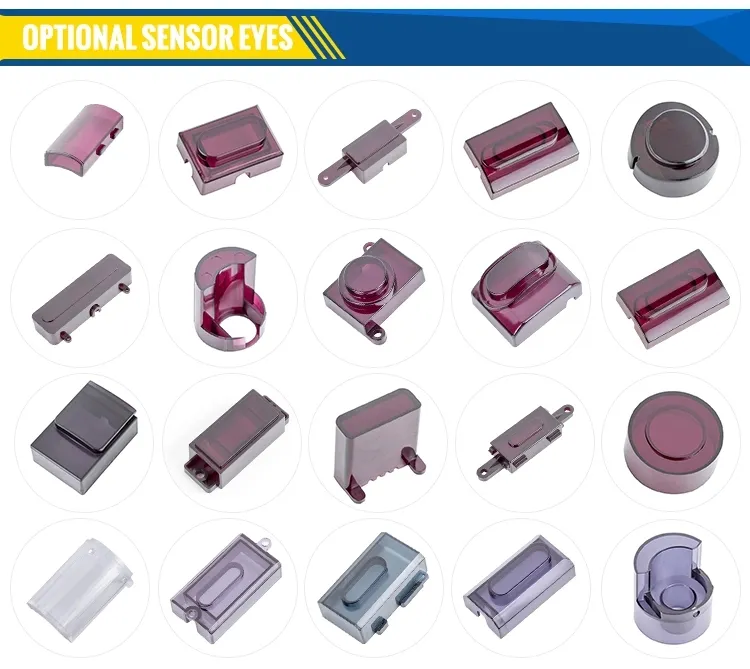

6. We have more than 50 different sensor eyes and different wires for selection.
