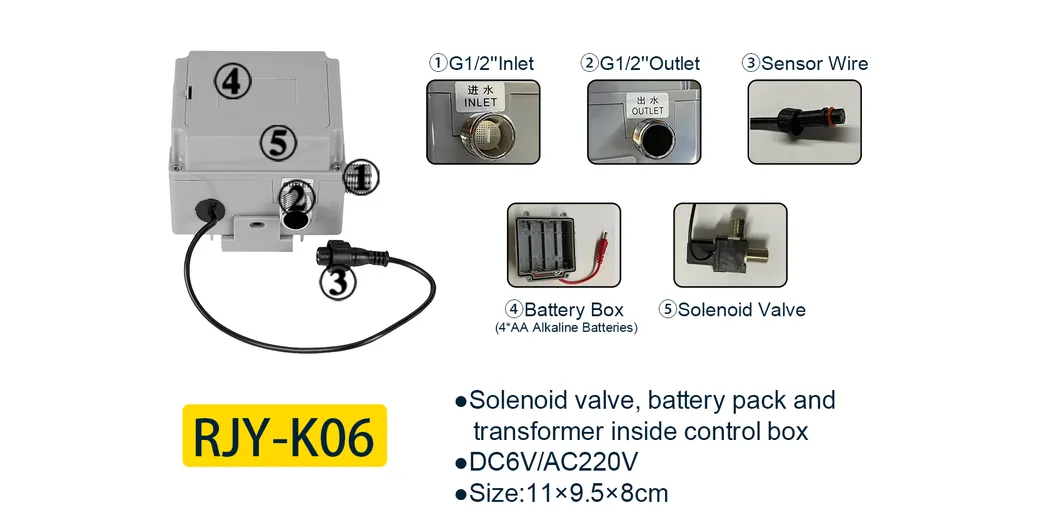

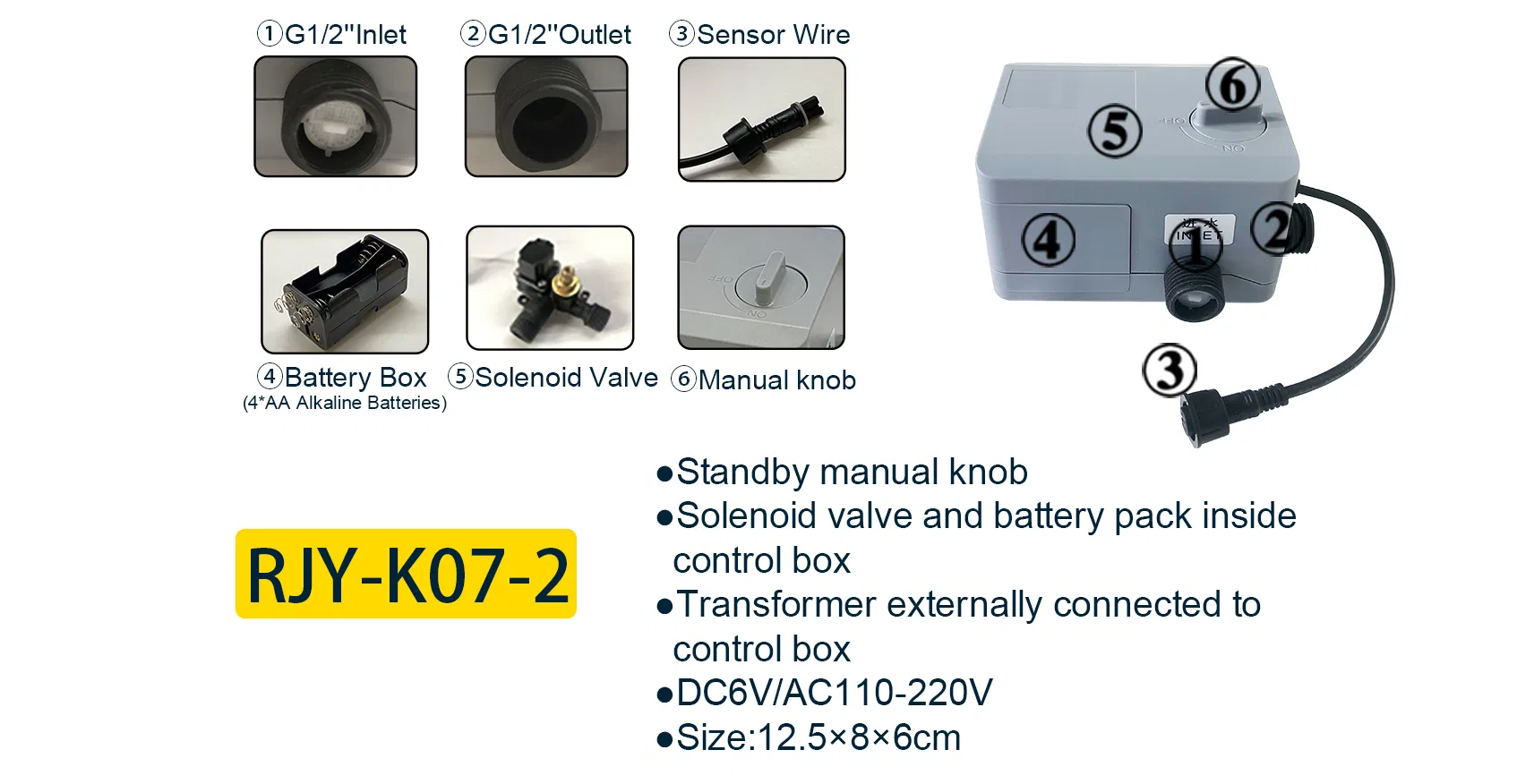

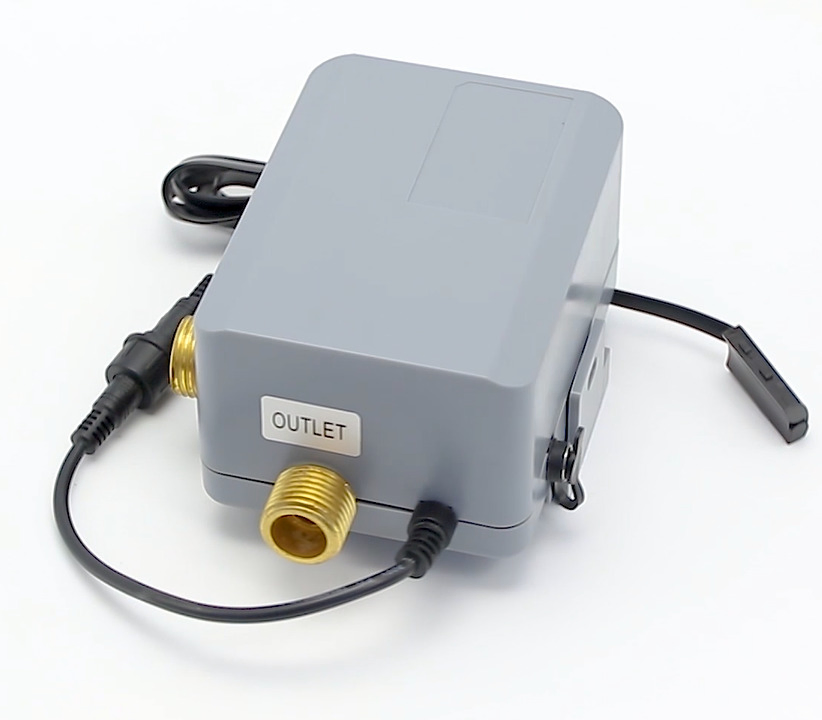

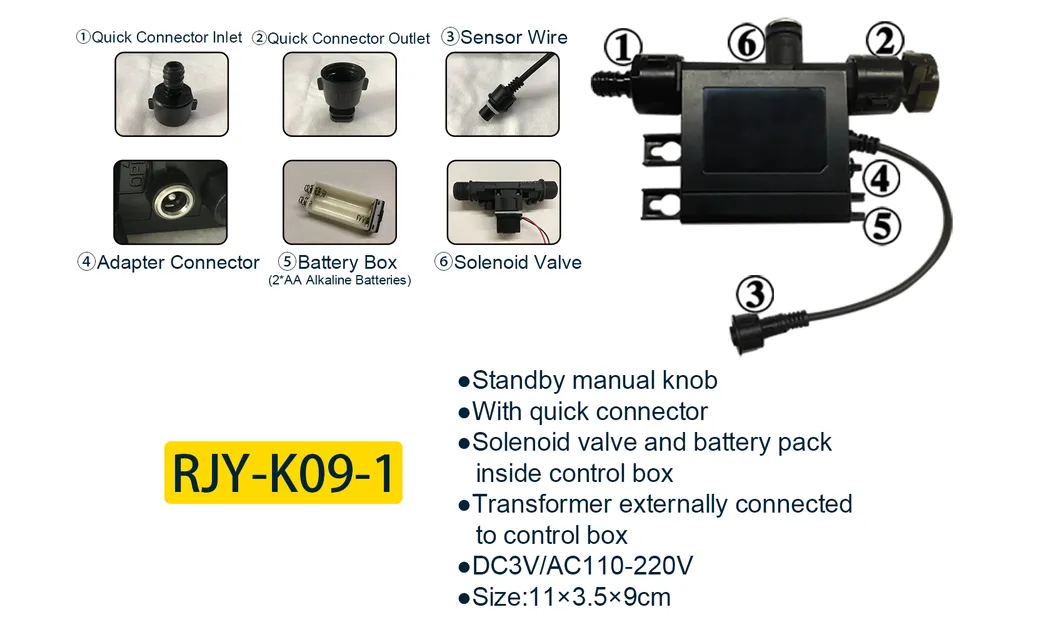

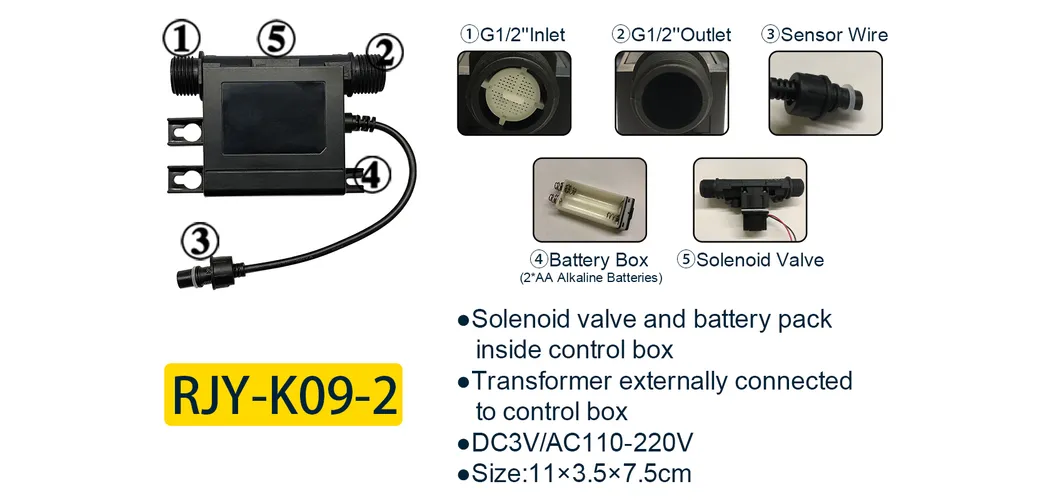

New Design DC Sensor Solenoid Water Swith Control Box for Basin Kitchen Faucet

Automatic tap sensor hands-free electronic infrared touchless smart faucet water tap sensor adapter valve control boxPower supplyDC 4.3~6.4V Static power≤0.15mw(≤25uA)Default sensor range15-22cm (automatic sensor)1-10cm (wave on motion sensor)Sensor distance adjustable by remote contro......

Send Inquiry

Product Description

Automatic tap sensor hands-free electronic infrared touchless smart faucet water tap sensor adapter valve control box

Power supply	DC 4.3~6.4V
Static power	≤0.15mw(≤25uA)
Default sensor range	15-22cm (automatic sensor)
	1-10cm (wave on motion sensor)
	Sensor distance adjustable by remote controller.
Sensor range	Adjusted
	Reference: Hands

Sensor range error	±10% of the rated sensor range
Max output current	800mA
Output pulse width	35ms
Low voltage alarm	Working voltage≤4.4±0.2, sensor alarm
Security stop	60s
Shock resistance	Hit or beat is not allowed
Usage	Used for sensor faucet, urinal, toilet, concealed cistern etc.
Sensor life circle	500,000 circles
Warranty	1 year
National Patent	ZL2007200068368

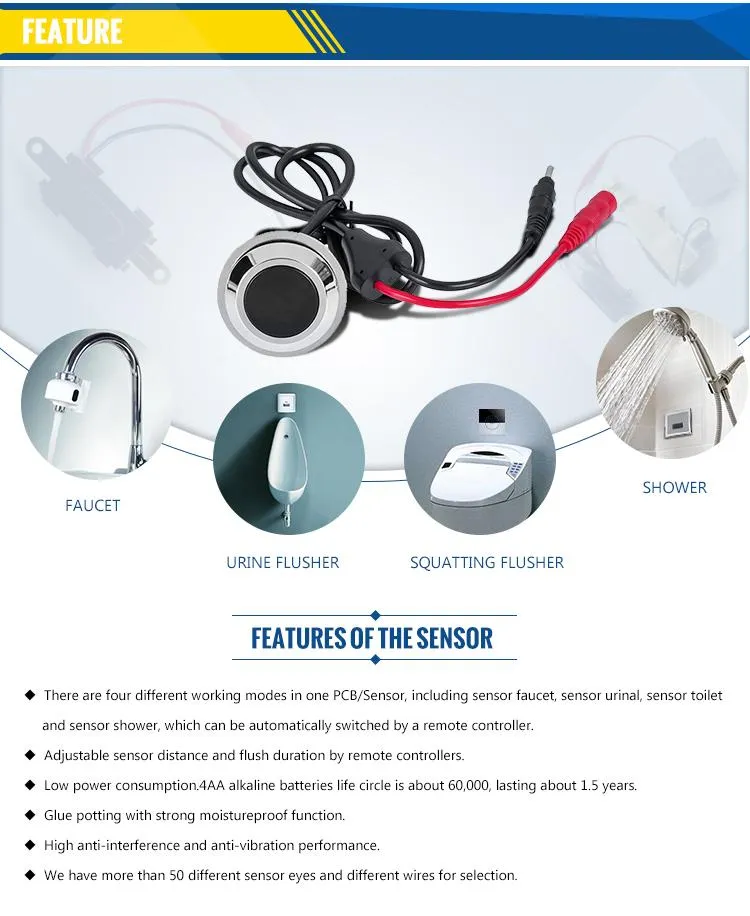

Why Choose Rajeyn Infrared Sensor?

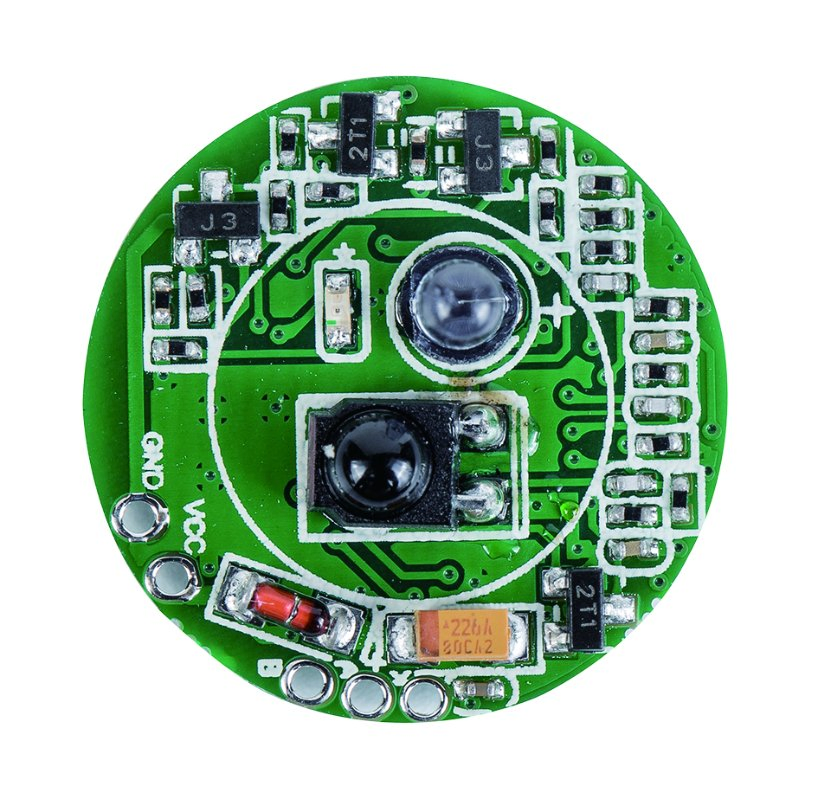

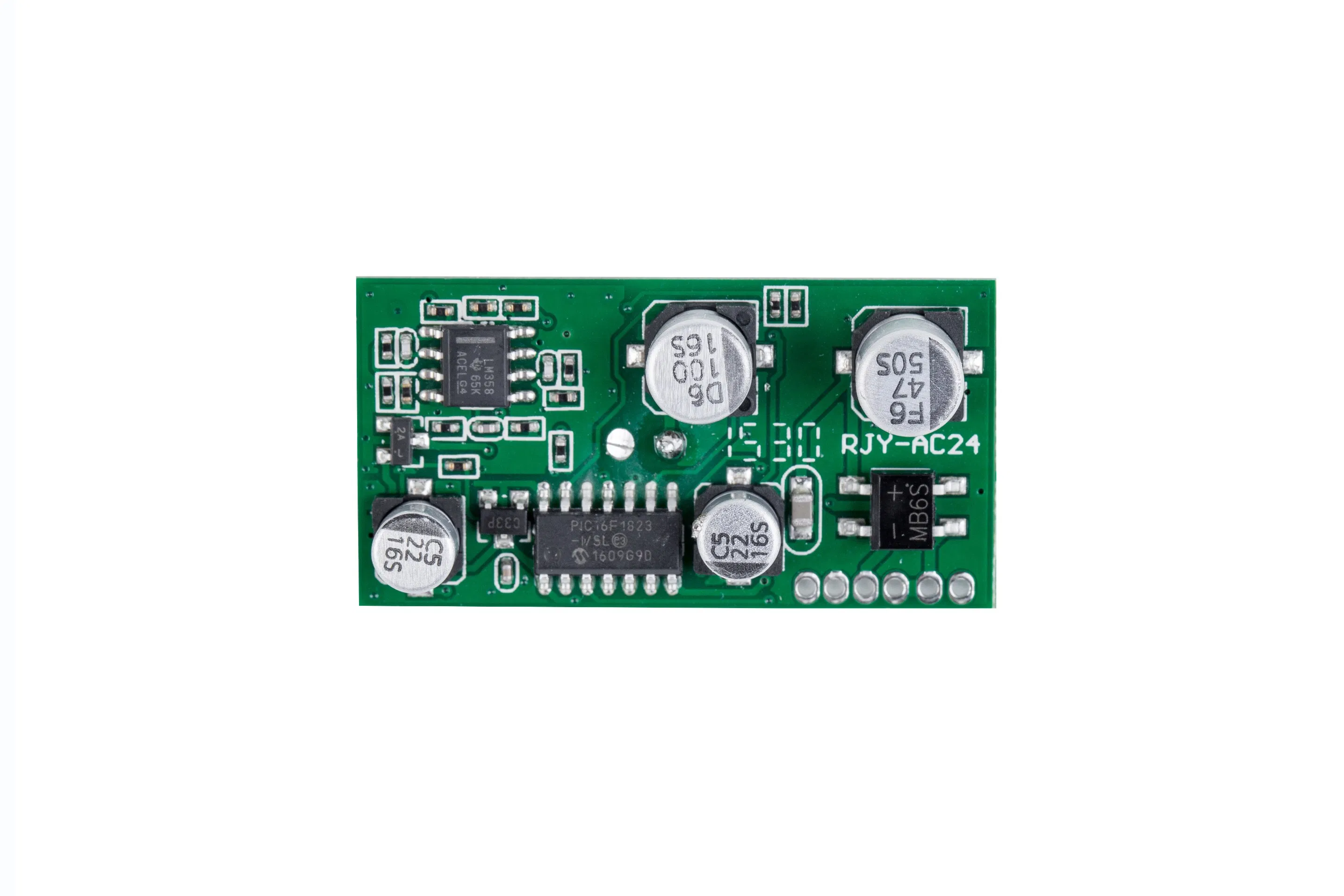

1. PCB/Sensor, including sensor faucet, sensor urinal, sensor toilet and sensor shower, switched by a remote controller.
2. Adjustable sensor distance/flush duration/soap volume by remote controllers.
3. Low power consumption.4AA alkaline batteries will last about 1.5-2 years with 100 cirlces per day.
4. Glue potting with strong moistureproof function.Sensor waterproof grade IP67.
5. High anti-interference and anti-vibration performance.

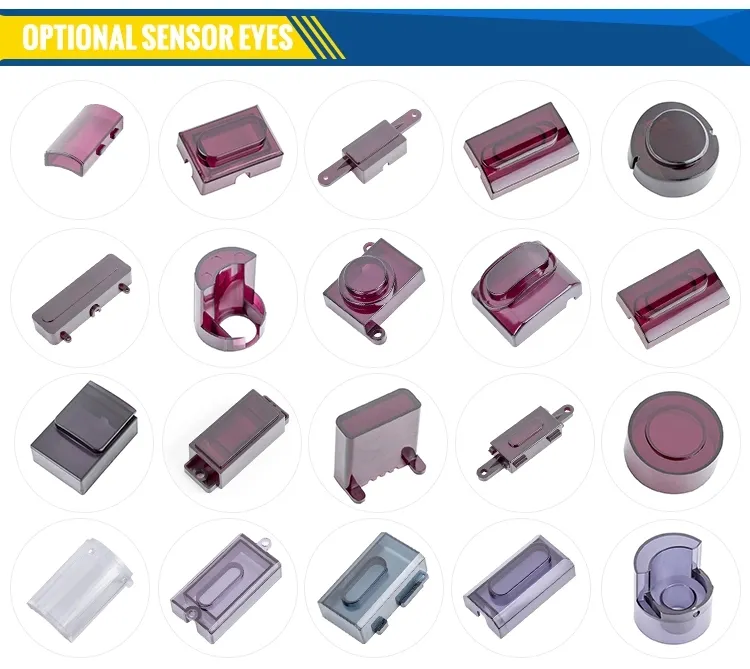

6. We have more than 50 different sensor eyes and different wires for selection.

New Design DC Sensor Solenoid Water Swith Control Box for Basin Kitchen Faucet

Applications
Infrared active technology, this circuit is designed for a wide range of applications in automatic products such as sensor faucets, automatic urinal flush and WC toilet flush valves. A variety of sensor housings and wire connections are optional.
Anti-interference, to withstand sunlight, light, and other systems.
Customized setting: working modes and parameters can adjust with a remote.
