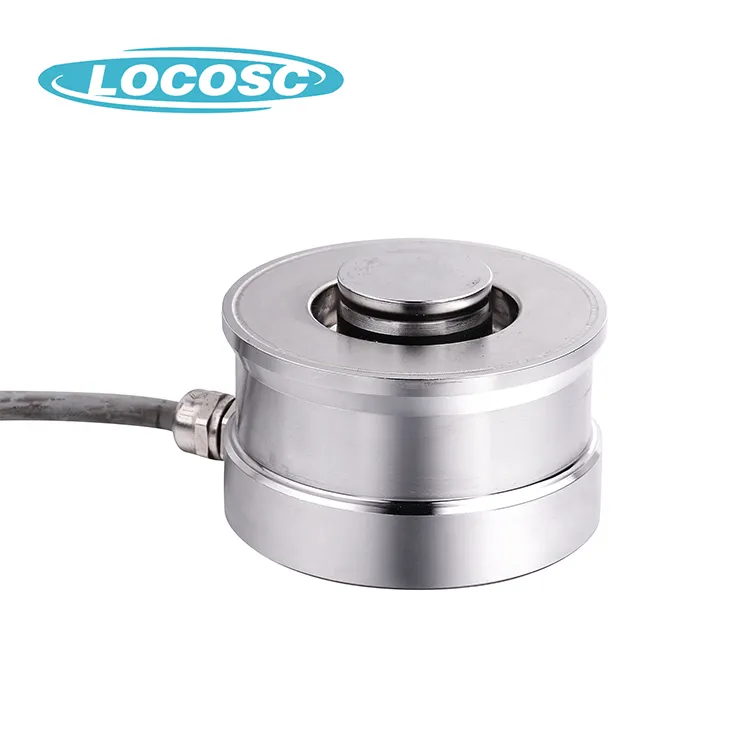

Weighing Equipment Quality-Assured High Accuracy Loadcell 5kg
Packaging Details Packaging Details:Foam and cartonDelivery Time 25 days or order Rated Capacity1/2.2/3.3/4.7/10/15/22/33/47/68/100/150tAccuracy ClassD1Rated Output2.85 ± 0.005mV/VTotal error±0.05%F.SCreep(30min)±0.03%F.SInput Resistance1450±10&Omega......
Send Inquiry
Product Description
Delivery Time 25 days or order

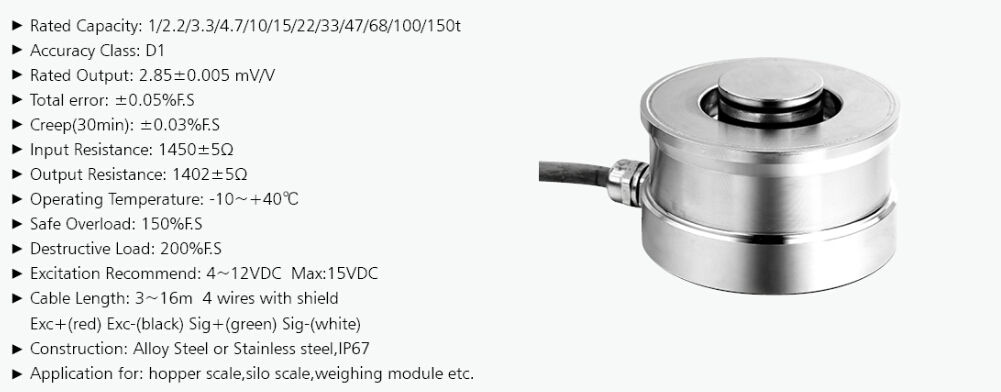

| Rated Capacity | 1/2.2/3.3/4.7/10/15/22/33/47/68/100/150t |
| Accuracy Class | D1 |
| Rated Output | 2.85 ± 0.005mV/V |
| Total error | ±0.05%F.S |
| Creep(30min) | ±0.03%F.S |
| Input Resistance | 1450±10Ω |
| Output Resistance | 1402±3Ω |
| Operating Temperature | -10 - +40ºC |
| Safe Overload | 150%F.S |
| Destructive Load | 200%F.S |
| Excitation Recommend | 4-12VDC Max:15VDC |
| Cable Length | 3~16m 4 wires with shield Exc+(red) Exc-(black) Sig+(green) Sig-(white) |
| Construction | Alloy Steel or Stainless steel ,IP67 |
| Application for | Hopper scale, silo scale, weighing module etc. |
1. What essential information is needed for product selection?
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
2. How will you ensure quality of your products?

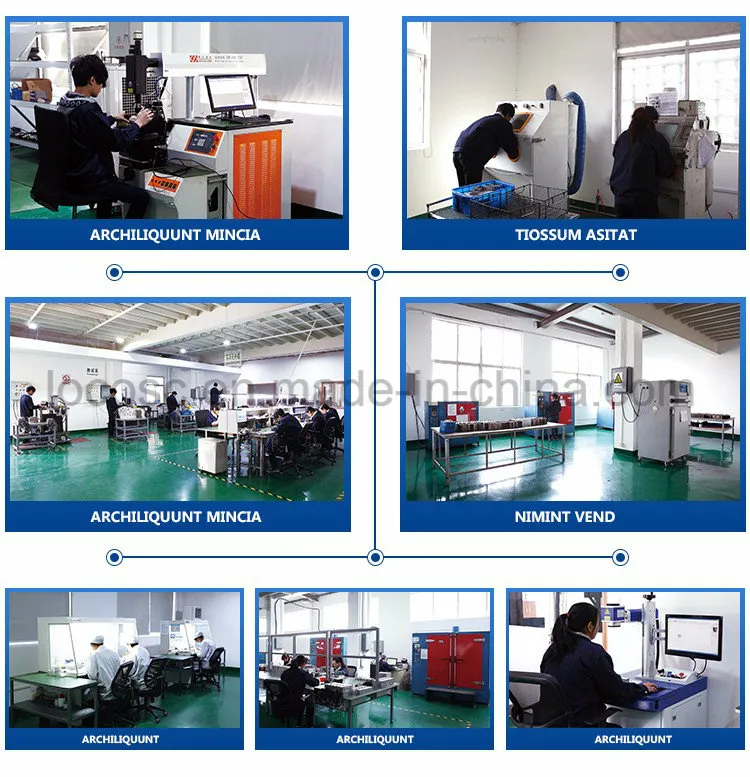

A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
3. What terms of payment is acceptable?
T/T
4. When production could be arranged?
As soon as the payment was received.
