Product Description

1. Name: High accuracy stainless steel shear Beam Load Cells for weighing scales
2. Material: stainless steel

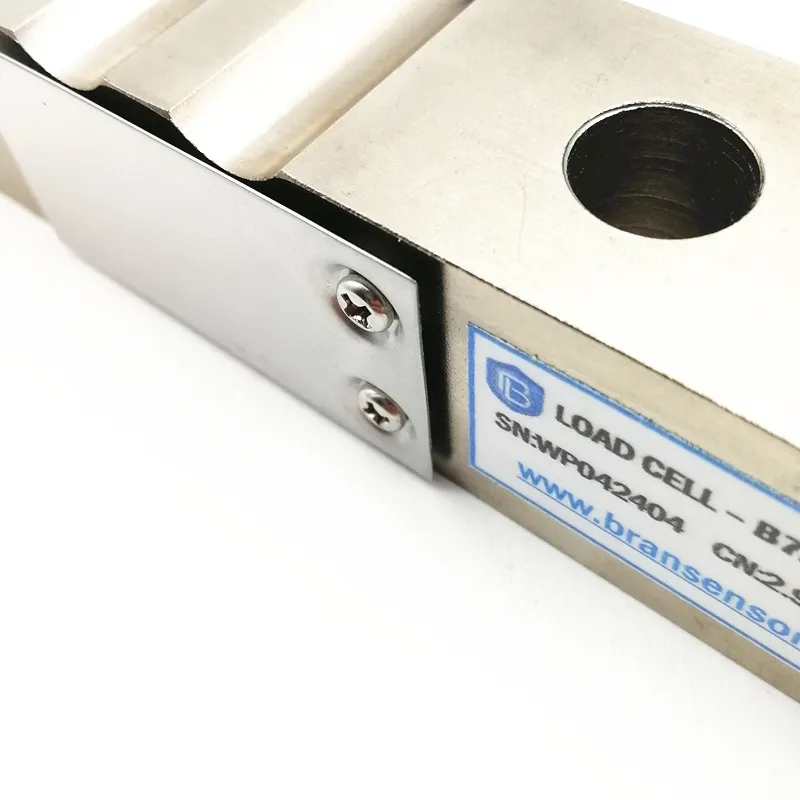

IP66 Pressure Sensor Single Side Weighing Shear Strain Gauge Bending Beam Loadcell 100kg 5ton (B726)

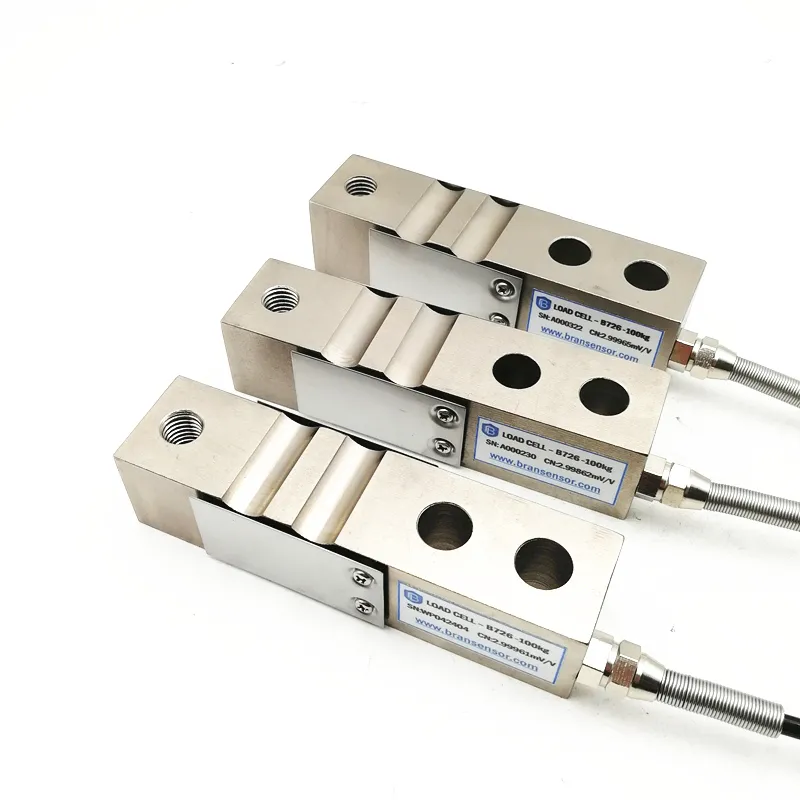

IP66 Pressure Sensor Single Side Weighing Shear Strain Gauge Bending Beam Loadcell 100kg 5ton (B726)

3. Capacity: 0.55-4.4t
4. Accuracy: C3
l Made of stainless steel
l High accuracy, high side load tolerance
l Easy to install, IP68 protection
l Mainly used for electronic scales, hopper scales, packing machines and industrial weighing systems

Numbers	Specifications	Technique
1	Capacity	0.1, 0.35, 0.55,1, 1.76, 2.2, 4.4t
2	Accuracy class	C3
3	Rated output	1.94±0.1%mV/V
4	Zero balance	±2%F.S.
5	Non-linearity	0.017%F.S.
6	Hysteresis	0.017%F.S.
7	Repeatability	0.017%F.S.
8	Creep(30min)	0.0166%F.S.
9	Temp.effect on output	0.014%F.S./10ºC
10	Temp.effect on zero	0.0125%F.S./10ºC
11	Input impedance	390±3Ω
12	Output impedance	350±5Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5V
15	Maximum excitation	15V
16	Compensated temp range	-10~40ºC
17	Operation temp range	-30~70ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	Φ5.4×1500mm
21	Weight approx.	0.9kg(0.55~1.76t) 1.6kg(2.2t)2.2kg(4.4t)
22	Material	Stainless Steel()
23	IP Class	IP68

This bellow beam load cells has high accuracy which could replace HLC load cells directly. They also has IP68 protection class. Please contact with Brans directly if you like it.
