Product Description

1. Name: 3, 6,10,20 ,30, 40kg high accuracy aluminum single point Load Cells
2. Material: Aluminum
3. Capacity: 3-40kg
4. Accuracy: C3
l Made of aluminum alloy.
l High accuracy, high side load tolerance
l Easy to install, IP65 protection
l Mainly used for electronic scales, electronic balance, price computing scales and industrial weighing systems

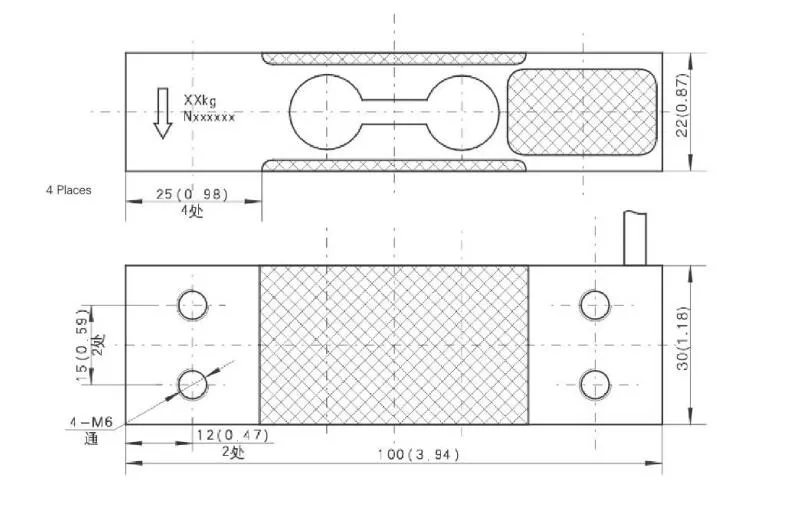

Design

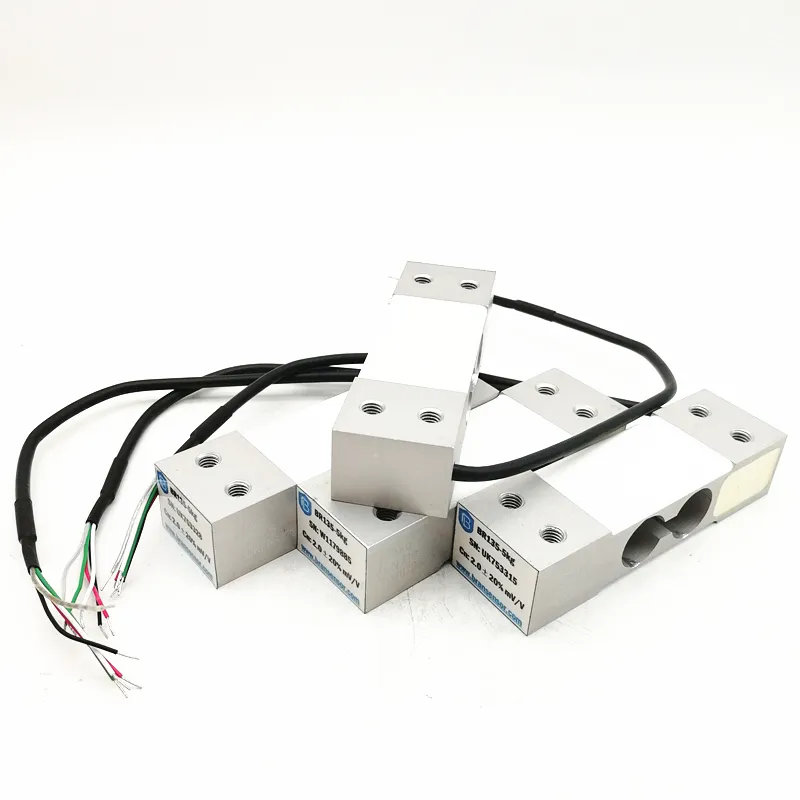

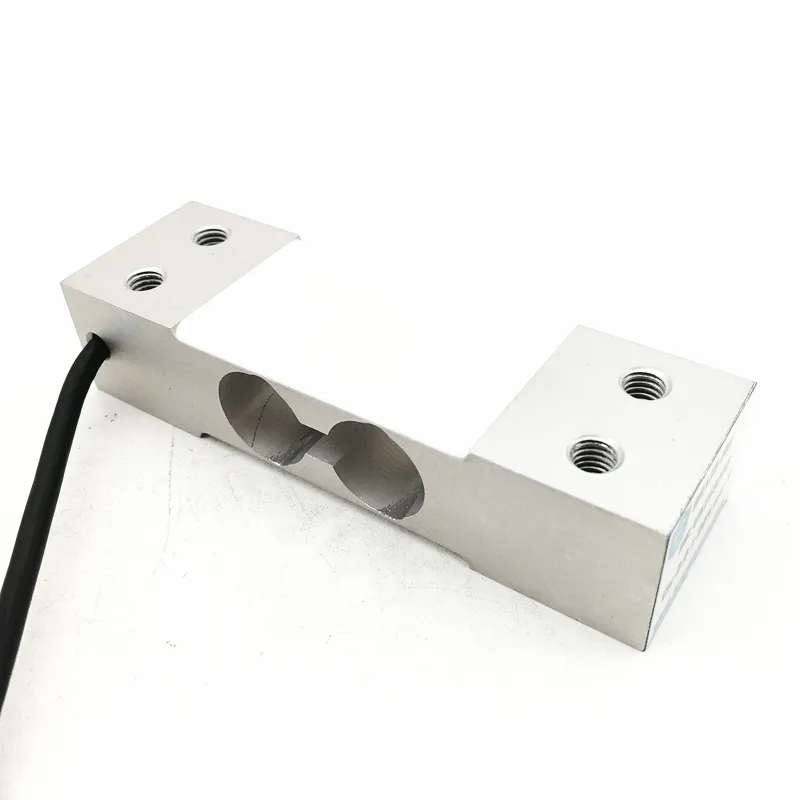

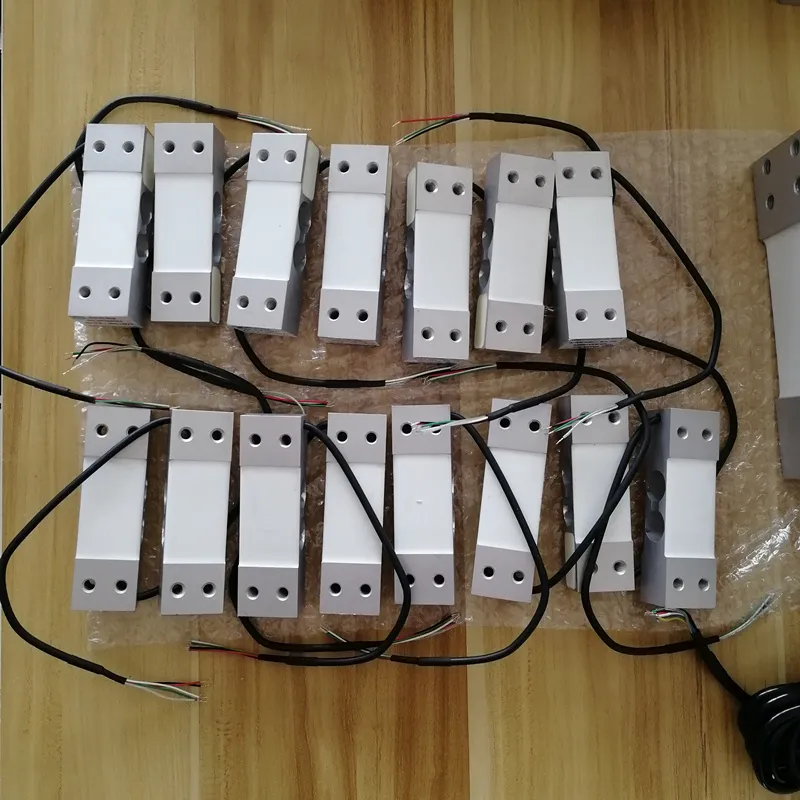

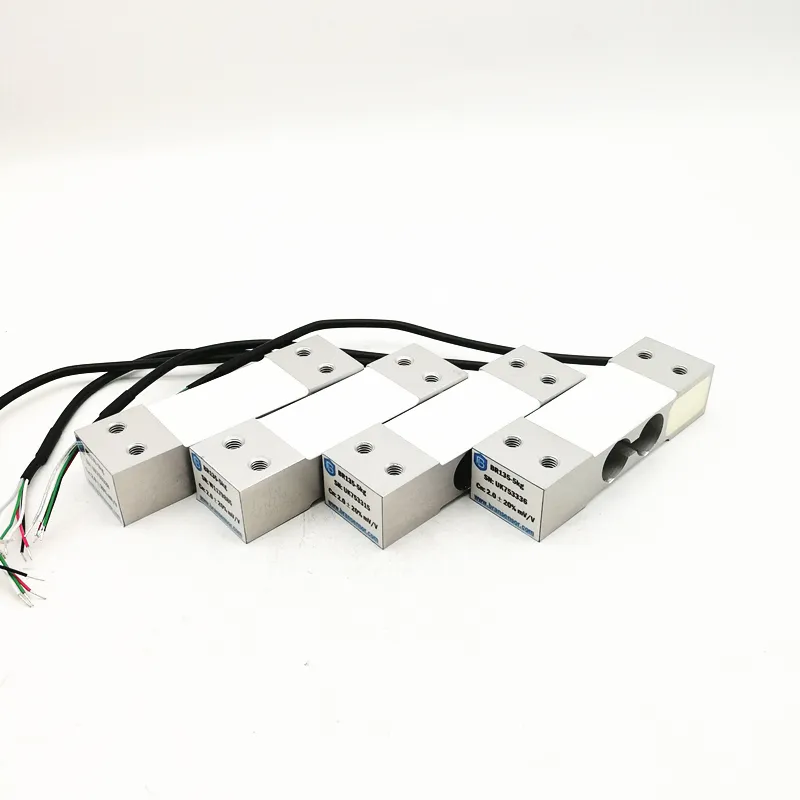

Single Point Weigh Sensor Parallel Beam Load Cell 5kg 40 Kg Weighing Sensor Loadcell for Platform Scales (BR135)

Single Point Weigh Sensor Parallel Beam Load Cell 5kg 40 Kg Weighing Sensor Loadcell for Platform Scales (BR135)

5. Datasheet

Number	Specifications	Technique
1	Capacity	3, 6,10,20 ,30, 40kg
2	Accuracy class	C3
3	Rated output	2.0±10%mV/V
4	Zero balance	±2%F.S.
5	Non-linearity	0.015%F.S.
6	Hysteresis	0.015%F.S.
7	Repeatability	0.02%F.S.
8	Creep(30min)	0.0166%F.S.
9	Temp.effect on output	0.02%F.S./10ºC
10	Temp.effect on zero	0.02%F.S./10ºC
11	Input impedance	405±10Ω
12	Output impedance	350±5Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5~12V
15	Maximum excitation	18V
16	Compensated temp range	-10~40ºC
17	Operation temp range	-20~60ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	Φ3.8×150mm
21	Weight approx.	0.15kg
22	Material	aluminum alloy
23	IP Class	IP65
24	Max.platform size	300mm×300mm

It is made of aluminum with long-term stability. Mainly used for electronic scales, electronic balance, weigh machine, weighing packing machine, weighing batcher, price computing scales and industrial weighing systems.
