Product Description

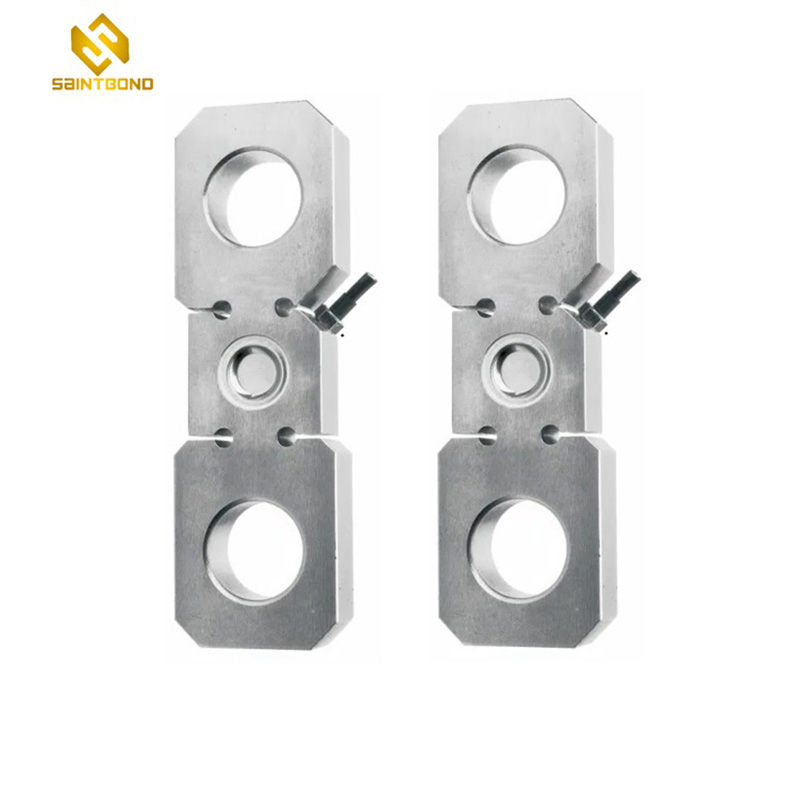

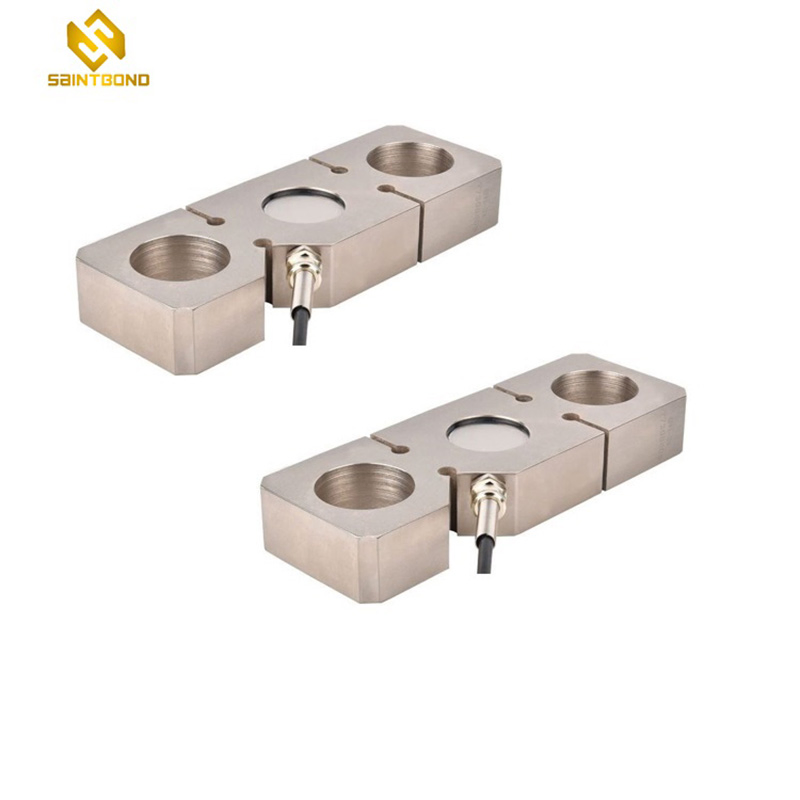

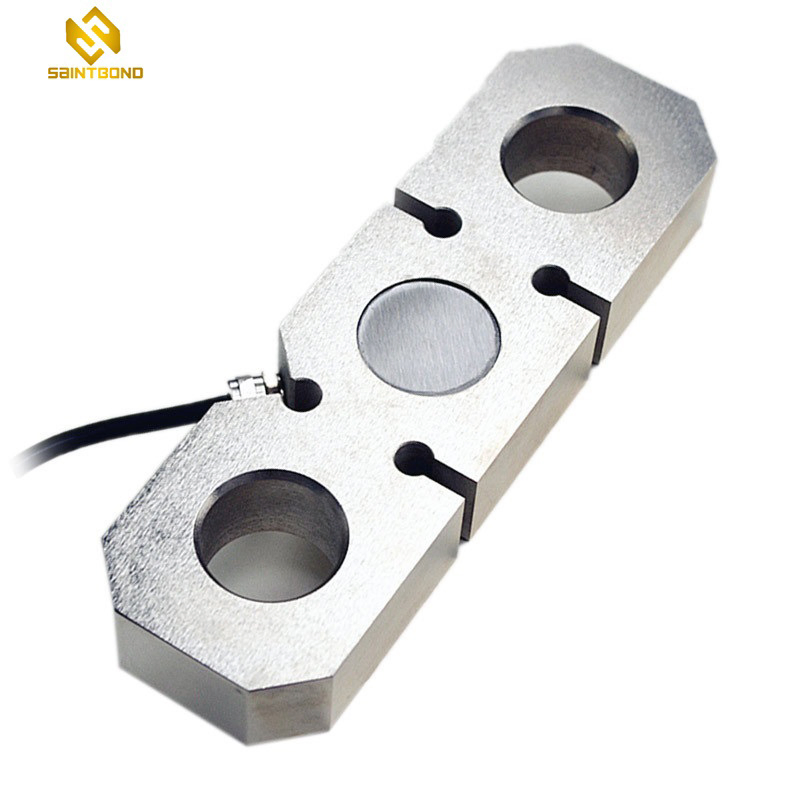

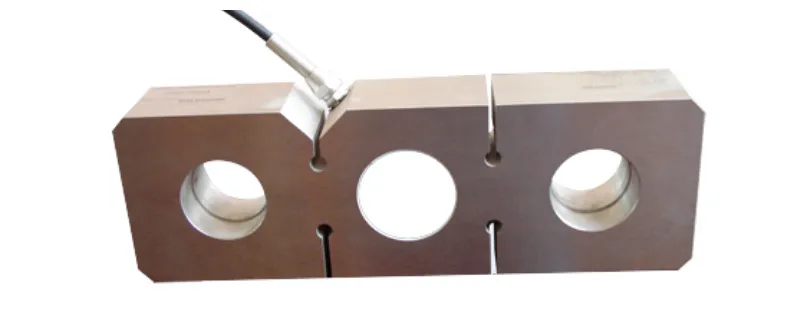

Overhead Crane Sensor Tension Load Cell 200t

Building upon the ever popular and industry leading loadlink. SAINTBOND features a range of cost effective high accuracy load link
load cells offering high safety factor and resolution, and a robust carry/storage case.The standard range of the load link load cells is

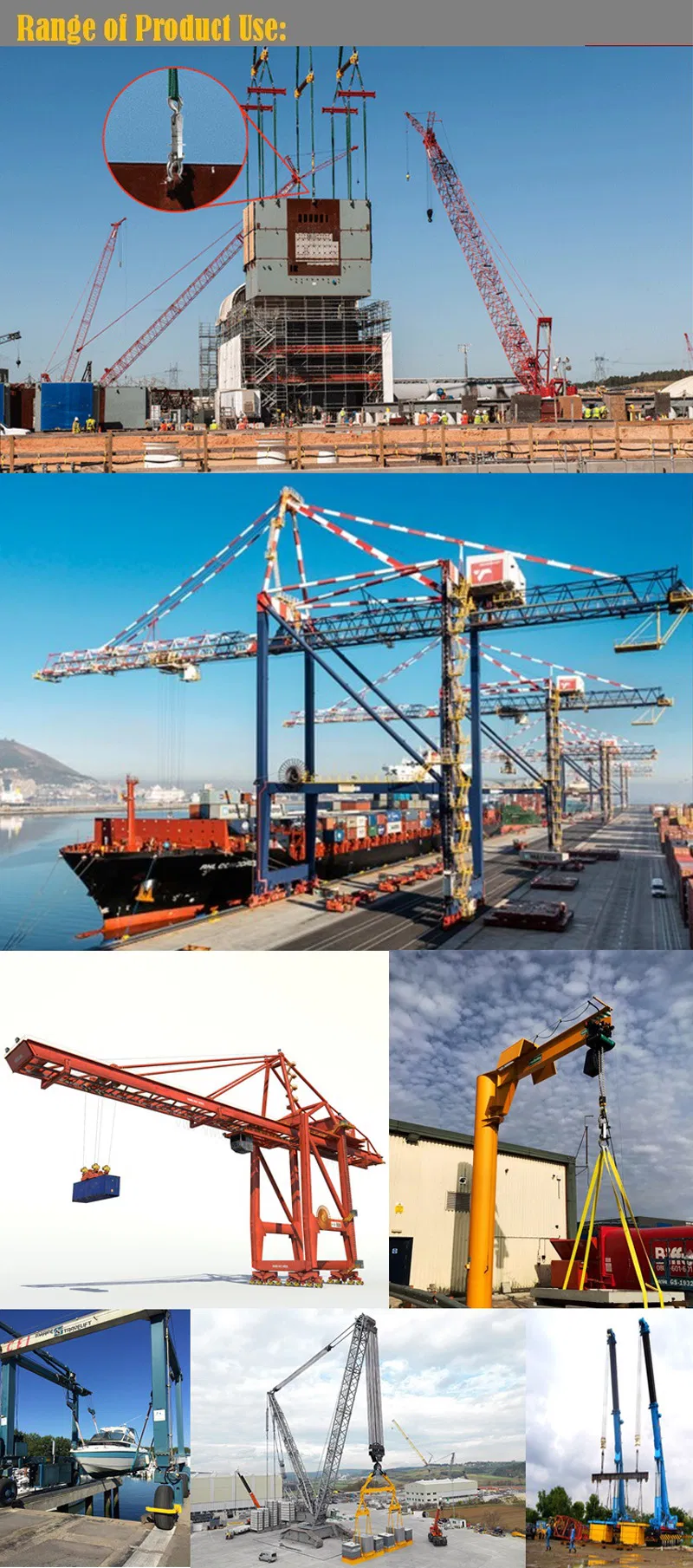

from 1tonnes to 500 tonnes.Load link load cells can be used in a wide variety of applications from testing and overhead weighing to
bollard pulling and tug testing.

At China Industries we have over 10 years experience designing, manufacturing and supplying load cells of the highest quality. We
can supply all your load cell requirements and offer expert load cell and applications advice.View our load links range online today or
contact our friendly team for specialist load cell and applications advice.

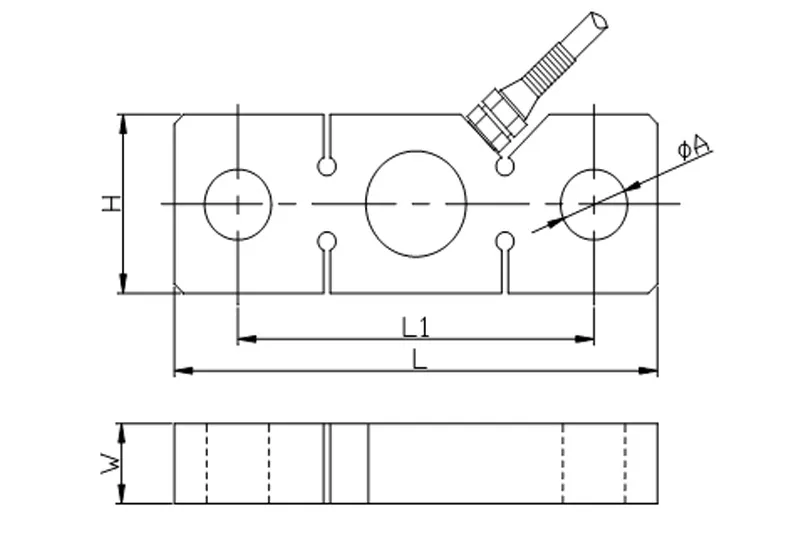

Dimension:

Cap./Size	H	W	L	L1	A
1~5t	70	30	200	140	38
7.5~10t	90	36	280	180	56
20~30t	125	55	370	230	56
40~60t	150	85	430	254	76
75~150t	220	115	580	340	98
250t~300t	350	200	780	550	150
500t	570	295	930	680	220

Technical Parameter:

Rated Load:	1/205/5/12/25/35/50/75/100/150/200/250/300/500T
Sensitivity:	(2.0±0.01%) mV/V	Operating Temp. Range:	-30~+70ºC
Combined Error:	±0.02% F.S	Max. Safe Over Load:	150%F.S
Creep Error(30min):	±0.02% F.S	Ultimate Over Load:	200%F.S
Zero Balance:	±1% F.S	Recommend Excitation:	10~12 DC
Temp. Effect On Zero:	±0.02% F.S/10ºC	Maximum Excitation:	15V DC
Temp. Effect On Span:	±0.02% F.S/10ºC	Sealing Class:	IP67/IP68
Input Resistance:	385±5Ω	Element Material:	Alloy/Stainless Steel
Output Resistance:	351±2Ω	Cable:	Length=L:5m
Insulation Resistance:	≥5000MΩ	Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
