Product Description

Description:

The sensor is made of alloy steel or stainless steel, spokes structure. The protection adopts silica gel seal and welding seal, waterproof performance is good. Widely used in: truck scale, track scale, testing machine, hopper scale, load measuring machine and hanging scale and other electronic weighing equipment and tension pressure testing equipment.

characteristic:

• Capacities from 50 lbf to 300 lbf

(250N to 1,500N)

• Tension & compression in one unit

• 005% nonrepeatability

• .02% creep

• 3 run NIST traceable ASTM E74 calibration

• Factory installed calibration adapter

• Eccentric load compensated

• .0008%/°F temp. effect on output

• 4% lower load limit per ASTM E74

• Higher capacities available

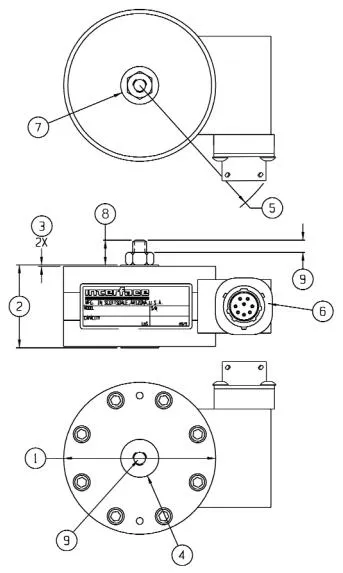

Dimensions
Spokes Force Transducer-1606

Specification:

Type	Technical parameters
Nominal load range	(250N to 1,500N)
Class precision	0.5%FS
Insulation Resistance	≥5000MΩ
Zero Balance	≤0.1%FS
Power supply	20VDC
Effect of temperature	0.5%FS/10ºC
temperature compensation	15~70ºC
Operating temperature	-55~+90ºC
Safe Load Limit	150% FS
Safety margin against yielding	300% FS
Material material	17-4 PH stainless steel
