Must Brand 24VDC 110VAC 3000W Power Inverter in Hot Sell
Must Brand 24VDC 110VAC 3000W Power Inverter in Hot SellEP3000 Series Freature:1. 1kw/1.5kw/2kw/2.5kw/3kw/3.5kw/4kw/5kw/6kw2. Max. charge current 75A.3.Pure sine wave.4. Inbuilt pure copper transformer5. Support inductive load6. Automatic three-stage batteryCharger (bulk, absorption, float)7. With 1......
Send Inquiry
Product Description

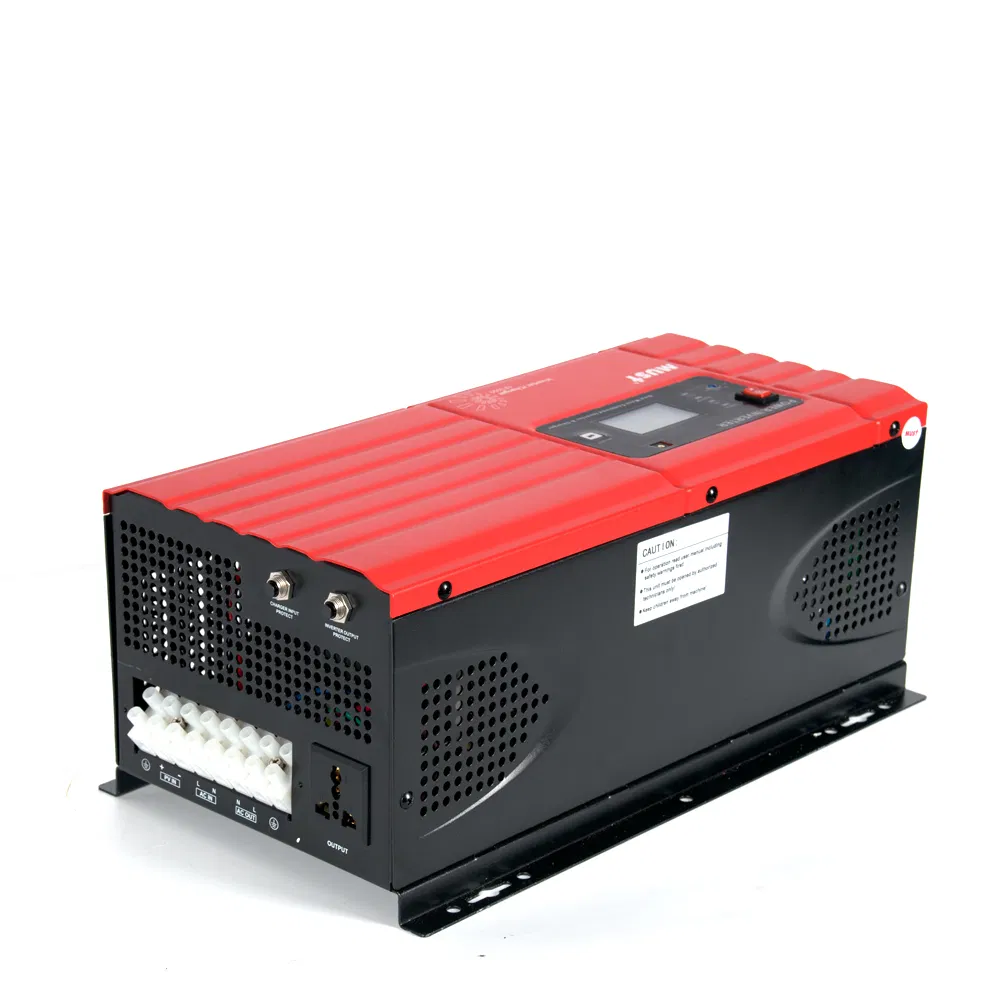

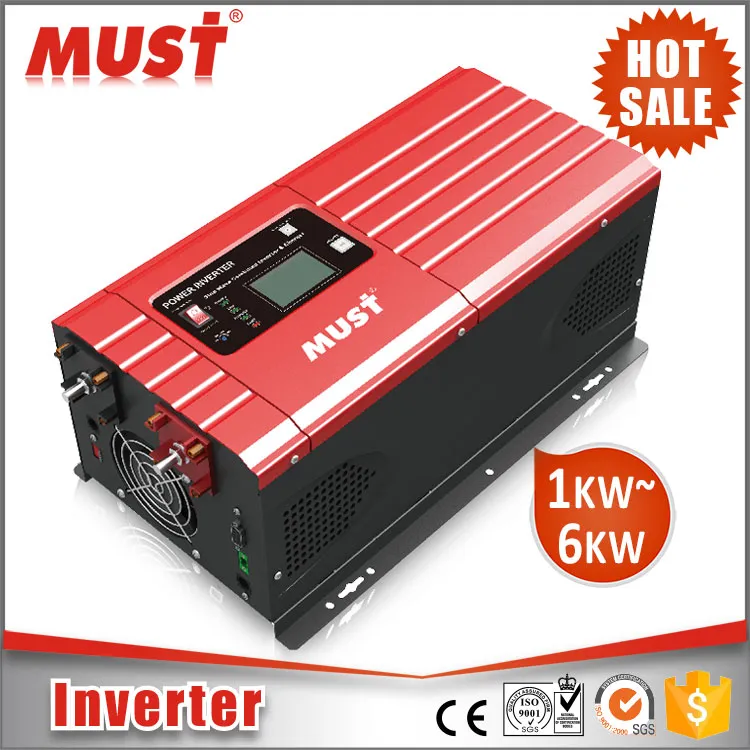

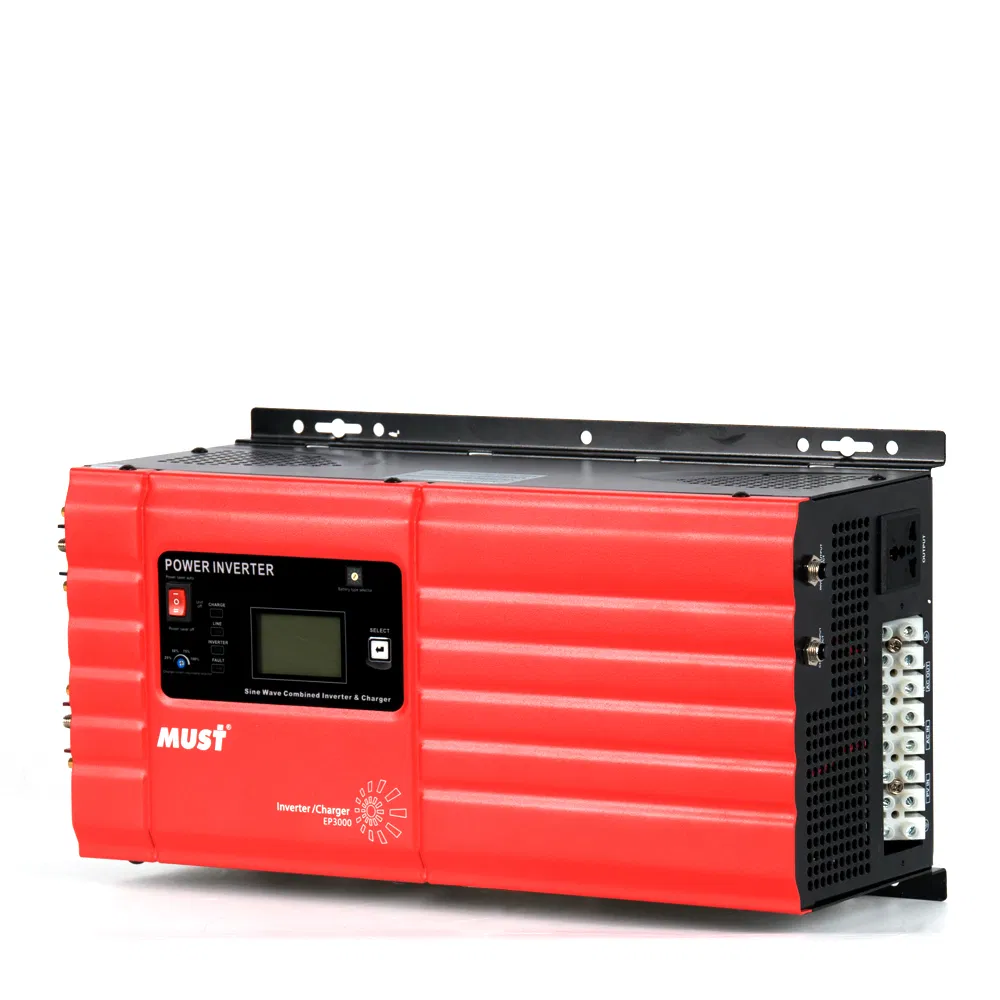

Must Brand 24VDC 110VAC 3000W Power Inverter in Hot Sell
EP3000 Series Freature:
1. 1kw/1.5kw/2kw/2.5kw/3kw/3.5kw/4kw/5kw/6kw
2. Max. charge current 75A.
3.Pure sine wave.
4. Inbuilt pure copper transformer
5. Support inductive load
6. Automatic three-stage batteryCharger (bulk, absorption, float)
7. With 150cm battery cable
8. Support generator
9. Support solar system
10. Remote control / RS232 optional
11. CE/ SONCAP certificate
12 Support motor 1HP/2HP/3HP

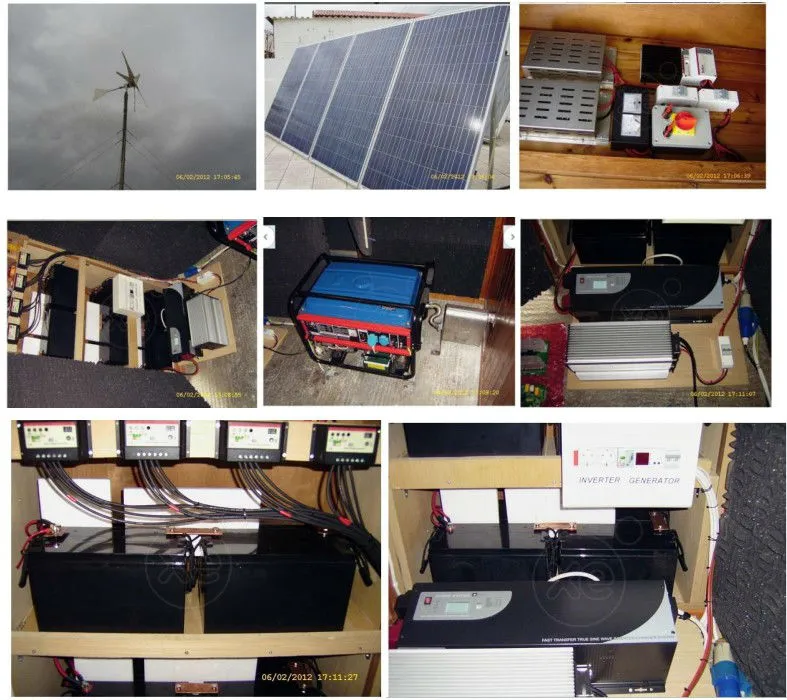

EP3000 Series Pure sine wave inverter use on the Solar System

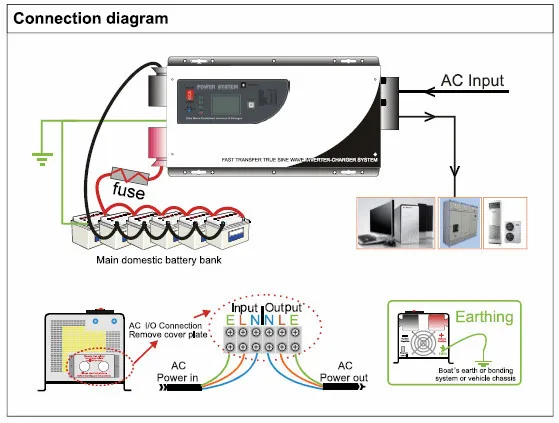

EP3000 Series connection:
What is the Technical Specifications of power inverter 1-6KW ?
| MODEL | 115V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at nominal inputs | 1KW;2KW;3KW;4KW | 1KW;2KW;3KW;4KW;5KW;6KW | |
| Output Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable | |
| Voltage Waveform | Pure Sine wave | ||
| Crest Factor | 3:'1 | ||
| Output Frequency | Auto Select for 50/60Hz,47Hz ~55Hz for 50Hz nominal,56Hz ~ 65Hz for 60Hz nominal | ||
| (Synchronized to Mains) | |||
| Regulation (Nominal) | ±20% typical of nominal voltage | ||
| Regulation | ±3% of selected output voltage (adjustable with the | ||
| (Battery mode) | remote set-up software) | ||
| Transfer time | Blackout 3ms typical,Brownout 1ms typical,Battery mode to Normal mode:1ms typical | ||
| Over current protection | Over load alarm level 100% ~ 120% | ||
| Over load shutdown level 120% ~ 190% | |||
| (Adjustable by using the remote set-up software) | |||
| INPUT | |||
| Nominal Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable | |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing | ||
| Efficiency (Normal mode) | 99% | ||
| Noise Filtering | Full time EMI/RFI filtering | ||
| Over current protection | Re-settable over current protector:1000W~4KW | AC Fuse1000VA/2000VA,Re-settable over current protector:1000W~6KW | |
| Voltage Range | 85V ~ 145V | 185V ~ 265V | |
| AVR Range (2 Bucks, 2 Boosts) | Enhanced Buck: +28% of selected nominal voltage | ||
| Buck mode: +10% of selected nominal voltage | |||
| Boost mode: -10% of selected nominal voltage | |||
| Enhanced Boost: -25% of selected nominal voltage | |||
| Surge Protection | 1KW/ 2KW:416 Joules | 1KW-3KW:430 Joules | |
| 3KW ~ 4KW:724 Joules | 4KW-6KW:826 Joules | ||
| BATTERY | |||
| Battery type | Lead-Acid 50Ah~500Ah (Recommended) | Lead-Acid 50Ah~500Ah (Recommended) | |
| DC Voltage | 1KW/2KW:12VDC | 1KW/2KW/3KW:12VDC | |
| 2KW/3KW:24VDC | 2KW/3KW:24VDC | ||
| 3KW/4KW:48VDC | 3KW/4KW/5KW/6KW:48VDC | ||
| Typical backup time | No Limit | ||
| Charging method | Smart pulse charging with two charging modes?EQuick charging when battery | ||
| is not fully charged, trickle charging when battery is 90% fully charged. | |||
| Maximum charging current | 1000W 12V:35A | 1000W 24V:35A | |
| 2000W 12V:65A | 2000W 24V:35A | ||
| 3000W 24V:45A | 4000W 48V:35A | ||
| 5000W 48V:40A | 6000W 48V:50A | ||
| Average charging | Quick charging mode:15.7V-54V maximum. | ||
| voltage for each battery | Trickle charging mode:13.5V -52V(adjustable with the remote set-up software) | ||
| Protection | Over current protection & Over charging voltage protection (SCR control) | ||
| Thermal protection (CPU control) | |||
| When temperature inside the unit is over 45°C ,charger will stop charging for 2 minutes followed by an 2 minutes charging. The cycle will be repeate | |||
| Monitoring | Smart monitoring & warning for failed battery or open-circuit battery. | ||
| Auto-detection each time when power on or every 6 days. | |||
| SOLAR CHARGER | |||
| Rating voltage | 12V / 24V / 48V | 12V / 24V / 48V | |
| DC input range | 12V model : 12 ~ 21VDC;24V model : 24 ~ 42VDC;48V model : 48 ~ 84VDC | ||
| Charging method | Constant voltage with current limiting by PWM control | ||
| Charging voltage | 12V model:13.5VDC;24V model: 27.0VDC;48V model: 54.0VDC | ||
| Power rating | 12V model : 1000W/2000W (13.5VDC @ 37A) | ||
| 24V model : 1000W/2000W (27.0VDC @ 37A) | |||
| 48V model : 3KW/5KW/6KW (54VDC @ 18.5A) | |||
| Protection | DC input polarity protection, DC input short circuit protection( when battery is | ||
| connected), DC output over current protection | |||
| COMMUNICATIONS & MANAGEMENT | |||
| Standard Interface port | UPSilon2000 compatible; optional for RS232 . | ||
| Optional Interface part | RJ45 (Surge protection), dB9 | ||
| Control panel | LCD or LED Selectable | ||
| Audible alarm | Alarm on battery:Low battery & Battery over voltage | ||
| Alarm on abnormal operation:Over load, Short-circuit, & Over heat | |||
| Green mode function | 1% to 14% of full load (adjustable by using the remote set-up software) | ||
| (Auto-shut-off in blackout) | The default setting is OFF. | ||
| Cooling fan control | Auto on / off, controlled by temperature & operation mode | ||
| ENVORMENT AND SAFETY | |||
| Operating Temperature | Up to 1500 meters:0°C to 40°C (32°Fto 104°F) | ||
| Transit/storage Temp. | -15°C to 55(5°F to 131°F) | ||
| Relative Humidity | 5 - 95% non condensing | ||
| Operating Altitude | 0 ~ 3000 meters | ||
| Quality control system | ISO 9001:2000, ISO 14002-2004 | ||
| PHYSICAL | |||
| Appearance | Size(mm)LxWxH | 570*315*300 | |
| Weight(Kg) | 1000W/18.2kg ;2000W/19.5kg ;3000W/23.5kg | ||
| Size(mm)LxWxH | 755*319*288 | ||
| Weight(Kg) | 4000W/35kg ;5000W/38kg ;6000W/40kg | ||
