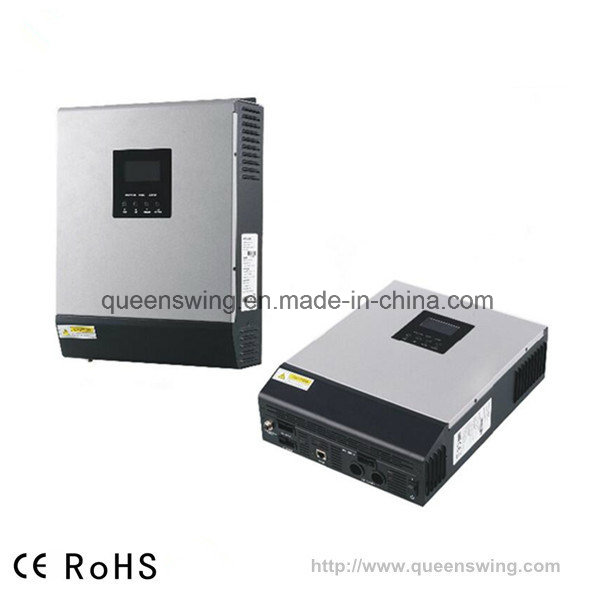

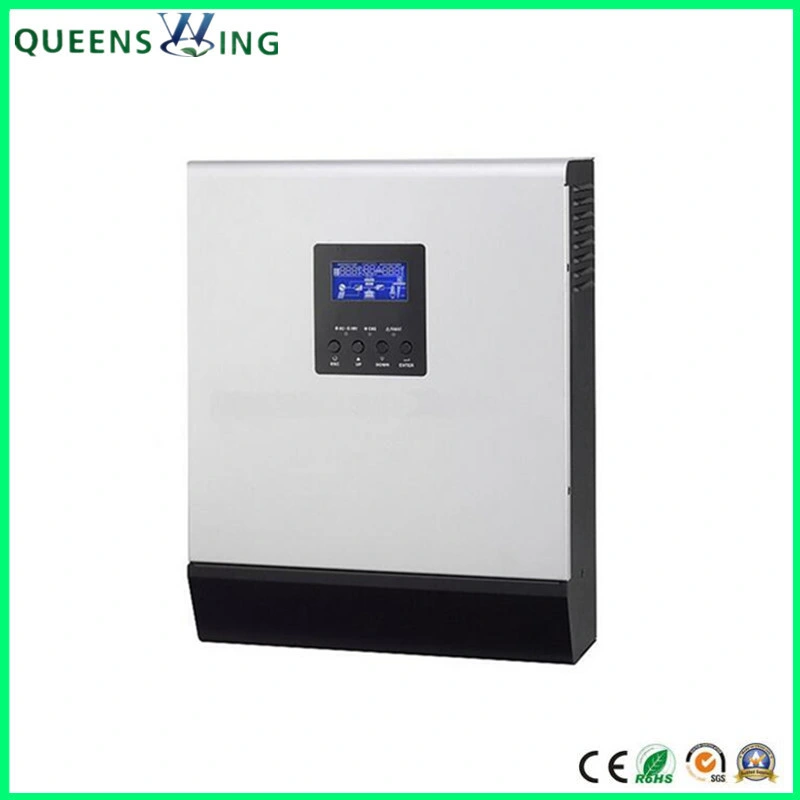

1kVA Inbuilt 50A PWM Solar Controller Pure Sine Wave Hybrid Solar Power System Inverter (QW-1kVA1250)
1kVA Inbuilt 50A PWM Solar Controller Pure Sine Wave Hybrid Solar Power System Inverter(QW-1KVA1250)Product IntroductionQueenswing off grid solar inverter is integrated with a MPPT or PWM solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, whic......
Send Inquiry
Product Description
1kVA Inbuilt 50A PWM Solar Controller Pure Sine Wave Hybrid Solar Power System Inverter(QW-1KVA1250)
Product Introduction
Product Features
• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Parallel operation with up to 6 units only available for MPS 4K 5K

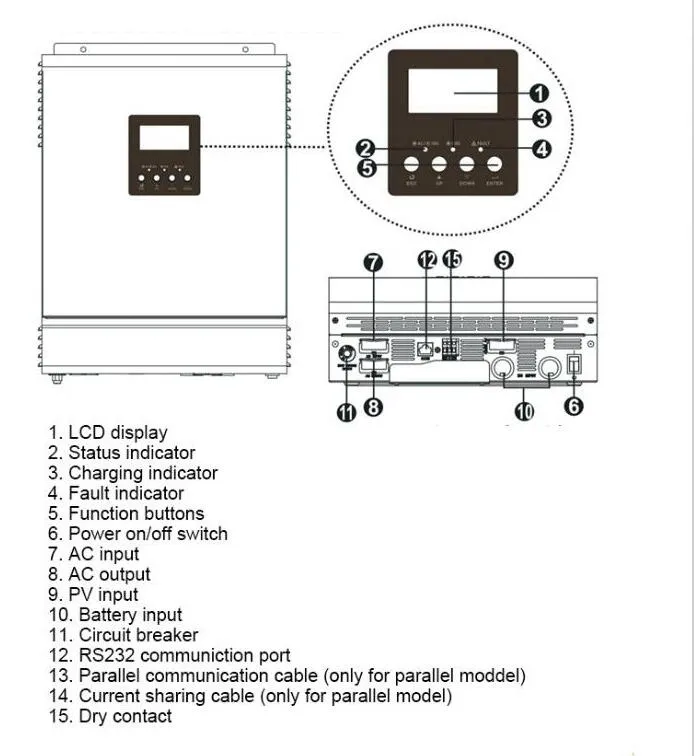

Product Overview
Basic System Architecture
The following inllustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or utility
PV modules(option)
Consult with your system integrator for other possible system architectures depends on your requirements.
This inverter can power all kinds of appliances in home or office including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
Product technology standards
Specificatons
Different Working mode
System Connection
System Installation--feedback from customers
About us:
Guangzhou Queenswing Solar Energy Co. Ltd. Is a professional manufacturer and exporter of solar products including power inverter, solar charge controller, solar panel and solar battery in China. To provide high-quality product and considerate service is always our basic policy. We believe high quality creates business and progress is from improvement.
Main products:
Pure sine wave power inverter
Modified sine wave power inverter
UPS power inverter with charger
Car power inverter
Solar charge controller
Battery Charger
Solar battery
Our power inverter and solar products are exported to most global coutries and get good reputation because of our favorable quality and stable performance.
Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.
Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.
Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
Contact us:
Please feel free to drop us an inquiry, we will get back to you in 24 hours.
Product Introduction
Queenswing off grid solar inverter is integrated with a MPPT or PWM solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.
This inverter is available for motoring access. Customer can monitor the PV system on web anytime.Product Features
• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Parallel operation with up to 6 units only available for MPS 4K 5K
Product Overview

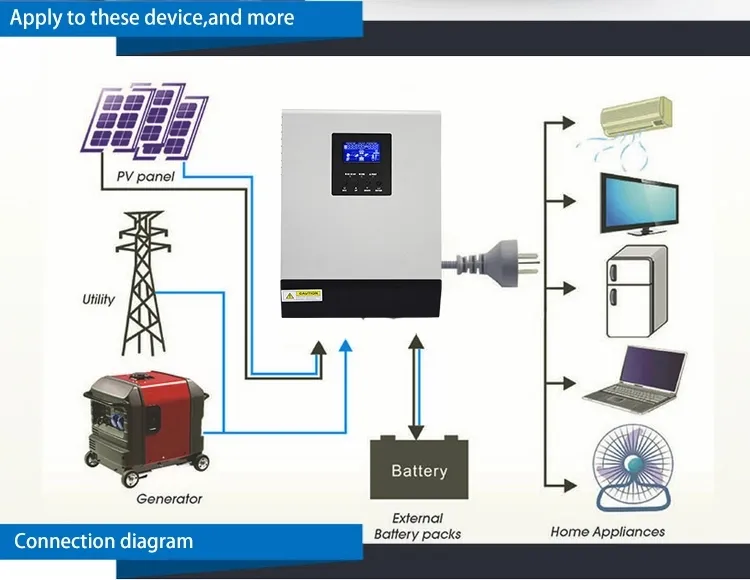

Basic System Architecture
The following inllustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or utility
PV modules(option)
Consult with your system integrator for other possible system architectures depends on your requirements.
This inverter can power all kinds of appliances in home or office including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
Product technology standards
Specificatons
| 1-5KVA HYBRID SOLAR INVERTER BUILT IN PWM SOLAR CHARGE CONTROLLER | |||||||||
| Model | 1K-12V | 2K-24V | 3K-24V | 4K-48V | 5K-48V | ||||
| Rated Power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W | ||||
| INPUT | |||||||||
| Voltage | 230VAC | ||||||||
| Selectable Voltage Range | 170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances) | ||||||||
| Frequency Range | 50 / 60Hz (optional) | ||||||||
| OUTPUT | |||||||||
| AC Voltage Regulation(Batt. Mode) | 230 VAC ± 5% | ||||||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | ||||
| Efficiency(Peak) | 93% | ||||||||
| Transfer Time | 10 ms (For Personal Computer) 20 ms (For Home Appliances) | ||||||||
| Waveform | Pure Sine Wave | ||||||||
| BATTERY & AC CHARGER | |||||||||
| Battery Voltage | 12 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC | ||||
| Floating Charge Voltage | 13.5 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC | ||||
| Overcharge Protection | 15 VDC | 30 VDC | 30 VDC | 60 VDC | 60 VDC | ||||
| Maximum Charge Current | 10A/20A | 20A or 30A | 20A or 30A | 60A | 60A | ||||
| SOLAR CHARGER(OPTION) | |||||||||
| Charging Current | 50A | ||||||||
| Maximum PV Array Open Circuit Voltage | 40 VDC | 60 VDC | 60 VDC | 105 VDC | 105 VDC | ||||
| Standby Power Consumption | 1W | 2W | 2W | 2W | 2W | ||||
| PHYSICAL | |||||||||
| Dimension, D x W x H(mm) | 420x350x180 | 420x350x180 | 420x350x180 | 540x400x210 | 540x400x210 | ||||
| Gross Weight(kg) | 6.5 | 8.35 | 8.85 | 11.0 | 12.0 | ||||
| OPERATING ENVIRONMENT | |||||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||||||
| Operating Temperature | 0ºC - 55°C | ||||||||
| Storage Temperature | -15ºC - 60°C | ||||||||
| Product specifications are subject to change without further notice | |||||||||

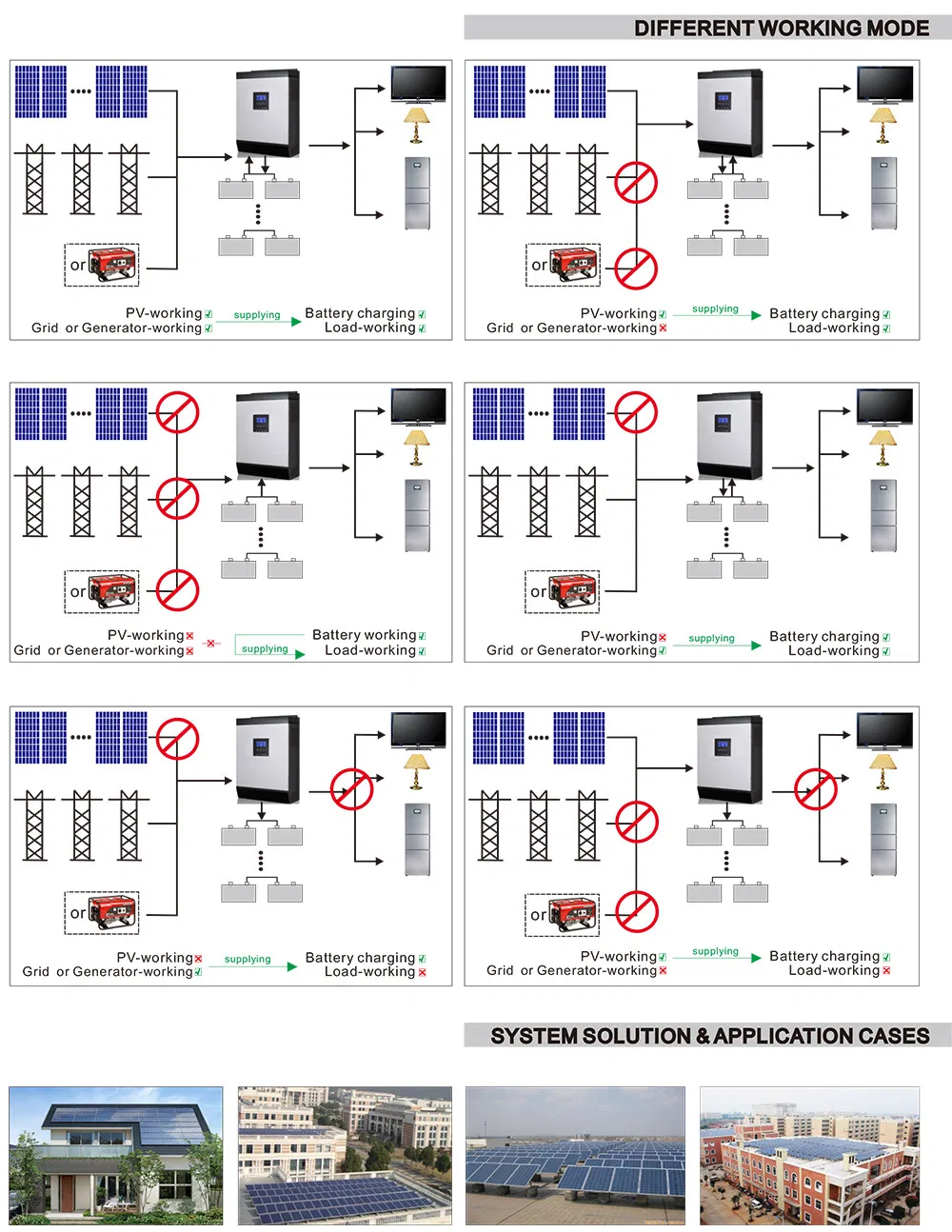

Different Working mode
System Connection

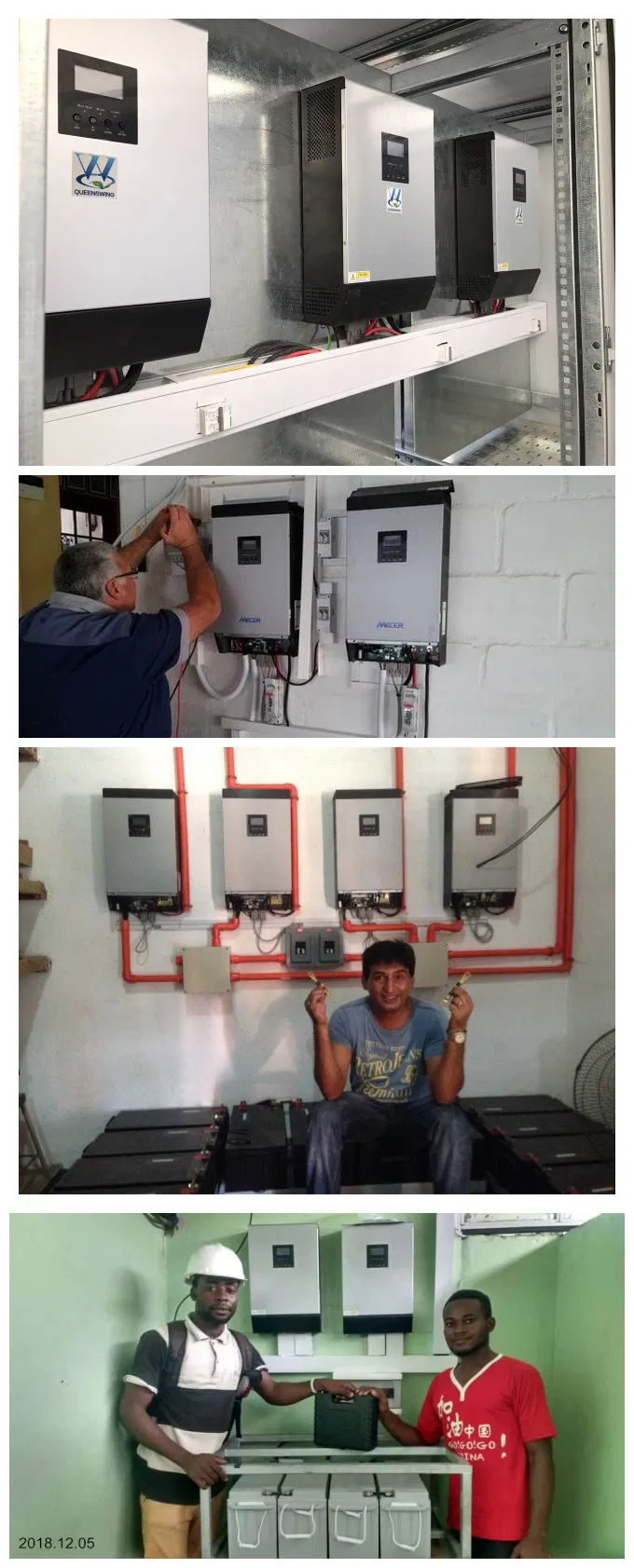

System Installation--feedback from customers
