    Intelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top Quality
    • Intelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top QualityIntelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top Quality
    • Intelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top QualityIntelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top Quality
    • Intelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top QualityIntelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top Quality
    • Intelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top QualityIntelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top Quality

    Intelligent 600W Pure Sine Wave 12/24V to 110V /120V/220V DC to AC Power Inverter with Top Quality

    ModelREP600-121REP600-241REP600-481REP600-122REP600-242REP600-482Rated power500WPeak power1000WInput voltageDC12VDC24VDC48VDC12VDC24VDC48VOutput voltage100VAC or 110VAC or 120VAC±5%220VAC or 230VAC or 240VAC±5%Unload current less than0.40.2A0.2A0.40.2A0.2AOutput frequency50Hz&a......

    Send Inquiry

    Product Description

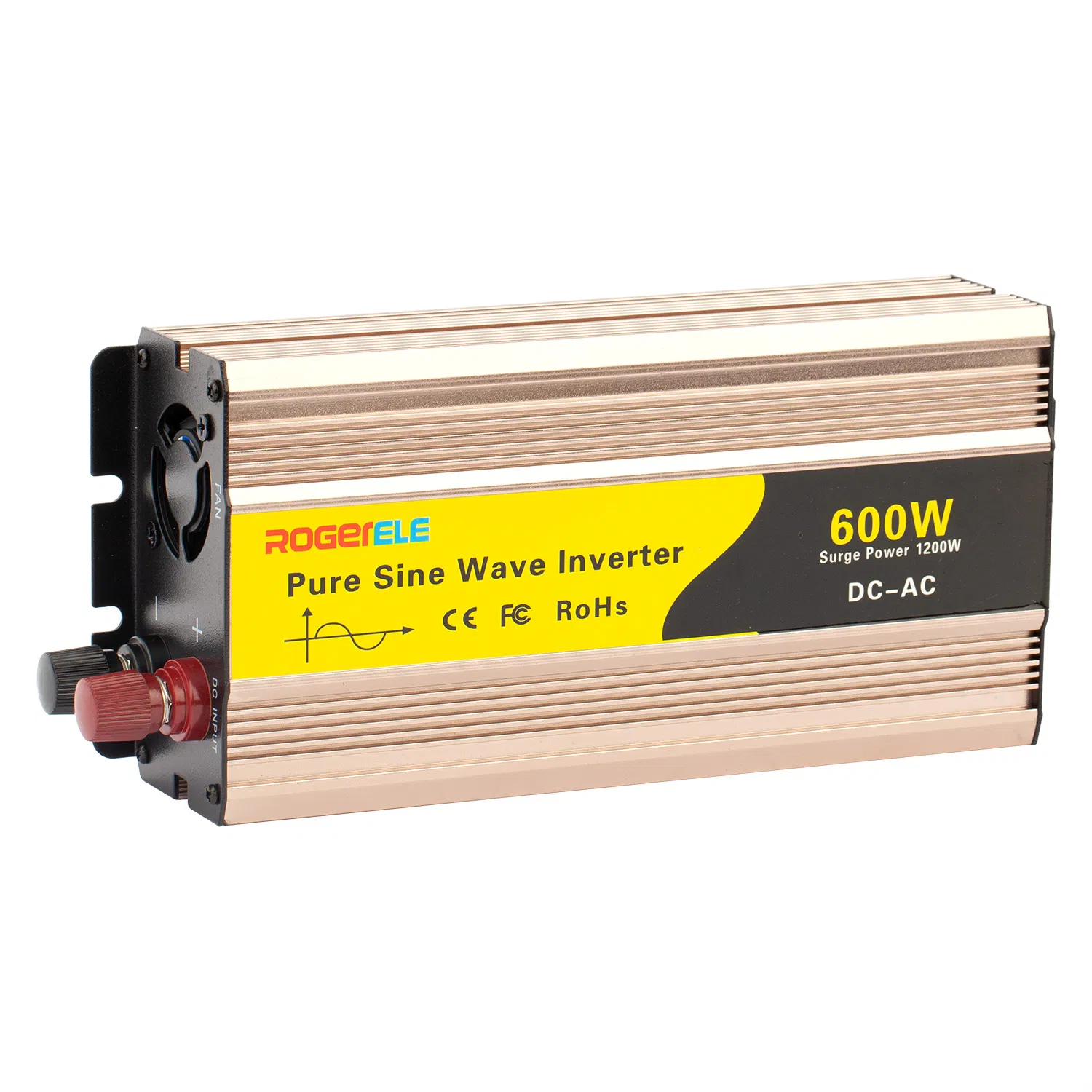

    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality
    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality
    ModelREP600-121REP600-241REP600-481REP600-122REP600-242REP600-482
    Rated power500W
    Peak power1000W
    Input voltageDC12VDC24VDC48VDC12VDC24VDC48V
    Output voltage100VAC or 110VAC or 120VAC±5%220VAC or 230VAC or 240VAC±5%
    Unload current less than0.40.2A0.2A0.40.2A0.2A
    Output frequency50Hz±0.5Hz or 60Hz±0.5Hz
    Output waveformPure Sine Wave
    Waveform distortionTHD<3%(Linear load)
    USB port5V 1A
    Max.efficiency90%92%95%90%92%95%
    Input voltage range10-15.5V20-31V40-61V10-15.5V20-31V40-61V
    Low voltage alarm10.5±0.5V21±0.5V42±1V10.5±0.5V21±0.5V42±1V
    Low voltage protection10±0.5V20±0.5V40±15V10±0.5V20±0.5V40±15V
    Over voltage protection15.5±0.5V31±0.5V61±1V15.5±0.5V31±0.5V61±1V
    Low voltage recover13±0.5V24±0.5V48±1V13±0.5V24±0.5V48±1V
    Over voltage recover14.8V±0.5V29.5V±0.5V59V±1V14.8V±0.5V29.5V±0.5V59V±1V
    Working temperature-10°- +50°
    Storage temperature-30°- +70°

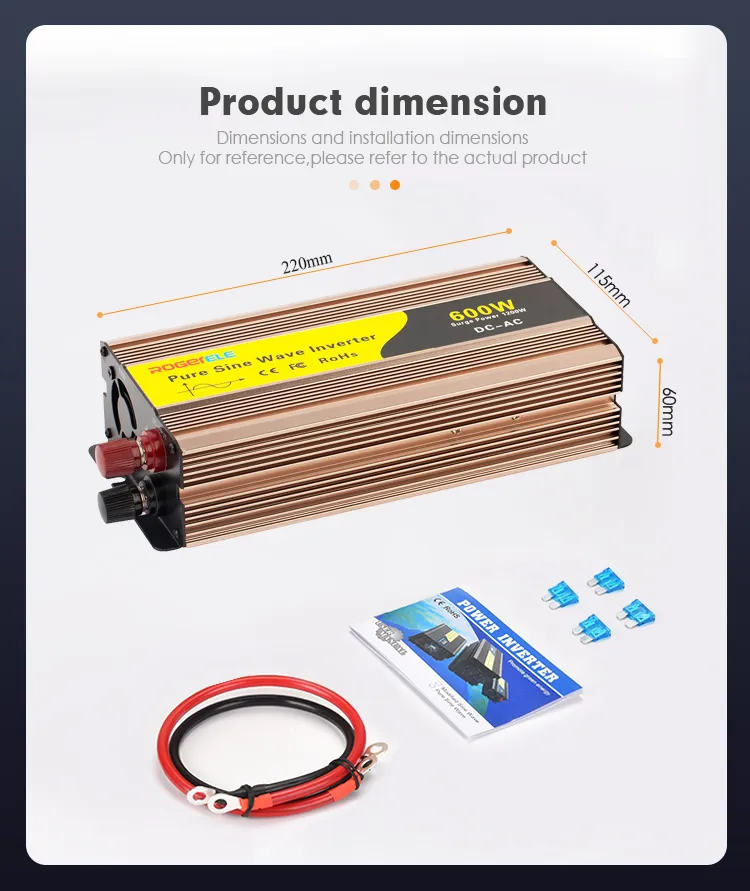

    Dimension(mm)220x115x60mm
    Packing(mm)275x145x73mm
    Net./gross weight(g)1080/1280g
    QTY/Ctn15 Pcs
    Meas./Ctn(mm)460x390x300mm
    Gross weight/Ctn(g)35590g
    Warranty2 years
    ConfigurationStandard

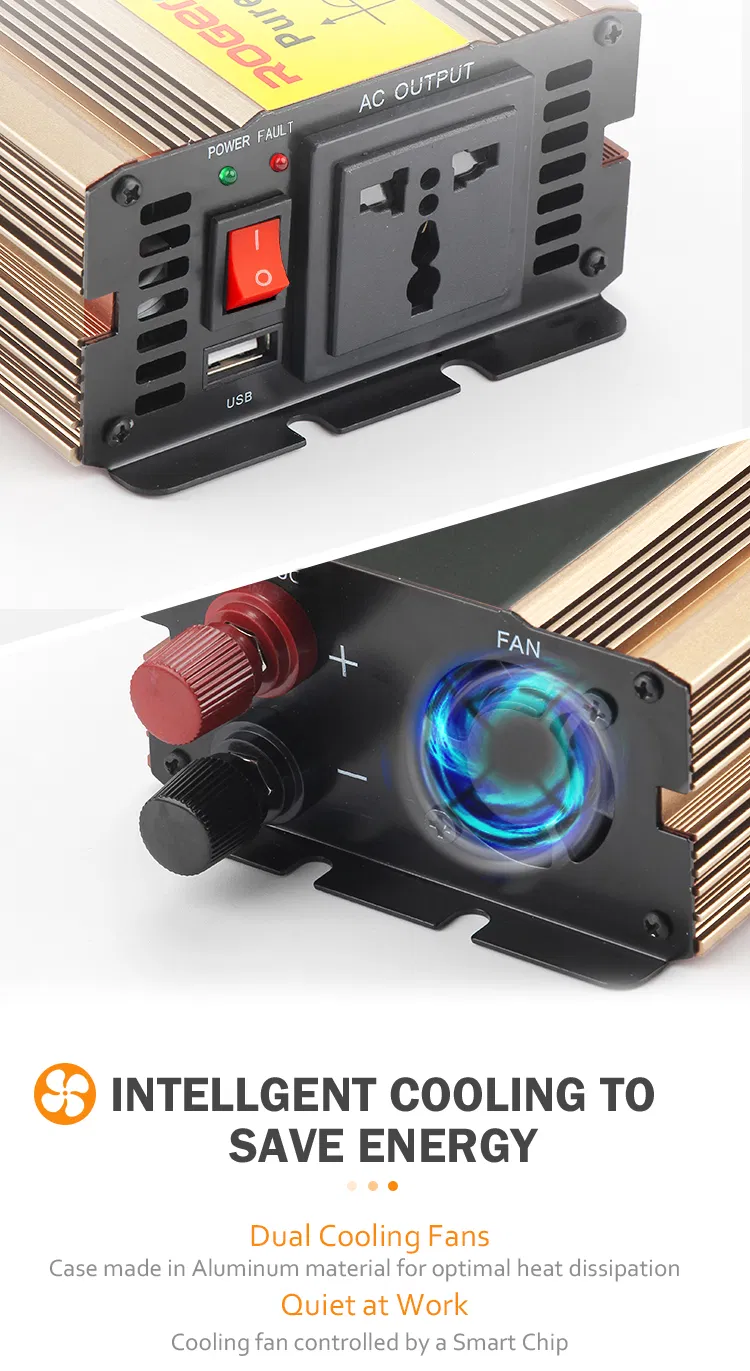

    Cooling methodIntelligent air cooling
    Custom-made available:
    Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V...

    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality
    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top QualityIntelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality


    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality
    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality
    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality
    Intelligent 600W Pure Sine Wave 12/24V to 110V/120V/220V DC to AC Power Inverter with Top Quality
    1.Do you have you own factory?

    A:Yes,we are professional manufacturer mainly in power inverter for about 10 years.Our factory is located in Yueqing,Zhejiang,China.
    ..............................................................................................................................................................
    2,Q:Why your quotation is higher than other suppliers?
    A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
    ..............................................................................................................................................................
    3,Q:How many categories does it have according to the output waveform ?
    A:Type one: REM Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated quipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market
       Type two: REP Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution.
    .....................................................................................................................
    4,Q:What is a resistive load appliances?
    A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
    ..............................................................................................................................................................
    5,Q:What is the inductive load appliances?
    A:It refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
    .....................................................................................................................
    6. Q : Can you make customized products and customized packing?
    A: Yes.We made a lot of customized products for our customer before.
    And we made many moulds for our customers alread.
    About customized packing,we can put your Logo or other info on the packing.
