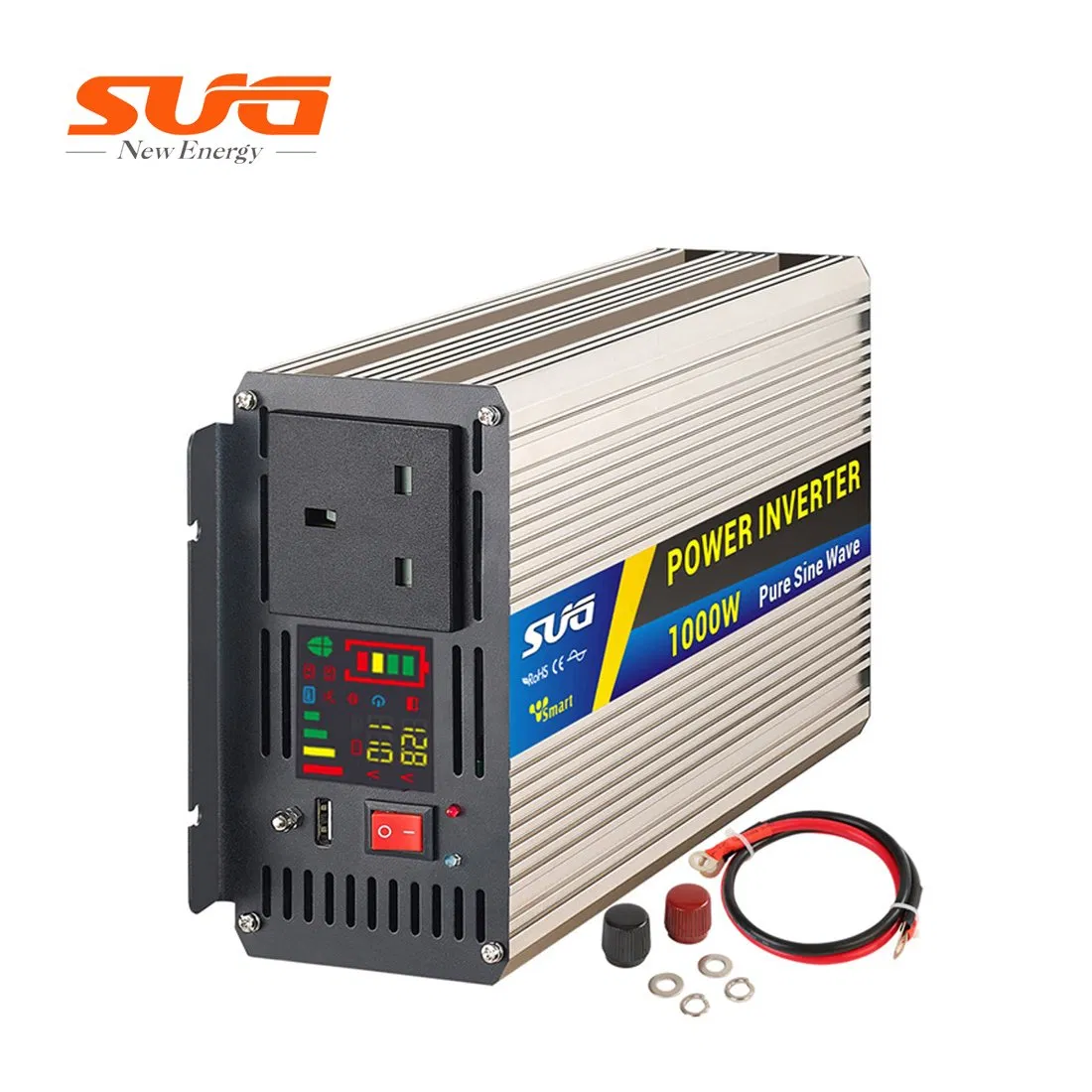

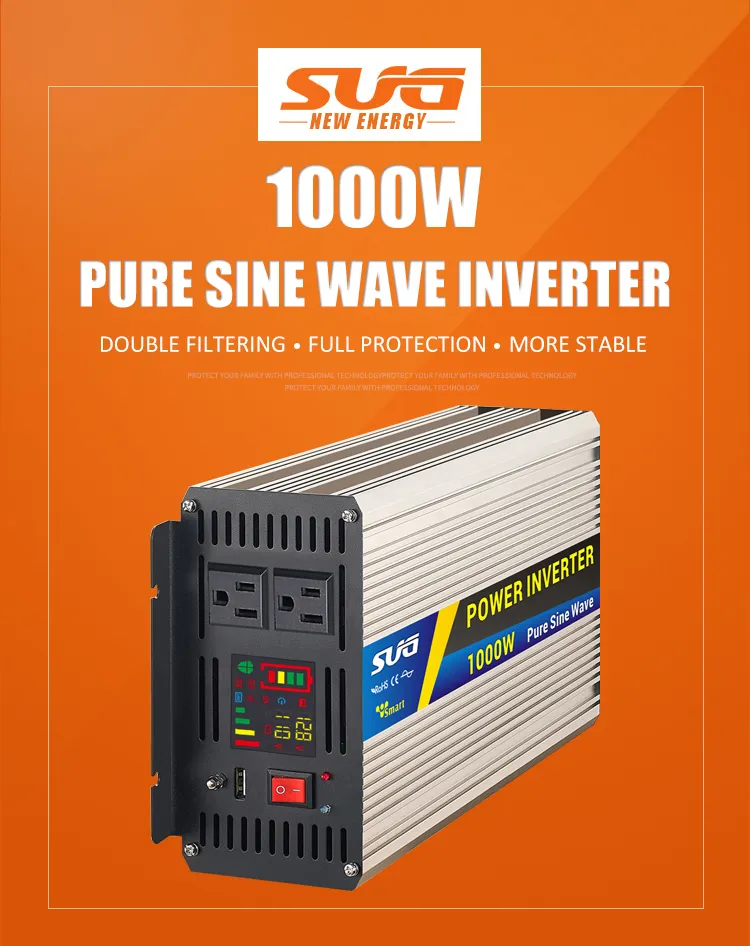

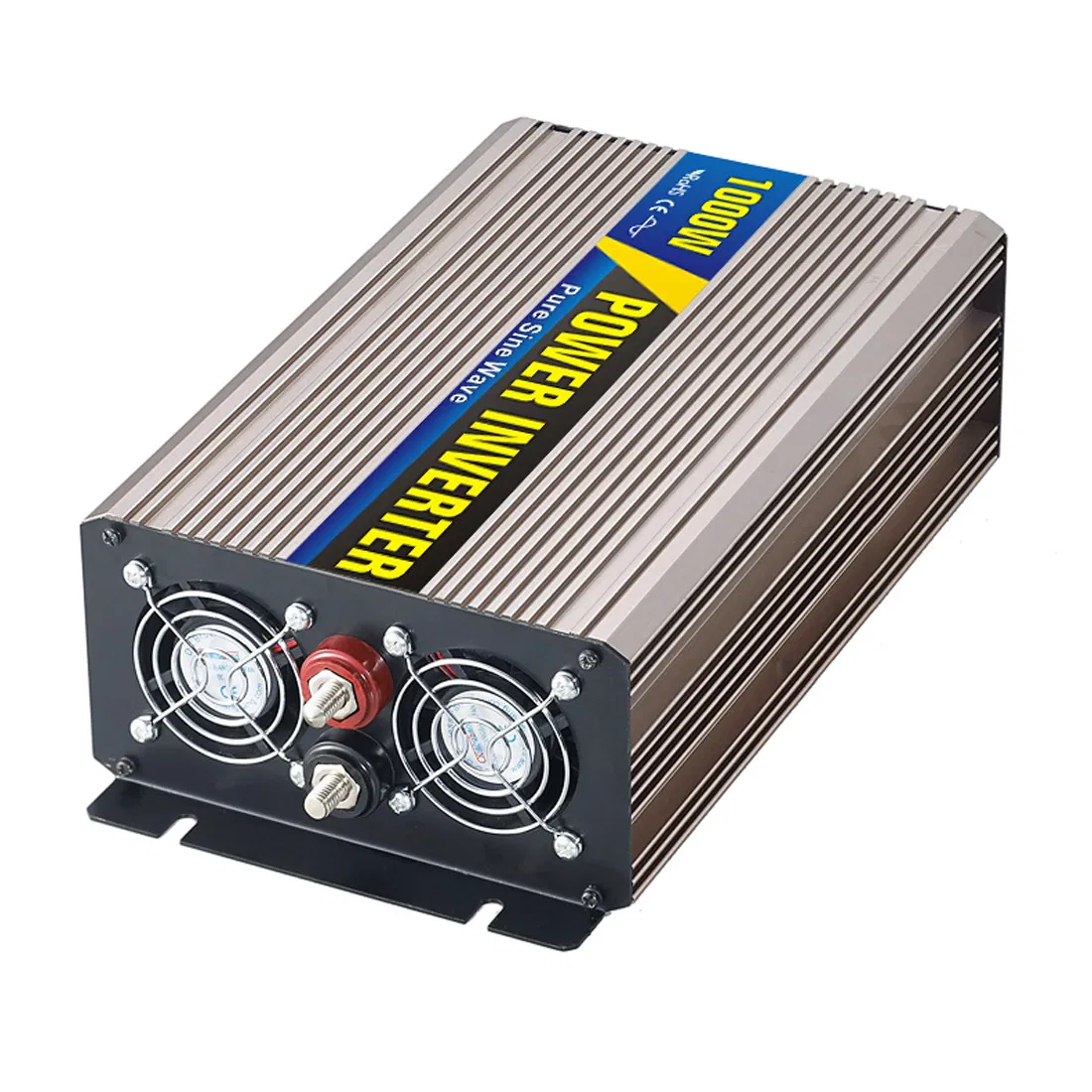

High Quality Input Voltage Customization 1000W Inverter with PSE Certificate Socket 12VDC 100VAC

Product Description

High Quality Input Voltage Customization 1000W Inverter with PSE Certificate Socket 12VDC 100VAC

FAQ
1.How to buy your product?
Contact our saleman and tell her which product do you need and she will arrange for you.
2.How about the delivery time?
About 3-5 days for sample
And 15-20 working days for bulk order
3.How about the payment ways?
We accept T/T, Western Union and Paypal

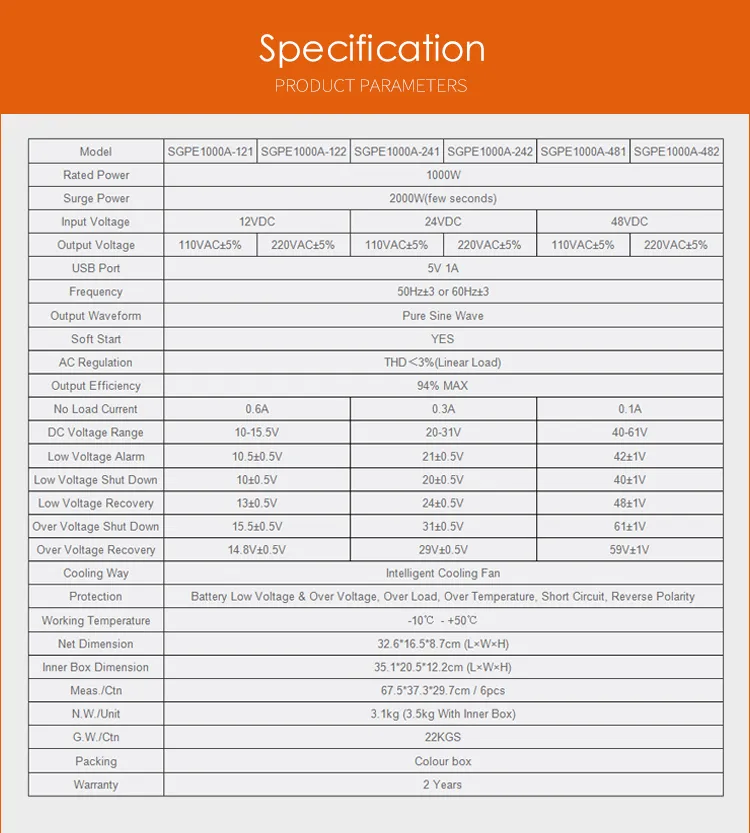

Product Specification

Model	SGPE1000-121	SGPE1000-122	SGPE1000-241	SGPE1000-242	SGPE1000-481	SGPE1000-482
Rated Power	1000W
Surge Power	2000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 0.5A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V

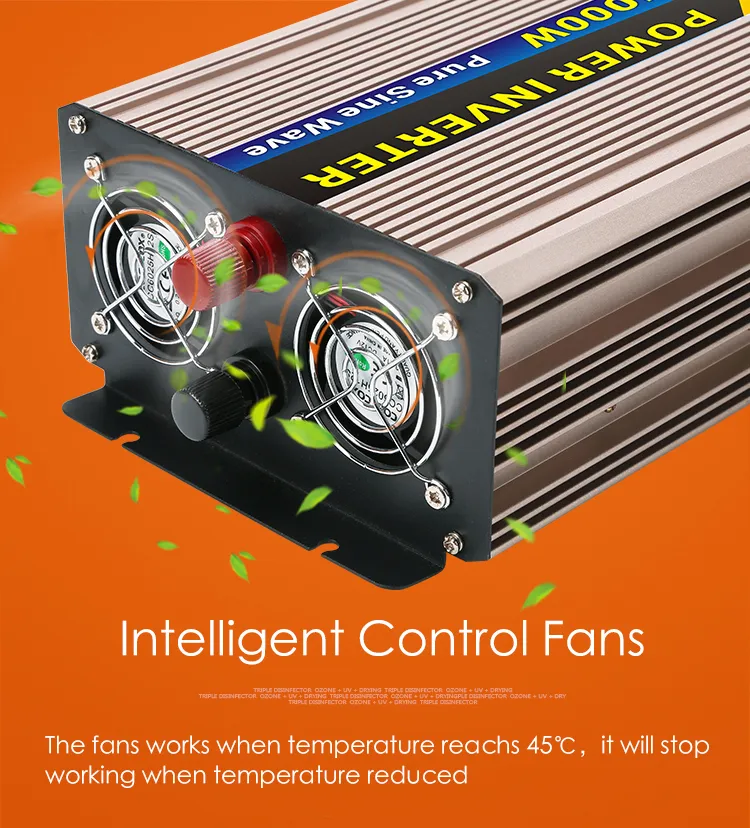

Cooling Way	Intelligent Cooling Fan

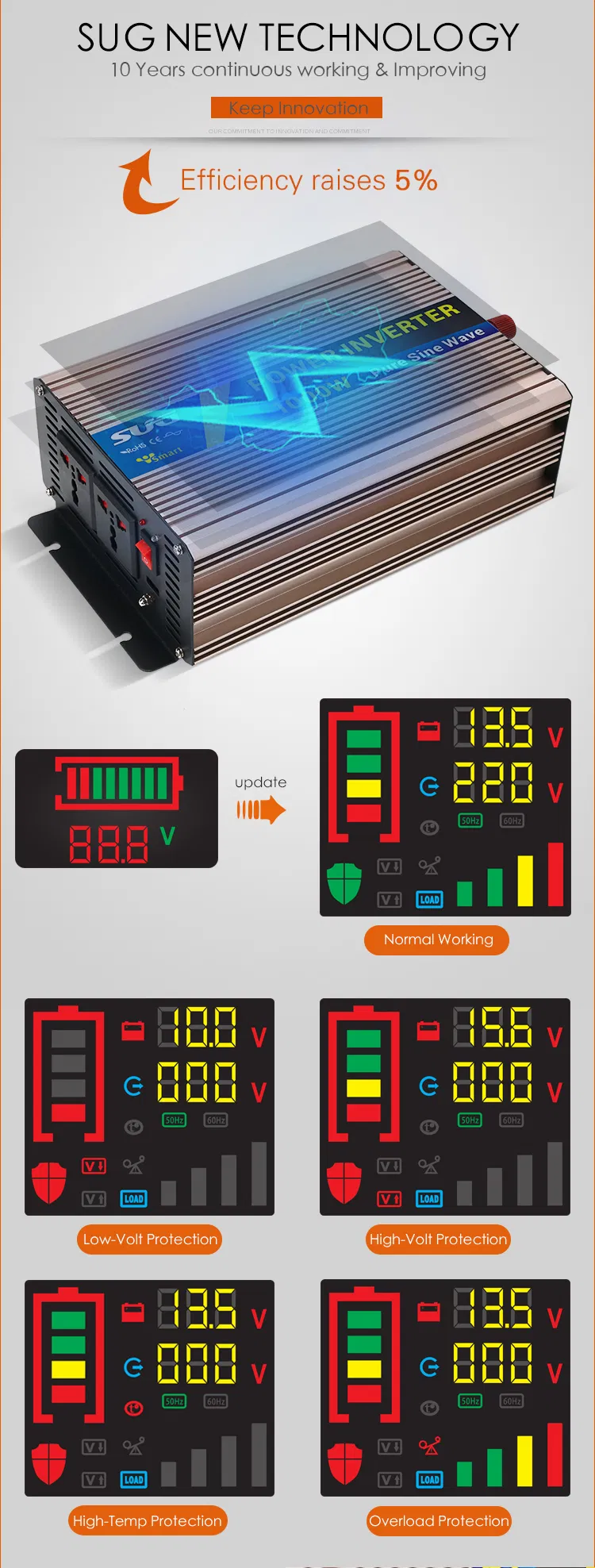

Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	28.616.59.2cm (L×W×H)
Meas./Ctn	484640cm / 6pcs
N.W./Unit	3.1KG
G.W./Ctn	22KGS
Packing	box
Warranty	2 Years
