12V/24V/48V Aoto Select 30A 50A 60A Solar Charge Controller

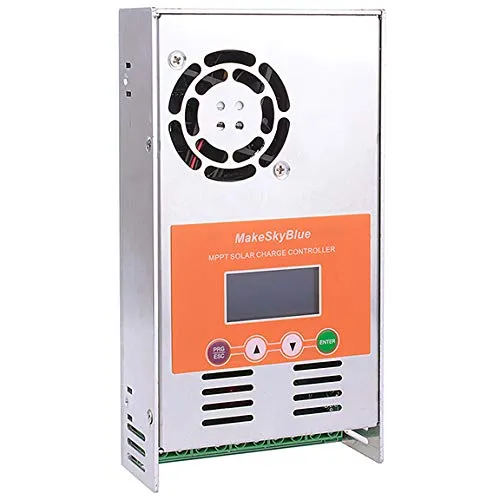

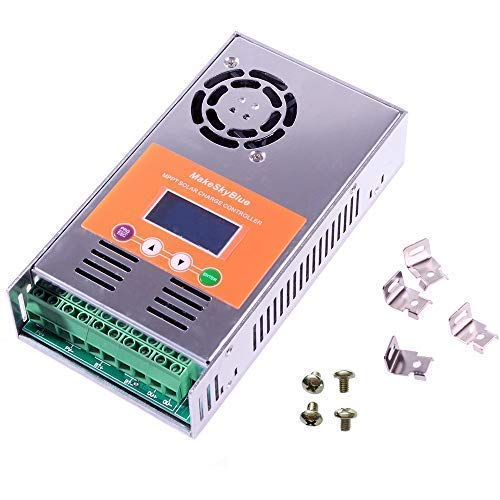

MakeSkyBule 60A MPPT Solar Charge Controller

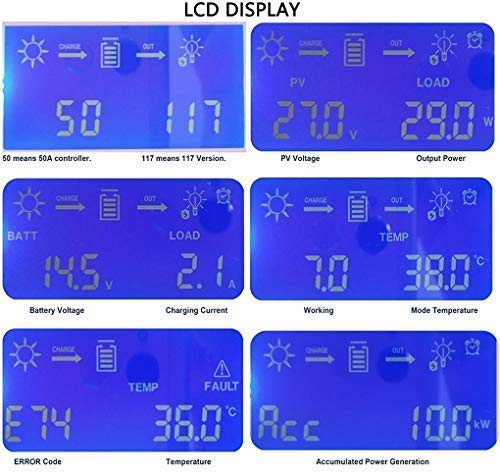

What are the news of V118? The V118 will display the voltage directly and no need to multiply anymore.

The V118 max efficiency is 98.2%.

The V118 MPPT track speed is 5 times faster than V113.

The V118 Charging Voltage Accuracy is ±0.2.

The V118 is much better to work for lithium battery and you could set the voltage from 12V to 17V.

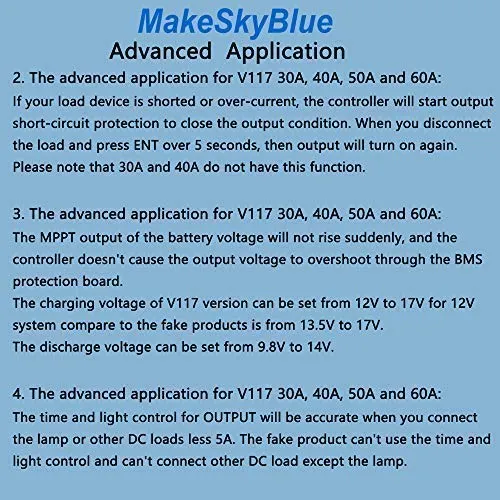

The V118 is much strong for OU+/OU- to control loads less 5A, but the time and light control of the fake V113 is a bug.

The V118 version motherboard is different to V113.

Notes: The fake products on the market is V113 that it's very old firmware and you could find this on the LCD when you turn on the controller in the first time. You may save some bucks for fake V113, but it may cook your battery.

INPUT

Maximum PV Array Power : 720W Panel 12V Battery; 1440W Panel 24V Battery;2100W Panel 36V Battery;2800W Panel 48V Battery

PV Array Open Circuit Voltage (Voc):

For 12V Battery 20~80VDC; For 24V Battery 37~105VDC;For 36V Battery 50~160VDC; For 48V Battery 72V~160VDC

PV Over-voltage Protection (Open Circuit Voltage):

For 12V Battery 90VDC;For 24V Battery 105VDC;For 36V Battery 160VDC ;For 48V Battery160VDC

OUTPUT

Selectable battery type : For 12V 24V 36V 48V Vented/ Sealed / Gel / NiCd / Lithium battery

PROTECTION FUNCTION

Temperature protection:75ºC

Fan-on temperature:>45ºC

Fan-off temperature:<40ºC

Overcharging protection voltage:60V

Limited current protection:61A

PHYSICAL PROPERTIES

Acoustic noise≤40dB

Cooling way:Forced air cooling

Components:Imported materials,According to EU standards,industrial,Industrial grade.

Operating Temperature:-20ºC~+55ºC

Storage Temperature:-40ºC~+75ºC

Dimension,D×W×H(mm) 215×115×50

Net weight(kg) 1.1

Gross weight(kg)1.3

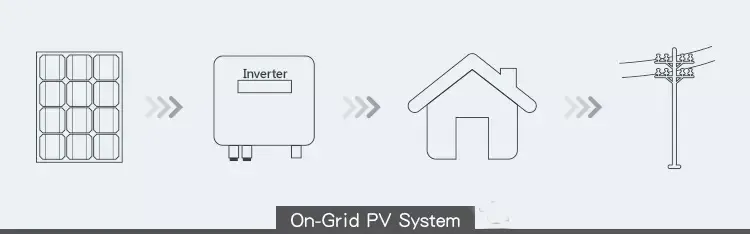

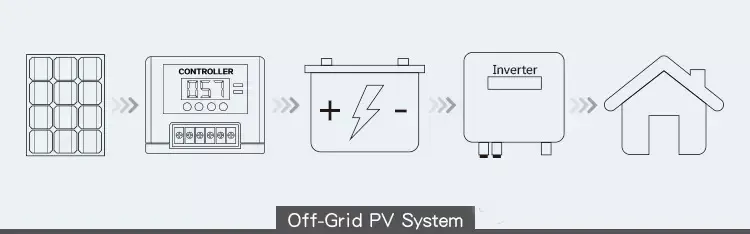

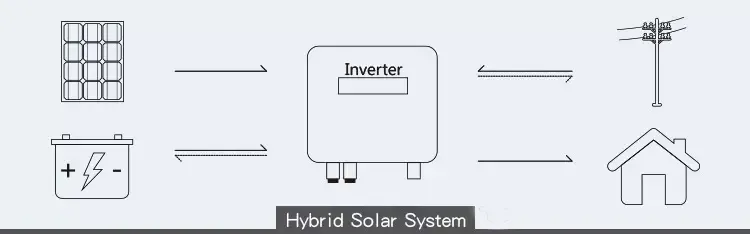

Application



Certification




FAQ:


Q: What material of  solar panel?

A:Solar photovoltaics are made with a number of parts, the most important of which are silicon cells. Silicon, atomic number 14 on the periodic table, is a nonmetal with conductive properties that give it the ability to convert sunlight into electricity. When light interacts with a silicon cell, it causes electrons to be set into motion, which initiates a flow of electricity. This is known as the "photovoltaic effect."

Q: What about the leading time?

A: In general, the leading time is about 7 to 10 days. But please confirm the exact delivery time with us as

different products and different quantity will have different leading time.

Q: How about the packing and shipping?

A: Normally, we have carton and pallet  for packaging. If you have any other special requirements, please feel

free to contact with us.

Q: How about custom logo and other OEM?

A: Please contact with us to make sure the detailed things before placing order. And we will help you make

the best effect. We have talented engineer and great team work.

Q: Is safety of the product?
A: Yes, the material is Eco-friendly and  non-toxic. Of course, you can also make a test on it.
