Topmay 63V Radial Electrolytic Capacitor 105c Tmce02-5

Capacitor
Standard Aluminum Electrolytic Capacitor 125 degree for 2000H
Standard Aluminum Electrolytic Capacitor 125 degree for 5000H
Standard Aluminum Electrolytic Capacitor 130degree for 4000H

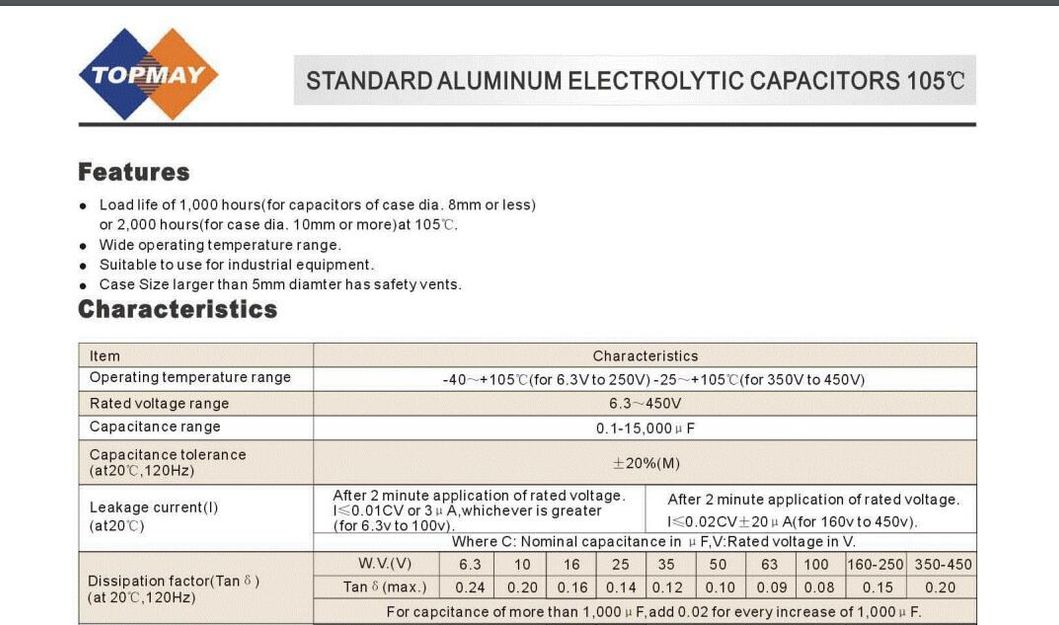

Specifications
ItemsCharacteristics
Rated Voltage Range: 6.3~450V. DC
Operating Temperature
Rang-55~+125degree(6.3V~63V); -40~+125degree(80V~450V)
Capacitance Tolerance± 20%(M) (25degree, 100 or 120Hz)
Leakage CurrentI≤ 0.02 CV or 3(μ A) (6.3V~100V) I≤ 0.03 CV +10 (μ A ) (160V~450V)
Where, I: Max. Leakage current(μ A), C: Nominal capacitance(μ F), V: Rated voltage(V)(At 25degree after 2 minutes)
Dissipation Factor tanδ
Rated voltage(VdC)6.31016253550~100160~250350~450
Tanδ (Max. )0.240.200.160.140.120.100.120.15
(25degree, 100 or 120Hz)

A When nominal capacitance exceeds 1000μ F, add 0.02 to the value above for each 1000μ F increase.

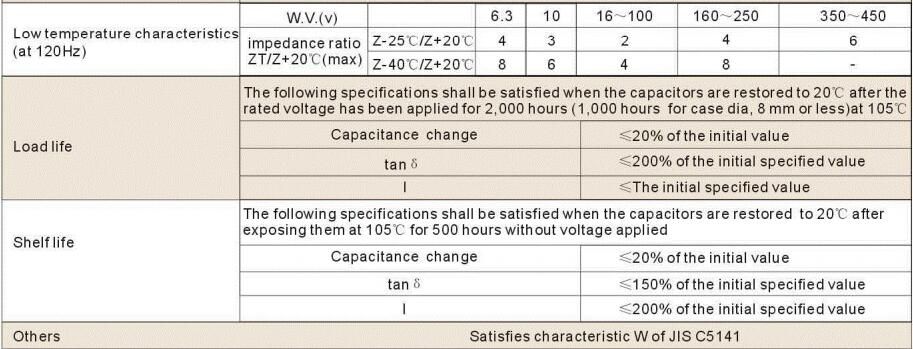

Low Temperature
Characteristics
(Max. Impedance Ratio)Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.

Rated voltage(VdC)6.3~1625~6380~100160~250350~450
Z-40degreeZ+degree4610
Z-55degreeZ+20degree54///

When nominal capacitance exceeds 1000μ F, add 1 to the value above for each 1000μ F increase.
Shelf LifeAfter storage at 125degreefor 1000 hours, the capacitors shall meet the following requirements. (500 hours for 350V~450V)

Capacitance Change≤ ± 20% of the initial value
D. F. ( tanδ )≤ 200% of the initial specified value
Leakage Current≤ 500% of the initial specified value
Load LifeAfter application of rated voltage with rated ripple current for the 2000hours at +125degree, the capacitors shall meet the following limits.

Capacitance Change≤ ± 20% of the initial value
D. F. ( tanδ )≤ 200% of the initial specified value
Leakage Current≤ The Initial specified value
OthersMeet Q/RME 40-2008, GB/T 5993-2003
