China Reasonably Priced Capacitor with Steady Electric Performance

Product Description

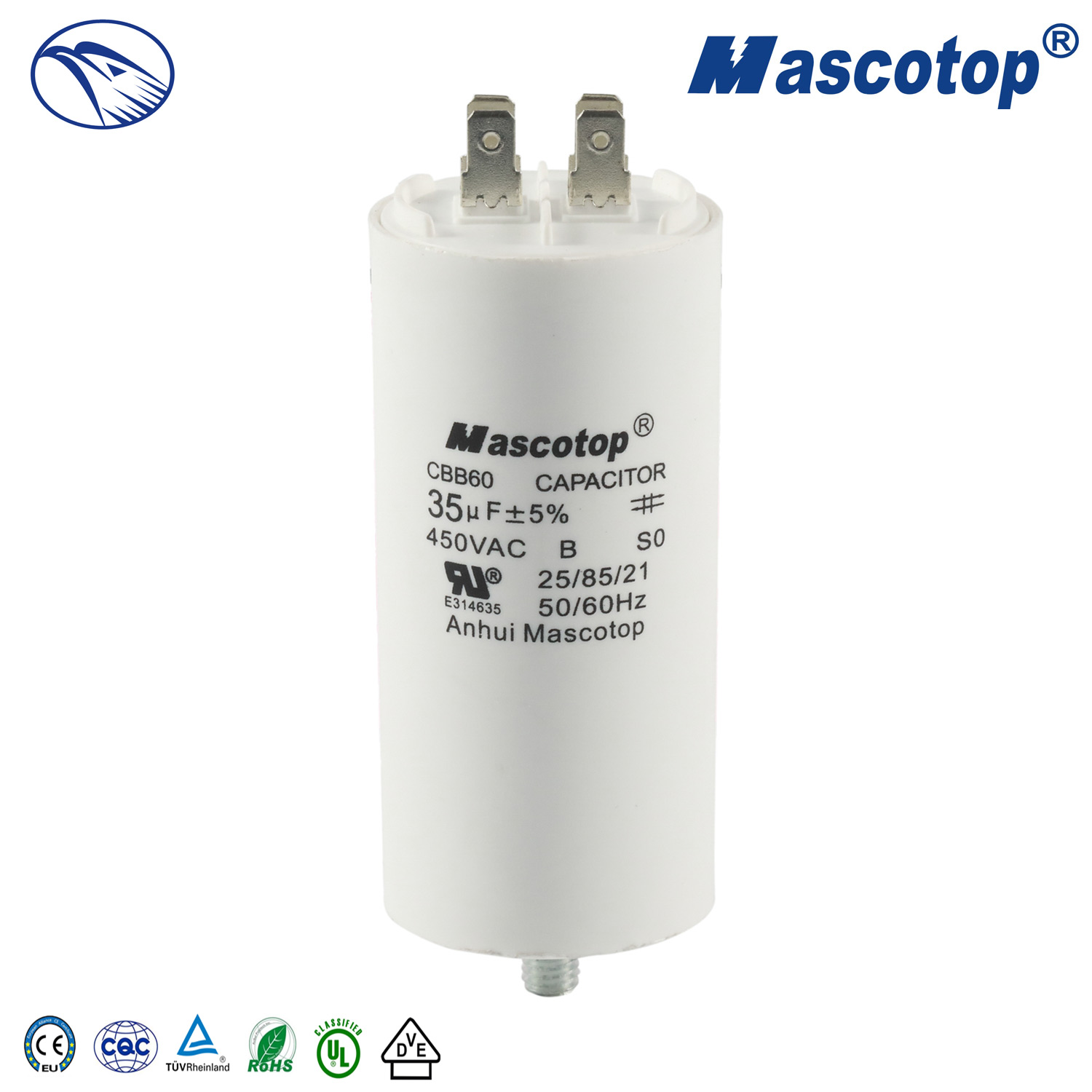

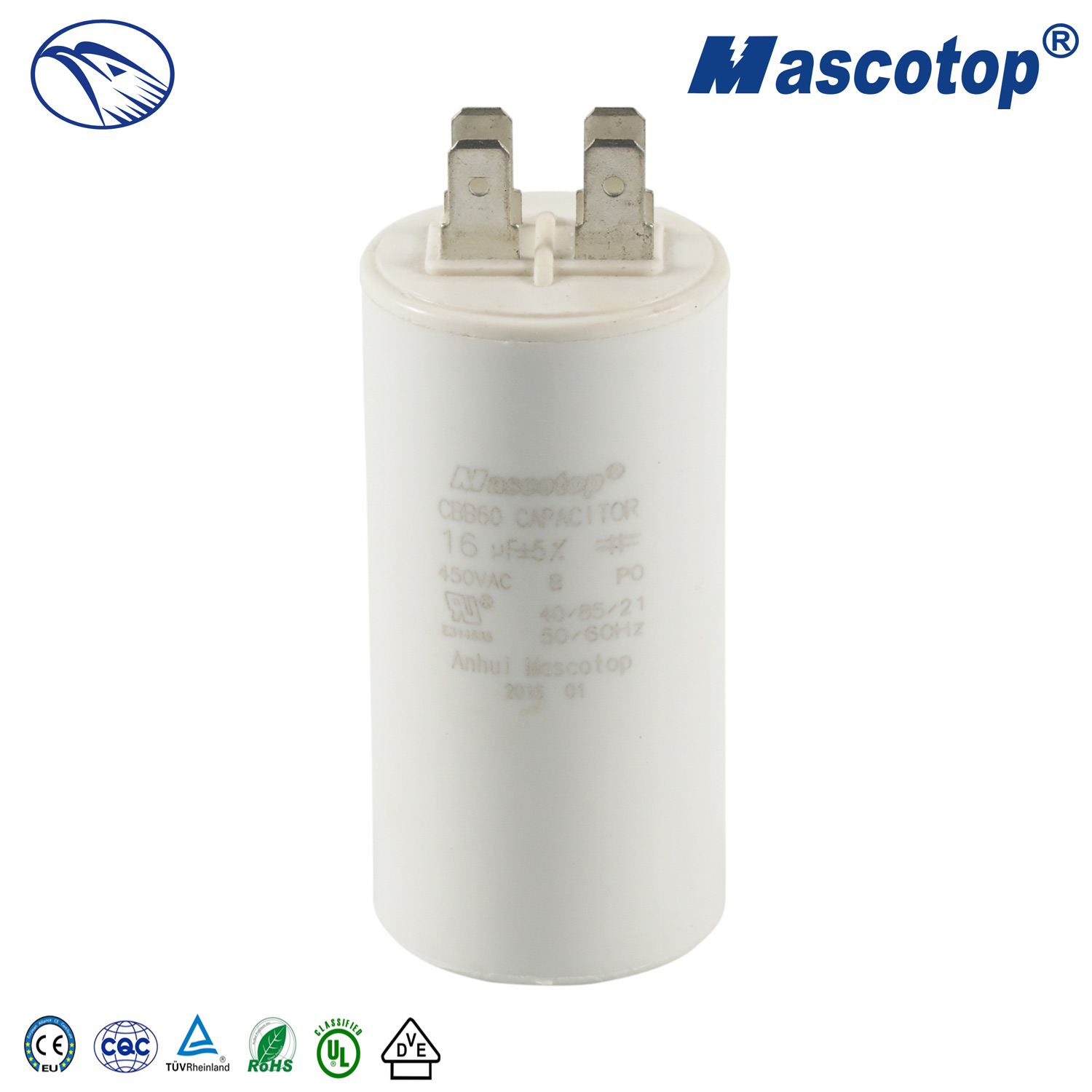

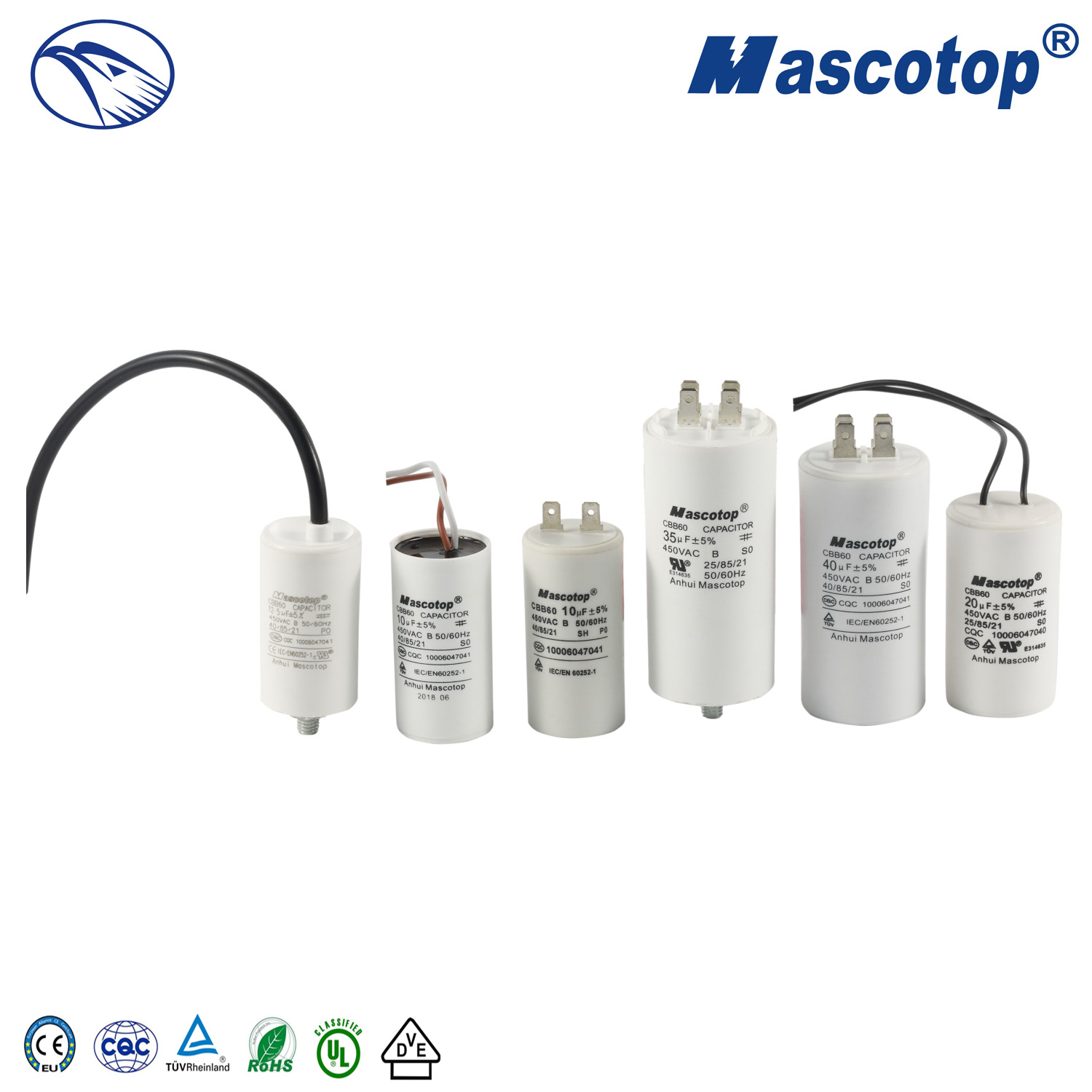

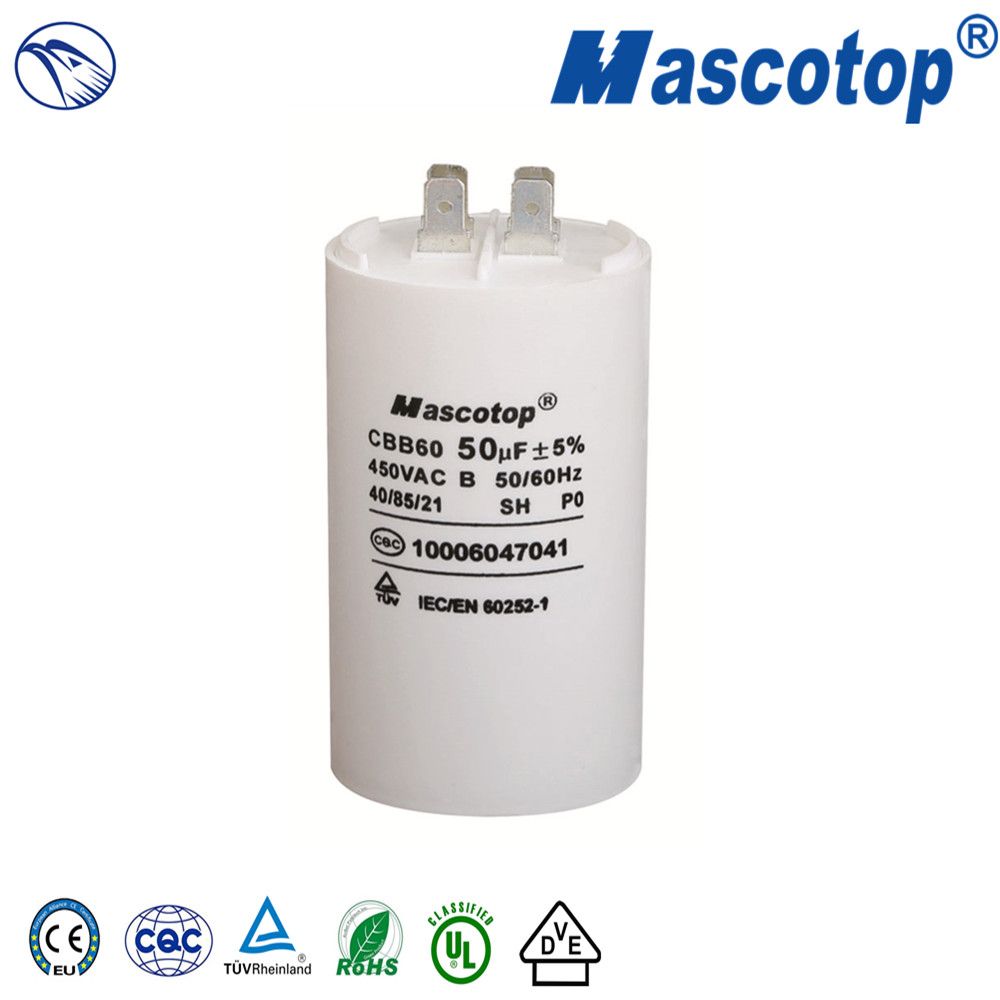

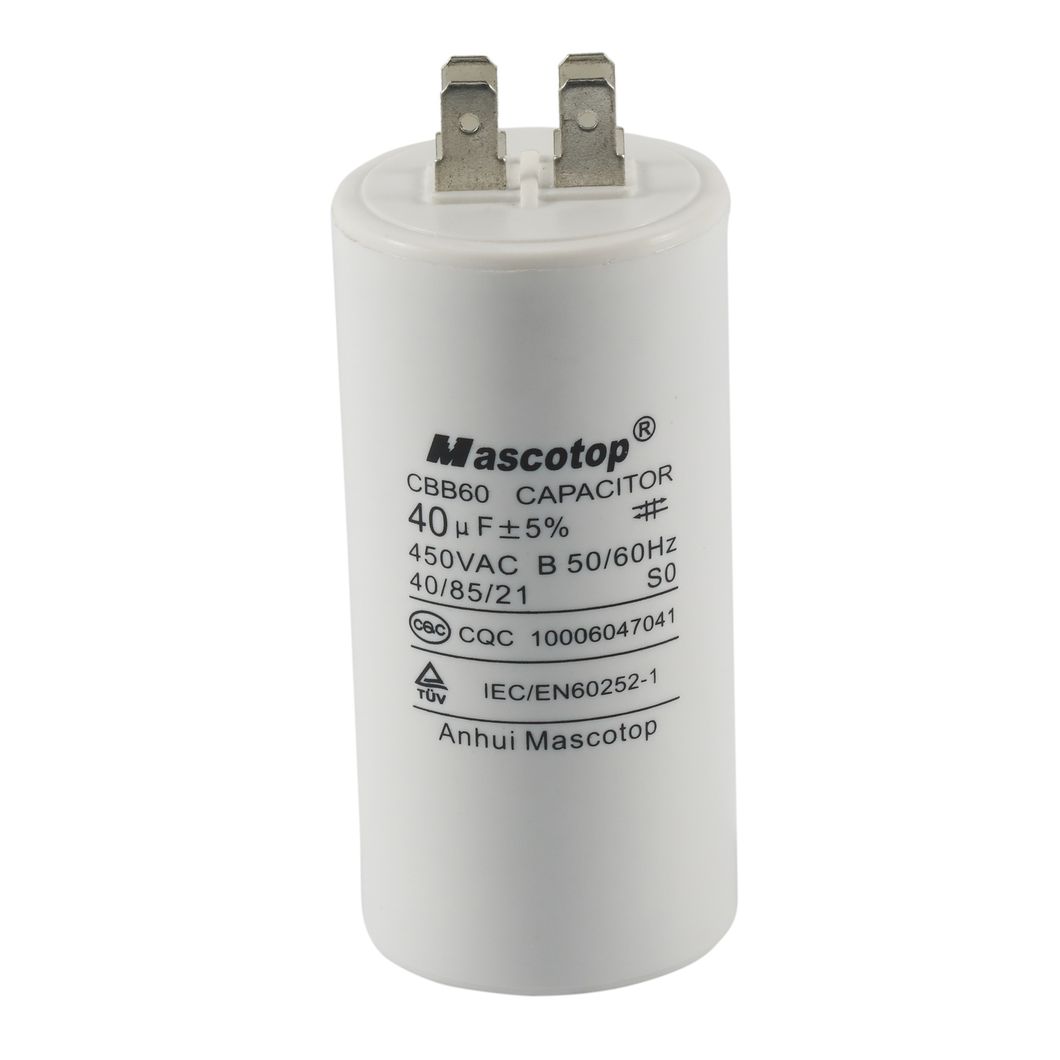

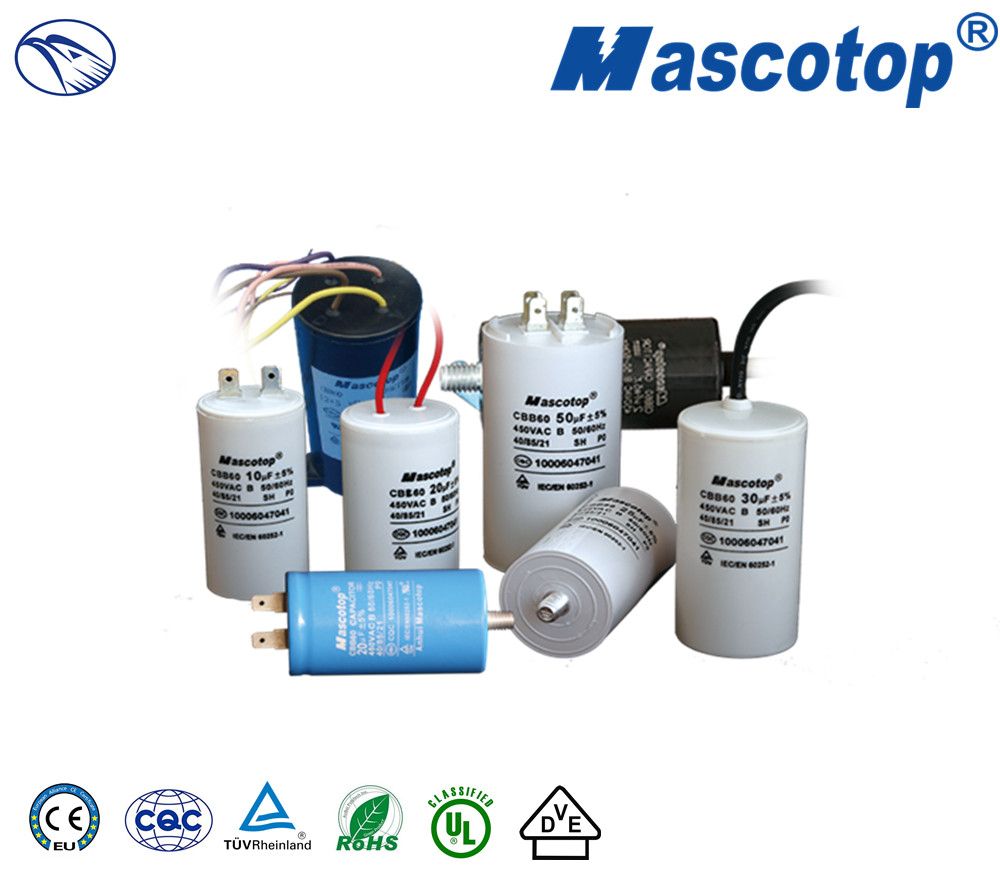

CBB60 Starter AC washing machine Capacitor 10uf/450V Motor Running Capacitor

Features and use

The capacitor has advantages of low dissipation factor,,high insulation resistance,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance,reslsting flowing current and high carrying capability etc.It is suitable for washers and detached horse-power motor,pump and beneflcial to the starting and running of motors.

Technical parameter

Ambient Temp	Rated Voltage (AVC)	Range of Capacitance (μf)	Testing Voltage (VAC)	Dissipation Factor	Operating Frequency
-40-85ºC	200-500	1-100	T-T:2Un/2S T-C:≥2200VAC/2S	tanδ≤0.002(100Hz)	50/60Hz

Outline size

Capacitance(μF)	200-300VAC		370-400VAC		440-450VAC
Capacitance(μF)	D	H	D	H	D	H
2	30	60	30	60	30	60
5	30	60	30	60	30	60
7.5	30	60	30	60	30	70
10	30	70	35	75	35	70
15	35	70	35	70	40	70
20	35	70	40	70	40	70
25	40	70	45	75	45	90
30	45	75	45	90	45	90
35	45	75	45	90	45	90
40	45	90	50	95	50	100
45	45	90	50	100	50	100
50	45	90	50	100	50	100
55	45	90	50	100	50	100
60	45	90	50	100	50	125
70	50	100	50	125	50	125
80	50	125	55	125	55	135
100	55	125	55	125	60	135
