China Reasonably Priced Capacitor Suitable for Fan Motor

Product Description

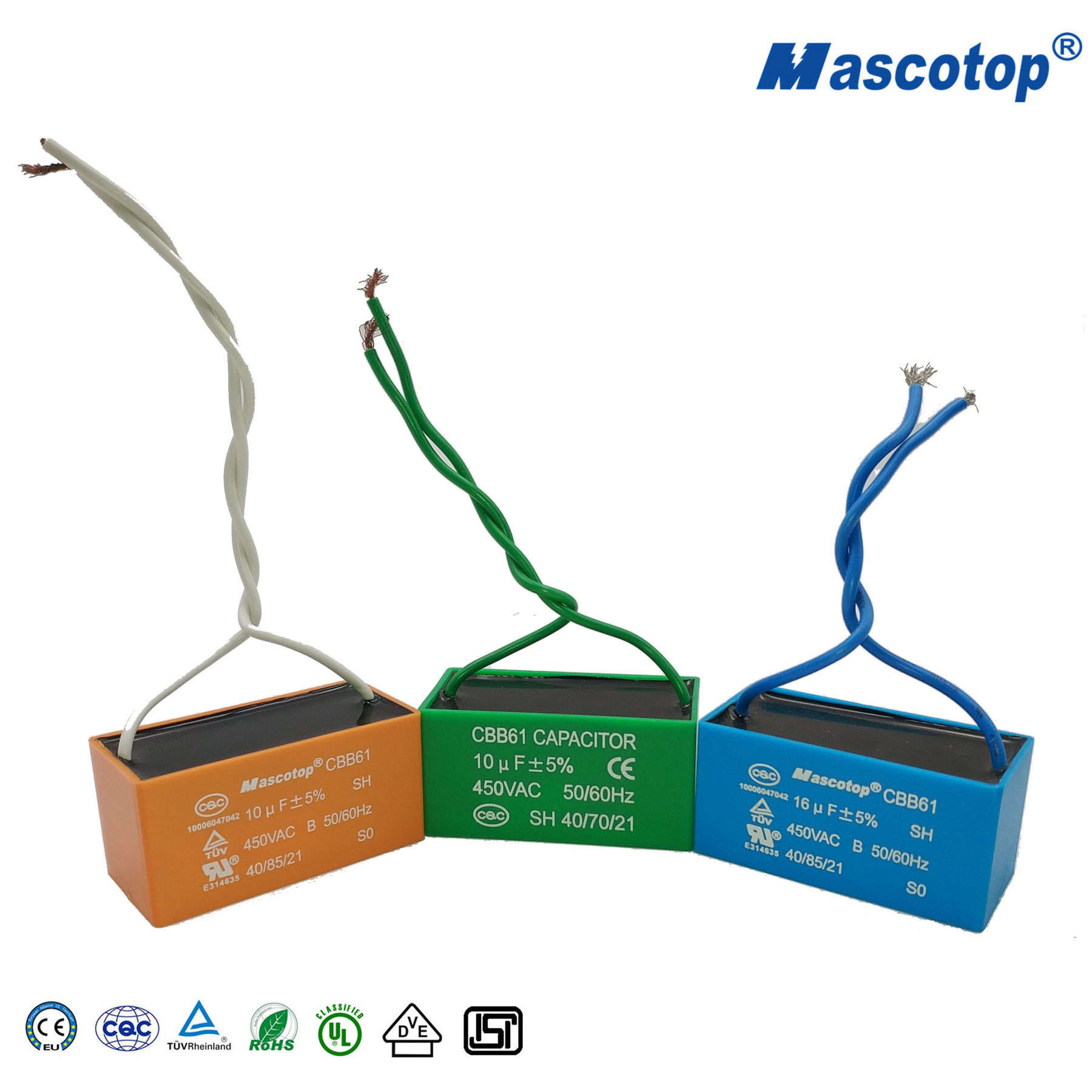

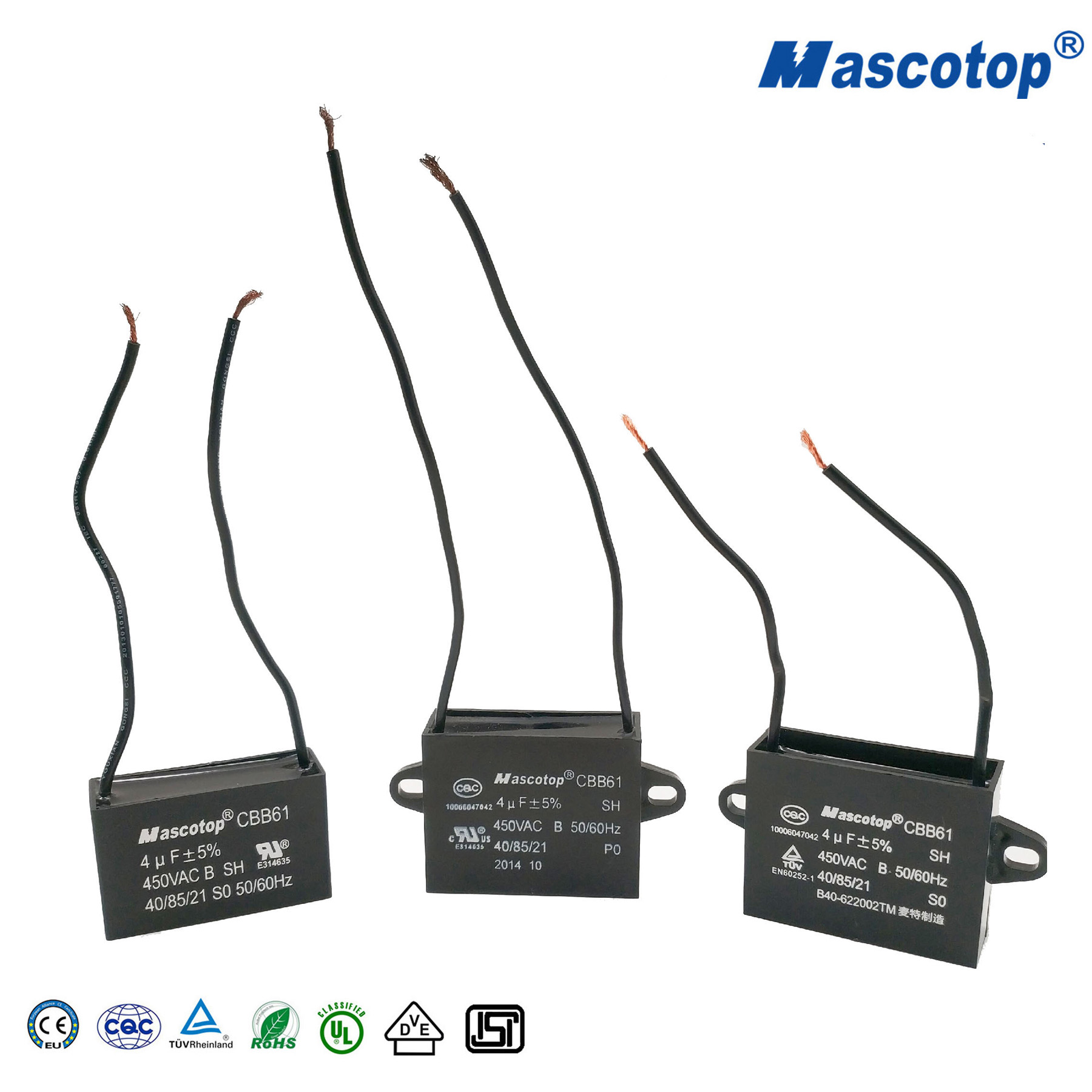

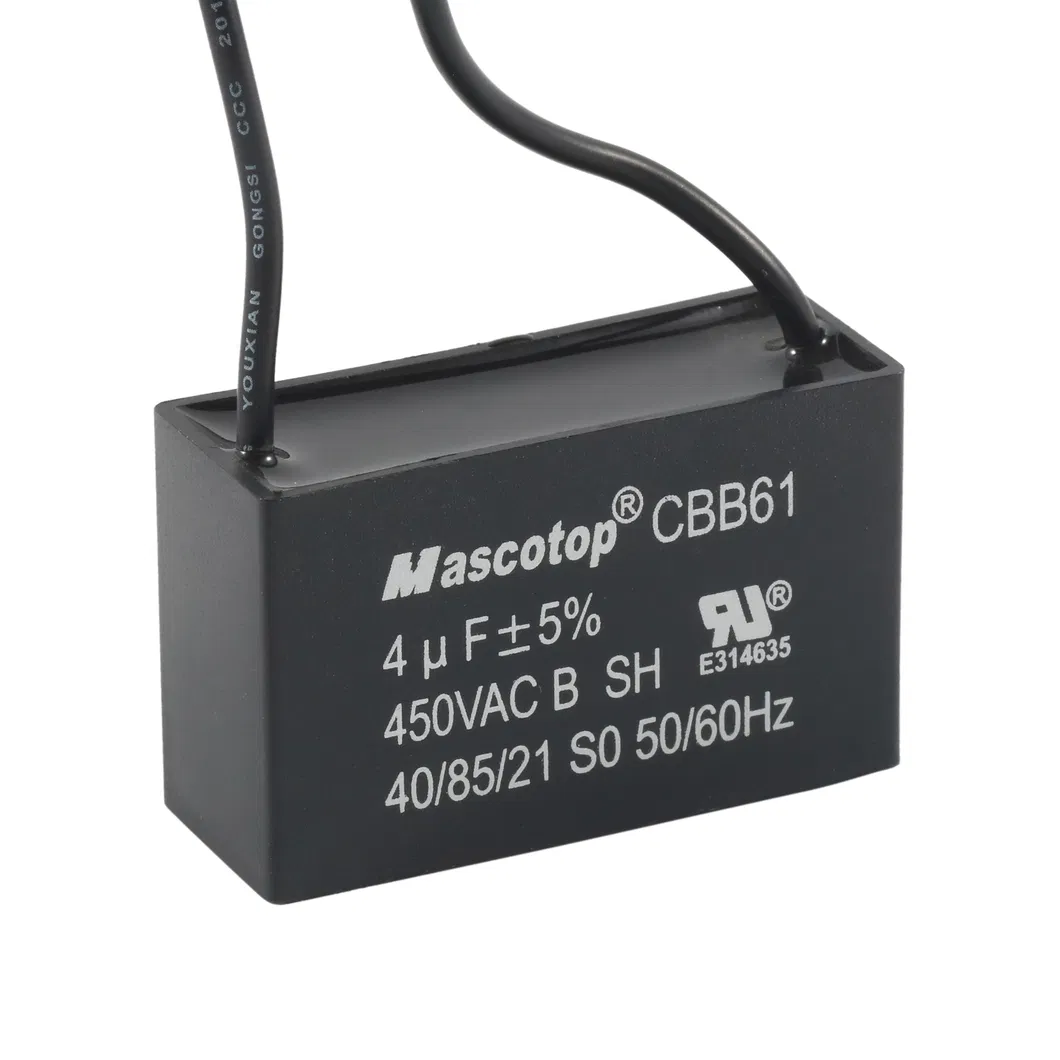

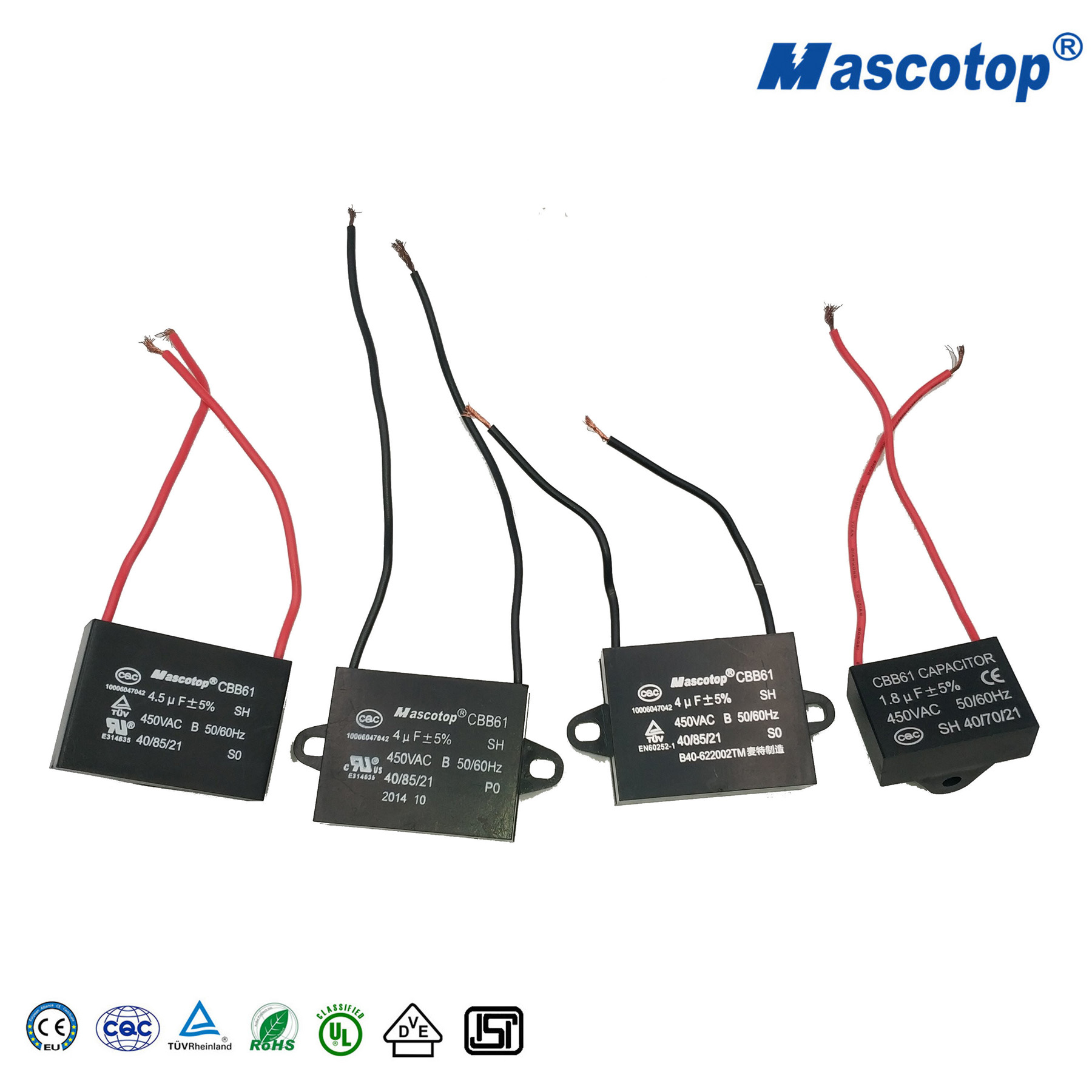

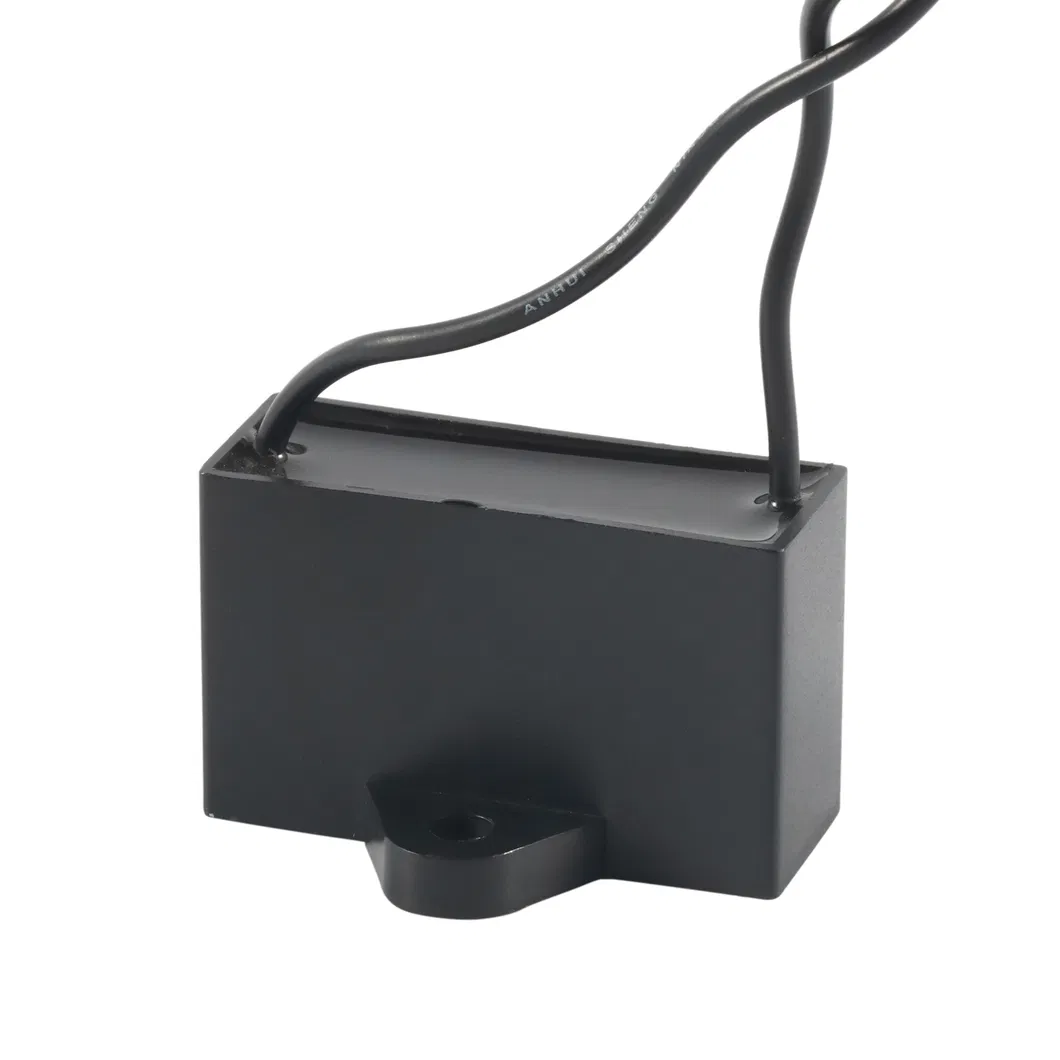

CBB61 Motor Capacitor

Features and use

The capacitor has advantages of low dissipation factor,,high insulation resistance,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance,etc.In generally,it uses rectangular flame retardant shell and epoxy resin to seal.It is applied in electric fan, exhaust fan electric pump,and electric sewing machine,etc.It is helpful for motor's starting and running.

Technical parameter

Ambient Temp	Rated Voltage (AVC)	Range of Capacitance (μf)	Testing Voltage (VAC)	Dissipation Factor	Operating Frequency
-40-85ºC	150-500	0.5-30	T-T:2Un/2S	tanδ≤0.002(100Hz)	50/60Hz

Outline size

Capacitance(μF)	200~300VAC			370-400VAC			440-450VAC
Capacitance(μF)	L	B	H	L	B	H	L	B	H
1	36	11	19	37	14	24	37	14	24
1.5	36	11	19	37	14	24	37	14	28
2	37	14	24	37	14	28	47	14	28
2.5	37	14	24	37	15	28	37	18	30
5	47	14	28	47	18	34	47	20	34
8	47	18	34	57	18	32	47	26	38
16	57	18	32	58	23	37	58	28	40
20	58	23	37	58	28	40	58	30	50
24	58	28	40	60	30	45	60	40	50
30	60	40	50	73	40	53	73	40	53
