Staring Capaictor 2.7V 5.0f Farad Capacitor

Product Description

Liaoning Brother Electronics Technology co., Ltd.
High temperature 85C Super capacitor 2.7V 0.22f/0.35f/0.5f/1.0f/2.0f/3.3f/4.7f/5.0f/6.0/8.0/10f/16f/22f/30f/50f/60f/70f and so on.

Features
Cylindrical shape structure, Winding types;
Ulta-low ESR for high power density ,Large capacitance for high energy density;
Long charge-discharge cycle life; (1000000 times)
Ultra-low internal resistance,suitable for high power discharge.
Ultra-low leakage current, suitable for use with battery
Wide temperature range from -40C to 85C
Various specifications,can meet customer's different requirements
High quality, reasonable price, help you to lowest your production cost;

Specifications
BIGCAP standard high temperature radial leads capacitors data as below:

NO	Part number	Rated Voltage V	Rated Capacitance F	ESR (AC,max,1kHz) mΩ	ΦD×L ±1.0 mm	F±0.5 mm
1	BRT002R7L104FA	2.7	0.1	450	5×12	2
3	BRT002R7L154FA	2.7	0.15	400	5×12	2
5	BRT002R7L224FA	2.7	0.22	500	5×12	2
6	BRT002R7L224FB	2.7	0.22	500	5×9.8	2
7	BRT002R7L254FA	2.7	0.25	500	5×12	2
8	BRT002R7L254FB	2.7	0.25	500	6.3×12	2.5
9	BRT002R7L354FA	2.7	0.35	400	5×12	2
10	BRT002R7L504FA	2.7	0.5	500	6.3×12	2.5
13	BRT002R7L704FA	2.7	0.7	400	8×13	3.5
14	BRT002R7L105FA	2.7	1.0	300	8×13	3.5
15	BRT002R7L105FB	2.7	1.0	200	8×19	3.5
16	BRT002R7L105FC	2.7	1.0	200	8×13	3.5
17	BRT002R7L105FD	2.7	1.0	300	6.3×12	2.5
18	BRT002R7L205FA	2.7	2.0	140	8×19	3.5
19	BRT002R7L205FB	2.7	2.0	140	10×20	5
20	BRT002R7L305FA	2.7	3.0	100	8×19	3.5
21	BRT002R7L305FB	2.7	3.0	120	8×16	3.5
22	BRT002R7L335FA	2.7	3.3	80	10×20	5
23	BRT002R7L405FA	2.7	4	80	10×20	5
24	BRT002R7L475FA	2.7	4.7	70	12.5×21	5
25	BRT002R7L475FB	2.7	4.7	70	10×20	5
26	BRT002R7L505FA	2.7	5.0	70	10×20	5
27	BRT002R7L605FA	2.7	6.0	70	10×20	5
28	BRT002R7L705FA	2.7	7.0	70	10×25	5
29	BRT002R7L805FA	2.7	8.0	50	12.5×21	5
30	BRT002R7L805FC	2.7	8.0	50	12.5×20	5
31	BRT002R7L106FA	2.7	10	50	12.5×26	5
32	BRT002R7L106FB	2.7	10	50	12.5×34	5
33	BRT002R7L106FC	2.7	10	60	12.5×21	5
34	BRT002R7L106FD	2.7	10	50	10×30	5
35	BRT002R7L156FA	2.7	15	30	16×26	7.5
36	BRT002R7L166FA	2.7	16	30	16×21	7.5
37	BRT002R7L226FA	2.7	22	25	16×26	7.5
38	BRT002R7L256FA	2.7	25	25	16×34	7.5
39	BRT002R7L306FA	2.7	30	25	16×34	7.5
40	BRT002R8L506FA	2.7	50	20	18×41	8
41	BRT002R7L606FA	2.7	60	15	18×41	8
42	BRT002R7L706FA	2.7	70	15	18×52	8

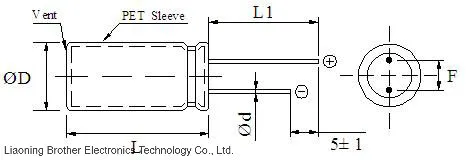

Shape of standard product

Staring Capaictor 2.7V 5.0f Farad Capacitor

Applications

Smart water meter, Smart electricity meter,Smart energy meter,
VCR, RAM, Radio,TV set,DVD,GPS,Electric toy, LED-lighting device
Telephone, intelligent door lock,electric cooker,cell phone,electric water heater
self-powered super flashlight,Intelligent instrument etc.
Staring Capaictor 2.7V 5.0f Farad Capacitor

Packiaging & Delivery
Plastic tray, standard export carton
Delivery Detail:5~20 days after order
100% On-time shiping.
1. All goods can be ship out by Air, Sea, Express(DHL, FeDex, TNT, UPS, EMS, SF)
2. Super capacitors got products certification from authority.

Staring Capaictor 2.7V 5.0f Farad Capacitor

Our Service

1. Various other dimensions of BIGCAP super capacitor to meet any requirments.
2.We can supply our customer high quality products with a reasonable price, by using our products, customers can cut off their production cost and assure their products' stability.
3.We can design and produce products according to customer's requirments.
4.With our professional technical team,we can provide our customer with professional technical support.
5.More importantly,we will be five-star service,high quality and low price!
