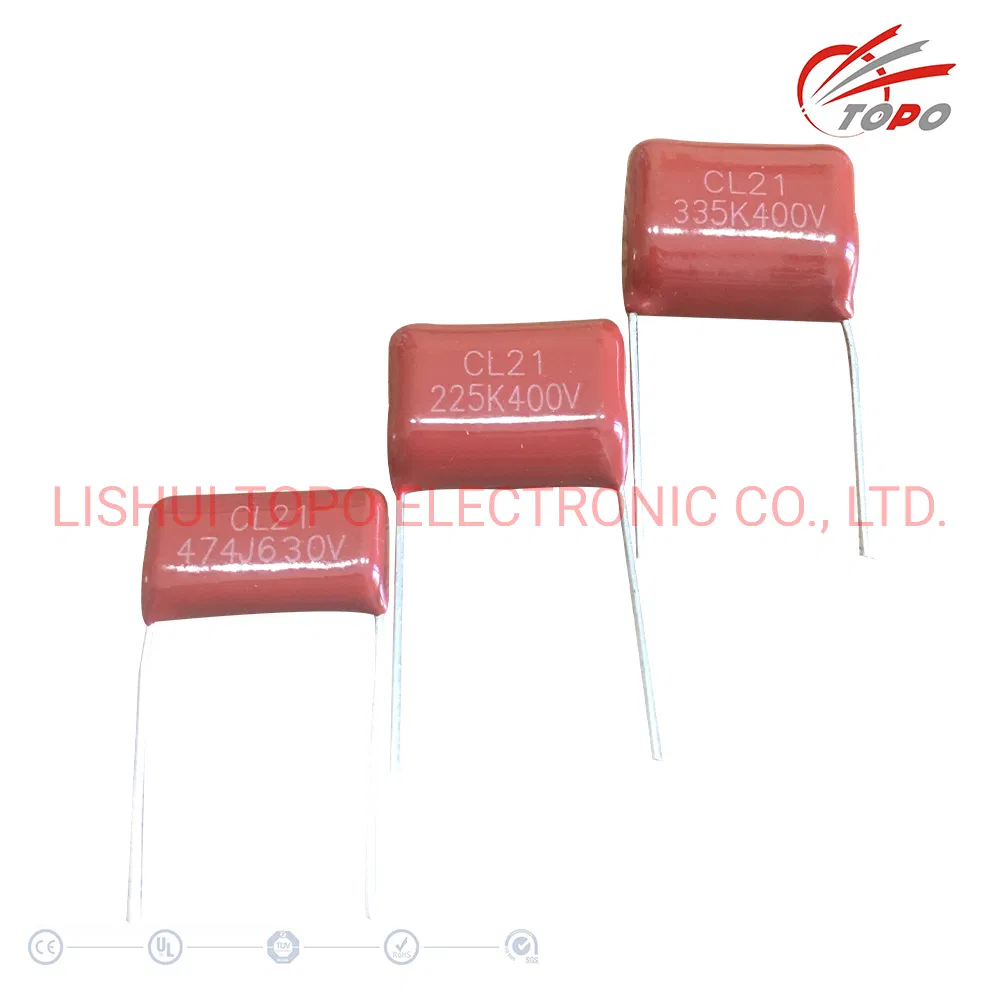

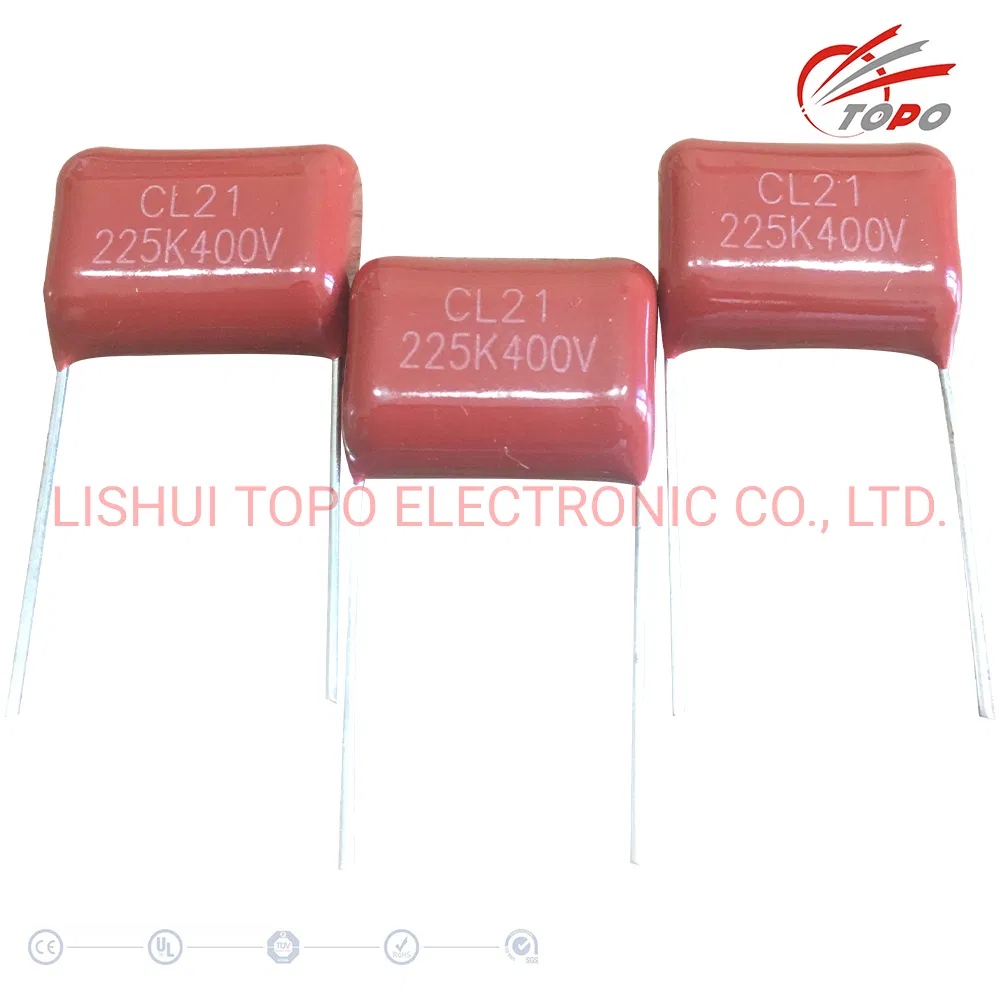

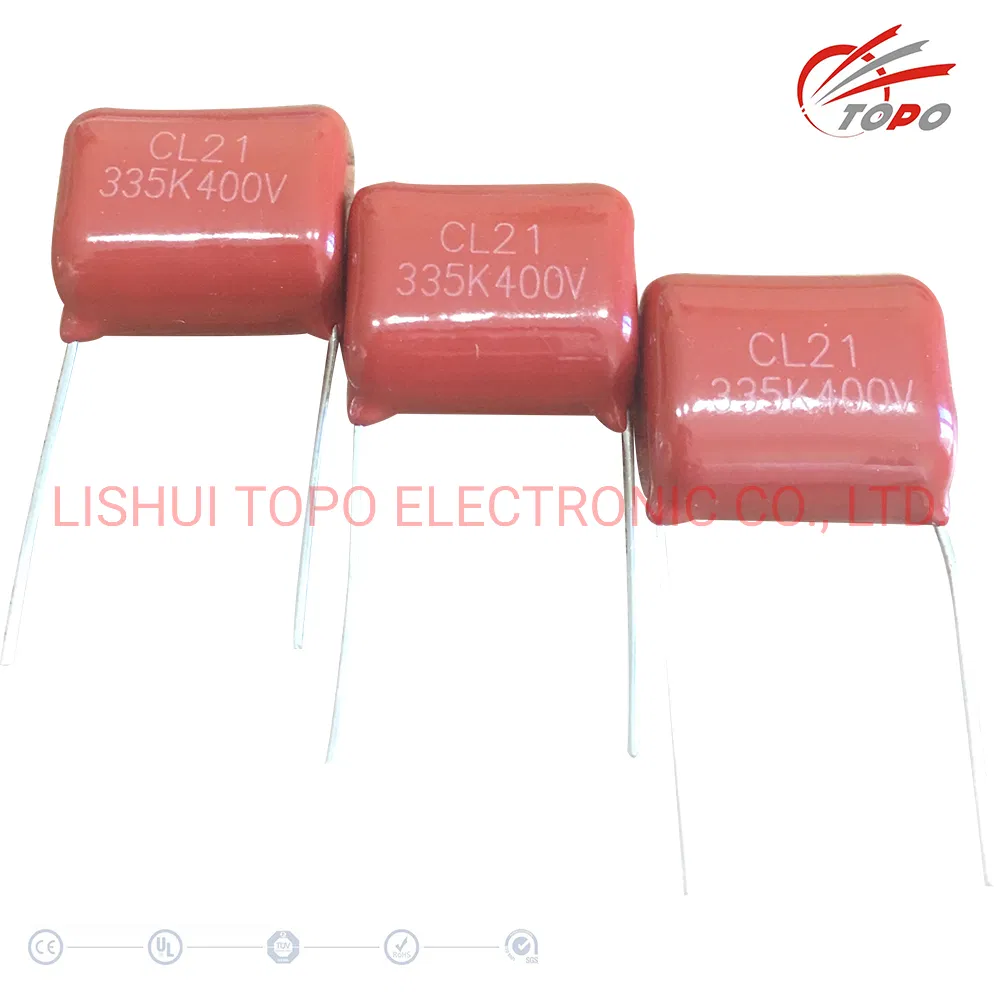

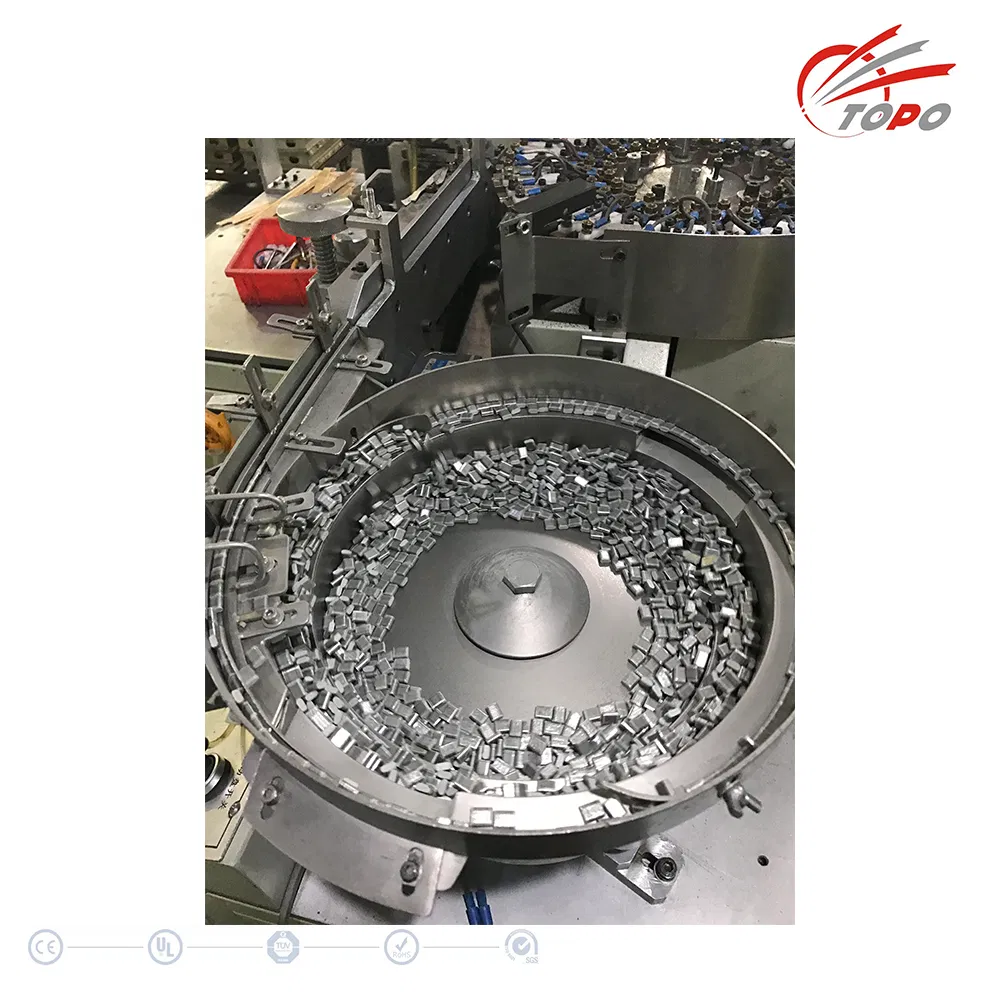

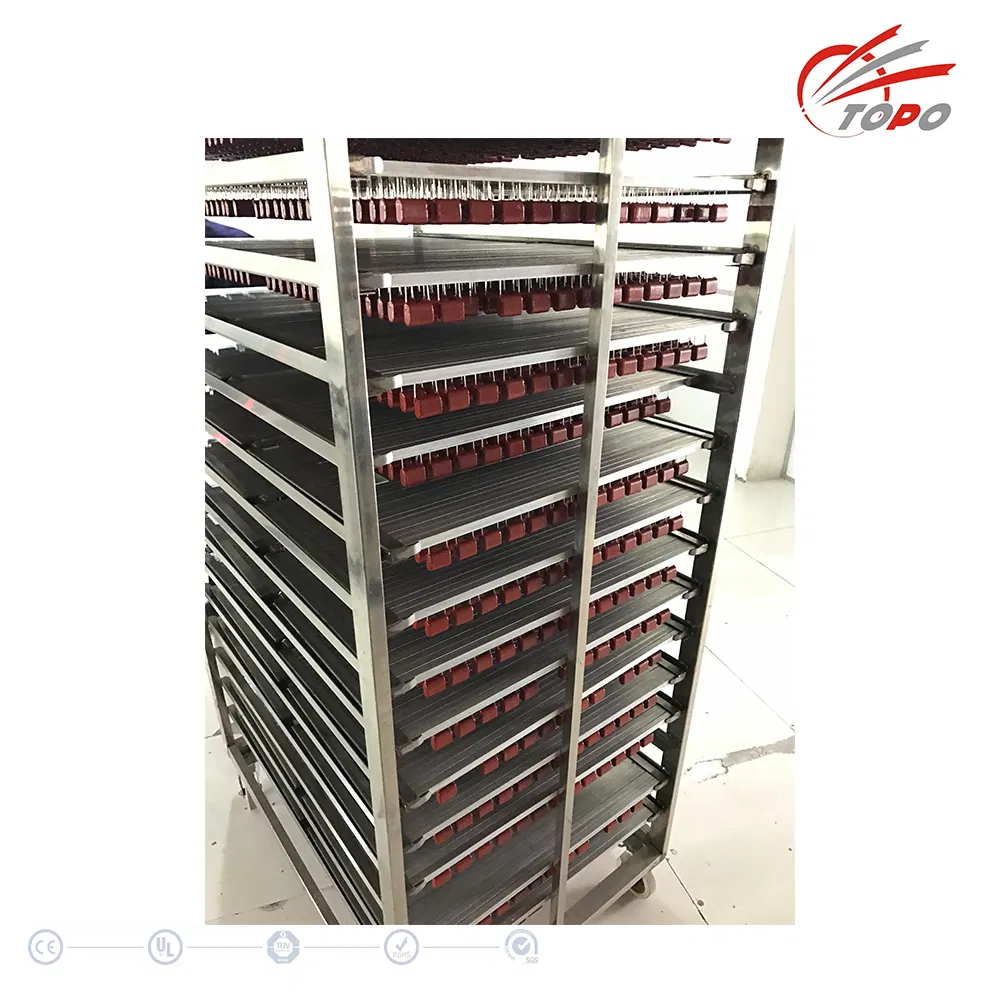

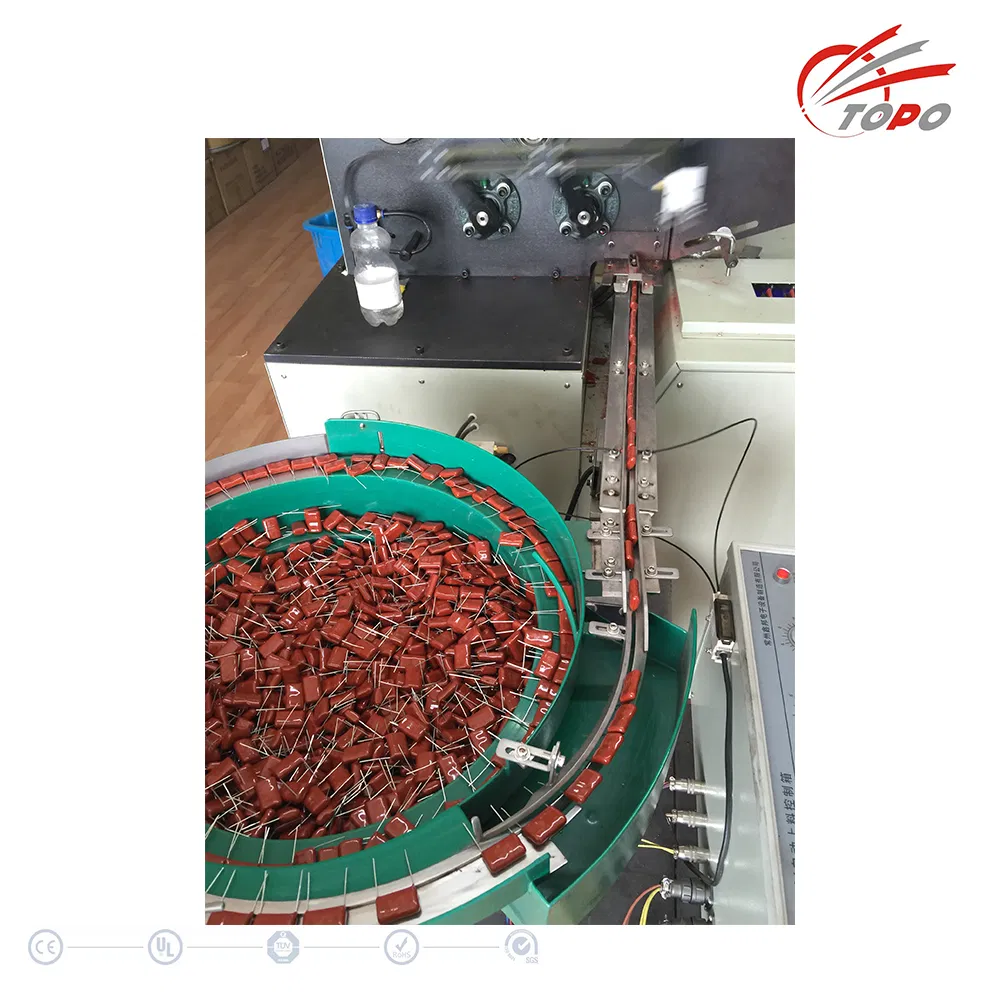

CL21 SeriesFeaturesWide capacitance range,small sizeLong life due to self-healing effectSuitable for block , by-pass and coupling of DC and signal to VHF rangeWidely used in filter,noise suppression and low pulse circuitsConfigurationNon-inductive, wound with metallized polyester film as dielectric ......
Send Inquiry
Product Description
Features
- Wide capacitance range,small size
- Long life due to self-healing effect
- Suitable for block , by-pass and coupling of DC and signal to VHF range
- Widely used in filter,noise suppression and low pulse circuits
Configuration

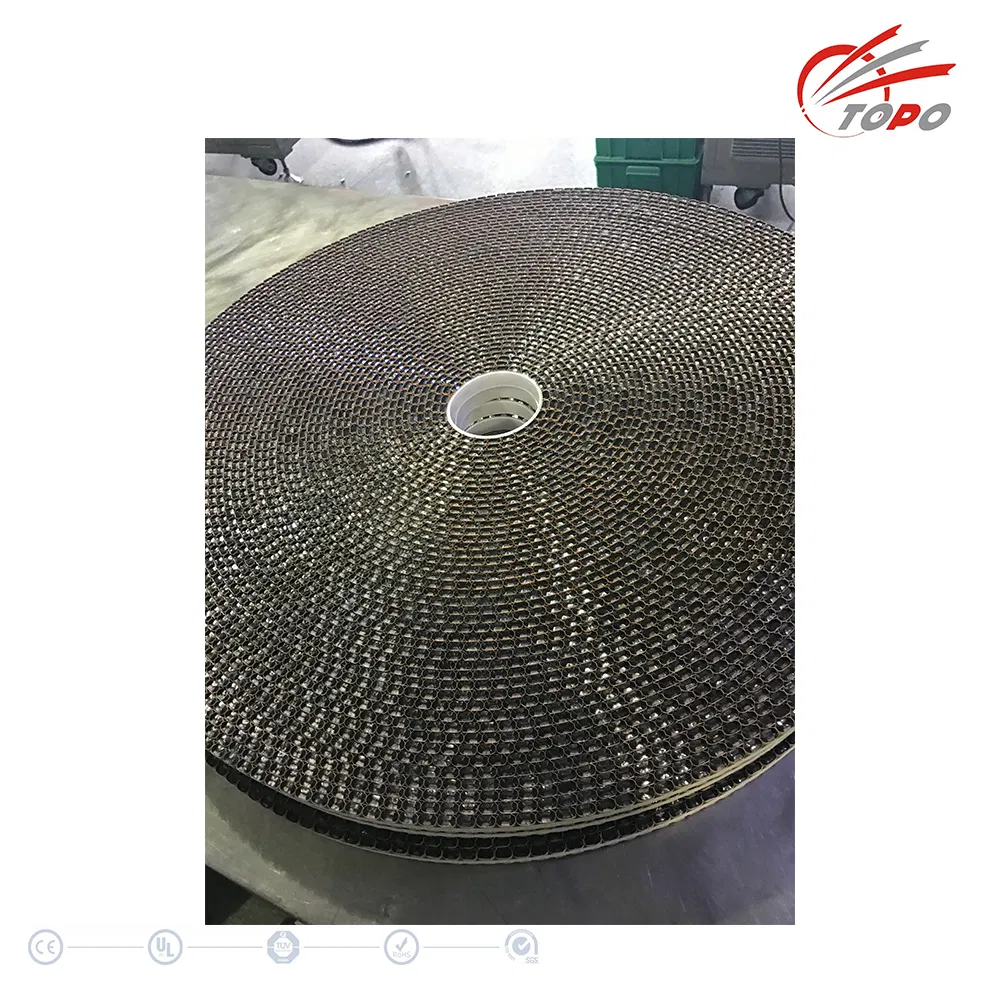

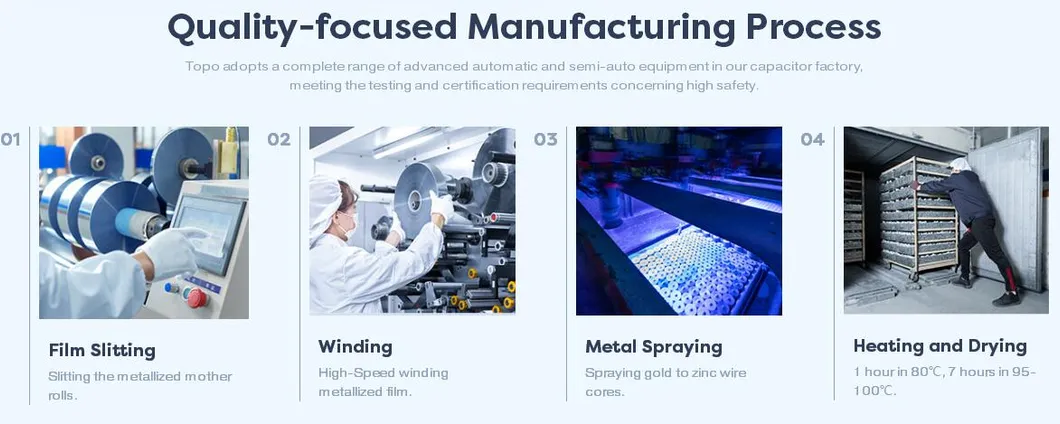

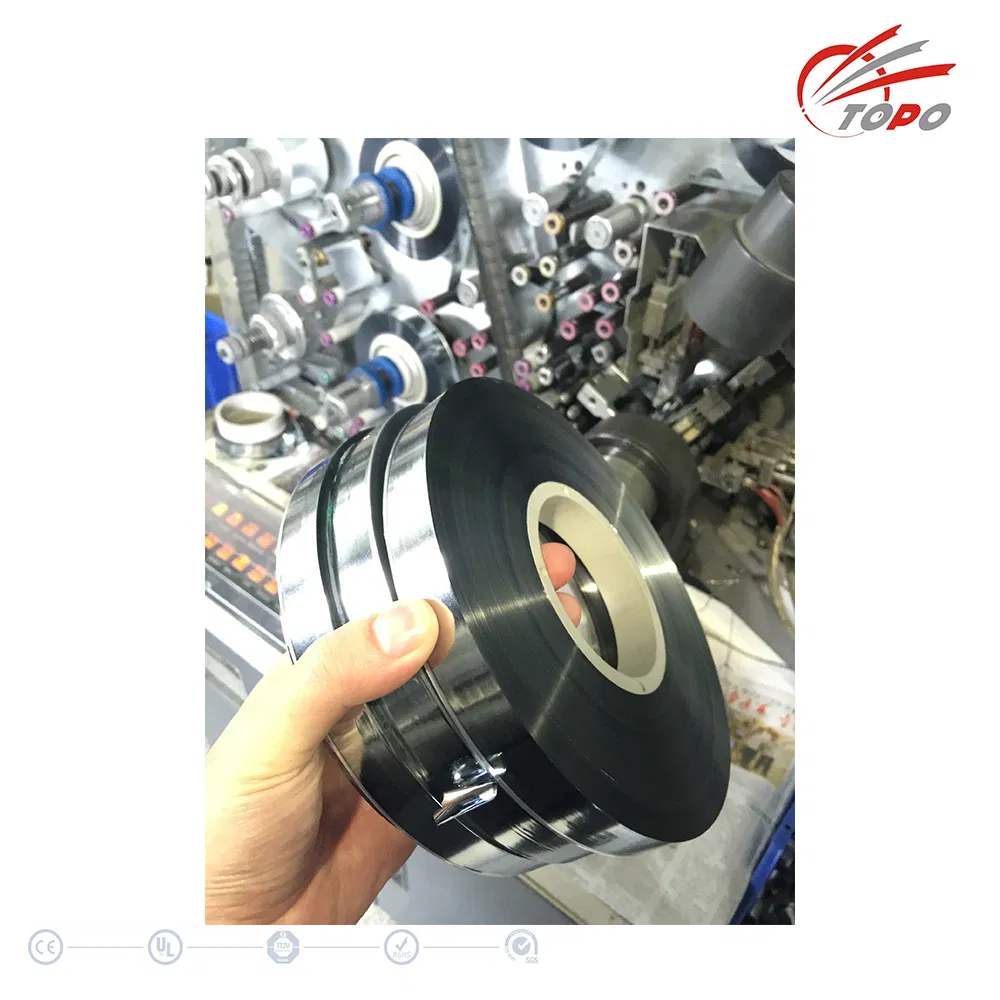

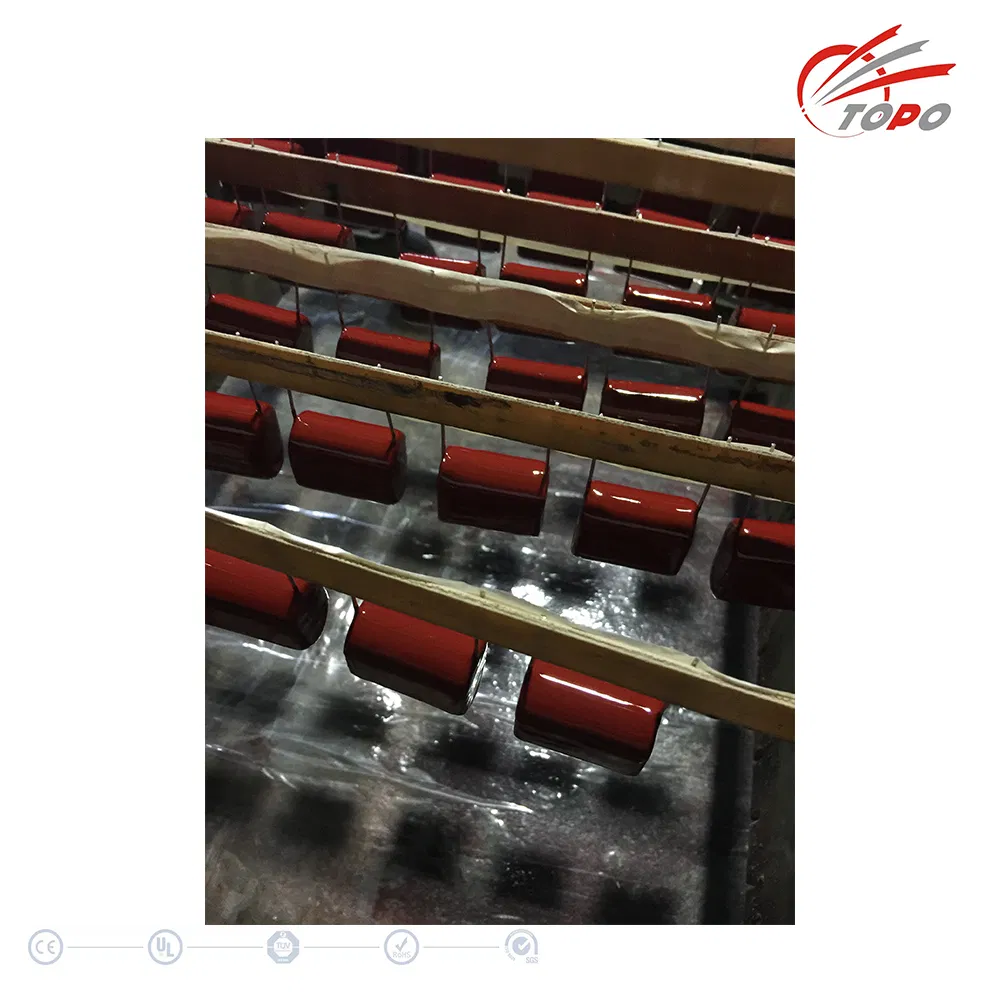

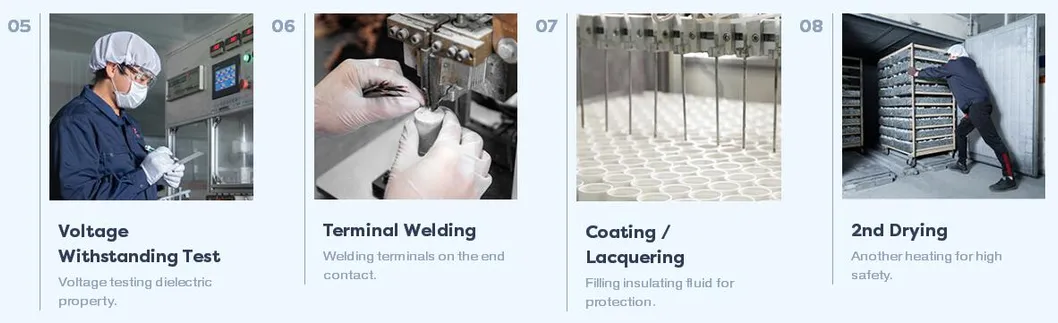

- Non-inductive, wound with metallized polyester film as dielectric and electrode,copper-clad steel leads and epoxy resin coating

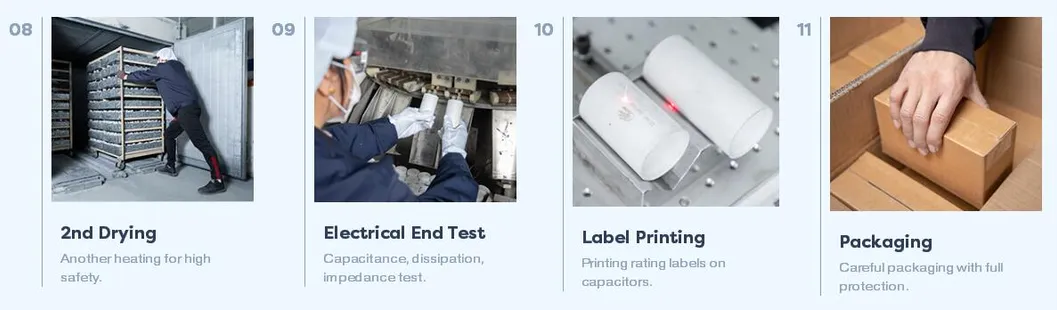

| Technical data and specifications | ||
| Reference Standard | GB7335-87 | |
| Climatic Category | 40/85/21 | |
| Rated Voltage | 100V,160V,250V,400V,630V | |
| Capacitance Range | 0.0047-22.0uF | |
| Capacitance Tolerance | ±5%(J), ±10%(K), ±20%(M) | |
| Voltage Proof | 1.6UR(5s) | |
| Dissipation Factor | ≤1.0% (20ºC, 1KHz) | |
| Insulation Resistance (20ºC,1min) | ≥75000MΩ (CR≤0.33uF) ≥2500s (CR>0.33uF) | |
| Dimensions (mm) | ||||||||
| R.V. | 100/160VDC | 250VDC | ||||||
| uF | P | W | T | H | P | W | T | H |
| 0.01 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4 | 8.5 |
| 0.018 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4 | 8.5 |
| 0.022 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4 | 8.5 |
| 0.033 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4.3 | 9.5 |
| 0.047 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4.3 | 9.5 |
| 0.056 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4.5 | 10 |
| 0.068 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4.5 | 10 |
| 0.082 | 7.5 | 11 | 5 | 9 | 10 | 12 | 4.5 | 10 |
| 0.1 | 10 | 12 | 5 | 9 | 10 | 13 | 5 | 10 |
| 0.15 | 10 | 12 | 6 | 10 | 10 | 13 | 6 | 12 |
| 0.22 | 10 | 12 | 5 | 10 | 10 | 13 | 7 | 13 |
| 15 | 18 | 4 | 8 | 15 | 18 | 5 | 11 | |
| 0.33 | 10 | 13 | 7 | 11 | 15 | 18 | 6 | 12 |
| 15 | 18 | 5 | 11 | 20 | 23 | 5 | 11 | |
| 0.47 | 10 | 13 | 6 | 12 | 15 | 18 | 7 | 13 |
| 15 | 18 | 5 | 12 | 20 | 23 | 3 | 12 | |
| 0.68 | 15 | 18 | 6 | 13 | 15 | 18 | 9 | 14 |
| 20 | 23 | 5 | 10 | 20 | 23 | 7 | 13 | |
| 20 | 23 | 7 | 13 | |||||
| 1 | 15 | 18 | 7 | 14 | 15 | 18 | 11 | 16 |
| 20 | 23 | 6 | 12 | 20 | 23 | 9 | 14 | |
| 20 | 23 | 9 | 14 | 25 | 28 | 7 | 15 | |
| 1.5 | 15 | 18 | 9 | 16 | 20 | 23 | 10 | 17 |
| 20 | 23 | 7 | 14 | 25 | 28 | 9 | 16 | |
| 2.2 | 15 | 18 | 12 | 17 | 20 | 23 | 11 | 20 |
| 20 | 23 | 9 | 15 | 25 | 28 | 10 | 19 | |
| 25 | 28 | 8 | 15 | 30 | 34 | 9 | 17 | |
| 3.3 | 25 | 28 | 10 | 18 | 25 | 28 | 13 | 21 |
| 30 | 33 | 9 | 17 | 30 | 33 | 11 | 19 | |
| 4.7 | 30 | 33 | 10 | 20 | 30 | 33 | 13 | 23 |
| 35 | 38 | 9 | 19 | 35 | 38 | 12 | 22 | |
| 6.8 | 30 | 33 | 11 | 21 | 30 | 33 | 16 | 26 |
| 35 | 38 | 10 | 20 | 35 | 38 | 15 | 24 | |
| 10 | 30 | 33 | 14 | 24 | 30 | 33 | 19 | 28 |
| 35 | 38 | 13 | 23 | |||||
| 15 | 30 | 33 | 18 | 28 | ||||
| 35 | 38 | 17 | 26 | |||||
| 22 | 30 | 33 | 19 | 29 | ||||
| 35 | 38 | 17 | 27 | |||||
| R.V. | 400VDC | 630VDC | ||||||
| uF | P | W | T | H | P | W | T | H |
| 0.01 | 10 | 12 | 4 | 8.5 | 10 | 12 | 4 | 8.5 |
| 0.018 | 10 | 12 | 4 | 8.5 | 10 | 12 | 4 | 8.5 |
| 0.022 | 10 | 12 | 4 | 8.5 | 10 | 12 | 4 | 8.5 |
| 0.033 | 10 | 12 | 4 | 8.5 | 10 | 12 | 4.5 | 9.8 |
| 0.047 | 10 | 12 | 4 | 9.5 | 10 | 12 | 5.3 | 10.8 |
| 0.056 | 10 | 12 | 4.5 | 10 | 10 | 12 | 6.2 | 11 |
| 0.068 | 10 | 12 | 4.8 | 10.2 | 10 | 17 | 5 | 10 |
| 0.082 | 10 | 12 | 5.3 | 10.2 | 10 | 17 | 5.4 | 10.3 |
| 0.1 | 10 | 13 | 6 | 13 | 10 | 13 | 8 | 15 |
| 15 | 18 | 6 | 12 | |||||
| 0.15 | 15 | 18 | 5 | 12 | 15 | 18 | 8 | 13 |
| 0.22 | 15 | 18 | 6 | 12 | 15 | 18 | 8 | 15 |
| 20 | 23 | 5 | 11 | 20 | 23 | 7 | 14 | |
| 25 | 28 | 6 | 13 | |||||
| 0.33 | 15 | 18 | 7 | 13 | 20 | 23 | 8 | 15 |
| 20 | 23 | 6 | 12 | 25 | 28 | 7 | 14 | |
| 0.47 | 15 | 128 | 8 | 16 | 20 | 23 | 9 | 18 |
| 20 | 23 | 7 | 13 | 25 | 28 | 8 | 17 | |
| 25 | 28 | 6 | 12 | |||||
| 0.68 | 20 | 23 | 9 | 16 | 20 | 23 | 12 | 19 |
| 25 | 28 | 7 | 16 | 25 | 28 | 10 | 18 | |
| 1 | 15 | 18 | 11 | 19 | ||||
| 20 | 23 | 10 | 18 | 25 | 28 | 12 | 22 | |
| 25 | 28 | 9 | 17 | 30 | 34 | 11 | 20 | |
| 1.5 | 20 | 23 | 11 | 19 | 30 | 33 | 13 | 24 |
| 25 | 28 | 10 | 18 | 35 | 38 | 12 | 23 | |
| 2.2 | 25 | 28 | 12 | 22 | 30 | 33 | 16 | 26 |
| 30 | 33 | 10 | 21 | 35 | 38 | 15 | 24 | |
| 3.3 | 30 | 33 | 14 | 23 | 30 | 33 | 19 | 28 |
| 35 | 38 | 13 | 22 | 35 | 38 | 17 | 26 | |
| 4.7 | 30 | 33 | 17 | 26 | ||||
| 35 | 38 | 15 | 25 | |||||
| Note: Can be manufactured according to customer's request. | ||||||||
