Product Description

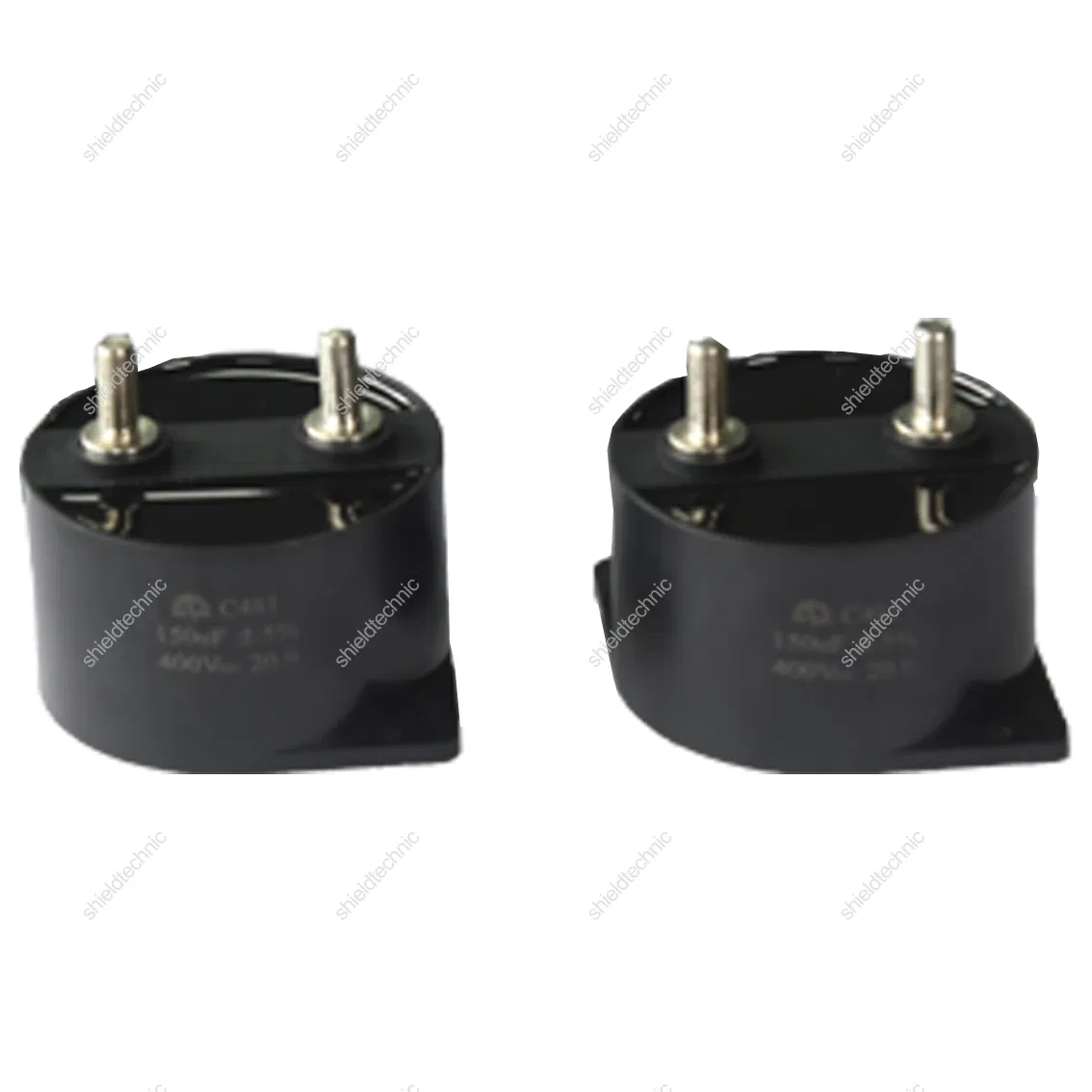

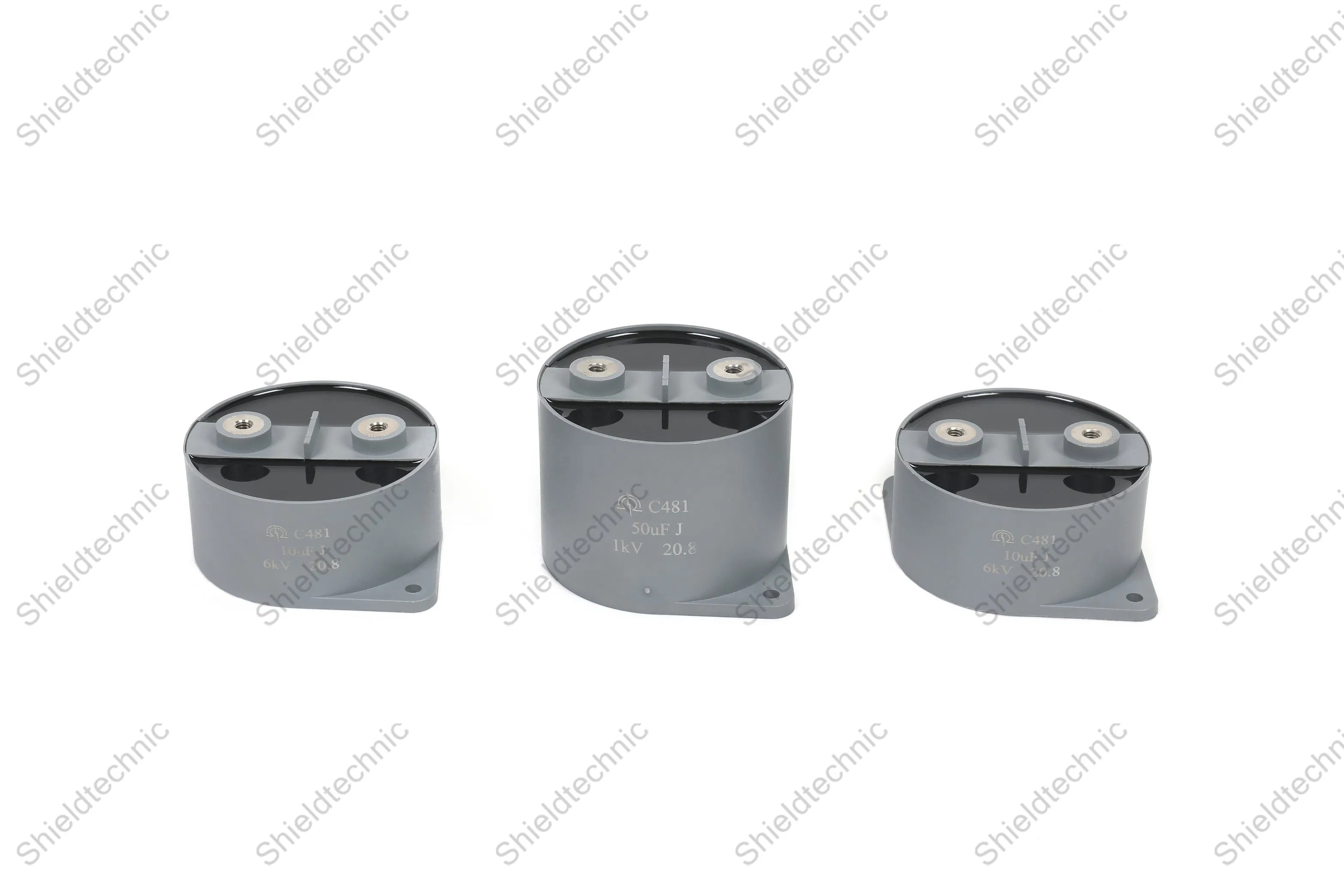

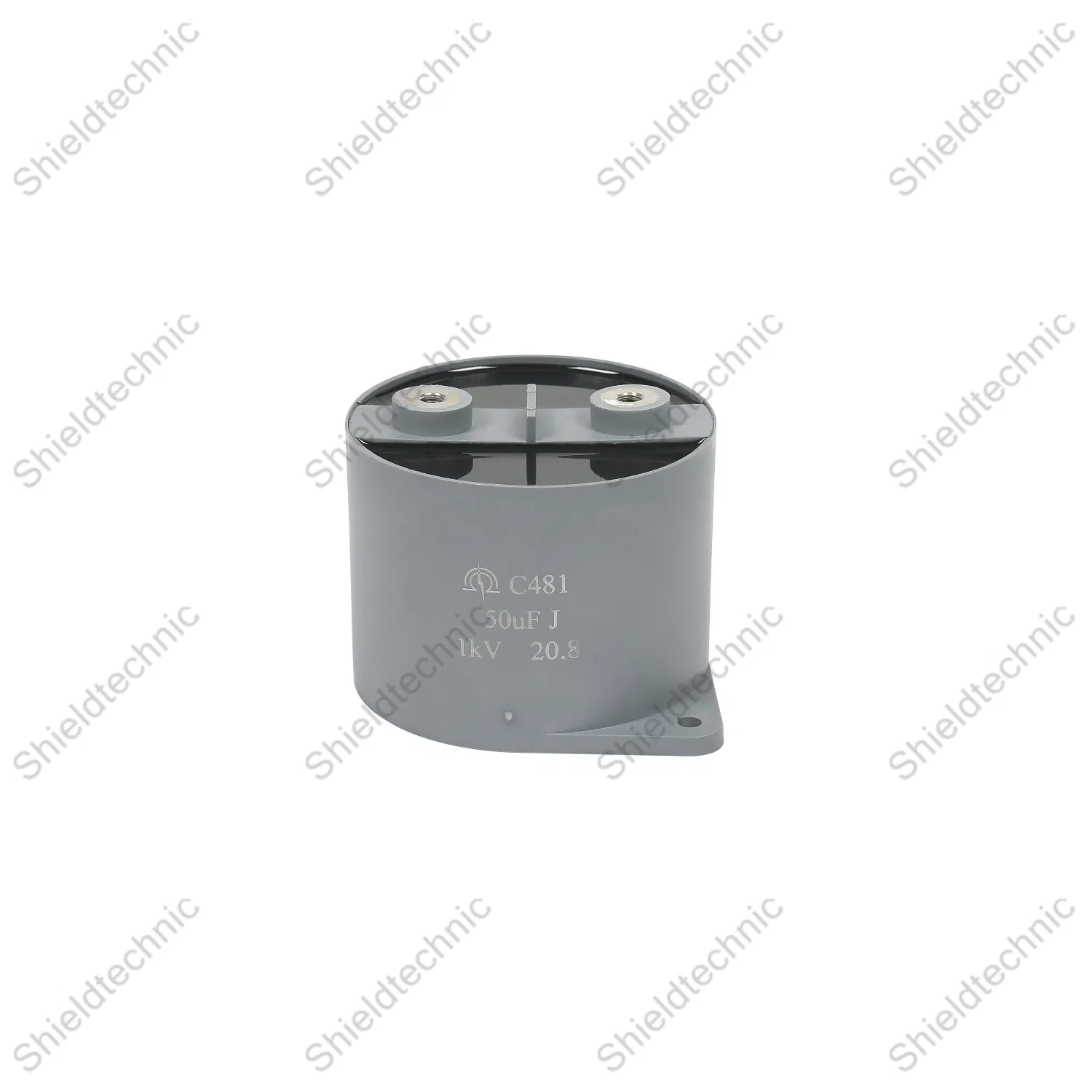

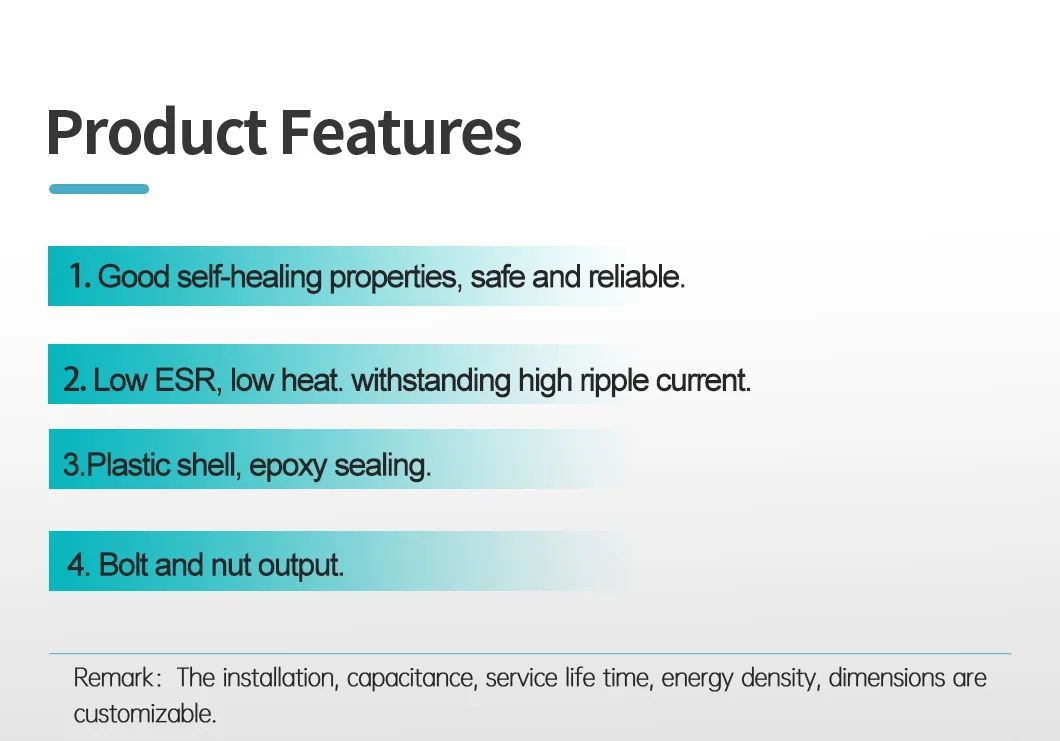

Polypropylene Film High Voltage 450V 380UF DC-Link Power Capacitor

Application

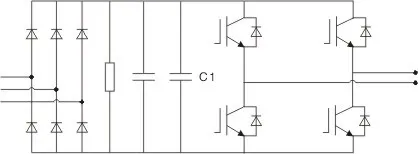

Typical Schematic

1.Smoothing and filtering the DC-Link of the motor driving system in new energy vehicles.

2.Solar inverter and wind inverter.

3. Filtering the DC side of Switching power supply.

Technical Characteristics

Rated Voltage	450V_DC~ 1100V_DC	Capacitance Range	10~400mF
Loss Angle	tgσ≤0.002(100H_z)	Capacitance Tolerance	1.2U_R
Rated Current	dv/dt ≥8V/ms	Withstand Voltage	1.2U_R
Encapsulation	Dry type, filled with epoxy	Shell	Aluminum shell
Max Altitude	2000m	Flame Resistance	UL94V-0
Permissibility	S2	Service life time	10000 h
Reference Standard	GB/T17702-2013,IEC61071
Remark: The influence of the altitude on the convectional cooling and external insulation should be considered if the altitude is above 2000m.

Specifications

Rated Voltage(V)	Capacitance (μF)	φD (mm)	H (mm)	Nut outgoing	Bolt outgoing	ESL(nH)	dv/dt (v/us)	IP (kA)	Irms 85ºC (A)	Rth k/w	ESR 1kHz (mΩ)
450	180	84.5	40	M6×10	M8×20	25	12	2.1	80	6	1
450	380	84.5	65			40	8	3	80	4.8	0.8
800	75	84.5	40			25	25	1.8	70	6	1.5
800	220	84.5	65			40	11	2.4	70	4.8	1.1
1100	60	84.5	40			25	30	1.8	55	6	2
1100	90	84.5	50			32	25	2.2	65	5	1.8

Factory Profile

Chengdu Shieldtechnic Co., Ltd. Is the exclusive overseas sales department of Chengdu Hongming Electronics Co., Ltd.. Hongming Electronics was established in 1958, has 2000 employees and owns a national technology center, a national testing and calibration laboratory, 2 manufacturing sites, 8 specialized institutes.
Polypropylene Film High Voltage 450V 380UF DC-Link Power Capacitor
