Product Description

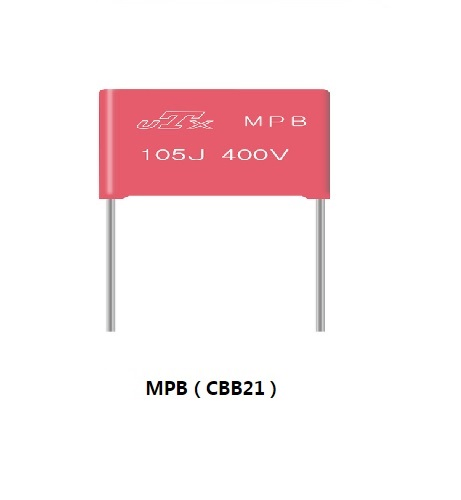

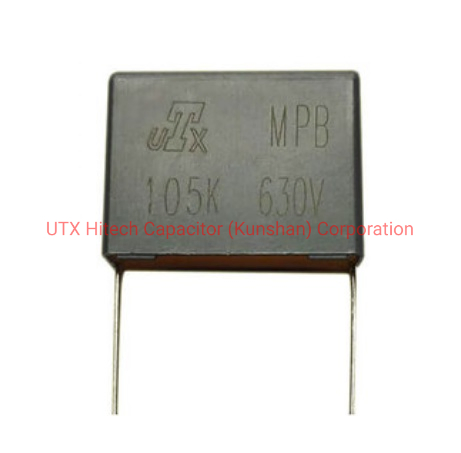

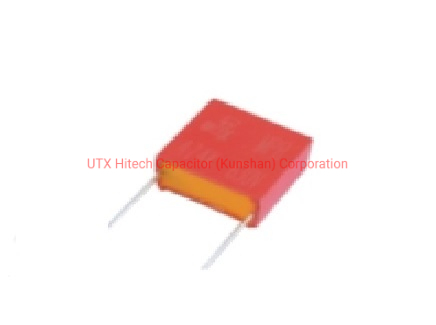

Box-type Metallized Polypropylene Film Capacitor (MPB) CBB21

Features:
» Flame retardation Epoxy resin encapsulation (UL94 V-0)
» Low dissipation factor with high frequency
» Small inherent temperature rising
» High-insulation resistance and good self-healing property
» Suitable for DC/AC, high pulse, high frequency and high-current circuits
» High dv/dt ability, Long-life

Application:
» By-passing, blocking, coupling, decoupling
» S-shaping correction, resonant, coupling for color TV sets and large screen monitor
» High current pulse and high frequency DC circuit
» Inverter for LCD monitors, automotive DC motor suppression
» Logic, timing, compact fluorescent lamps
» Intermediate circuit for SMPS,electronic ballast, inverter(i.e. DC-link, DC filter and PFC)

Specifications:

» Reference Standart	IEC 60384-17, GB/T 14579
» Climatic Categaory	40/105/21
» Rated Temperature	85ºC
» Operation Temp. Range	-40~105ºC
» Rated Voltage	100VDC, 160VDC, 250VDC, 400VDC, 630VDC, 1000VDC, 1250VDC, 1600VDC, 2000VDC
» Capacitance Range	0.00056μF~15.0μF
» Capacitance Tolerance	±5%(J), ±10%(K), ±20%(M)
» Voltage Proof	1.4UR(5s), 1.6UR(2s)
» Insulation Resistance (25±5ºC, 100V, 60s)	≥30000MΩ (CR≤ 0.33 μF) ≥10000MΩ (CR> 0.33 μF)
» Dissipation Factor	≤0.1%(25±5ºC, 1KHz) ≤0.5%(25±5ºC, 10KHz) ≤3.0%(25±5ºC, 100KHz)
» Pitch (mm)	5, 7.5, 10,15, 20, 22.5, 25, 27.5, 30, 32.5

Advantage:
» UTX specialize in film capacitor for over 24 years since 1996 founded in Taiwan

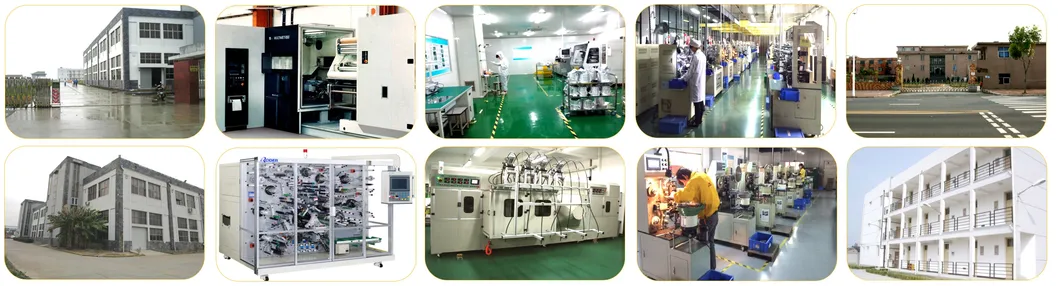

» 1 Industrial Park, 2 Film Capacitor Bases in East and South-east of mainland China
» Cooperated with over 60 distribution agents, 300 famous end users in global market
» UTX own whole chain for film capacitor manufacture from film metallizition, epoxy box molding Injection to full inspection of finished products
» UL/CUL, SGS, VDE,CQC, CE, KC certificated, quality is reliable
» Customized for special industrial and new energy field
» Professional product Development and Validation Engineering Laboratory
» 100% inline Photoelectric Inspect & Test before packing
» Competitive quality and reasonable price
» Abundant inventory and short delivery period: 5 days for stork products, 15 days for regular orders, 30 days for OEM or Customized capacitors

Certificates:
Mpb Coupling Box Type Metalized Polypropylene Film DC Capacitor (Safety cert)
