China Hqx-X2 0.01UF 250/275/280/300/310V 10*9*4 P=7.5 Utx Cbb62 Metalized Polypropylene Box Type Film Capacitor with Safety Approvals

Product Description

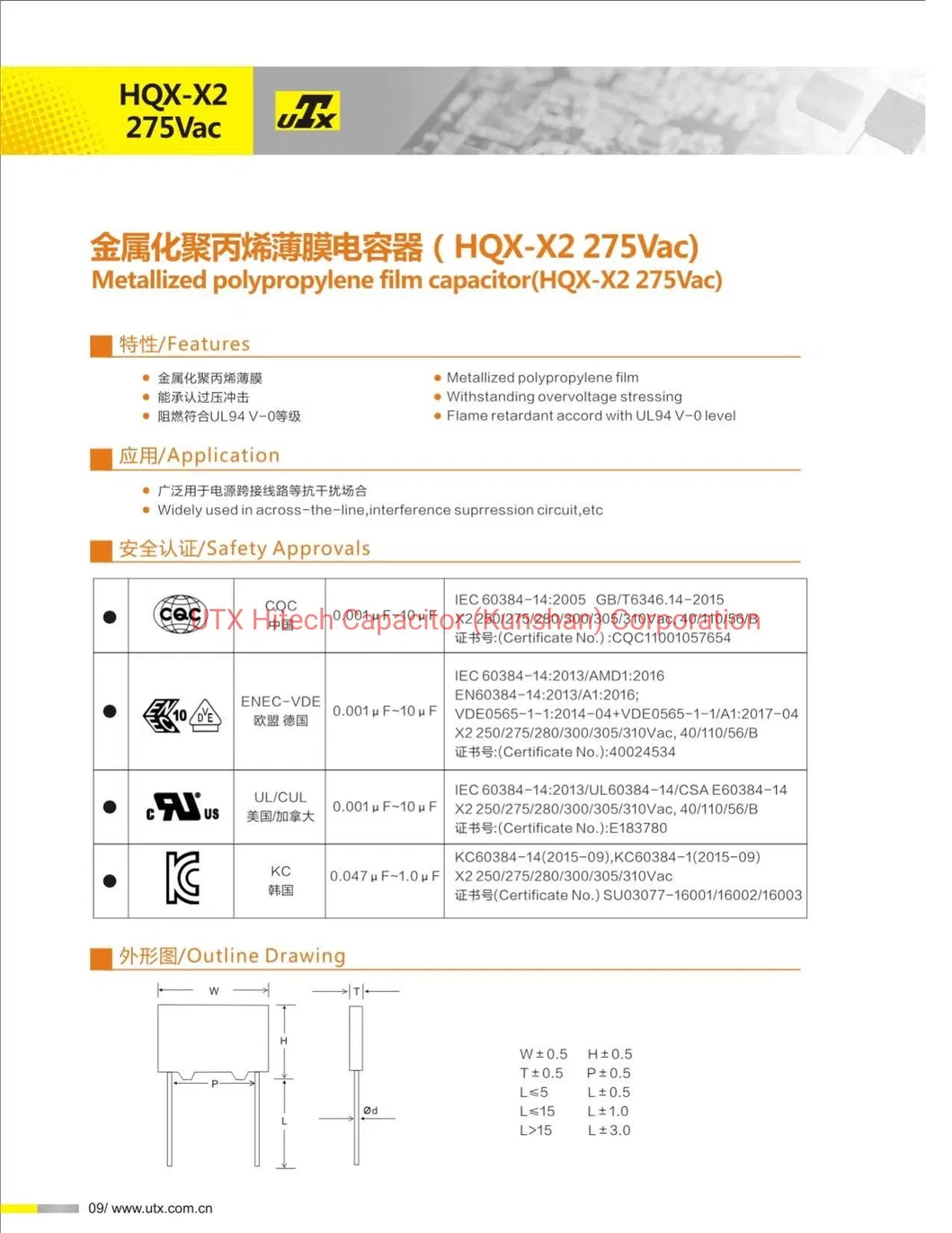

Box-type Metallized Polypropylene X2 250/275/280/300/310VAC Film Capacitor (HQX-X2) CBB62
EMI suppression capacitors with Safety Approvals

Features:
» Metallized polypropylene X2 class
» Flame retardation Epoxy resin encapsulation (UL94 V-0)
» Withstanding overvoltage stressing
» Small inherent temperature rising
» High-insulation resistance and good self-healing property
» Suitable for AC, high pulse, high frequency and high-current circuits
» Used in acoss-line, interference suppression circuit, Long-life

Application:
» PFC circuit power compensation, by-passing, blocking, coupling, decoupling
» EMI suppression capacitors prevent electronics or electrical equipment from sending or receiving radio frequency or electromagnetic interference
» High-frequency sinusoidal AC loads
» Electronic ballasts
» Ignition devices

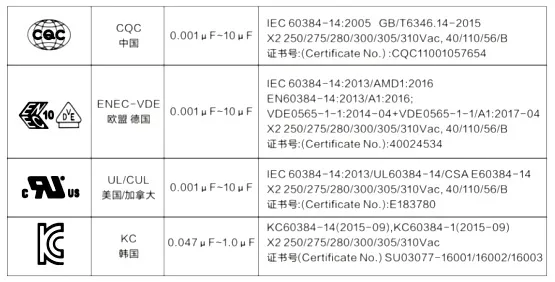

Safety Approvals:
Hqx-X2 0.01UF 250/275/280/300/310V 10*9*4 P=7.5 Utx Cbb62 Metalized Polypropylene Box Type Film Capacitor with Safety Approvals

Hqx-X2 0.01UF 250/275/280/300/310V 10*9*4 P=7.5 Utx Cbb62 Metalized Polypropylene Box Type Film Capacitor with Safety Approvals

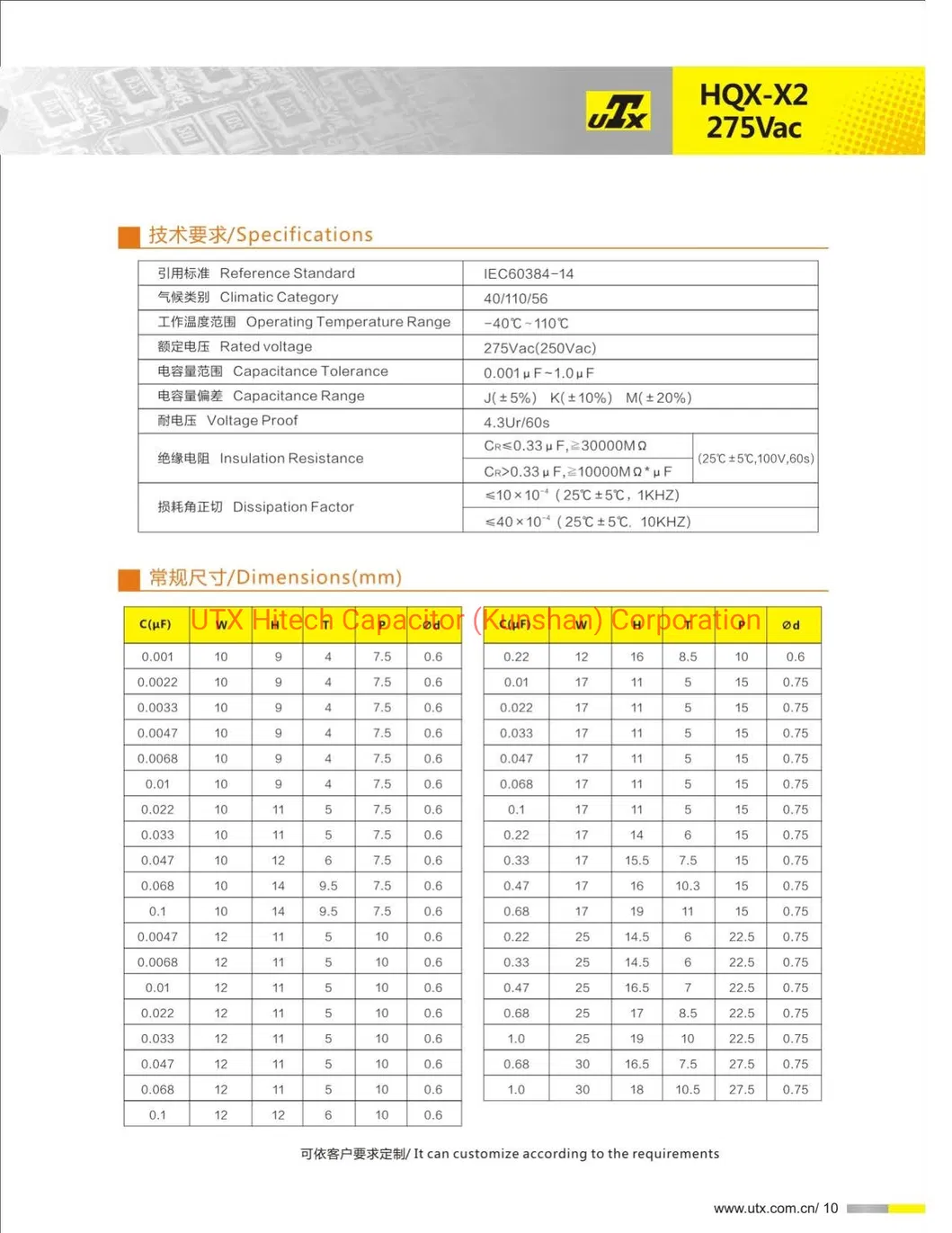

Specifications:

» Reference Standart	IEC 60384-14, GB/T 14472
» Climatic Categaory	40/110/56
» Operation Temp. Range	-40~110ºC
» Rated Voltage	275/250VAC, 50/60Hz
» Capacitance Range	0.001μF~1.0μF
» Capacitance Tolerance	±5%(J), ±10%(K), ±20%(M)
» Voltage Proof	4.3UR(60s)
» Insulation Resistance (25±5ºC, 100V, 60s)	≥30000MΩ (CR≤ 0.33 μF) ≥10000MΩ (CR> 0.33 μF)
» Dissipation Factor	≤10x10^-4(25±5ºC, 1KHz) ≤40x10^-4(25±5ºC, 10KHz)
» Pitch (mm)	7.5, 10,15, 20, 22.5, 25, 27.5, 30, 37.5

Advantage:
» UTX specialize in film capacitor for over 24 years since 1996 founded in Taiwan
» 1 Industrial Park, 2 Film Capacitor Bases in East and South-east of mainland China
» Cooperated with over 60 distribution agents, 300 famous end users in global market
» UTX own whole chain for film capacitor manufacture from film metallizition, epoxy box molding Injection to full inspection of finished products
» UL/CUL, SGS, VDE,CQC, CE, KC certificated, quality is reliable
» Customized for special industrial and new energy field
» Professional product Development and Validation Engineering Laboratory
» 100% inline Photoelectric Inspect & Test before packing
» Competitive quality and reasonable price
» Abundant inventory and short delivery period: 5 days for stork products, 15 days for regular orders, 30 days for OEM or Customized capacitors

Certificates:
Hqx-X2 0.01UF 250/275/280/300/310V 10*9*4 P=7.5 Utx Cbb62 Metalized Polypropylene Box Type Film Capacitor with Safety Approvals

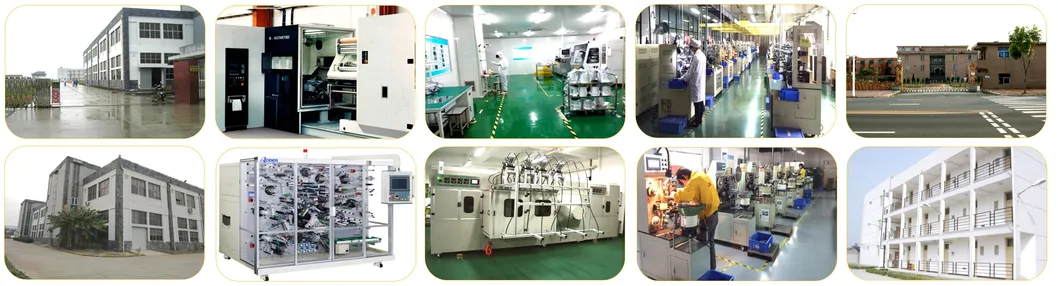

Factory Show:
Hqx-X2 0.01UF 250/275/280/300/310V 10*9*4 P=7.5 Utx Cbb62 Metalized Polypropylene Box Type Film Capacitor with Safety Approvals

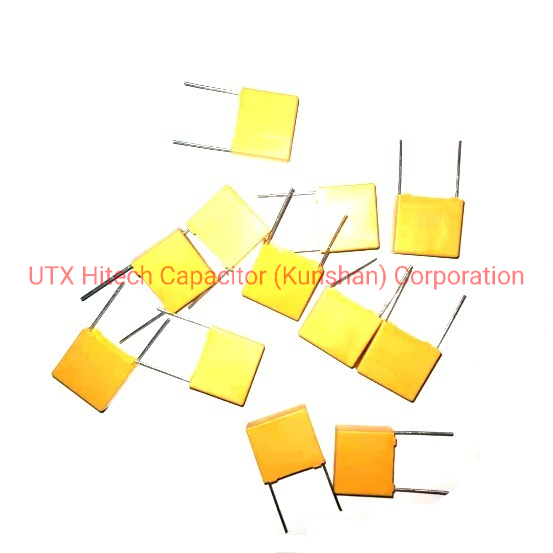

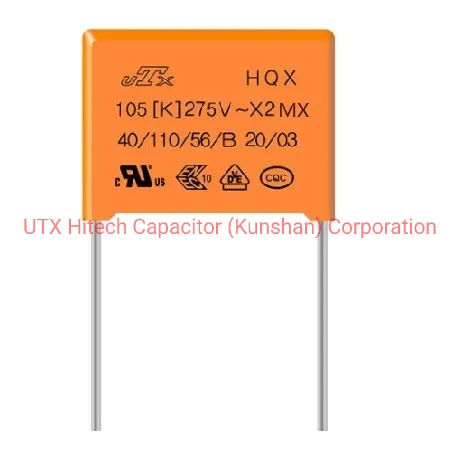

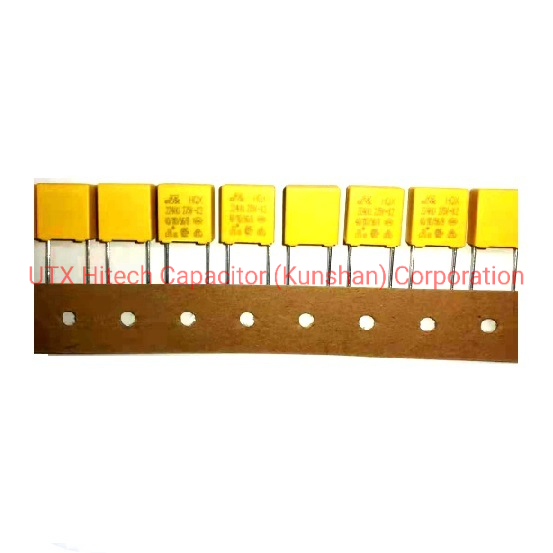

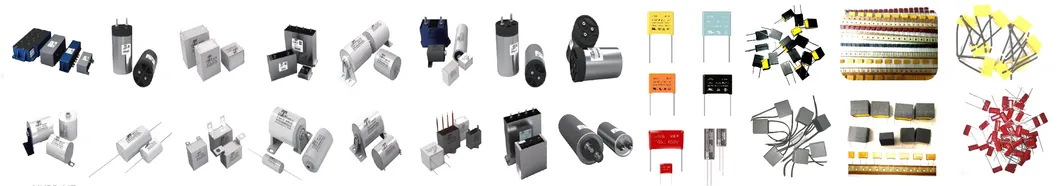

Products show:
Hqx-X2 0.01UF 250/275/280/300/310V 10*9*4 P=7.5 Utx Cbb62 Metalized Polypropylene Box Type Film Capacitor with Safety Approvals

More details please ask us for datasheets!
