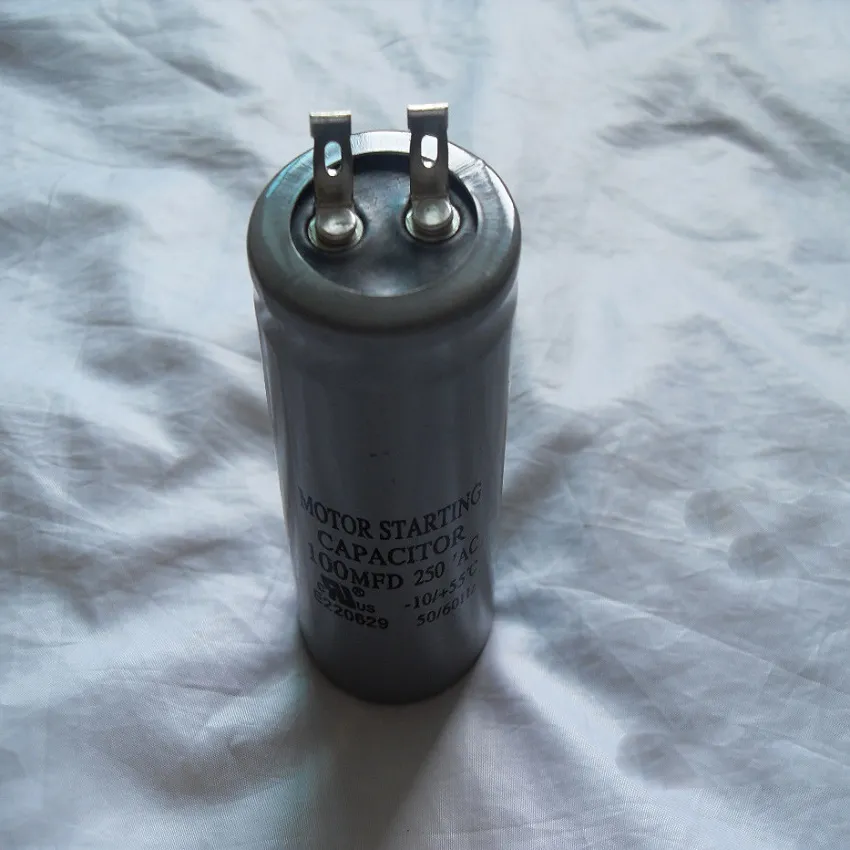

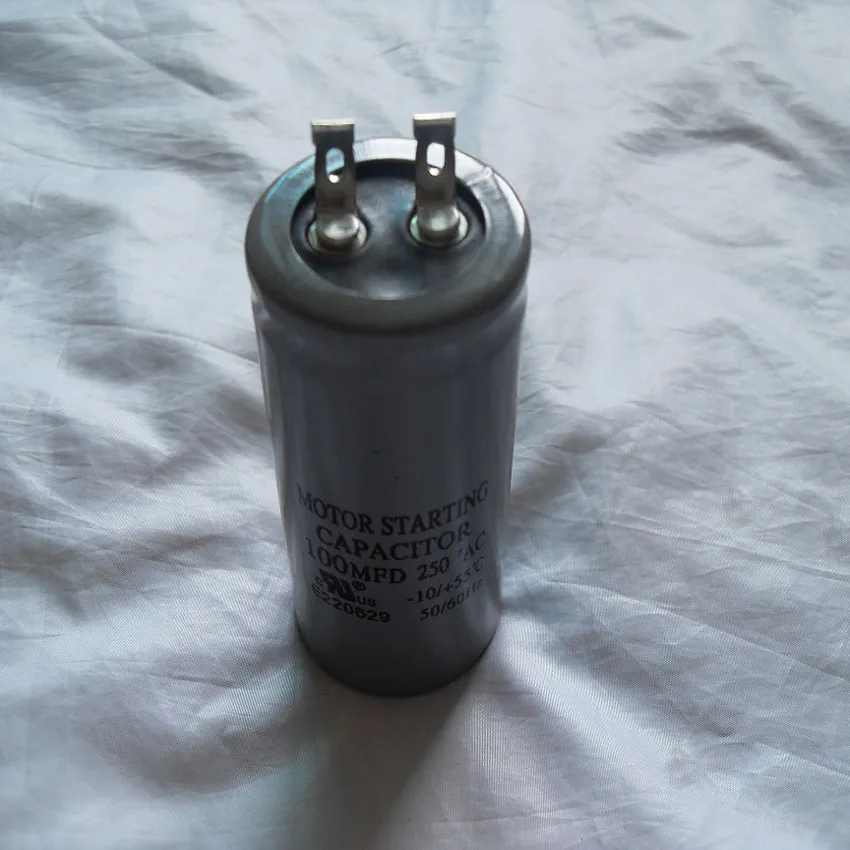

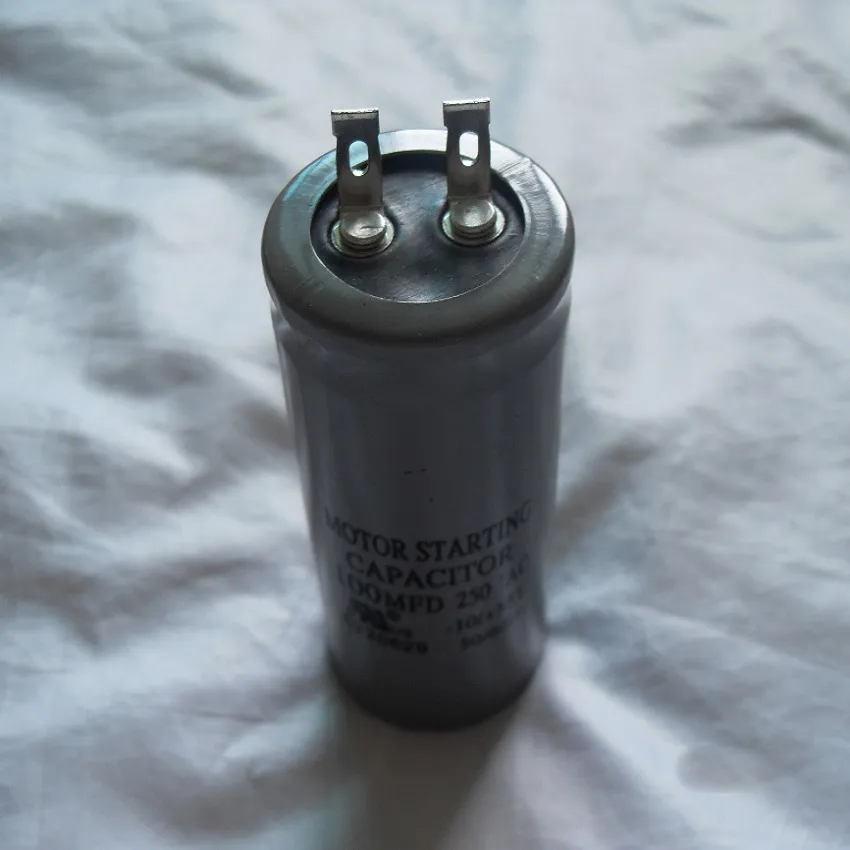

    High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor
    • High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic CapacitorHigh Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor
    • High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic CapacitorHigh Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor
    • High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic CapacitorHigh Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor

    High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor

    CD60 Motor Start CapacitorAluminum Electrolytic CapacitorFeatures and use:lt applies to A.C.single phase motor,with frequency 50/60Hz,rated voltage 110-330VAC. lt can help motors gain high torque with low starting current and make motorstart nomally.lt can also start tore frigerators and compressors......

    Send Inquiry

    Product Description

    High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor
    High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor
    High Quality CD60 100mfd 200mfd 250mfd 250VAC Aluminum Electrolytic Capacitor

    CD60 Motor Start Capacitor
    Aluminum Electrolytic Capacitor

    Features and use:
    lt applies to A.C.single phase motor,with frequency 50/60Hz,rated voltage 110-330VAC. lt can help motors gain high torque with low starting current and make motorstart nomally.lt can also start tore frigerators and compressors of air condition,etc.
    Technical Specifications


    Working Temperature Range
    -25-55ºC
    Rated Voltage Range110-330VAC
    Rated Capacitance Range50-1000uF
    Dissipation Factor Tan ≤ 0.01 (50 Hz)
    Rated Tolerance of capacitance0-20%
    Without Voltage Between TerminalApply 1.25 times working voltage, for 2
    Seconds,with out break down or explosion
    Withstand Voltage Between Terminal and case2000Vac ,for 10 seconds,without break down or explosion
    Dimension:
    Capacitance
    μF
    Rated Voltage
    115VAC
    Rated Voltage
    165VAC
    Rated Voltage
    200-250VAC
    Rated Voltage
    330VAC
    5034×80 34×80 34×80 34×80
    7534×80 34×80 34×80 34×80
    10034×80 34×80 42×70 42×70
    15034×80 34×80 42×70 42×70
    20042×70 34×80 42×70 42×70
    25042×70 42×70 42×70 50×100
    30042×70 42×70 42×70 50×100
    35050×100 42×70 42×70 50×100
    40050×100 50×100 50×100 50×100
    50050×100 50×100 50×100 50×100
    60050×100 50×100 50×100 50×120
    70050×120 50×120 50×120 50×120
    80050×120 50×120 50×120 50×120
    100050×120 50×120 50×120 50×120

    note:
    Special specs are available on request
