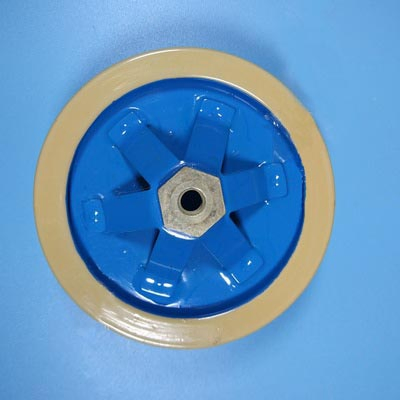

High Frequency Disc Power Vacuum Capacitor (PE100, 1000PF, 13KV , 40kVA)

1. Product Name: Plate Power RF-Capacitor with Finger Terminal (PE100)

2. Model: PE100

The capacitor is used for tank circuit,coupling,by-pass and feed circuit.

We manufacture and export the following all models.

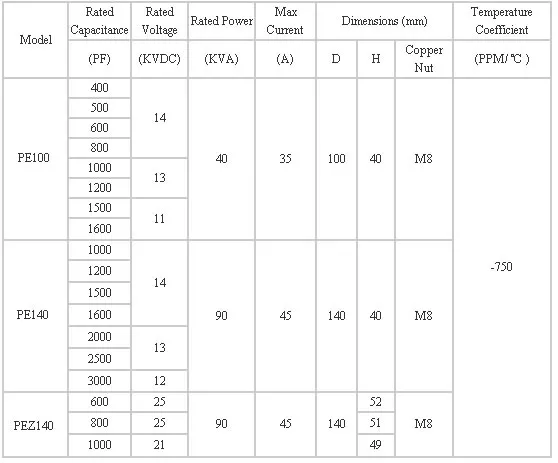

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
