Product Description

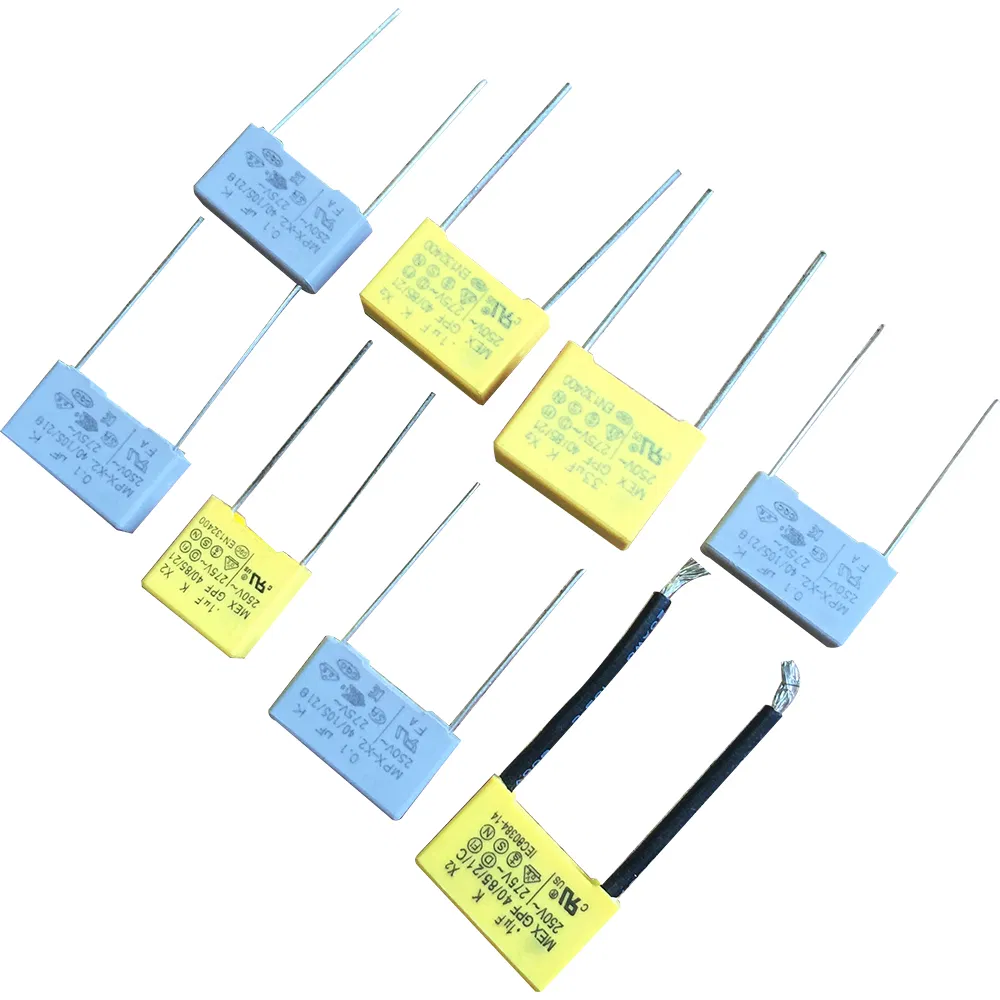

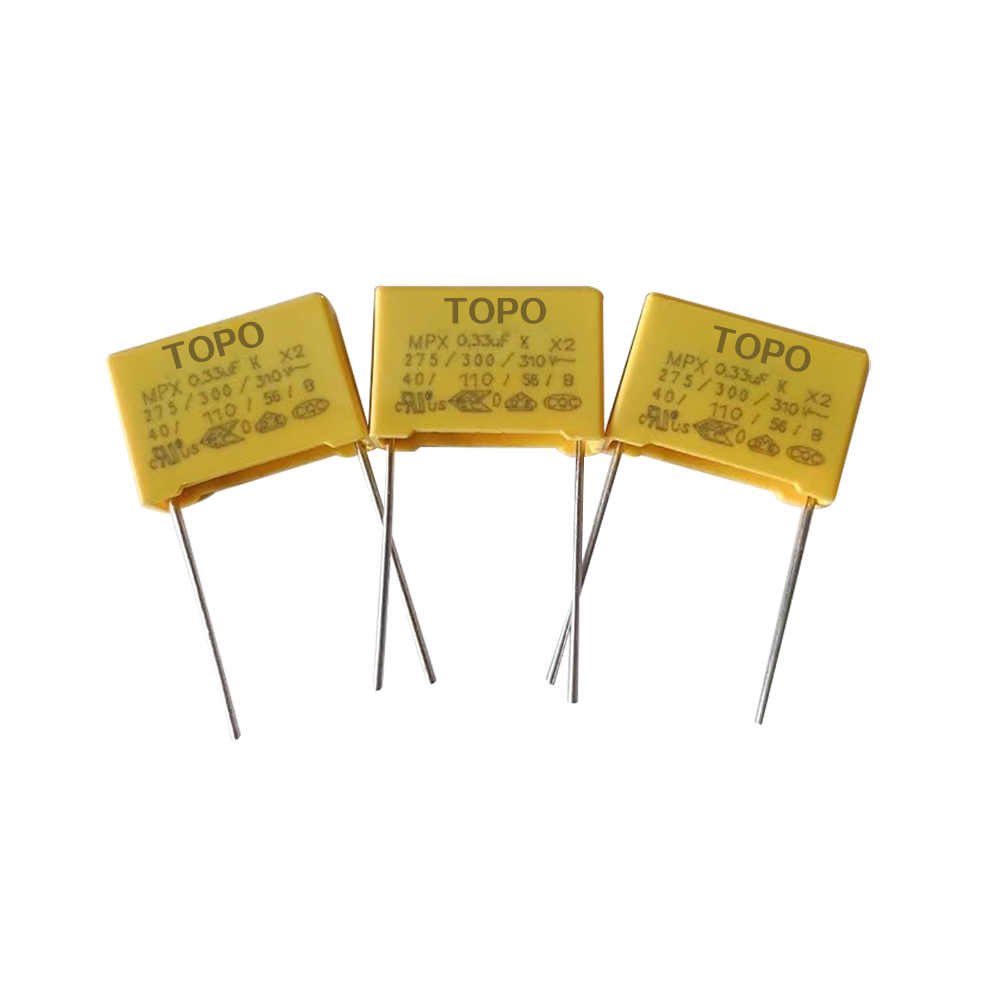

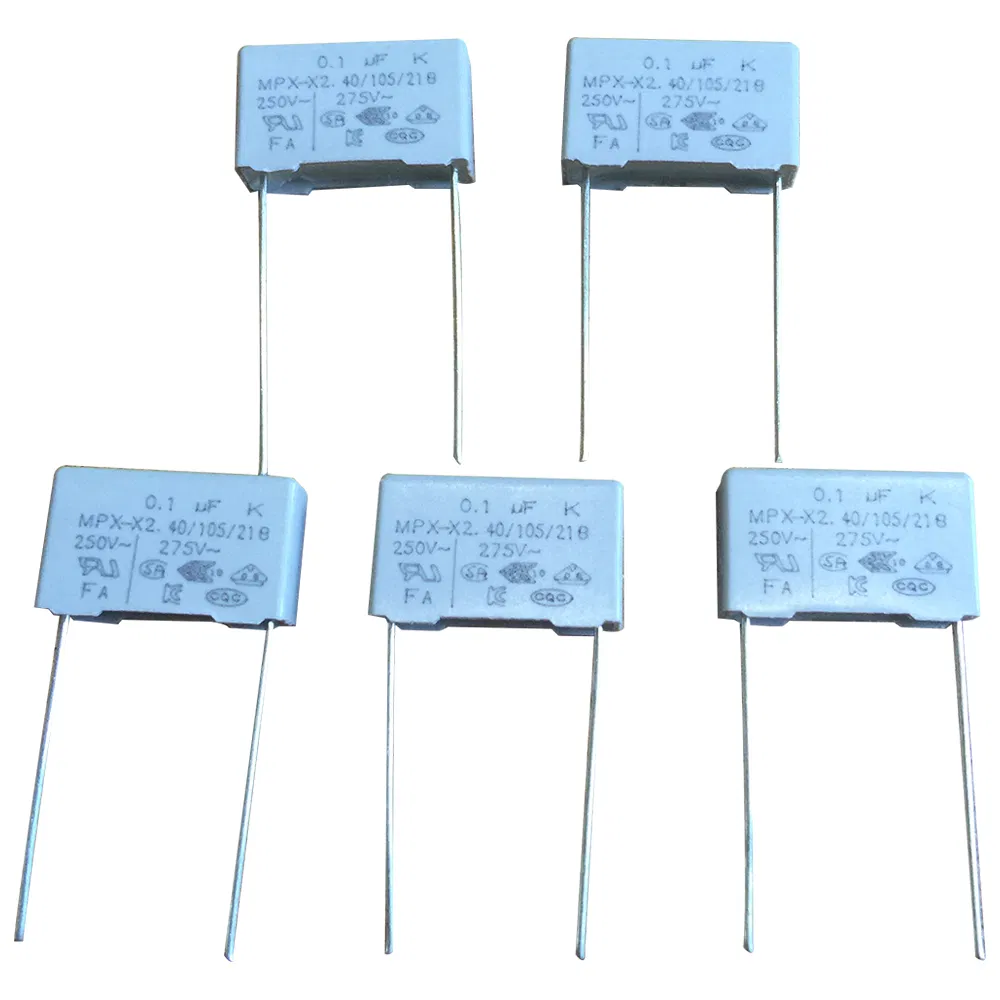

X2 Series
Features
- Box type provides the identical outer appearance.
- Very low loss at high frequency, suitable for high current.
- High insulation resistance, long life due to self-healing effect.
- Withstanding 2.5Kv impulse voltage, Class X2
- As an across-the-line type noise suppression capacitor, and suitable for AC purpose
Configuration
- Non-inductive,wound with metallized polypropylene film as the dielectric and delectrode,with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.
| Technical data and specifications | ||
| Reference Standard | GB/T14472-1998 (IEC 60384-14) | |
| Climatic Category | 40/100/21 | |
| Rated Voltage | 275/280VAC | |
| Capacitance Range | 0.0022-4.7uF | |
| Capacitance Tolerance | ±5%(J), ±10%(K), ±20%(M) | |
| Voltage Proof | 4.3UR(5S) | |
| Dissipation Factor | ≤0.15% CR≤1.0uF ≤0.3% CR>1.0uF(20ºC, 1KHz) | |
| Insulation Resistance (20ºC,1min) | ≥30000MΩ (CR≤0.33uF)≥ 10000s (CR>0.33uF) | |
| Dimensions | |||||
| R.V. uF | W(mm) | T(mm) | H(mm) | P(mm) | d(mm) |
| 0.0022 | 13 | 4 | 9 | 10 | 0.6 |
| 0.0027 | 13 | 4 | 9 | 10 | 0.6 |
| 0.0033 | 13 | 4 | 9 | 10 | 0.6 |
| 0.0039 | 13 | 4 | 9 | 10 | 0.6 |
| 0.0047 | 13 | 4 | 9 | 10 | 0.6 |
| 0.0056 | 13 | 5 | 11 | 10 | 0.6 |
| 0.0068 | 13 | 5 | 11 | 10 | 0.6 |
| 0.0082 | 13 | 5 | 11 | 10 | 0.6 |
| 0.01 | 13 | 5 | 11 | 10 | 0.6 |
| 0.012 | 13 | 5 | 11 | 10 | 0.6 |
| 0.015 | 13 | 5 | 11 | 10 | 0.6 |
| 0.018 | 13 | 5 | 11 | 10 | 0.6 |
| 0.022 | 13 | 5 | 11 | 10 | 0.6 |
| 0.027 | 13 | 5 | 11 | 10 | 0.6 |
| 0.033 | 13 | 5 | 11 | 10 | 0.6 |
| 0.039 | 13 | 6 | 12 | 10 | 0.6 |
| 0.047 | 13 | 6 | 12 | 10 | 0.6 |
| 0.047 | 18 | 5 | 11 | 15 | 0.8 |
| 0.056 | 13 | 6 | 12 | 10 | 0.6 |
| 0.056 | 18 | 5 | 11 | 15 | 0.8 |
| 0.068 | 13 | 6 | 12 | 10 | 0.6 |
| 0.068 | 18 | 5 | 11 | 15 | 0.8 |
| 0.082 | 13 | 6 | 12 | 10 | 0.6 |
| 0.082 | 18 | 5.2 | 11.5 | 15 | 0.8 |
| 0.1 | 13 | 6 | 12 | 10 | 0.6 |
| 0.1 | 18 | 6 | 12 | 15 | 0.8 |
| 0.12 | 18 | 6.3 | 13 | 15 | 0.8 |
| 0.15 | 18 | 7.5 | 13 | 15 | 0.8 |
| 0.15 | 26.5 | 6 | 15 | 22.5 | 0.8 |
| 0.18 | 18 | 8.5 | 14.5 | 15 | 0.8 |
| 0.22 | 26.5 | 7 | 16.5 | 22.5 | 0.8 |
| 0.27 | 26.5 | 8.5 | 16.5 | 22.5 | 0.8 |
| 0.33 | 18 | 8.5 | 14.5 | 15 | 0.8 |
| 0.33 | 26.5 | 7 | 16.5 | 22.5 | 0.8 |
| 0.39 | 18 | 9.5 | 15.5 | 15 | 0.8 |
| 0.39 | 26.5 | 10 | 20 | 22.5 | 0.8 |
| 0.47 | 18 | 10 | 16 | 15 | 0.8 |
| 0.47 | 26.5 | 10 | 20 | 22.5 | 0.8 |
| 0.56 | 26.5 | 11 | 20 | 22.5 | 0.8 |
| 0.56 | 32 | 11 | 20 | 27.5 | 0.8 |
| 0.68 | 26.5 | 11 | 20 | 22.5 | 0.8 |
| 0.68 | 32 | 11 | 20 | 27.5 | 0.8 |
| 0.82 | 26.5 | 12 | 21.5 | 22.5 | 0.8 |
| 0.82 | 32 | 13 | 22 | 27.5 | 0.8 |
| 1 | 32 | 13 | 22 | 27.5 | 0.8 |
| 1 | 37 | 13.5 | 25 | 31.5 | 0.8 |
| 1.5 | 32 | 13 | 22 | 27.5 | 0.8 |
| 1.5 | 37 | 17 | 26.5 | 31.5 | 0.8 |
| 1.8 | 37 | 19 | 29 | 31.5 | 0.8 |
| 2 | 31 | 22 | 31 | 27.5 | 0.8 |
| 2 | 38 | 18 | 28 | 31.5 | 0.8 |
| 2.2 | 31 | 22 | 31 | 27.5 | 0.8 |
| 2.2 | 38 | 19 | 29 | 31.5 | 0.8 |
| 2.5 | 38 | 20 | 30 | 31.5 | 0.8 |
| 3 | 38 | 20 | 30 | 31.5 | 0.8 |
| 3.3 | 38 | 21.7 | 31.3 | 31.5 | 0.8 |
| 4 | 48 | 30 | 30 | 41.5 | 0.8 |
| 4.7 | 48 | 30 | 30 | 41.5 | 0.8 |
| Note: Can be manufactured according to customer's request.v | |||||
