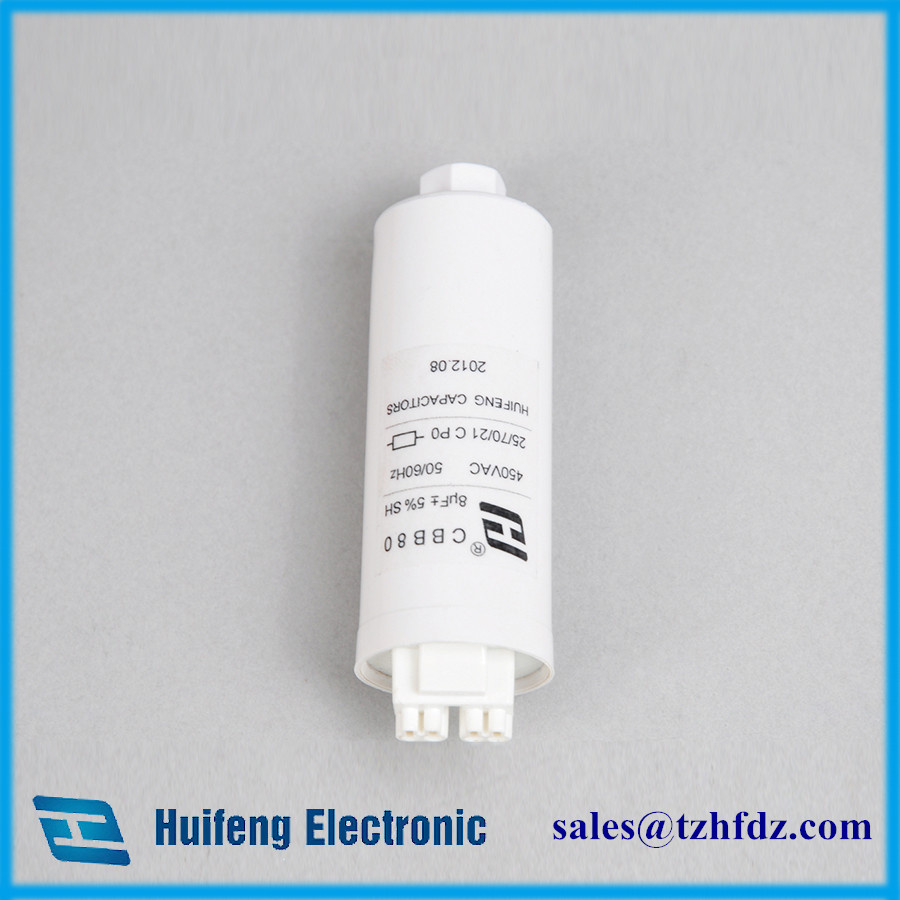

Cbb80 Light Capacitor

Product Description

Lighting capacitor ,SH ,for power factor
Capacitance: 2 to 50uF
Capacitance tolerance: +/-5% +/-10%
Working voltage: 250 to 630VAC
Temperature range: -40 to +105 degrees Celsius
Lead material: quick fitting with bolt or AMP 250 tin-plated brass QCs
Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed.
Cbb80 Light Capacitor

Small size, small loss and excellent self-healing property.
Very small dissipation factor, small inherent temperature rise.
High insulation resistance.
Good capacitance stability.
Available for fluorescent lamps,daylight lamps,halogen lamps, high pressure sodium lamps,etc.

Products feather	ITEM NO.	Rated Voltage (VAC)	Temperature (°C)	Rated capacitance (uf)	Diameter (D)mm	Length (L1)mm	PCS/CTN	G.W / N.W (KG)	MEASUREMENT (CM)
	CBB80-3	250	85	18	40	72	100	8.3/7.7	45.5x24.5x21
		250	105	3.4	30	67
		250	105	6	35	67
		250	105	6.3	35	67
		250	105	8	35	67
		250	105	9	35	72
		250	105	12	35	72	100	6.5/5.9	40x21x23
		250	105	14	35	72	100	6.4/6	40x21x23
		250	105	18	40	85
		250	105	20	40	85	100	7.4/7	40x21x23
		250	105	25	40	85
		250	105	32	40	85	100	9.5/9.1	45.5x24.5x25
		250	105	42	50	105
		250	105	45	50	105
		250	105	50	50	105
Products name	CBB80-3 compensation capacitor for lighting fixtures
Products type	Aluminium case cable type with stud
Technical parameter	1. Rated frequency: 50/60HZ
	2. Capacitance range: 1-50uf
	3. Capacitance deviation: +/-5%
Certificate	UL, CE ,ISO9001-2008,ROHS
