Cbb65 Capacitor Motor Capacitor //Compressor Capacitor Motor Staring Motor Running

Product Description

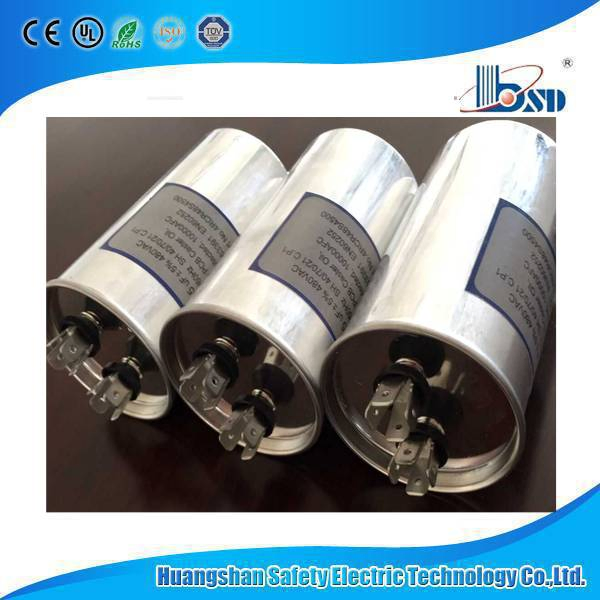

1.CBB65 TYPE Capacitor sealed in metal case is of little wastage, high insulation resistance, excellent natural repair, good stability, suitable for alternating current circuit, long working life, with inner anti-explosive device and safety reliability.
2.This type capacitor is suitable used in the frequency of 50Hz -60Hz, single phase A. C motors, refrigerator, air conditioner, house hold appliances, power supply etc. For starting and running.
3.1-100uf ,110-500VAC
4..A AND B GRADE ,10000 hours and 30000 hours ,
5. with UL ,CE ISO9001-2008,ROHS ,Certificate
6.Packing : one piece in one box ,and 50 pcs in one carton
Specifications

Climatic Category	Rate voltage	Testing voltage T-T	Testing voltage T-C	Capacitance Tolerance	Dissipation Factor
40/70/21 40/85/21 40/90/21 40/105/21	110V.AC-600V.AC	1.5Un/5S 1.75Un/5S 2.0Un/5S	2000V.AC/5S	±3% ±5% ±10%	≤0.002 (50Hz/60Hz)

capacitance Range	Dimension	Reference Standard	Certifilcation	class of Operation	Safety grade
3μf ~ 120μf	D:Φ42 ~ Φ60 W:51.5(71) H:60 ~ 240 T:31.5(45)	UL810 IEC252 GB3667 EN60252	UL CE	A 30000h B 30000h C 30000h	P2

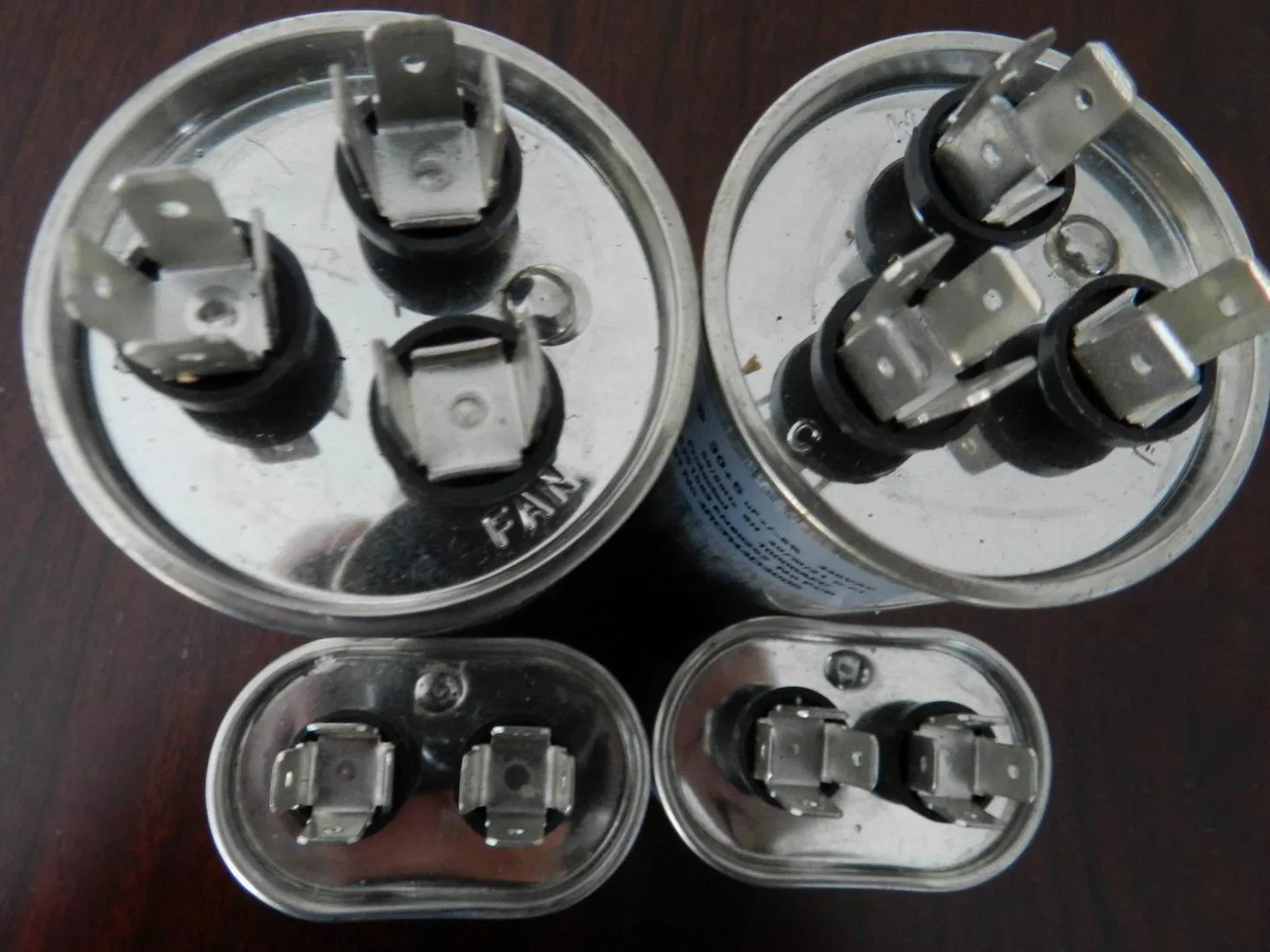

Outline size

Capacitance	OVAL SHAPE DIMENSION in mm
Capacitance	WIDT(W1)	DEPTH(W2)	HEIGHT(L)
2MFD	52	32	40
3MFD	52	32	40
4MFD	52	32	60
5MFD	52	32	60
6MFD	52	32	60
7.5MFD	52	32	60
10MFD	52	32	80
12.5MFD	52	32	80
15MFD	52	32	80
17.5MFD	71	45	80
20MFD	71	45	80
25MFD	71	45	80
30MFD	71	45	90
35MFD	71	45	90
40MFD	71	45	90
45MFD	71	45	90
50MFD	71	45	90
55MFD	71	45	110
60MFD	71	45	110

Capacitance	ROUND SHAPE DIMENSION in mm
Capacitance	DIA.(d)	HEIGHT(L)
5MFD	42	60
6MFD	42	60
7.5MFD	42	60
10MFD	42	70
12.5MFD	42	70
15MFD	42	80
17.5MFD	42	80
20MFD	45	80
25MFD	45	90
30MFD	50	100
35MFD	50	100
40MFD	50	110
45MFD	50	110
50MFD	50	110
55MFD	55	130
60MFD	55	130
70MFD	60	120
80MFD	60	120
