China Cbb65 Anhui Mascotop UL Air Contioner Start Capacitor in Stock

Product Description

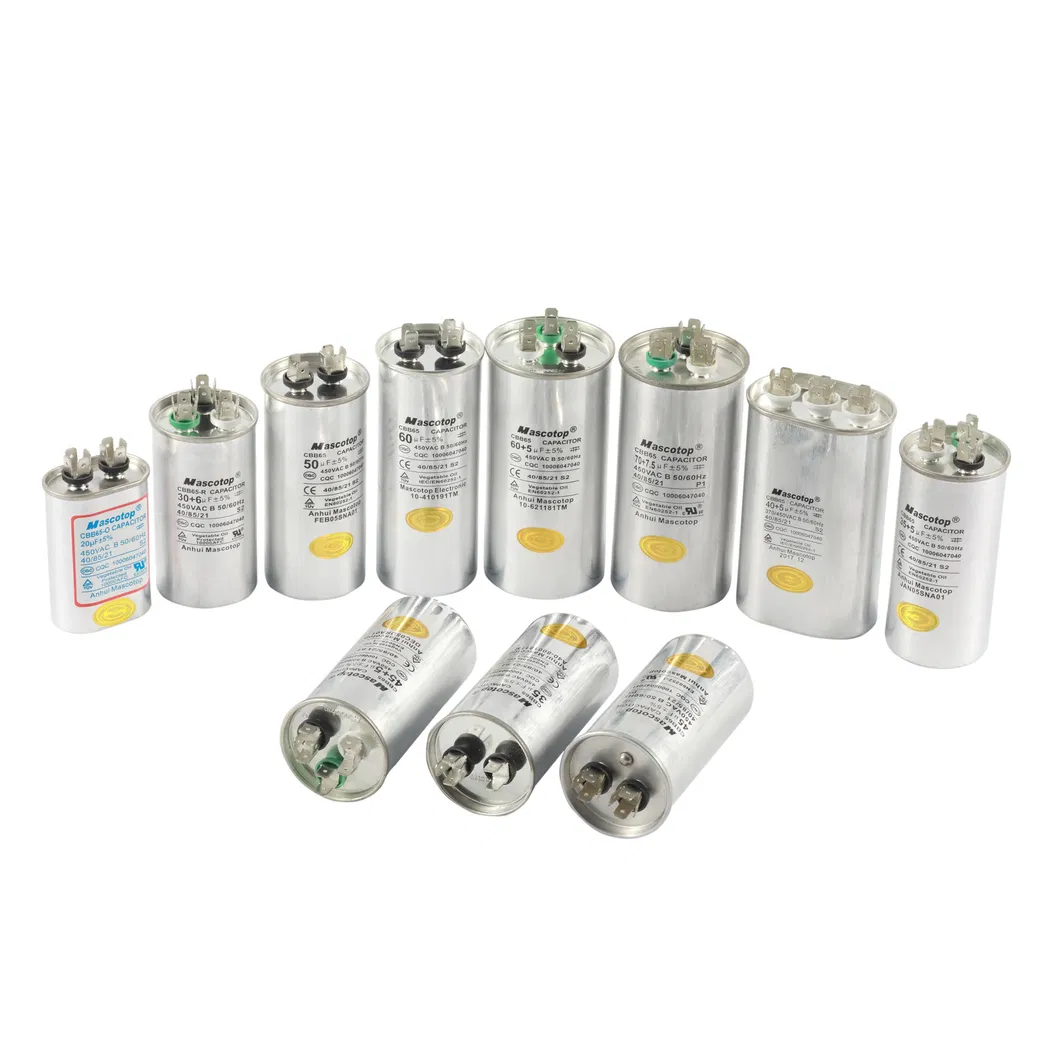

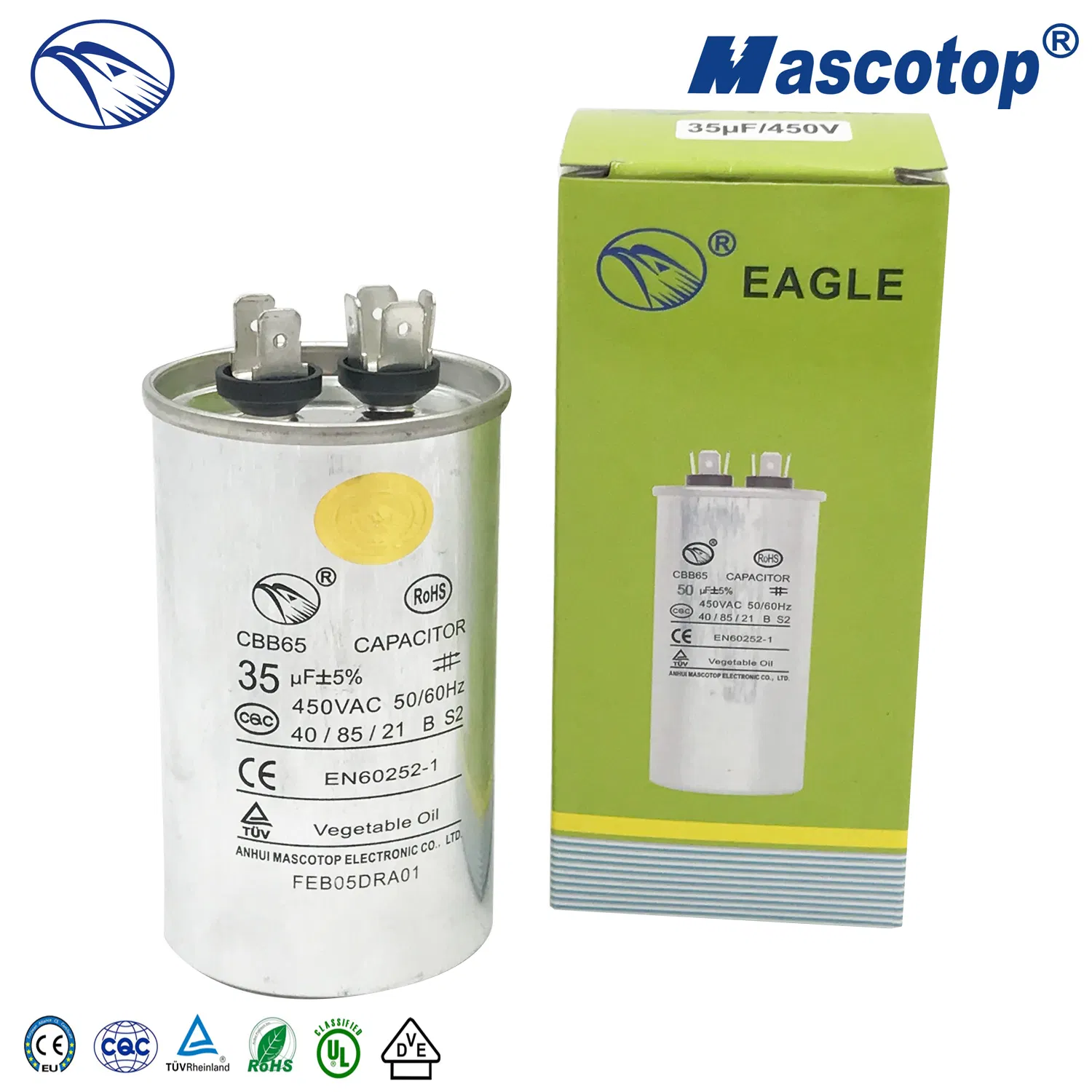

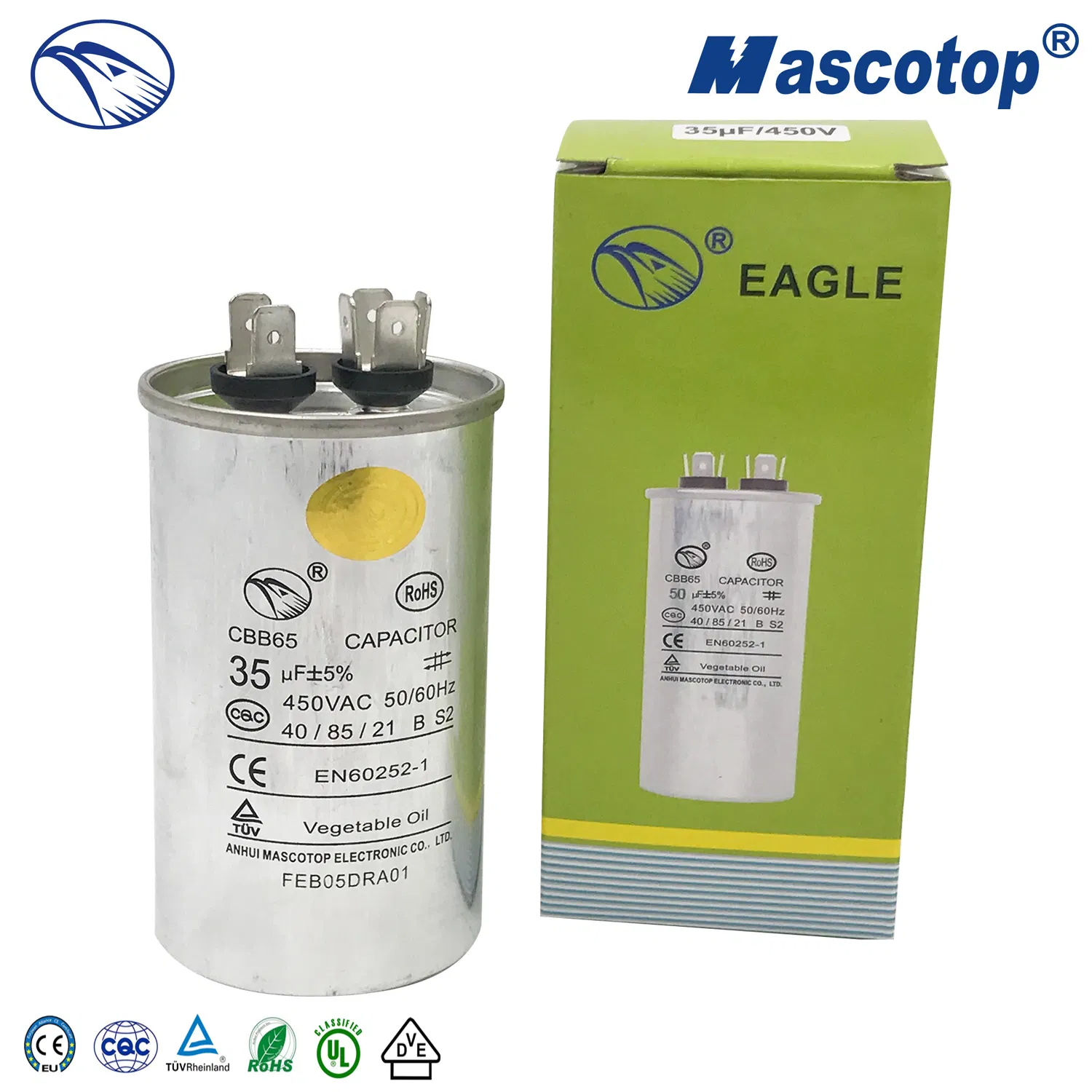

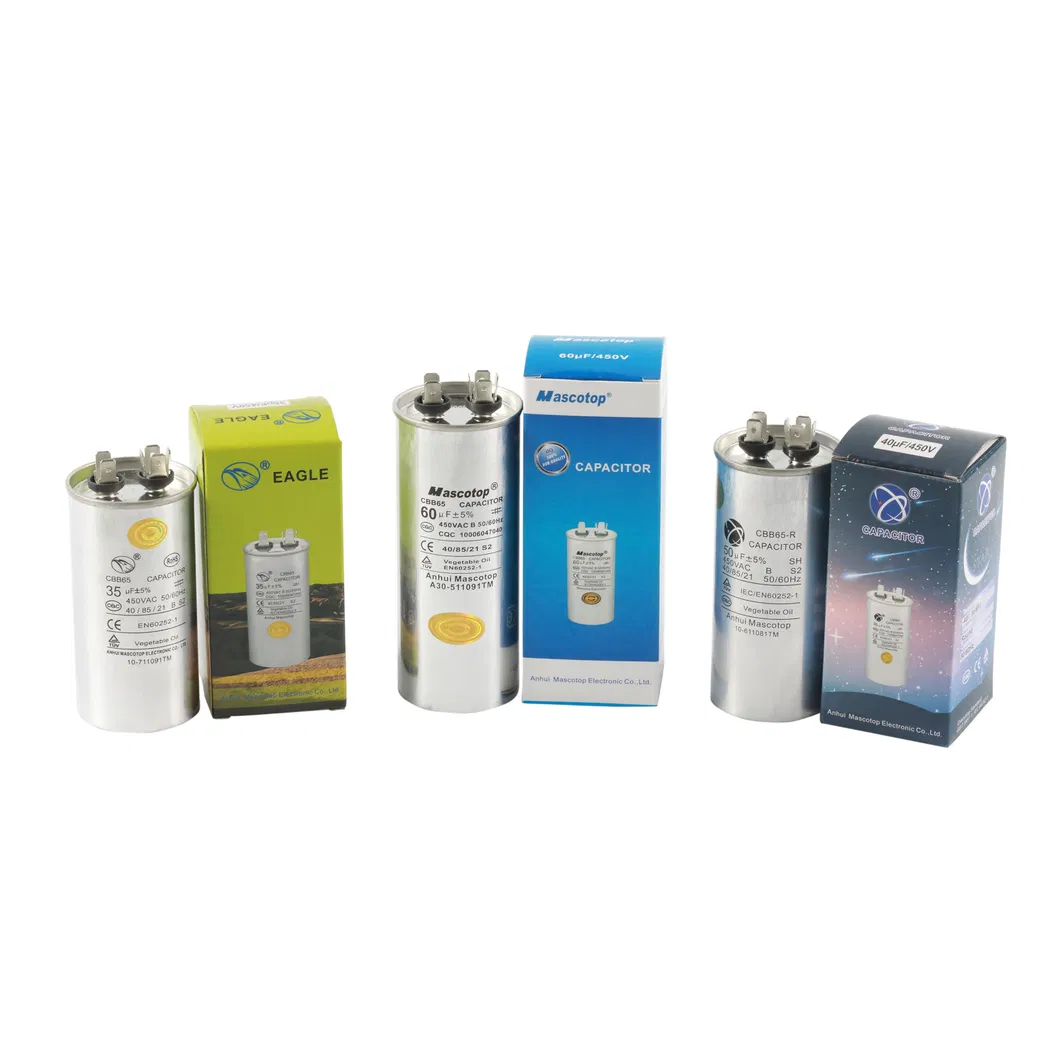

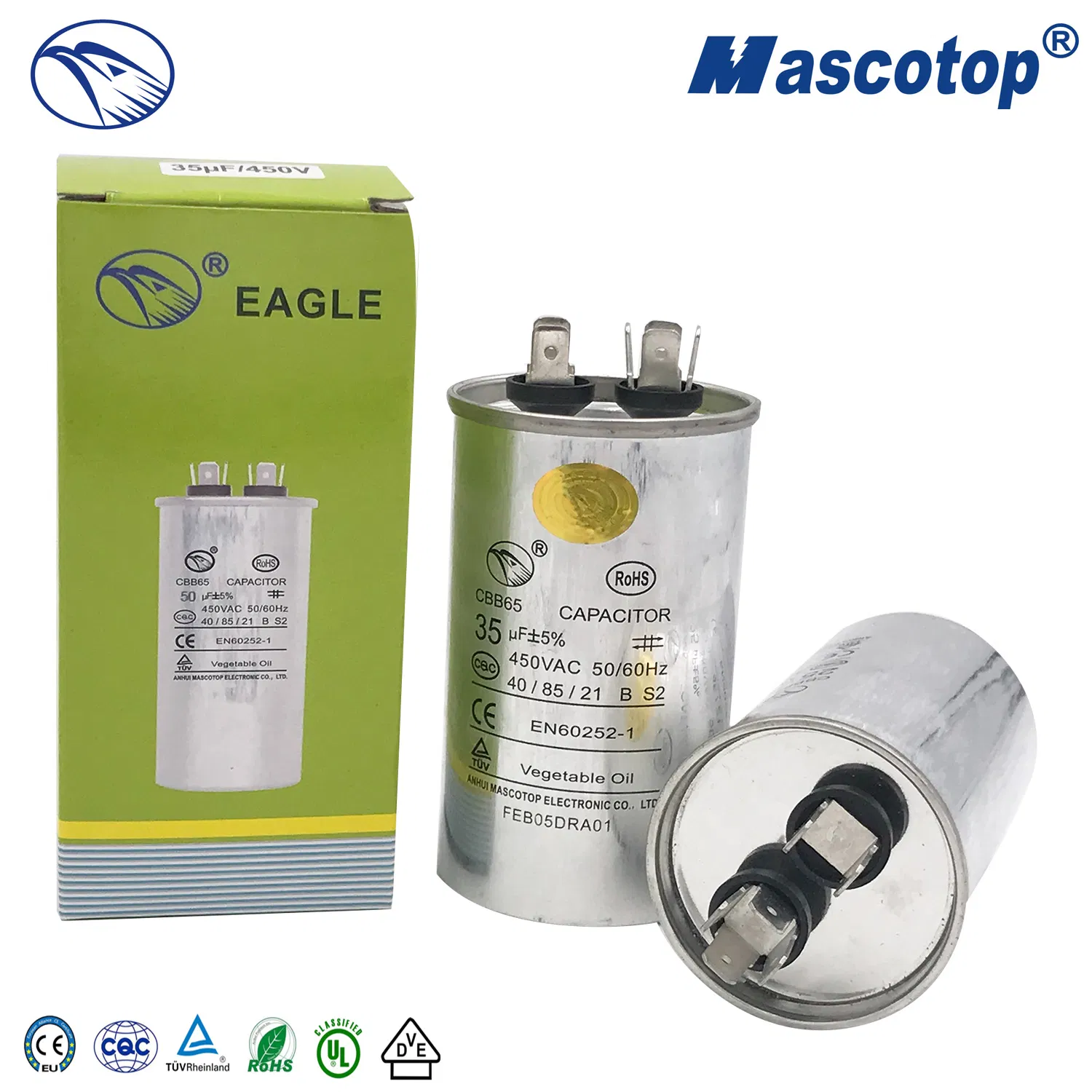

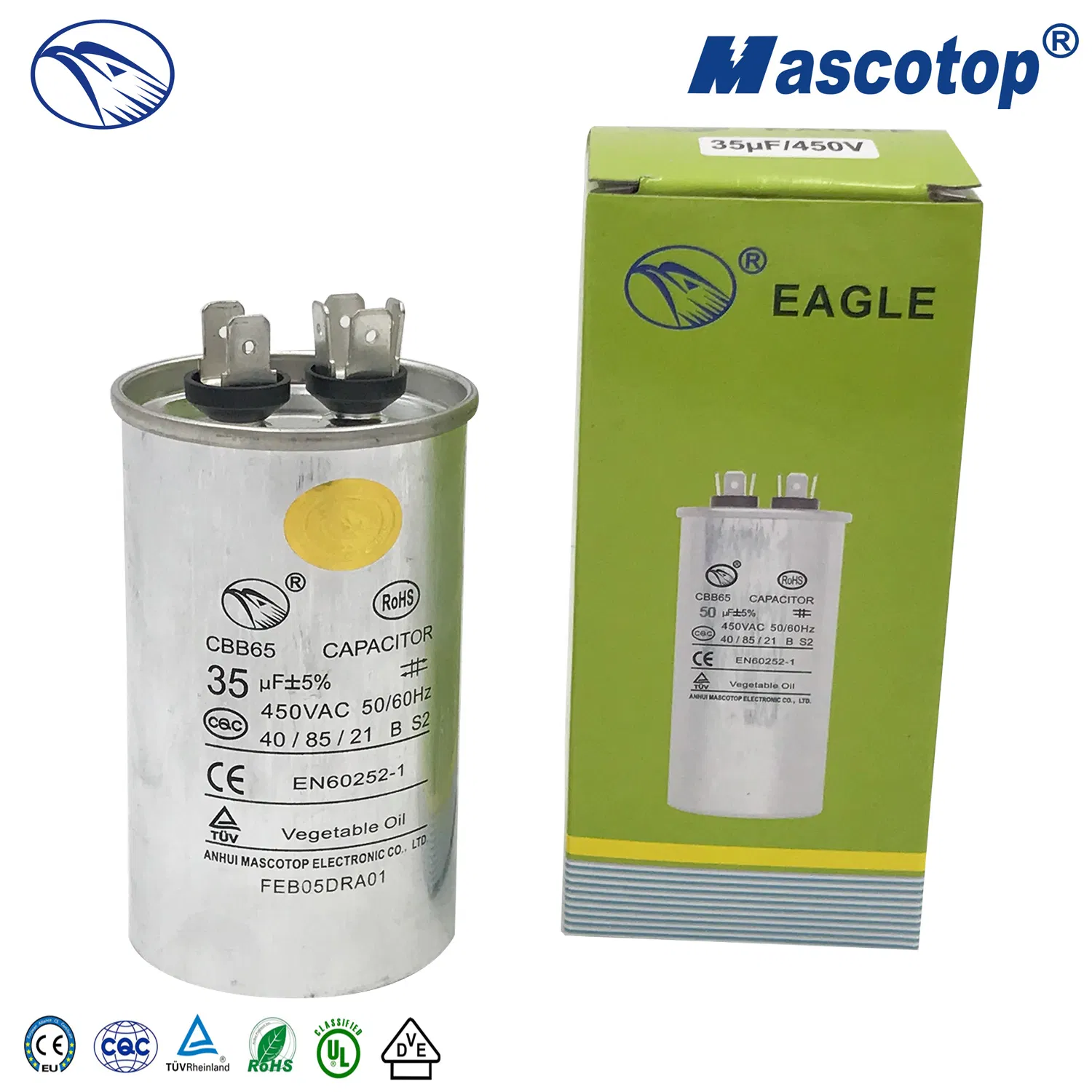

CBB65 Anhui Mascotop UL Air Contioner Start Capacitor in Stock

Features and use

The capacitor has advantages of low dissipation,high insulation resistance,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance,and reliable safety with inner anti-explosion device,etc.It is applied in air conditioning,refrigeration,it is helpful for motor's starting and running.

Technical parameter

Ambient Temp	Rated Voltage (AVC)	Range of Capacitance (μf)	Testing Voltage (VAC)	Dissipation Factor	Operating Frequency
-40-85ºC	150-500	2-100	T-T:2Un/2S T-C:≥2200VAC/2S	tanδ≤0.002(100Hz)	50/60Hz

Outline size

Capacitance(μF)	200-300VAC		370-400VAC		440-450VAC
Capacitance(μF)	D	H	D	H	D	H
2	40	55	40	55	40	55
5	40	55	40	55	40	55
7.5	40	55	40	55	40	55
10	40	55	40	55	55	65
15	40	75	40	65	40	75
20	40	75	40	75	45	75
25	40	75	45	75	50	75
30	45	75	50	75	50	85
35	45	75	50	75	50	85
40	45	85	50	85	50	100
45	45	85	50	100	50	110
50	45	100	50	100	50	110
55	45	100	50	110	50	125
60	45	100	55	110	55	125
70	50	100	55	110	55	125
80	50	100	55	125	60	125
100	50	125	60	125	60	140
