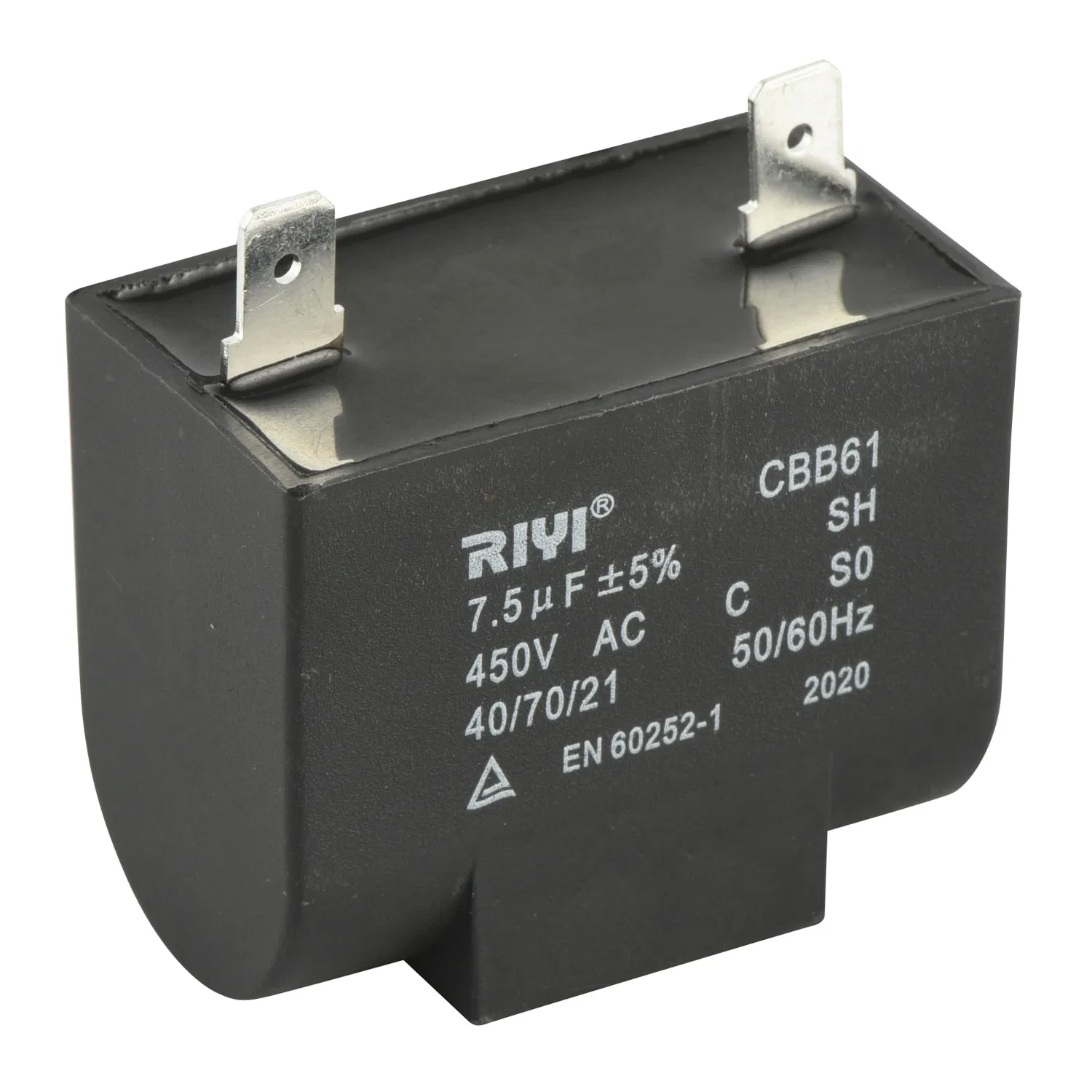

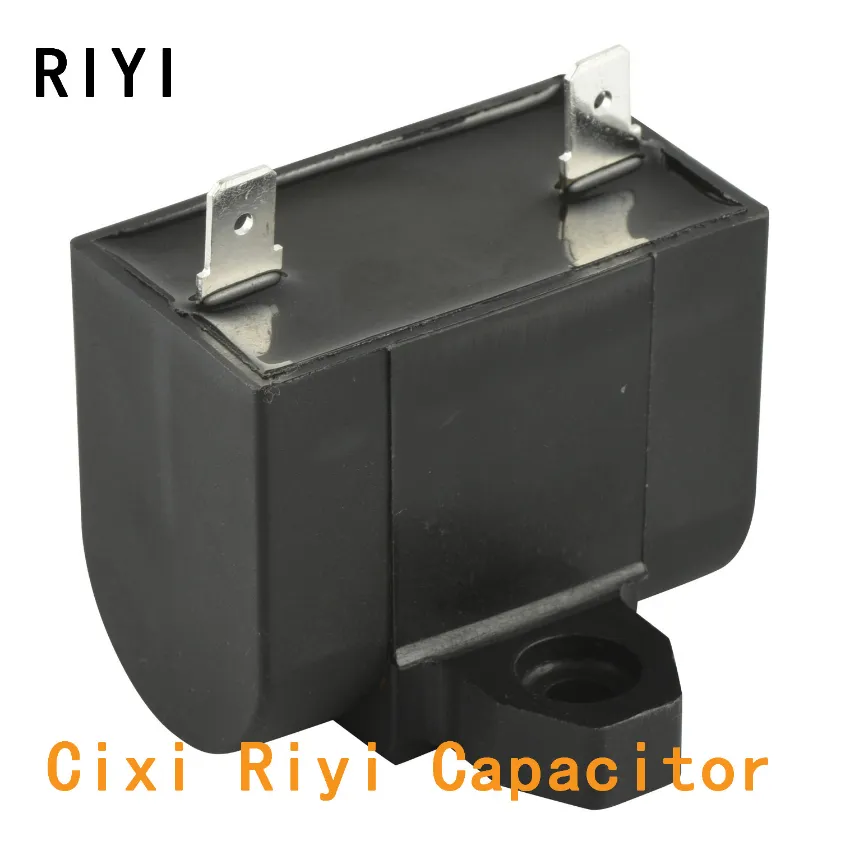

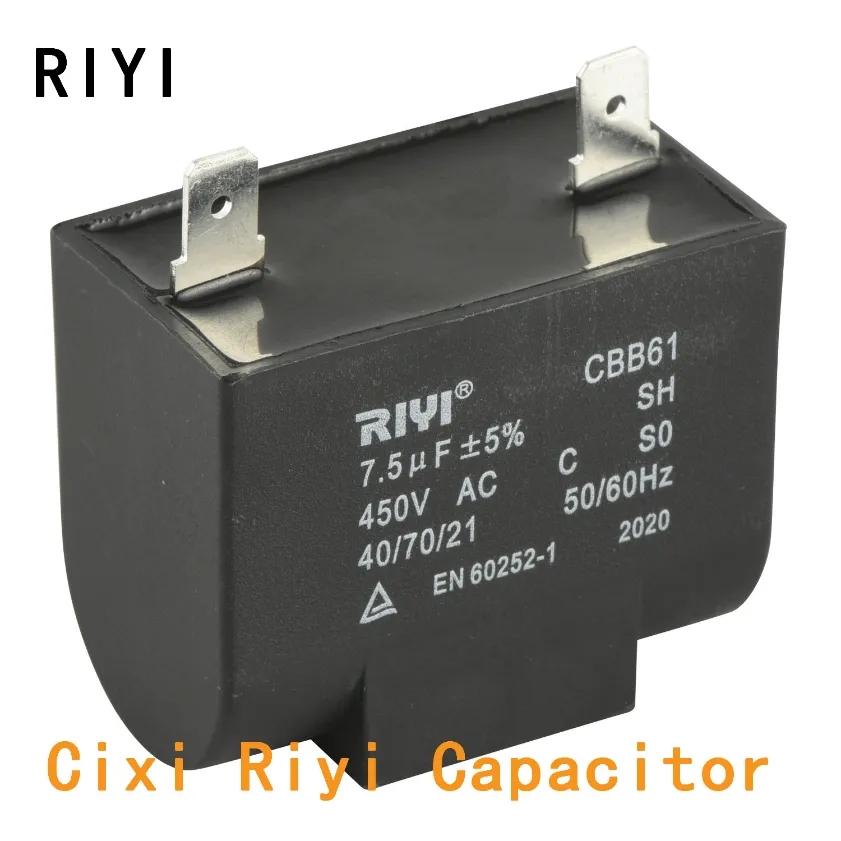

Cbb61 Fan Capacitor 7.5UF 450V S0 with Collar

Product Description

CBB61 AC Motor Capacitor

1. Features and uses
The capacitor has advantages of low dissipation,high insulance resistance,good self-healing character,and steady electricity performance,anti-striking current,strong over-carrying capacity,etc.in generally,it uses rectangular burning-proof case and epoxy resin to seal.It is applied in electric fan,exhaust fan electric pump,etc for the help of motor's starting and running

2. Technical parameter
  Rated Voltage: 200VAC~500VAC
  Rated Frequency: 50/60Hz
Capacitance Range: 0.5~35μF
Capacitance Tolerance: ±5%
Tangent of loss angle tanδ≤0.2% (20ºC,100Hz)
Standing Voltage:
      Between Terminals: 2.0Un/2s (No flashover or permanent breakdown)
      Terminals to case: 2100VAC/2s (No dielectric breakdown or flashover)
Highest allowable voltage: 1.1times of rated voltage
Maximum allowable circuit: 1.3times of rated circuit
Class of safety protection: S0
Executing Standards: IEC60252,GB/T 3667.1,UL810

Company   profile

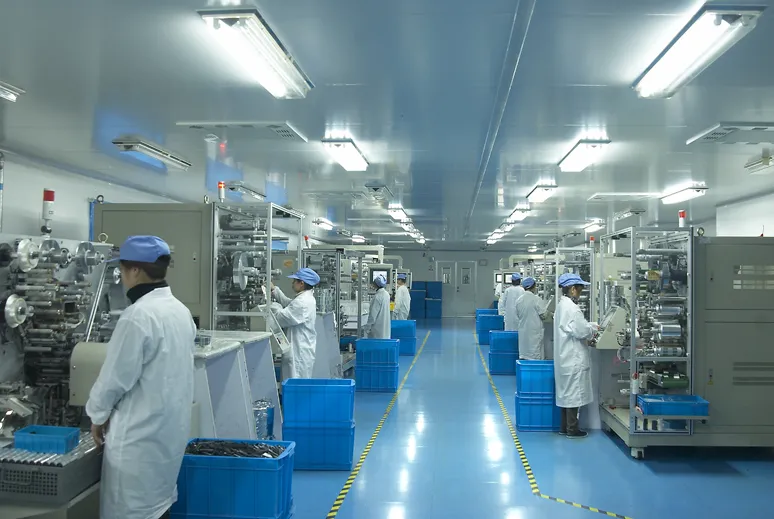

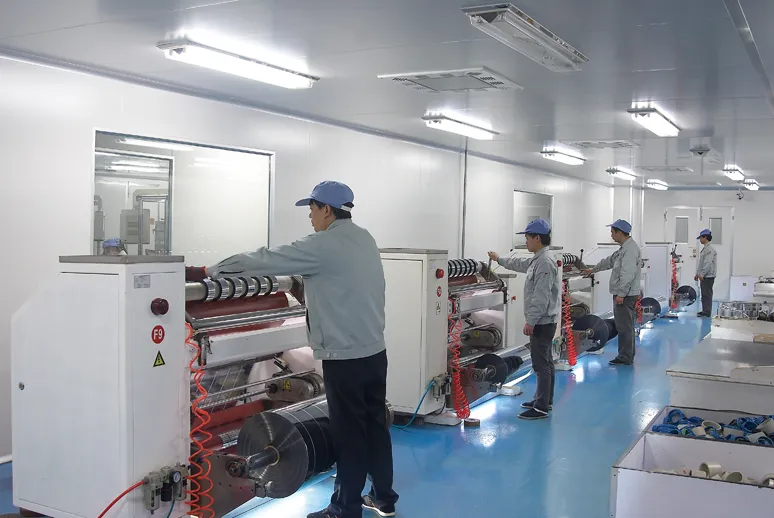

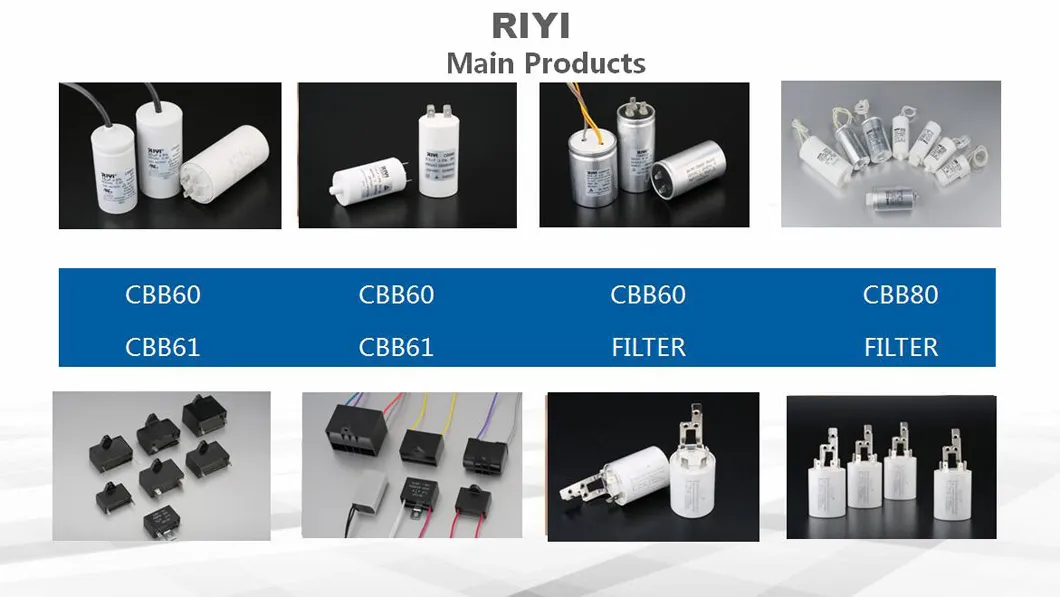

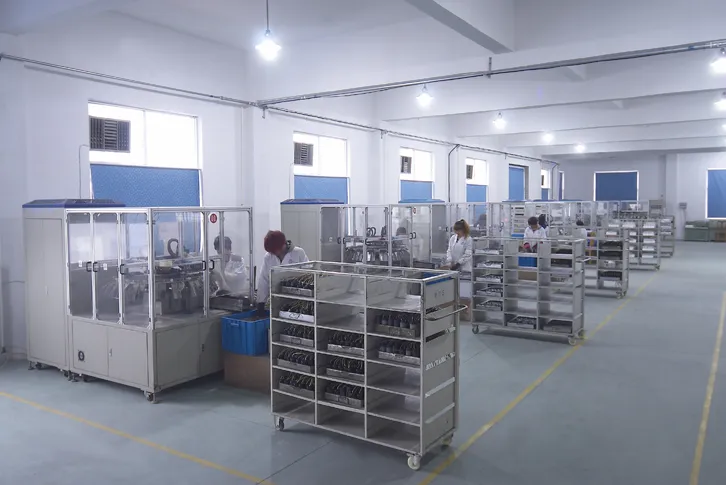

Cixi Riyi Capacitor Factory is specializing in the production of metallized polypropylene film capacitors manufacturers, the company occupies 25,000 square meters, owns fixed assets of 30 million RMB, with an annual outputvarious types of capacitor capacity of 60 million, the company currently employs 280 people, including 12 engineers and technicians, quality control staff of 25 people.

Strong technical force, advanced equipment, superb technology, detection means perfect, modern management model, based on market-oriented to the needs of customers for the purpose of continuous research and development and production of series capacitors, the enterprise passed the ISO9001:2015quality management System Certification and ISO14001:2015environment system certification, all kinds of products have the certification of CQC, TUV, VDE, IMQ, UL, CE and so on. Since its inception, work hard, pursuit of excellence and dedication to the electronics industry, power industry, household electrical appliance industry, and high-tech companies supporting services, has won the trust of our customers and co-operation, At present, the main supporting services with well-known brands of the domestic Haier, Midea, Galanz ,while about 50 percent of products exported to Europe, America and Southeast Asia countries and regions,

Riyi Capacitor look forward to your cooperation for a better tomorrow.
