Cbb61 Ceiling Fan Capacitor for Fan Motors
&Basic Info.Basic specificationsModel No.CBB61 CapacitorTypePolypropylene Fan CapacitorCapacitance1~35uFStructureSingle Film CapacitorManufacturing MaterialPolypropyleneElectrolytePolypropylene FilmRated Voltage200~500VACOperating Temperature40/70/21 or 40/85/21Capacitance Tolerance±5......
Send Inquiry
Product Description
&Basic Info.
§Technical Specifications:
§Dimensions(mm):
Note:Other specifications,size and terminal outside table are negotiable
&Product Description
The CBB61 fan capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.it is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size, reliable performance and long endurance.
§Application:
The CBB61 fan capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans,electric fans and exhaust fans etc.at comparatively low rated power.

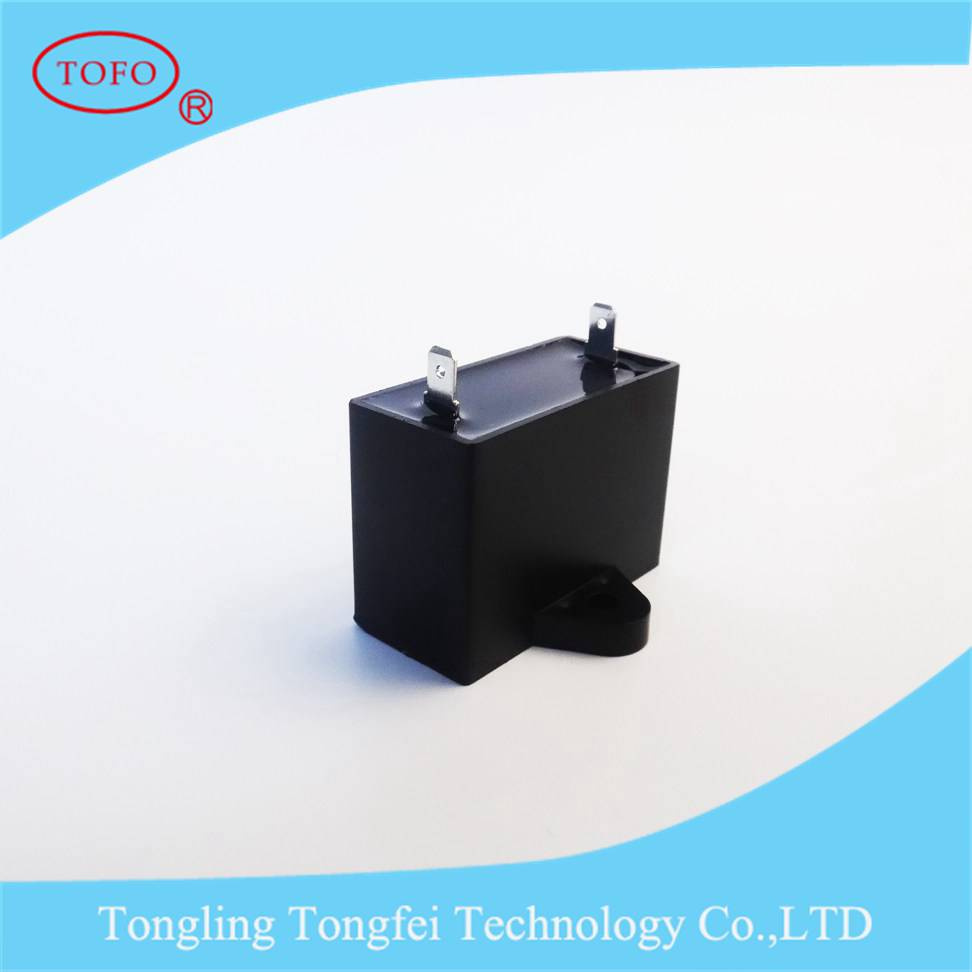

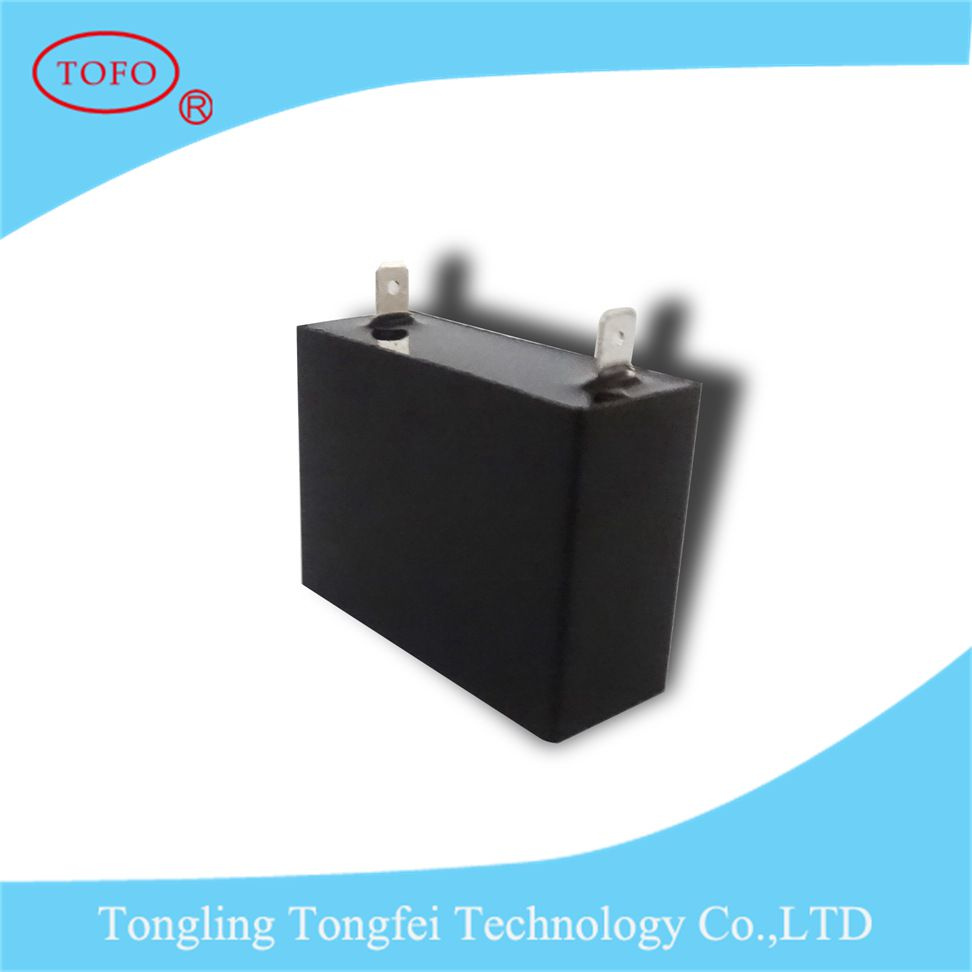

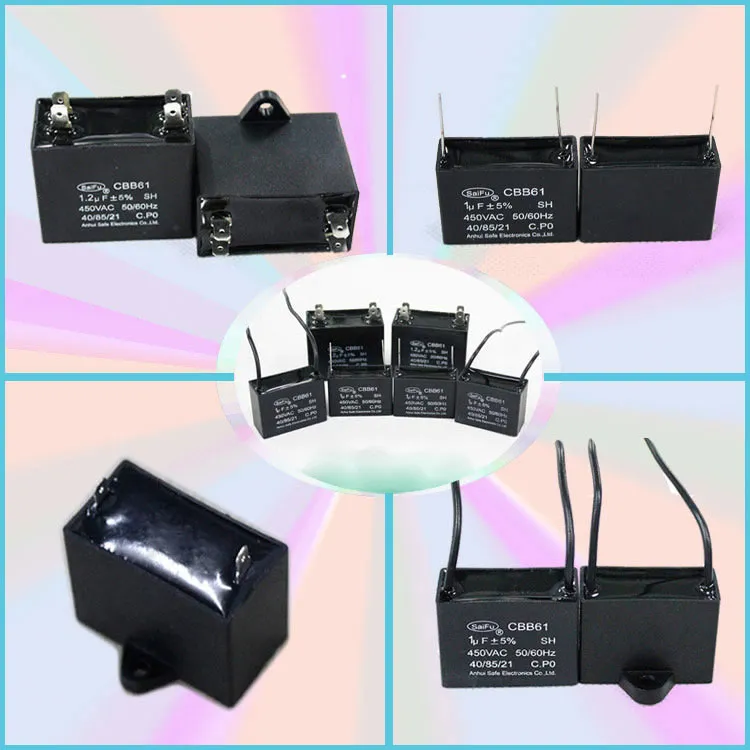

§Appearance:
Shape: Squareness
Capacitor Case: Plastic

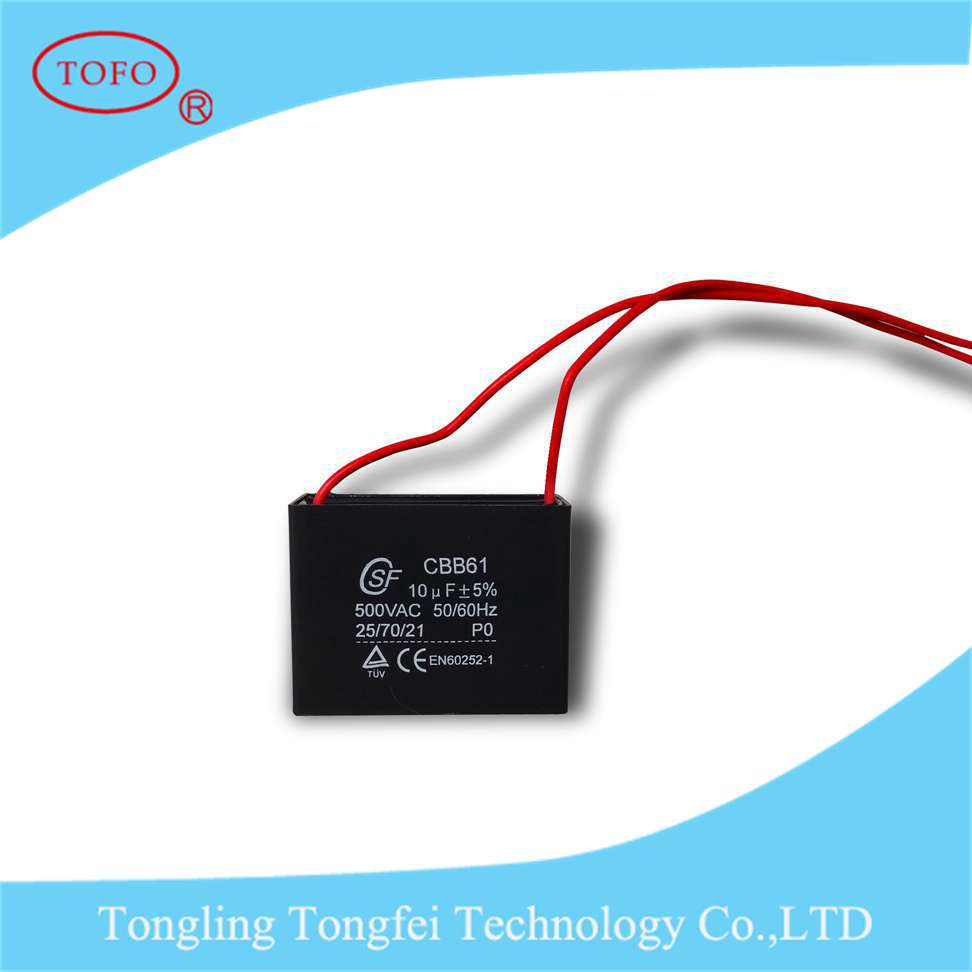

Lead out: Pin or Wire
Installation Type: Through Hole
Application: CBB61 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile.
&Additional Info.
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Packing: Export Stand Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo
Export Market: Global
& Our advantages
* LeadingTechnology:
Have a number of invention patents
* Stable Quality:

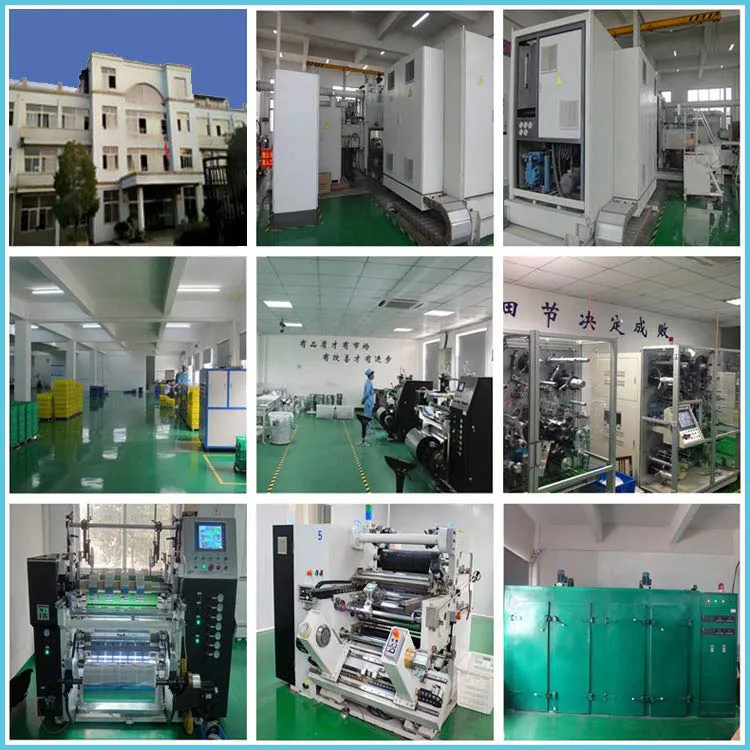

The company has the world's most advanced production equipment, and implement ISO9001 standard management.
* Reasonable Price:
Executive "Industrial products 10% Profit in the first"
*Cordial Service:
7*24 hours online, prompt reply and timely delivery
& Welcome to Contact Us
Company Name:Tongling Tongfei Technology Co.,Ltd.
Add:No.695 North Taishan Road,Tongling,Anhui,China
Tel:0086 0562 2821018
Fax:0086 0562 2821558
Mobile Phone:13305620368 (Helen Hu)
The Product Price Is Negotiable!!!
For more information,you can contact and view our website:
www.dianrongs.com
| Basic specifications | |
| Model No. | CBB61 Capacitor |
| Type | Polypropylene Fan Capacitor |
| Capacitance | 1~35uF |
| Structure | Single Film Capacitor |
| Manufacturing Material | Polypropylene |
| Electrolyte | Polypropylene Film |
| Rated Voltage | 200~500VAC |
| Operating Temperature | 40/70/21 or 40/85/21 |
| Capacitance Tolerance | ±5% |
| Class of Operation | Class B,Class C |
| Class of Safety Protection | P0/P2 |
| Package Type | Export Carton for CBB61 Fan Capacitor |
| Production Capacity | 500,000pcs/Month |
| MOQ | 1 pcs |
| Size | Available on Request (Customized Fan Capacitor) |
| Reference standards | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety protection | P0/P2 |
| Voltage range | 200~500VAC |
| Capacitance range | 1~35μF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20×10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ. μF(100Hz,20ºC,1min) |
| Specifications | 450VAC | 250VAC |
| 1μF | 37×13×23 | 37×13×23 |
| 1.2μF | 37×13×23 | 37×13×23 |
| 1.5μF | 37×14×25 | 37×13×23 |
| 2μF | 37×16×28 | 37×13×23 |
| 2.5μF | 37×18×28 | 37×14×25 |
| 3μF | 47×18×29 | 37×14×25 |
| 3.5μF | 47×18×34 | 37×16×28 |
| 4μF | 47×18×34 | 37×16×28 |
| 4.5μF | 47×22×34 | 37×16×28 |
| 5μF | 47×22×34 | 37×18×28 |
| 5.5μF | 47×22×34 | 37×18×28 |
| 6μF | 47×22×34 | 47×18×29 |
| 6.5μF | 48×26×38 | 47×18×29 |
| 7μF | 48×26×38 | 47×18×29 |
| 8μF | 48×26×38 | 47×18×34 |
| 10μF | 58×26×44 | 47×22×34 |
| 12μF | 58×26×44 | 47×22×34 |
| 15μF | 58×26×44 | 47×22×34 |
| 16μF | 58×26×44 | 47×26×38 |
| 20μF | 58×35×49 | 47×26×38 |
| 25μF | 58×35×49 | 47×26×38 |
| 30μF | Negotiable | 58×26×44 |
| 35μF | Negotiable | 58×26×44 |
&Product Description
The CBB61 fan capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.it is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size, reliable performance and long endurance.
§Application:
The CBB61 fan capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans,electric fans and exhaust fans etc.at comparatively low rated power.
§Appearance:
Shape: Squareness
Capacitor Case: Plastic
Lead out: Pin or Wire
Installation Type: Through Hole
Application: CBB61 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Fan,Automobile.
&Additional Info.
Company Name: Tongling Tongfei Technology Co.,Ltd
Trademark: TOFO
Standard: GB/T 3667.1 or IEC 60252-1
Origin: China(Mainland)
Packing: Export Stand Carton Packing for Capacitors
Delivery Detail: 7~15 days after payment
Port: Shanghai or Ningbo
Export Market: Global
& Our advantages
* LeadingTechnology:
Have a number of invention patents
* Stable Quality:
The company has the world's most advanced production equipment, and implement ISO9001 standard management.
* Reasonable Price:
Executive "Industrial products 10% Profit in the first"
*Cordial Service:
7*24 hours online, prompt reply and timely delivery
& Welcome to Contact Us
Company Name:Tongling Tongfei Technology Co.,Ltd.
Add:No.695 North Taishan Road,Tongling,Anhui,China
Tel:0086 0562 2821018
Fax:0086 0562 2821558
Mobile Phone:13305620368 (Helen Hu)
The Product Price Is Negotiable!!!
For more information,you can contact and view our website:
www.dianrongs.com
