Product Description

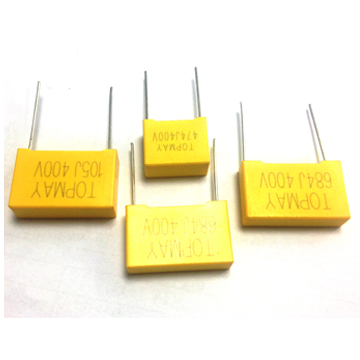

TMCF17 Metallized Polypropylene Film Capacitor Box Type (CBB81-Box)

Key Specifications/Special Features:

Reference standard: GB10190-88 (1CE60384-16)
Climatic category: 40, 85, and 21
Rated voltage: 100 to 160, 250, 400, and 630V
Capacitance range: 0.0047 to 6.8μ F
Capacitance tolerance: ± 5% (J), ± 10% (K), and ± 20% (M)
Voltage resistance: 1.6Vr (5s)
Dissipation factor: ≤ 0.1% (20° C, 1KHz)
Insulation resistance (20° C, 1min): ≥ 25, 000s (CR ≤ 0.33μ F) and ≥ 75, 00s (CR ≥ 0.33uF)

Features:

Reference standard	GB/t14472-1998 (1CE60384-14)
Climatic category	40, 100 and 21
Rated voltage	1250V/1600V
Capacitance range	0.001 to 0.068uF
Capacitance tolerance	±5 (J), 10 (K) and 20% (M)
Voltage resistance	4.3Vr (5 seconds)
Dissipation factor	≤0.15% CR≤1.0μF ≤0.3% CR: 1.0μF (20°C, 10kHz)
Insulation resistance	≥30,000 seconds (CR ≤0.33°F) ≥10,000 seconds (CR ≥0.33°F)

Box-type provides the identical outer appearance
Very low loss at high frequency, suitable for high current
High insulation resistance, long life due to self-healing effect
Withstanding high impulse voltage
As an across the line type noise suppression capacitor
Suitable for AC purpose

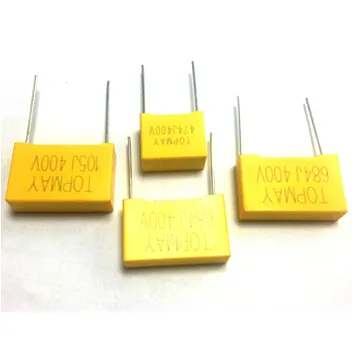

Box Metallized Polypropylene Film Capacitor
