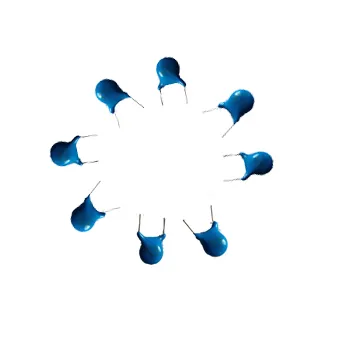

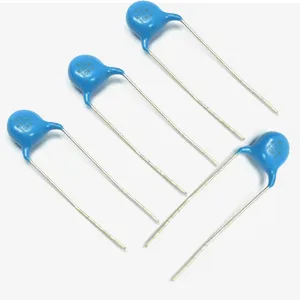

Ammo Packging Safety Ceramic Disc Capacitor

Key Specifications/Special Features:

• Operating temperature range: -25 to +85 celium degree.
• Working voltage: DC 1, 2,3, 6.3, 10 and 15kV
• Withstanding voltage: 1.5 times of working voltage 1kV <=UR <=10kVUT = 1. 5UR+500V, UR <=10kV, UT = 1.5UR
• Capacitance: measured at 20 +-2celium degree, with 5Vrms maximumClass I 1+-0.2MHz and class II 1+-0.2kHz
• Capacitance tolerance: J: +-5%, K: +-10%, M: +-20% and Z: +80%-20%
• Dissipation factor (DF): same condition as the capacitanceSL tgd <= 0.15%N3300 tgd <= 0.4%Y5P tgd <= 2.5%Z5U tgd <= 2.5%Z5V tgd <= 2.5%Bn tgd <= 0.5%Y5R tgd <= 0.35%
• Insulation resistance (IR): with rated voltage 500V test 60 +-5secondsIR >= 10,000MQ
• Temperature characteristic: SLN3300, Y5P, Z5U, Z5V and Y5R

Product Certifications:

• Certificate Standard:SGS,Certificate Number:GZSCR041248032/LP.Issue Date:24-Dec-2004 ,Certification Agent: SGS -CSTC LTD
• Certificate Standard:RoHS,Certificate Number:CQC06130017473,Issue Date:08-Sep-2006 Expiry Date:07-Sep-2007 Certification Agent: China Quality Certification Centre
