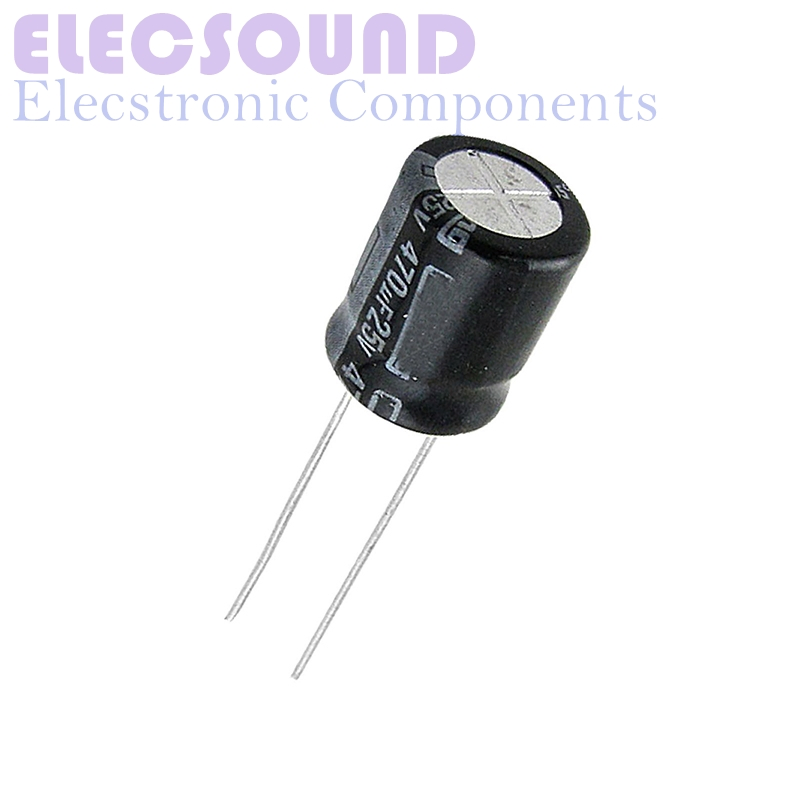

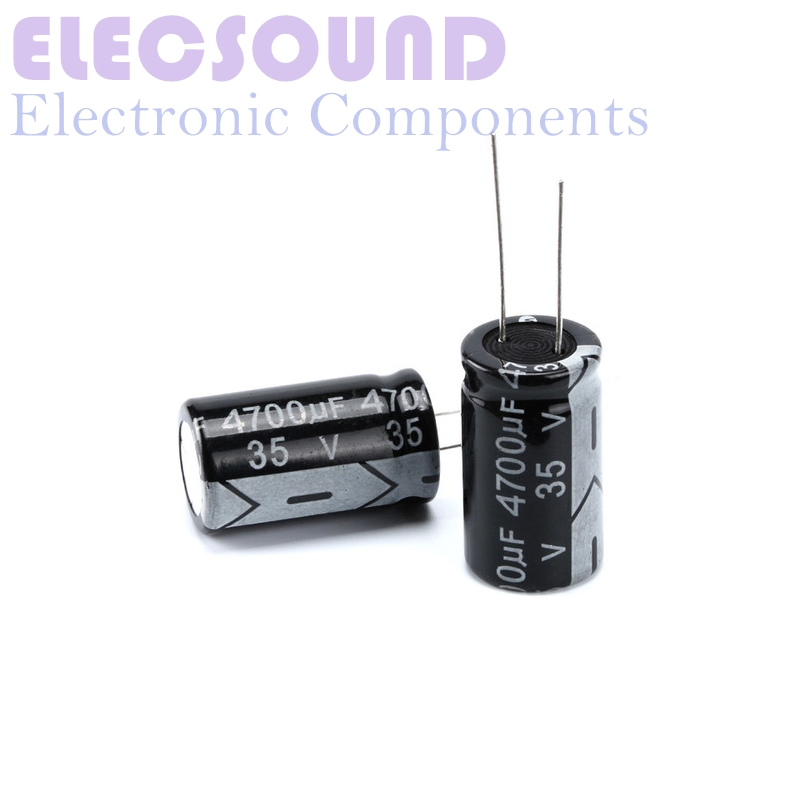

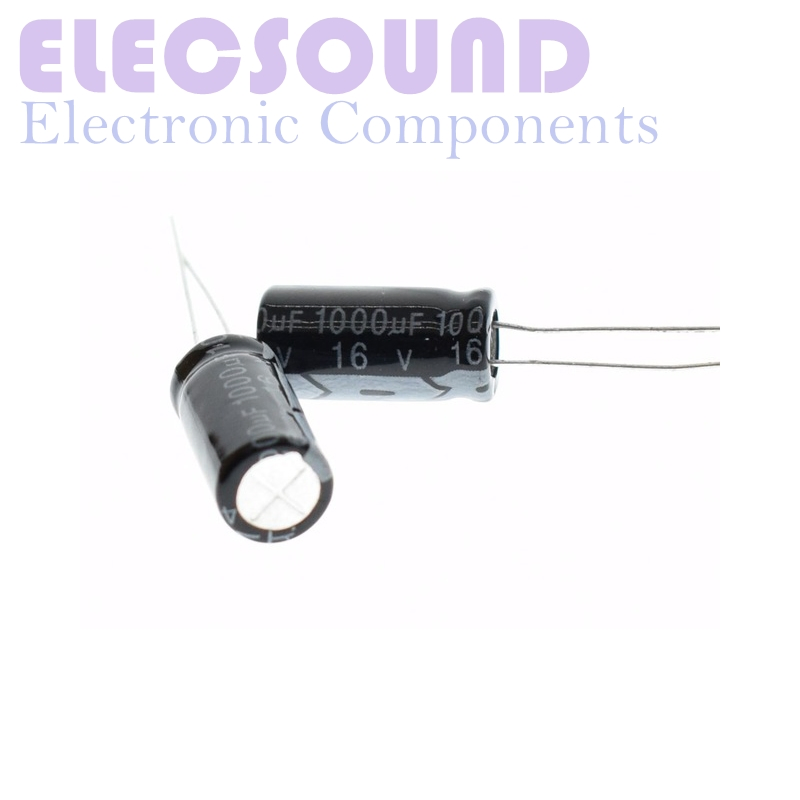

Aluminum Electrolytic Capacitor 105c CD11

Product Description

Features:
Load life 1000 hours at 105 ºC
Wide Temperature range
Smaller size
Large capacity
Rohs Compliant

Specifictions:
Operating Temperature Range(ºC): -40~+105 & -25~+105@450V
Rated Voltage Range(V): 6.3~450
Nominal Capacitance Ranger(μF): 0.1~10000 @ 6.3~100V ; 0.47~220 @ 160~450V
Capacitance Tolerance(20 ºC,120Hz) : 20%
Leakage current( μA): 0.01CV or 3mA whichever is smaller(at 25 ºC ,after 5 minutes)

WV(V)	6.3		10		16		25		50		63
Cap (μF)	Size	Ripple	Size	Ripple	Size	Ripple	Size	Ripple	Size	Ripple	Size	Ripple
Cap (μF)	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms
0.1	-	-	-	-	-	-	-	-	5x11	3	-	-
0.22	-	-	-	-	-	-	-	-	5x11	4	-	-
0.33	-	-	-	-	-	-	-	-	5x11	5	-	-
0.47	-	-	-	-	-	-	-	-	5x11	6	-	-
1	-	-	-	-	-	-	-	-	5x11	7	-	-
2.2	-	-	-	-	-	-	-	-	5x11	11	-	-
3.3	-	-	-	-	-	-	-	-	5x11	15	-	-
4.7	-	-	-	-	-	-	5x11	25	5x11	18	5x11	20
10	-	-	-	-	5x11	20	5x11	30	5x11	26	5x11	30
22	-	-	-	-	5x11	30	5x11	35	5x11	40	6.3x11	50
33	-	-	-	-	5x11	40	5x11	40	6.3x11	60	8x11	60
47	-	-	5x11	45	5x11	50	5x11	50	6.3x11	70	8x12	90
100	5x11	60	5x11	80	6.3x11	80	6.3x11	90	8x12	120	10x13	150
220	6x11	100	6x11	110	8x11.5	140	8x12	150	10x16	240	10x20	270
330	8x11	120	8x12	160	8x11.5	180	10x13	220	10x20	320	13x20	380
470	8x12	170	8x12	190	10x12.5	250	10x16	290	13x20	430	13x25	500
1000	10x13	300	10x16	360	10x20	440	13x20	540	16x25	1350	16x31	900
2200	13x20	580	13x20	620	12.5x25	700	16x25	880	19x35	1230	19x40	1310
3300	13x20	670	13x25	800	16x25	970	16x31	1120	19x40	1400	22x40	1730
4700	16x25	1000	16x25	1050	16x31.5	1240	19x35	1440	22x40	1780	-	-
6800	16x25	1120	16x31.5	1300	19x35	1530	19x40	1630	-	-	-	-
10000	19x35	1320	19x35	1620	19x40	1730	22x40	2200	-	-	-	-

WV(V)	100		160		200		250		400		450
Cap(μF)	Size	Ripple	Size	Ripple	Size	Ripple	Size	Ripple	Size	Ripple	Size	Ripple
Cap(μF)	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms	ΦDxL	mArms
0.1	5x11	3	-	-	-	-	-	-	-	-	-	-
0.22	5x11	4	-	-	-	-	-	-	-	-	-	-
0.33	5x11	5	-	-	-	-	-	-	-	-	-	-
0.47	5x11	6	5x11	8	8x11	6	8x11	6	-	-	-	-
1	5x11	9	5x11	12	8x11	9	8x11	9	10x16	15	-	-
2.2	5x11	15	8x11	15	8x11	15	8x12	15	10x16	20	10x16	29
3.3	5x11	18	8x12	20	8x12	20	10x13	20	10x20	25	10x20	35
4.7	5x11	20	8x12	25	10x13	30	10x13	30	13x20	40	13x20	50
10	6.3x11	36	10x13	40	10x16	45	10x20	45	16x25	70	13x25	75
22	8x12	65	10x20	70	10x20	70	13x25	80	16x25	110	16x31	110
33	10x13	95	13x20	110	13x25	110	13x25	100	19x30	180	19x35	250
47	10x16	120	13x25	140	13x25	140	16x25	140	-	-	22x40	230
100	13x20	220	16x25	250	16x31	250	19x35	260	-	-	-	-
220	16x25	420	19x35	430	-	-	-	-	-	-	-	-
330	16x31	510	-	-	-	-	-	-	-	-	-	-
470	19x31	680	-	-	-	-	-	-	-	-	-	-
1000	19x40	1200	-	-	-	-	-	-	-	-	-	-
Rated Ripple Current: 105 ºC,100hz or 120Hz
The Specific capacitance and case size are available on requert by customer

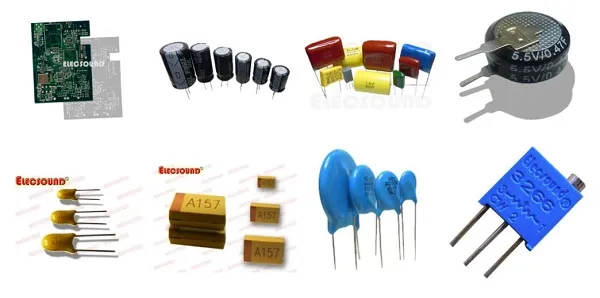

Product Overviews
We currently offer a broad range of capacitors, LEDs, Cermet Trimming Potentiometers, PCBs, Semiconductors, Transistors, Zinc Oxide Varistors, Switches and Resistors.

Aluminum Electrolytic Capacitor 105c CD11

Aluminum Electrolytic Capacitor 105c CD11

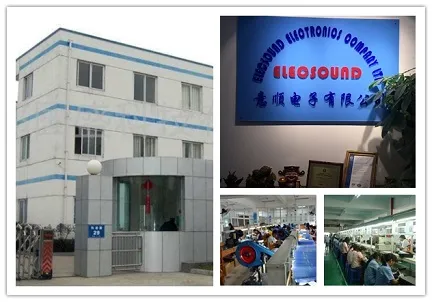

Company Information
