Product Description

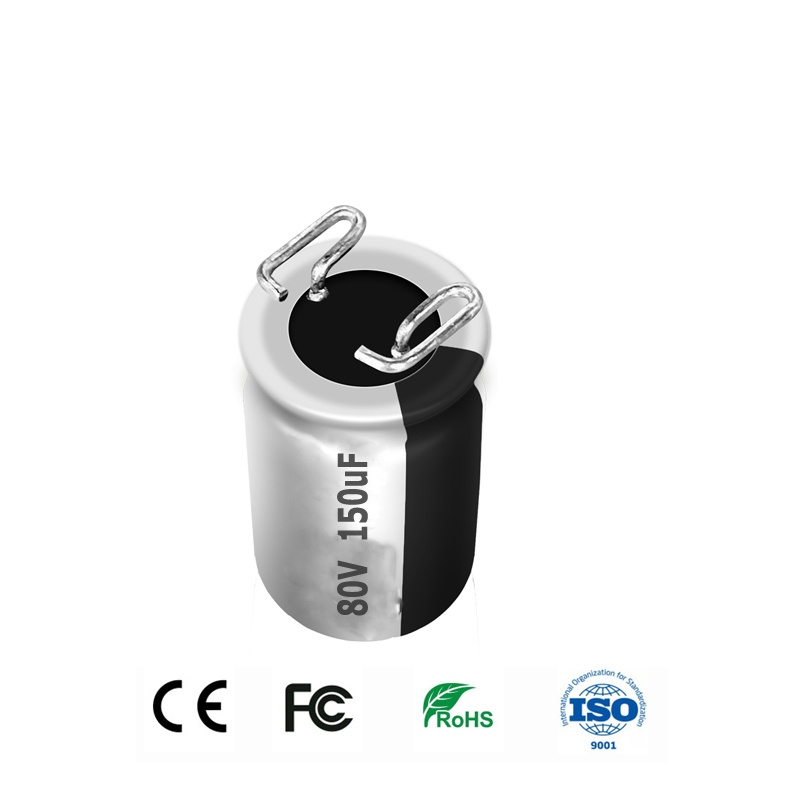

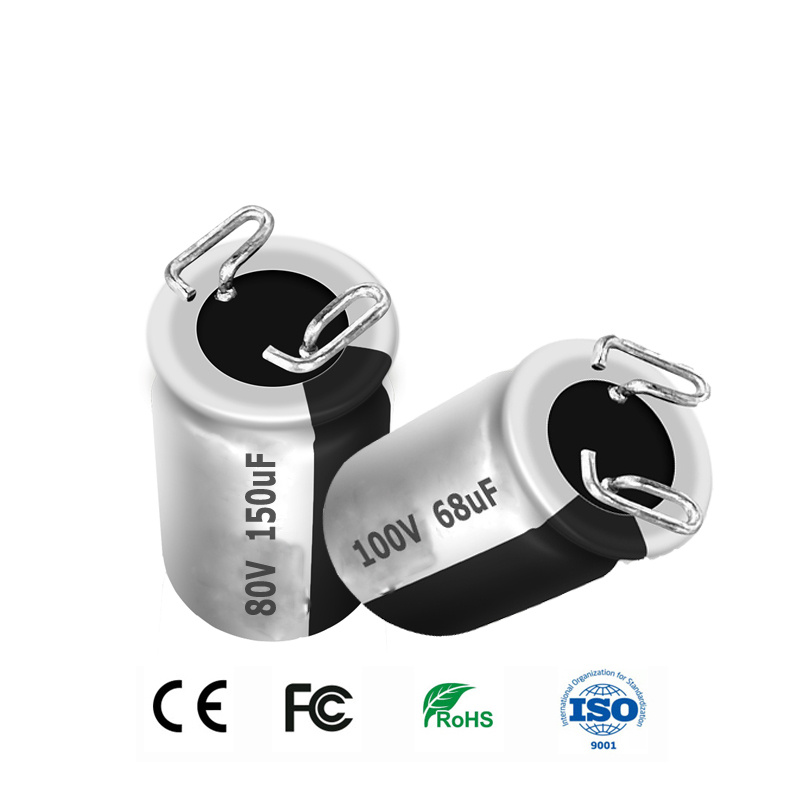

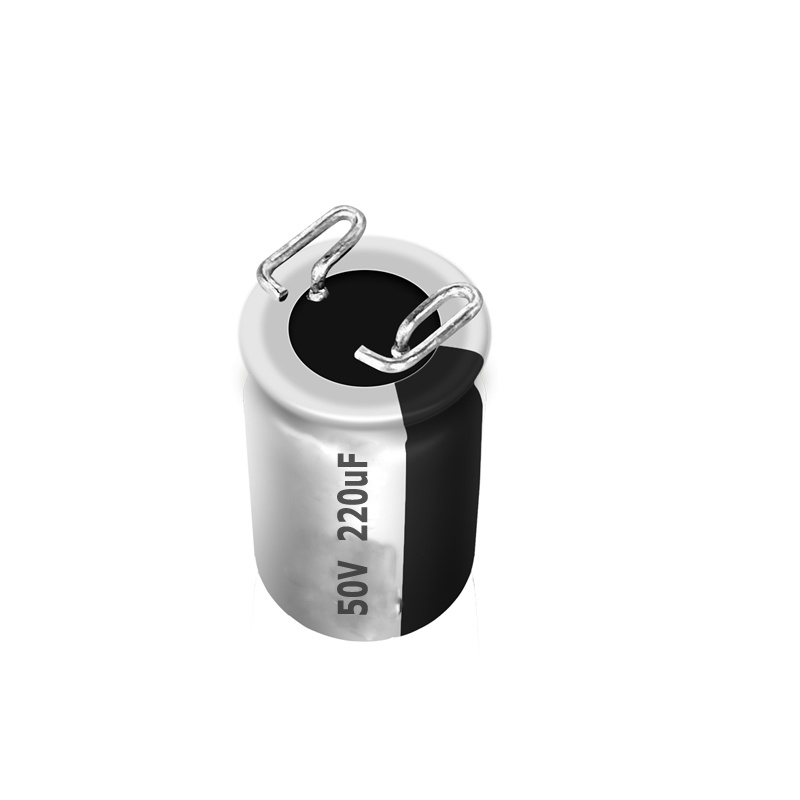

High Ripple 35V SMD 10/22/33/47/100/220/330UF Aluminum Electrolytic Capacitor

Type Radial

Guaranteed life: +130ºC, 5000 hours.
High frequency and low impedance products.
Especially suitable for power supply,Car audio, Adapter, Amplifier,Inverter,DOB use

Characteristics
Operating Temperature Range: -40~+130ºC
Rated Voltage Range: 6.30~160Vdc
Capacitance Tolerance: ±20% (20ºC, 120Hz)
Leakage Current: Reading when rated voltage is applied for 2 minutes
(Nominal Capacitance) (μF)
Rated Voltage (V)
Dissipation Factor (tanδ)

Rated Voltage (V)	120	10v	16v	25v	50v	100v	160v
tanδ (max)	0.12	0.18	0.16	0.12	0.08	0.08	0.15

When niminal capacitance execeeds 1000μF, add 0.02 to the value fir each 1000μF increase.
Low Temperature Stability

Rated Voltage	50	63	100	120HZ
Z-25ºC / Z25ºC	2	2	2	120HZ
Z-40ºC / Z25ºC	3	3	3	120HZ

Load life test	In the 105C environment, apply the rated voltage and superimpose the rated ripple current (the peak value of the returned voltage does not exceed the rated working voltage), continuous After loading the rated voltage for 10,000 hours, when it is restored to 25°C for measurement, the following items should be met.
	Capacitance Change	Within ±25% of the initial value
	Capacitance Factor	Not more than 200% of the specified value
	Leakage Current	Not more than the specified value

Shelf life test	After storing for 1000 hours in an environment of 105 degrees, when it is restored to 25 degrees for measurement, the following items should be met.
	Capacitance Change	Within ±25% of the initial value
	Dissipation Factor	Not more than 200% of the specified value
	Leakage Current	Not more than the specified value

Ripple current correction factor

Hz	120	1K	10K	100K
1~200	0.4	0.75	0.9	1.0
220~680	0.5	0.85	0.94	1.0
680~1000	0.6	0.87	0.95	1.0

Type CD11MA SERIES
Case Size, Impendence (25ºC 100Khz)& Rated Ripple Current (105ºC, 100Khz)

Voltage ( V )	200			250			350
Capacitance) (μF)	Size DxL(mm)	Impedance (Ωmax)	Ripple current (mArms)	Size DxL(mm)	Impedance (Ωmax)	Ripple current (mArms)	Size DxL(mm)	Impedance (Ωmax)	Ripple current (mArms)
2.2	6.3x9	0.15	50	6.3x9	0.15	48	8x12	0.20	65
2.7	6.3x11	0.15	55	6.3x11	0.15	52	8x12	0.2	68
3.3	6.3x11	0.15	68	6.3x11	0.15	65	8x12	0.2	75
4.7	8x12	0.15	100	8x12	0.15	120	8x12	0.2	108
5.6	8x12	0.15	118	8x12	0.15	130	8x16	0.2	122
6.8	8x12	0.15	125	8x12	0.15	160	8x20	0.2	140

8.2	8x12	0.15	142	8x16	0.15	180	8x20	0.20	160
10	8x12	0.15	155	10x13	0.15	185	10x20	0.20	195
15	8x16	0.14	225	10x13	0.15	225	10x20	0.20	245
22	10x16	0.15	240	10x16	0.15	300	13x20	0.20	305
33	10x20	0.15	320	13x18	0.15	375	16x20	0.20	390
47	13x20	0.15	430	13x20	0.15	410	16x25	0.20	480
