2.7V 3.0f Super Capacitor with ISO Certification / RoHS
Liaoning Brother Electronics Technology co., Ltd.Super capacitor 2.8V 0.22f/0.35f/0.5f/1.0f/2.0f/3.3f/4.7f/5.0f/6.0/8.0/10f/16f/22f/30f/50f/60f/70f and so on. FeaturesCylindrical shape structure, Winding types;Ulta-low ESR for high power density ,Large capacitance for high energy density;Long charge......
Send Inquiry
Product Description
Liaoning Brother Electronics Technology co., Ltd.
Super capacitor 2.8V 0.22f/0.35f/0.5f/1.0f/2.0f/3.3f/4.7f/5.0f/6.0/8.0/10f/16f/22f/30f/50f/60f/70f and so on.
Features
Cylindrical shape structure, Winding types;
Ulta-low ESR for high power density ,Large capacitance for high energy density;
Long charge-discharge cycle life; (1000000 times)
Ultra-low internal resistance,suitable for high power discharge.
High voltage up to 2.8V,under the same conditions with high reliability.
Shape of standard product
Specifications
BIGCAP standard radial leads capacitors data as below:
Applications
Smart water meter, Smart electricity meter,Smart energy meter,
VCR, RAM, Radio,TV set,DVD,GPS,Electric toy, LED-lighting device
Telephone, intelligent door lock,electric cooker,cell phone,electric water heater
self-powered super flashlight,Intelligent instrument etc.
Packiaging & Delivery
Plastic tube, standard export carton
Delivery Detail:5~20 days after order
100% On-time shiping.
Our advantages
Strict production process control:
Always follow 6S standard and ISO90001 requirement to keep product in quality.
Advanced technology:
Our single capacitors rate voltage is up to 3.0V,high temperature is up to 85C.
BIGCAP technique upgrade rapidly and surprise our customers every year.
Professional team:
Our R&D staff have more than 12 years experience in super capacitors filed and have a lot of experience in developing, designing and producing super capacitors.

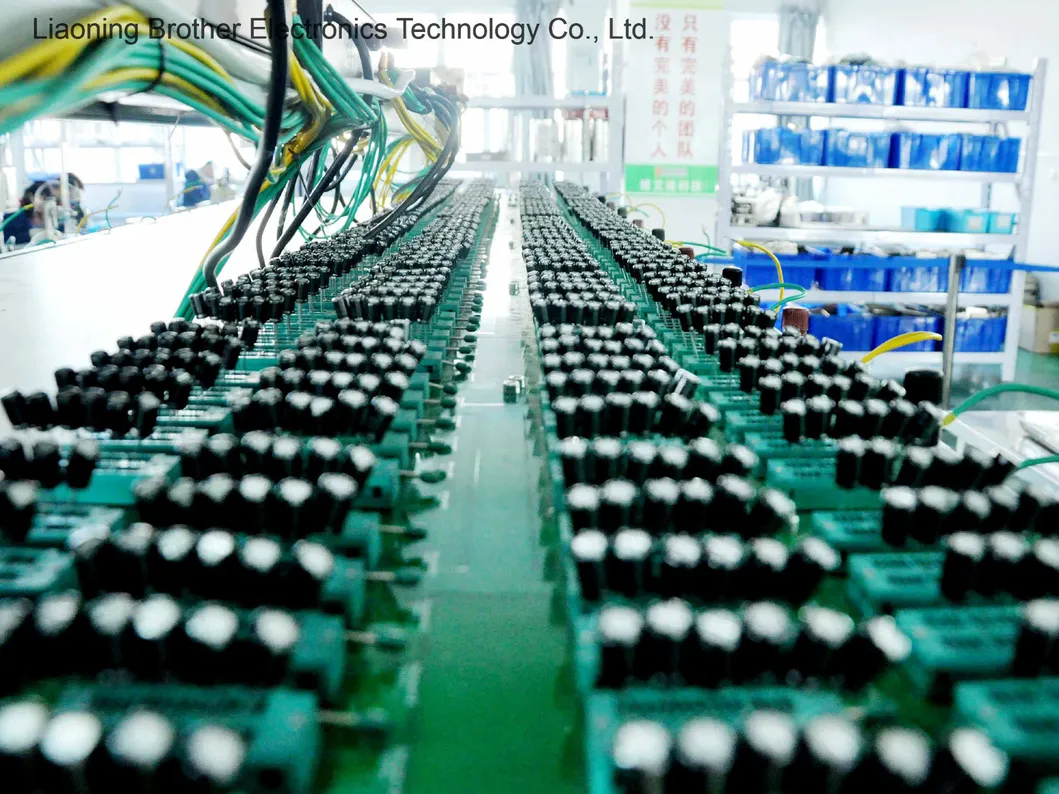

100% full inspection
Every single capacitors are fully inspected by its unique processand the percent of pass is 100%.
Super capacitor 2.8V 0.22f/0.35f/0.5f/1.0f/2.0f/3.3f/4.7f/5.0f/6.0/8.0/10f/16f/22f/30f/50f/60f/70f and so on.
Features
Cylindrical shape structure, Winding types;
Ulta-low ESR for high power density ,Large capacitance for high energy density;
Long charge-discharge cycle life; (1000000 times)
Ultra-low internal resistance,suitable for high power discharge.
High voltage up to 2.8V,under the same conditions with high reliability.

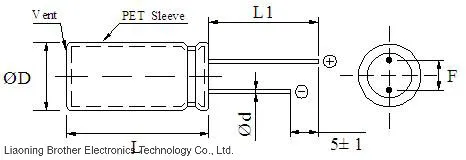

Shape of standard product
Specifications
BIGCAP standard radial leads capacitors data as below:
| Part Number | Nominal Voltage V,dc | Capacitance F | MAX ESR 1kHz,mΩ | ΦD×L ±1.0(mm) | F±0.5 (mm) |
| BRP002R8L104FA | 2.8 | 0.1 | 450 | 5×12 | 2 |
| BRP002R8L104FB | 2.8 | 0.1 | 450 | 5×9.8 | 2 |
| BRP002R8L154FA | 2.8 | 0.15 | 400 | 5×12 | 2 |
| BRP002R8L154FB | 2.8 | 0.15 | 450 | 5×9.8 | 2 |
| BRP002R8L224FA | 2.8 | 0.22 | 500 | 5×12 | 2 |
| BRP002R8L224FB | 2.8 | 0.22 | 500 | 5×9.8 | 2 |
| BRP002R8L254FA | 2.8 | 0.25 | 500 | 5×12 | 2 |
| BRP002R8L254FB | 2.8 | 0.25 | 500 | 6.3×12 | 2.5 |
| BRP002R8L354FA | 2.8 | 0.35 | 400 | 5×12 | 2 |
| BRP002R8L504FA | 2.8 | 0.5 | 500 | 6.3×12 | 2.5 |
| BRP002R8L504FB | 2.8 | 0.5 | 500 | 5×12 | 2 |
| BRP002R8L504FC | 2.8 | 0.5 | 500 | 6.3×9.8 | 2.5 |
| BRP002R8L704FA | 2.8 | 0.7 | 400 | 8×13 | 3.5 |
| BRP002R8L105FA | 2.8 | 1.0 | 300 | 8×13 | 3.5 |
| BRP002R8L105FB | 2.8 | 1.0 | 200 | 8×19 | 3.5 |
| BRP002R8L105FC | 2.8 | 1.0 | 200 | 8×13 | 3.5 |
| BRP002R8L105FD | 2.8 | 1.0 | 300 | 6.3×12 | 2.5 |
| BRP002R8L205FA | 2.8 | 2.0 | 140 | 8×19 | 3.5 |
| BRP002R8L205FB | 2.8 | 2.0 | 140 | 10×20 | 5 |
| BRP002R8L305FA | 2.8 | 3.0 | 100 | 8×19 | 3.5 |
| BRP002R8L305FB | 2.8 | 3.0 | 120 | 8×16 | 3.5 |
| BRP002R8L335FA | 2.8 | 3.3 | 80 | 10×20 | 5 |
| BRP002R8L405FA | 2.8 | 4 | 80 | 10×20 | 5 |
| BRP002R8L475FA | 2.8 | 4.7 | 70 | 12.5×21 | 5 |
| BRP002R8L475FB | 2.8 | 4.7 | 70 | 10×20 | 5 |
| BRP002R8L505FA | 2.8 | 5.0 | 70 | 10×20 | 5 |
| BRP002R8L605FA | 2.8 | 6.0 | 70 | 10×20 | 5 |
| BRP002R8L705FA | 2.8 | 7.0 | 70 | 10×25 | 5 |
| BRP002R8L805FA | 2.8 | 8.0 | 50 | 12.5×21 | 5 |
| BRP002R8L805FC | 2.8 | 8.0 | 50 | 12.5×20 | 5 |
| BRP002R8L106FA | 2.8 | 10 | 50 | 12.5×26 | 5 |
| BRP002R8L106FB | 2.8 | 10 | 50 | 12.5×34 | 5 |
| BRP002R8L106FC | 2.8 | 10 | 60 | 12.5×21 | 5 |
| BRP002R8L106FD | 2.8 | 10 | 50 | 10×30 | 5 |
| BRP002R8L156FA | 2.8 | 15 | 30 | 16×26 | 7.5 |
| BRP002R8L166FA | 2.8 | 16 | 30 | 16×21 | 7.5 |
| BRP002R8L226FA | 2.8 | 22 | 25 | 16×26 | 7.5 |
| BRP002R8L256FA | 2.8 | 25 | 25 | 16×34 | 7.5 |
| BRP002R8L306FA | 2.8 | 30 | 25 | 16×34 | 7.5 |
| BRP002R8L506FA | 2.8 | 50 | 20 | 18×41 | 8 |
| BRP002R8L606FA | 2.8 | 60 | 15 | 18×41 | 8 |
| BRP002R8L706FA | 2.8 | 70 | 15 | 18×52 | 8 |
| BRP002R8S107FA | 2.8 | 100 | 20 | 22×45 | 10 |
| BRP002R8S157FA | 2.8 | 150 | 20 | 25×52 | 10 |
| BRP002R8S207FB | 2.8 | 200 | 15 | 35×61 | 10 |
| BRP002R8S227FB | 2.8 | 220 | 15 | 35×61 | 10 |
| BRP002R8S307FA | 2.8 | 300 | 10 | 35×61 | 10 |
| BRP002R8S367FA | 2.8 | 360 | 10 | 35×61 | 10 |
Applications
Smart water meter, Smart electricity meter,Smart energy meter,
VCR, RAM, Radio,TV set,DVD,GPS,Electric toy, LED-lighting device
Telephone, intelligent door lock,electric cooker,cell phone,electric water heater
self-powered super flashlight,Intelligent instrument etc.
Packiaging & Delivery
Plastic tube, standard export carton
Delivery Detail:5~20 days after order
100% On-time shiping.
1. All goods can be ship out by Air, Sea, Express(DHL, FeDex, TNT, UPS, EMS, SF)
2. Super capacitors got products certification from authority.

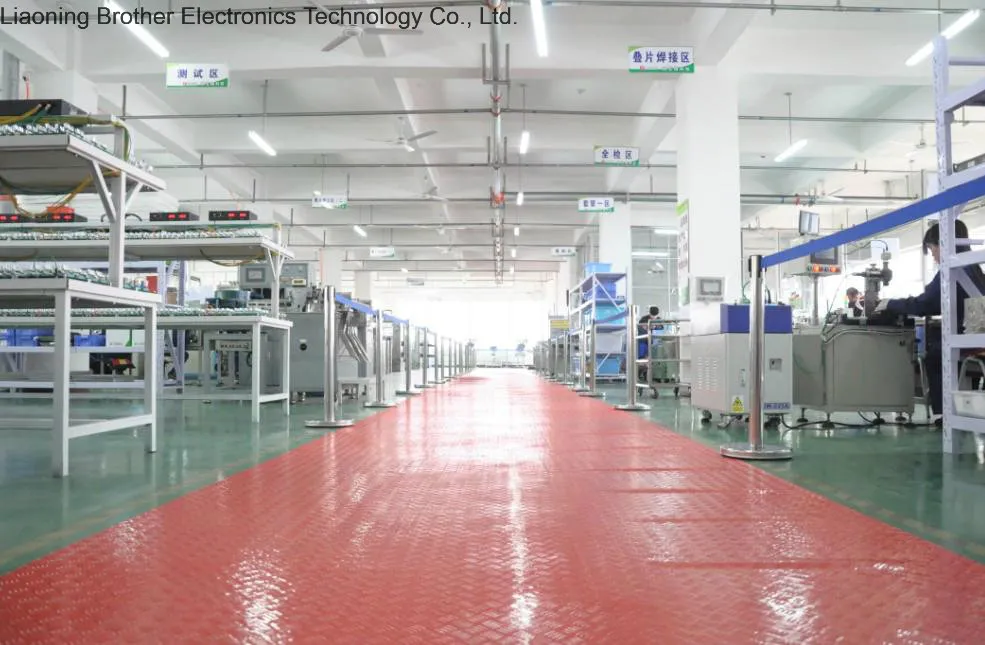

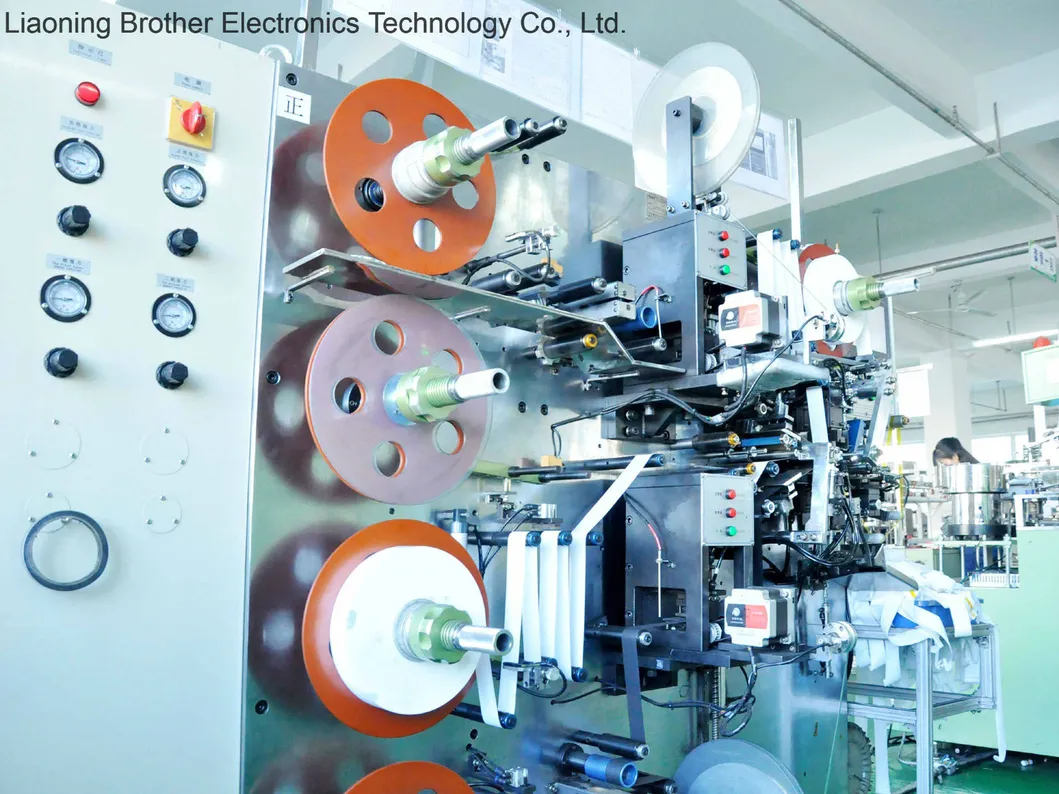

Our advantages
Strict production process control:
Always follow 6S standard and ISO90001 requirement to keep product in quality.
Advanced technology:
Our single capacitors rate voltage is up to 3.0V,high temperature is up to 85C.
BIGCAP technique upgrade rapidly and surprise our customers every year.
Professional team:
Our R&D staff have more than 12 years experience in super capacitors filed and have a lot of experience in developing, designing and producing super capacitors.
100% full inspection
Every single capacitors are fully inspected by its unique processand the percent of pass is 100%.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: Can your factory print my logo on the goods ?
A: Yes, we can print your own logo on the goods or the packing box.
