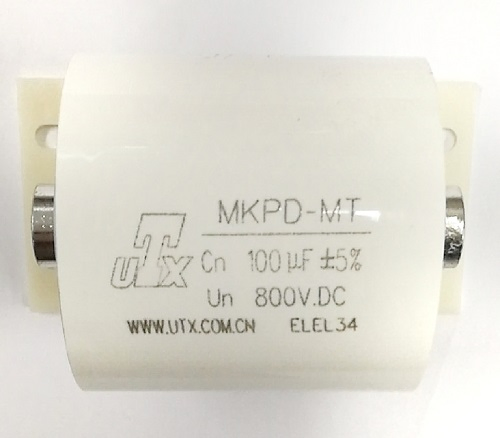

1100V Mylar Tape Axial-Type Mkpd-Mt DC-Link Metallized Film Capacitor
Axial-type Metallized Polypropylene Film Capacitor (MKPD-MT) DC-Link CapacitorsFeatures and Application :» Metallized polypropylene film, axial-type, Mylar tape package» Excellent self-healing property» Small size, copper nut/screw for installation» High-ins......
Send Inquiry
Product Description
Axial-type Metallized Polypropylene Film Capacitor (MKPD-MT)
DC-Link Capacitors
Features and Application :
» Metallized polypropylene film, axial-type, Mylar tape package
» Excellent self-healing property
» Small size, copper nut/screw for installation
» High-insulation resistance
» Flame retardation Epoxy resin encapsulation (UL94 V-0)
» Low Ls and ERS, non-inductive structure
» Endurable high frequency circuit, for high DV/DT
» Suitable for DC-LINK Busbar, high frequency filter, coupling or decoupling circuits
» Long lifetime
Specifications:
Advantage:
» UTX specialize in film capacitor for over 24 years since 1996 founded in Taiwan
» 1 Industrial Park, 2 Film Capacitor Bases in East and South-east of mainland China
» Cooperated with over 60 distribution agents, 300 famous end users in global market
» UTX own whole chain for film capacitor manufacture from film metallizition, epoxy box molding Injection to full inspection of finished products
» UL/CUL, SGS, VDE,CQC, CE, KC certificated, quality is reliable
» Customized for special industrial and new energy field
» Professional product Development and Validation Engineering Laboratory
» 100% inline Photoelectric Inspect & Test before packing
» Competitive quality and reasonable price
» Abundant inventory and short delivery period: 5 days for stork products, 15 days for regular orders, 30 days for OEM or Customized capacitors
Certificates:
Factory Show:
Products show:
More details please ask us for datasheets!
DC-Link Capacitors
Features and Application :
» Metallized polypropylene film, axial-type, Mylar tape package
» Excellent self-healing property
» Small size, copper nut/screw for installation
» High-insulation resistance
» Flame retardation Epoxy resin encapsulation (UL94 V-0)
» Low Ls and ERS, non-inductive structure
» Endurable high frequency circuit, for high DV/DT
» Suitable for DC-LINK Busbar, high frequency filter, coupling or decoupling circuits
» Long lifetime
Specifications:
| » Reference Standart | IEC 60171, GB/T 17702, |
| » Climatic Categaory | 40/85/21 |
| » Operation Temp. Range | -40~85ºC |
| » Rated Voltage | 350~2000VDC |
| » Capacitance Range | 10μF~200μF |
| » Capacitance Tolerance | ±5%(J), ±10%(K) |
| » Voltage Proof | 1.5Un(VDC)/10s, Between Terminals |
| » Insulation Resistance | RixCn≥10000s (25±5ºC, 100VDC, 60s) |
» UTX specialize in film capacitor for over 24 years since 1996 founded in Taiwan
» 1 Industrial Park, 2 Film Capacitor Bases in East and South-east of mainland China
» Cooperated with over 60 distribution agents, 300 famous end users in global market
» UTX own whole chain for film capacitor manufacture from film metallizition, epoxy box molding Injection to full inspection of finished products
» UL/CUL, SGS, VDE,CQC, CE, KC certificated, quality is reliable
» Customized for special industrial and new energy field
» Professional product Development and Validation Engineering Laboratory
» 100% inline Photoelectric Inspect & Test before packing
» Competitive quality and reasonable price
» Abundant inventory and short delivery period: 5 days for stork products, 15 days for regular orders, 30 days for OEM or Customized capacitors
Certificates:

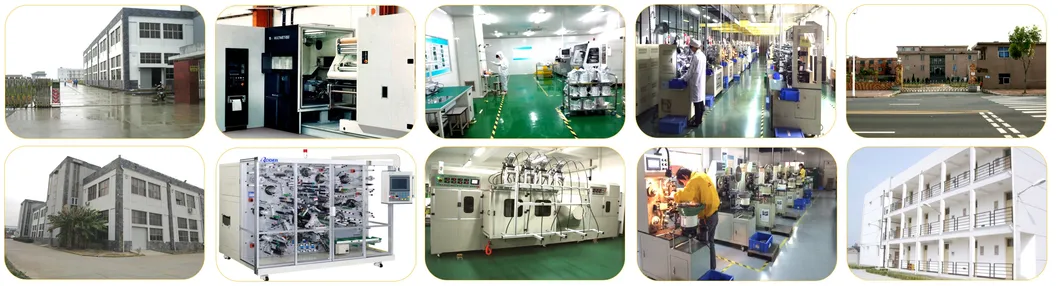

Factory Show:

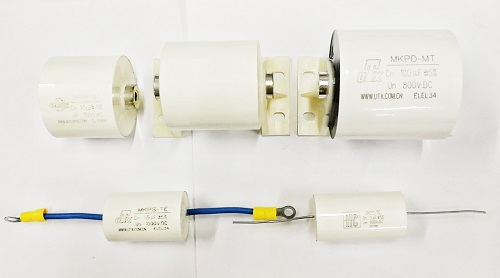

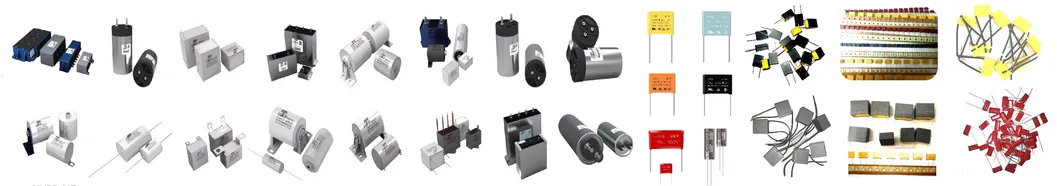

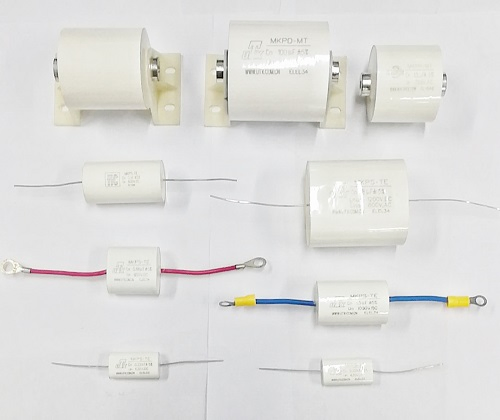

Products show:
More details please ask us for datasheets!
