Toowei Waterproof Toggle Mom-off-on Spring Return Motorcycles Headlight Switch 3pin
Product DescriptionThe T700 series toggle switch is rated at 10A 250V, suitable for AC 50Hz / 60Hz.This switch is used as a switching method and a reset method in the circuit.The terminal has screws, quick connect terminals and welding terminals. Part No.T701RTRating Value10A 250VPole codeSingle po......
Send Inquiry
Product Description

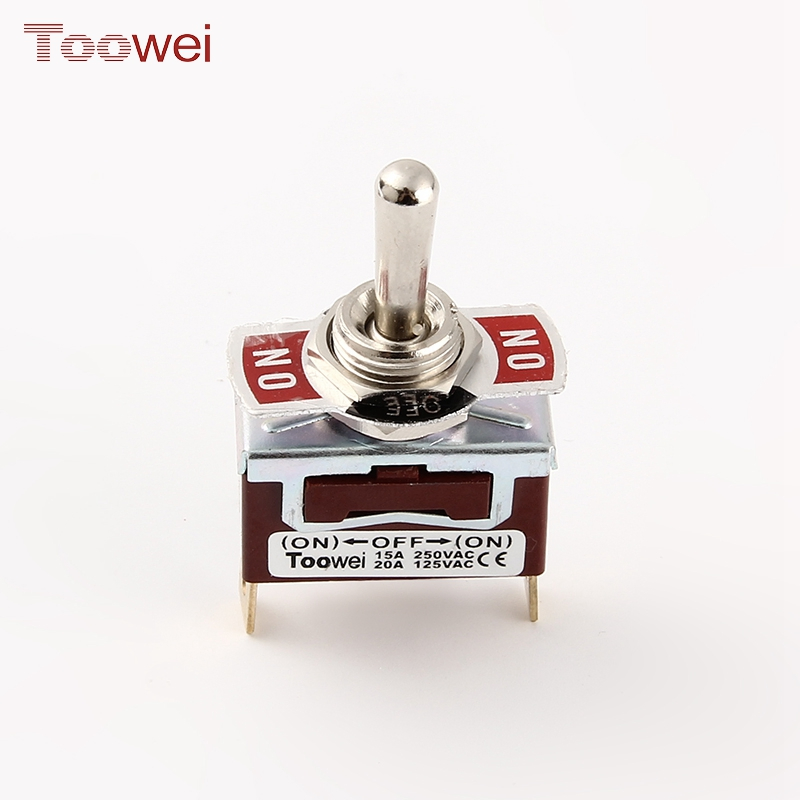

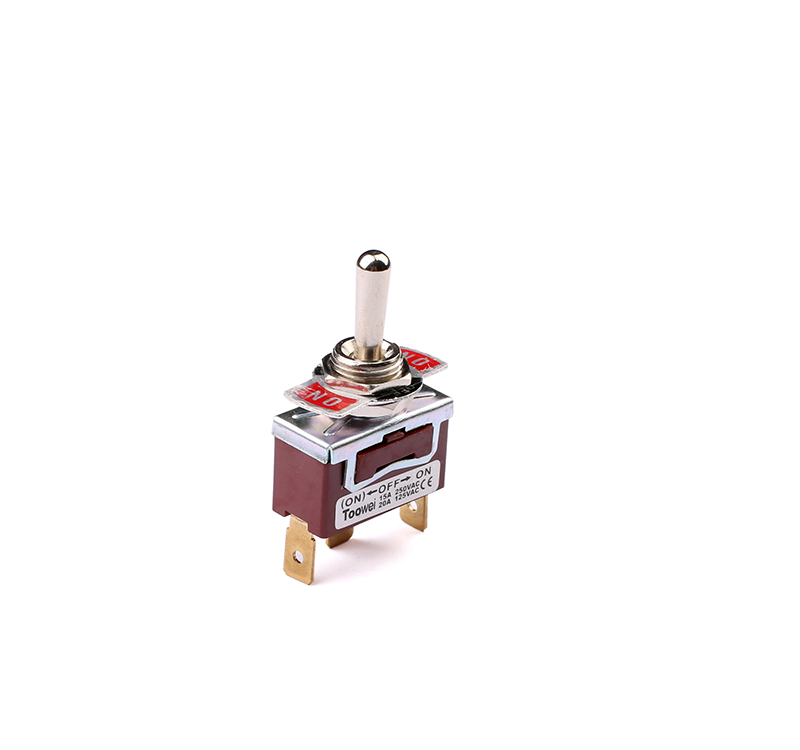

The T700 series toggle switch is rated at 10A 250V, suitable for AC 50Hz / 60Hz.
This switch is used as a switching method and a reset method in the circuit.

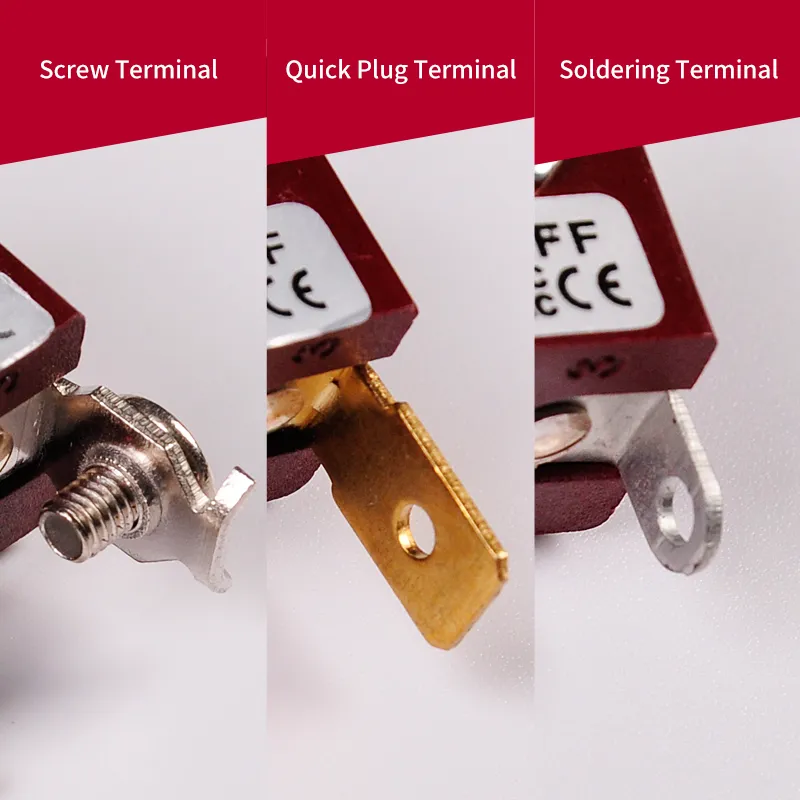

The terminal has screws, quick connect terminals and welding terminals.

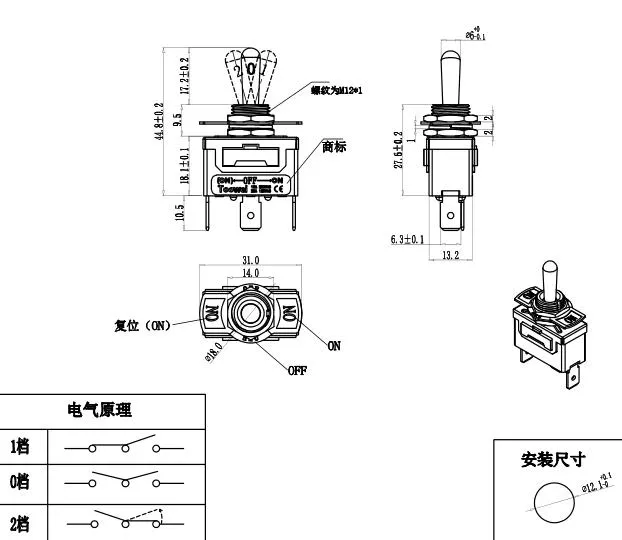

| Part No. | T701RT |
| Rating Value | 10A 250V |
| Pole code | Single pole |

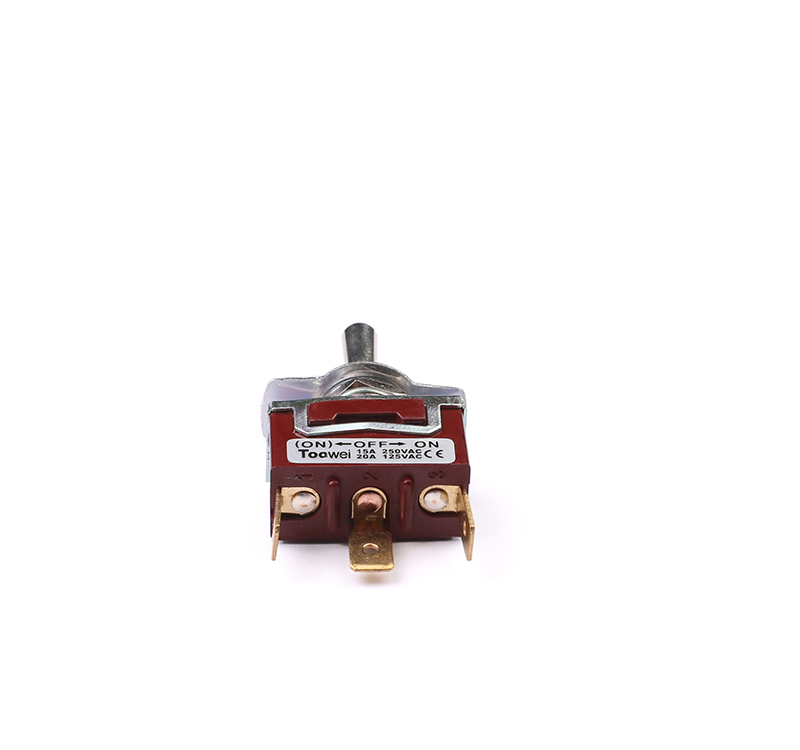

| Function | (ON)-OFF-ON |
| Terminal Form | Quick plug terminal |
| Color | Black, Brown |
1. Rating Value: 10A 250VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25ºC~+85ºC
4. Withstand voltage: 1500VAC 50/60hz
Leakage current:5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form : Quick connect terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron:345±5° 3~5S
2. Operating Force: 8N-24N
3. Ambient temperature: -25ºC~+85ºC
4. Withstand voltage: 1500VAC 50/60hz
Leakage current:5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form : Quick connect terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron:345±5° 3~5S
