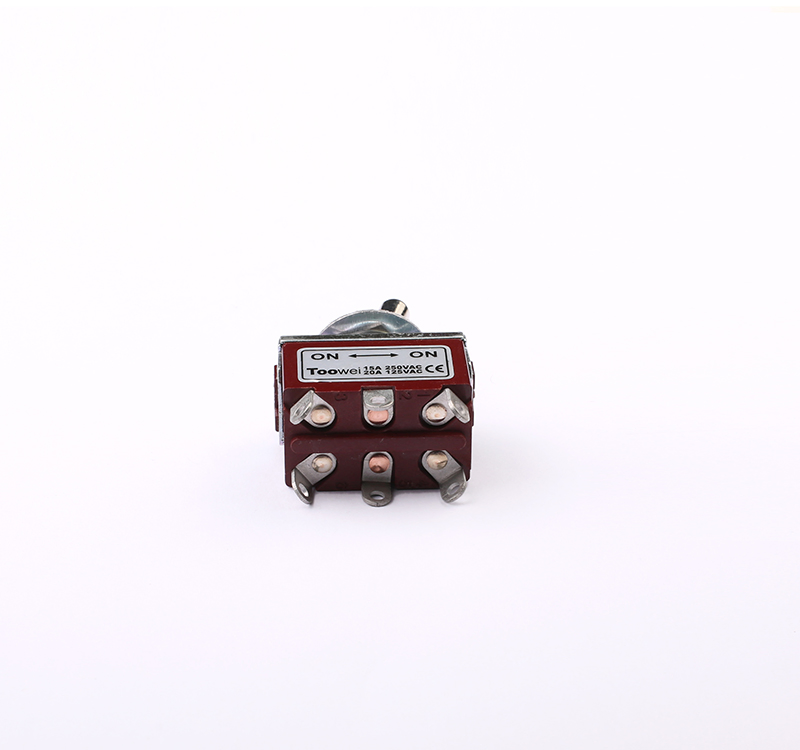

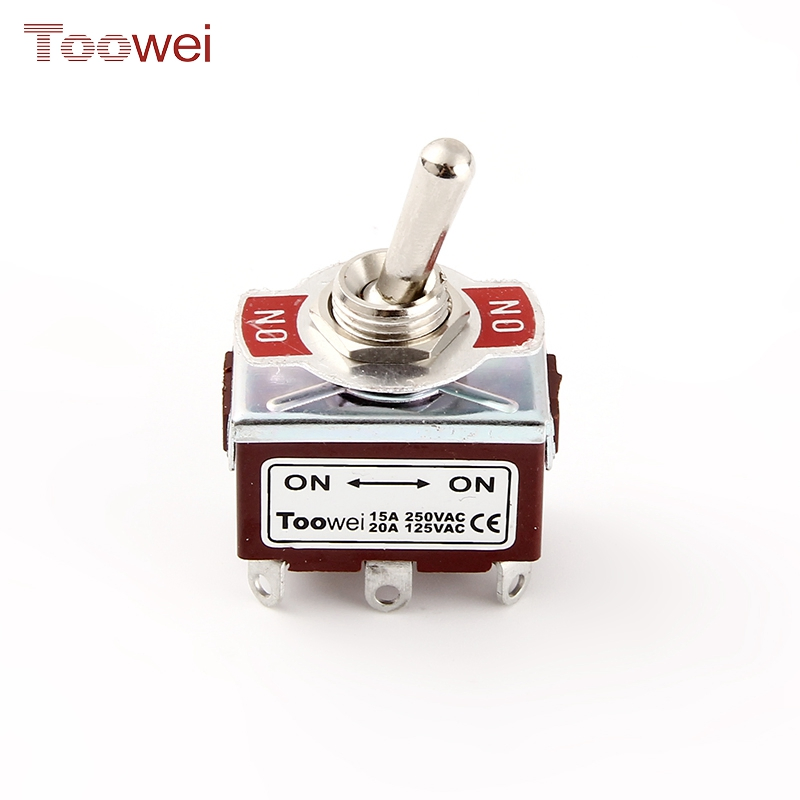

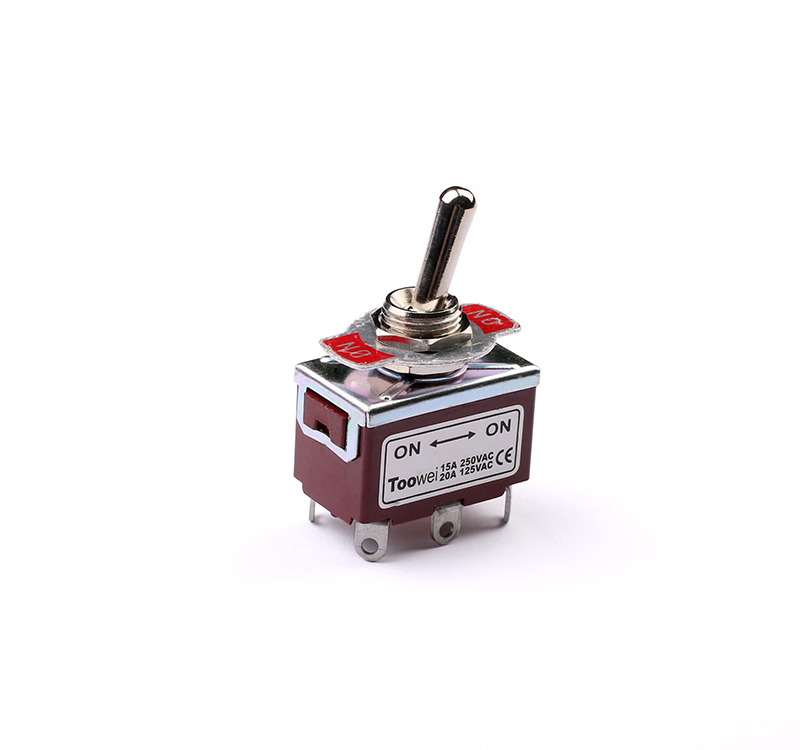

Toowei 10AMP 250V Metal Toggle Switch 6 Pin on-on Dpdt
Product DescriptionThe T700 series toggle switch is rated at 10A 250V, suitable for AC 50Hz / 60Hz.This switch is used as a switching method and a reset method in the circuit.The terminal has screws, quick connect terminals and welding terminals. Part No.T702BURating Value10A 250VPole codeDouble po......
Send Inquiry
Product Description
The T700 series toggle switch is rated at 10A 250V, suitable for AC 50Hz / 60Hz.
This switch is used as a switching method and a reset method in the circuit.

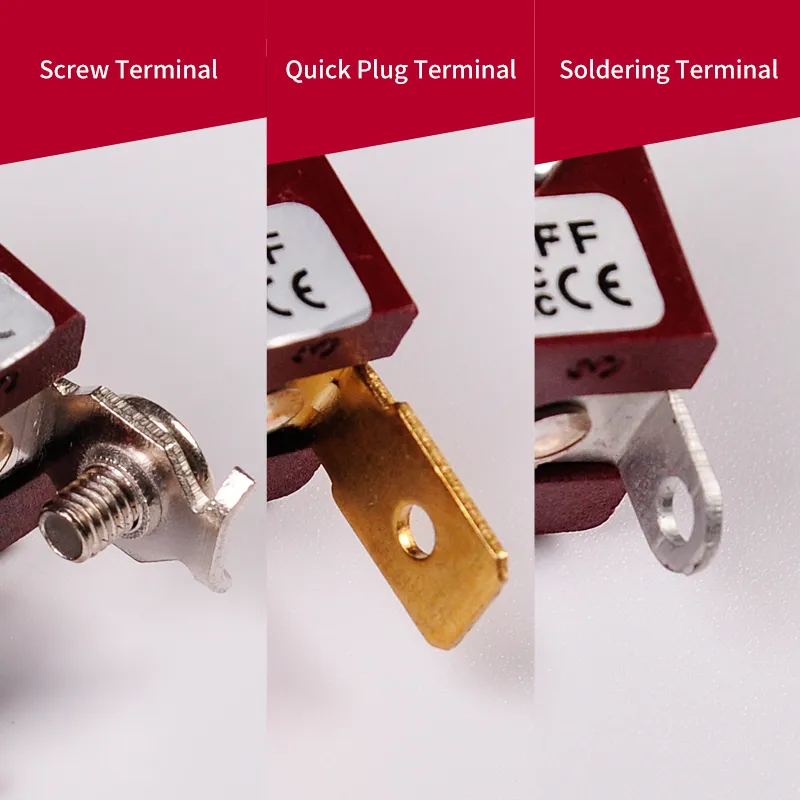

The terminal has screws, quick connect terminals and welding terminals.

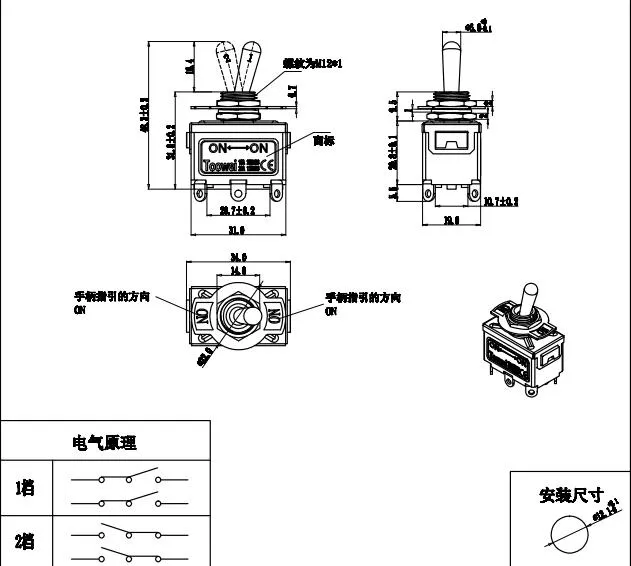

| Part No. | T702BU |
| Rating Value | 10A 250V |
| Pole code | Double pole |
| Function | ON-ON |
| Terminal Form | Soldering terminal |
| Color | Black, Brown |
1. Rating Value: 10A 250VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25ºC~+85ºC
4. Withstand voltage: 1500VAC 50/60hz
Leakage current:5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron:345±5° 3~5S
2. Operating Force: 8N-24N
3. Ambient temperature: -25ºC~+85ºC
4. Withstand voltage: 1500VAC 50/60hz
Leakage current:5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron:345±5° 3~5S
