Product Description

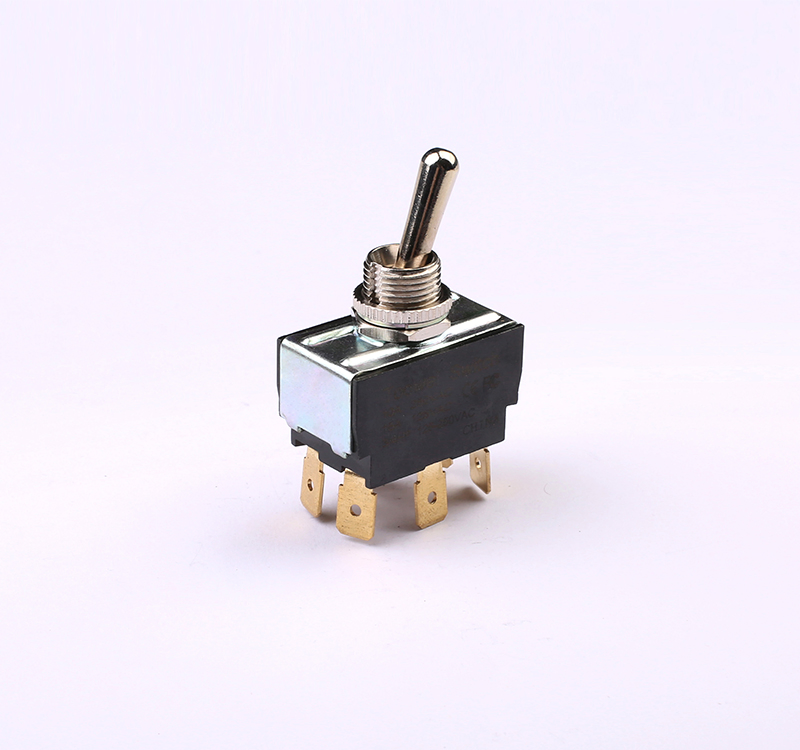

Toowei Power Toggle Miniature Switch on on Self-Lockiing Rocker Switch for Tool Grinder Mechanical

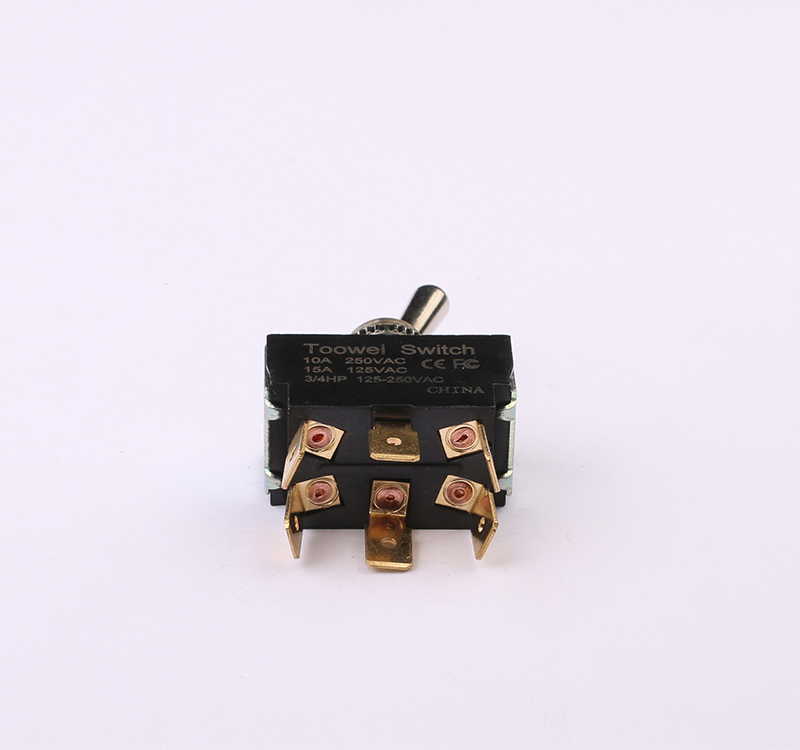

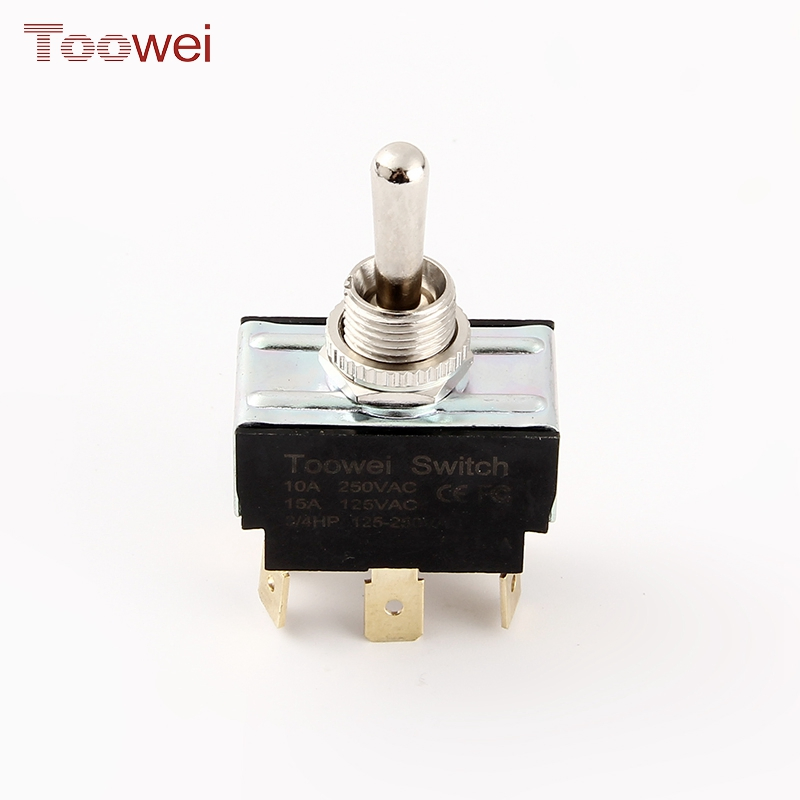

The T600 series toggle switch is rated at 10A 250V 15A 125V, suitable for AC 50Hz / 60Hz.
This switch is used as a switching method and a reset method in the circuit.

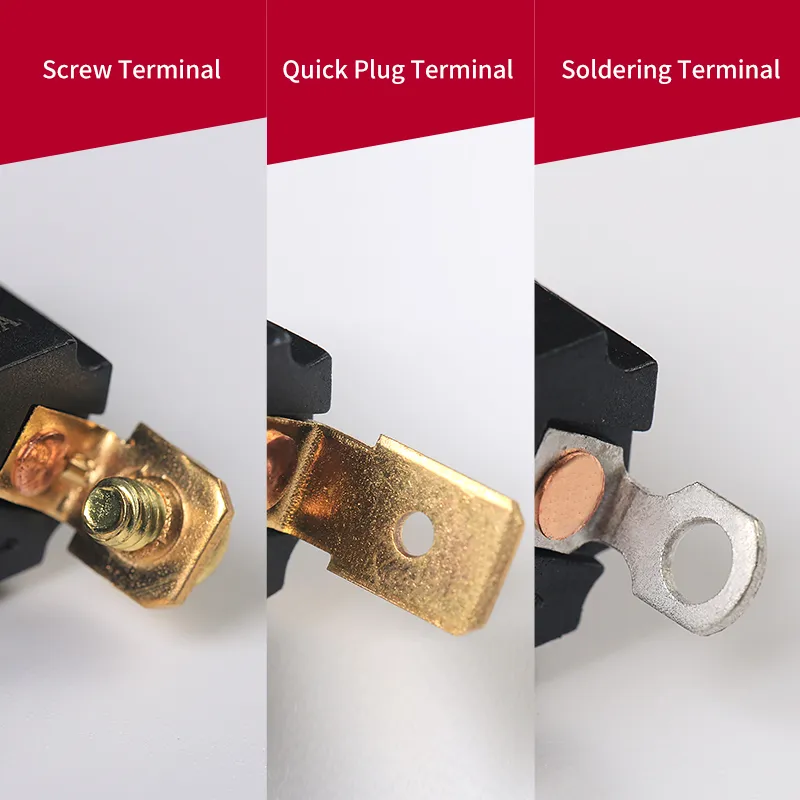

The terminal has screws, quick connect terminals and welding terminals.

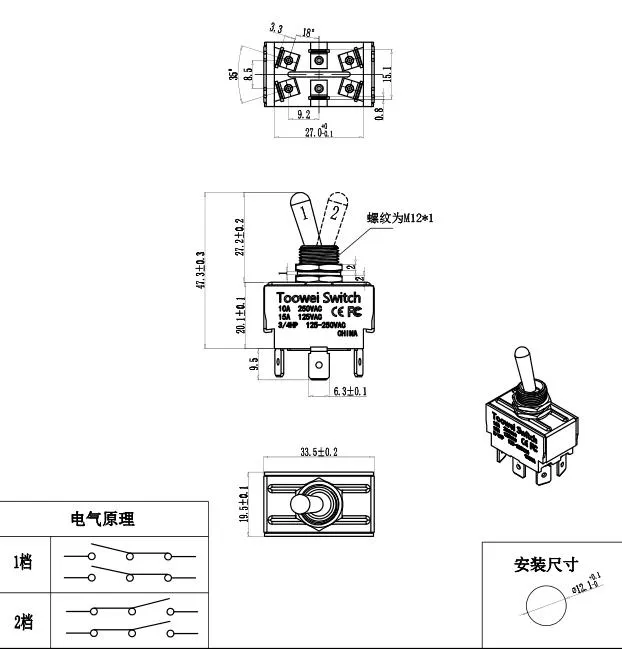

Part No.	T6022T
Rating Value	10A 250V/ 15A 125V
Pole code	Single pole, 6Pin
Function	ON-ON
Terminal Form	Quick plug terminal
Color	Black

1. Rating Value: 10A 250VAC/15A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25ºC~+85ºC
4. Withstand voltage: 1500VAC    50/60hz
Leakage current:5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
    Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form : Quick plug terminal
   Solderable soldering iron: 345±5°   1~2S
   Solder resistance soldering iron:345±5°   3~5S
