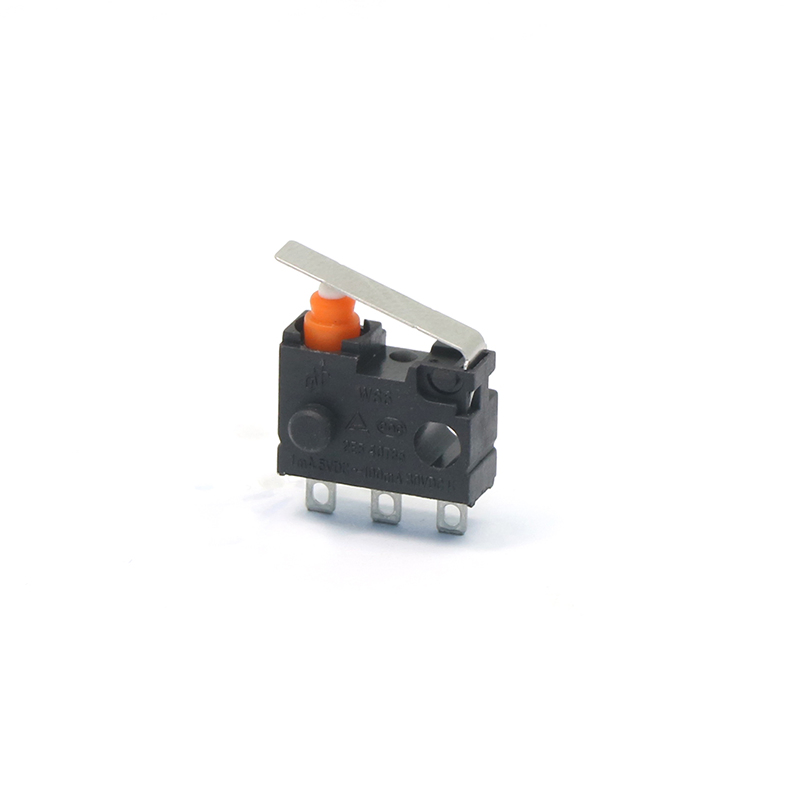

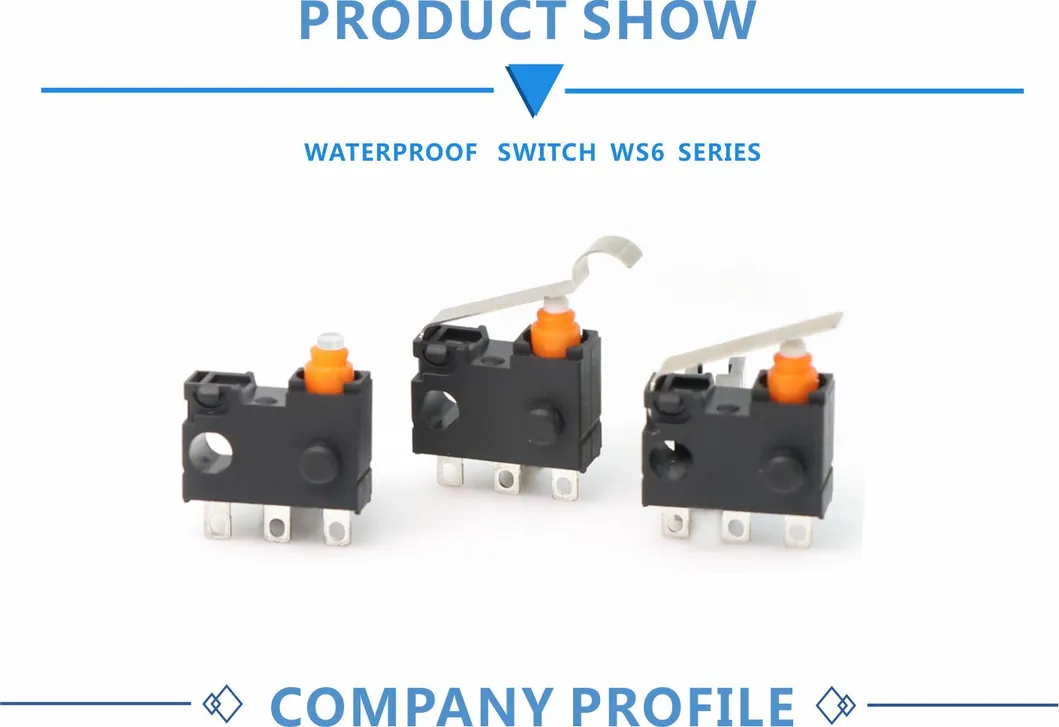

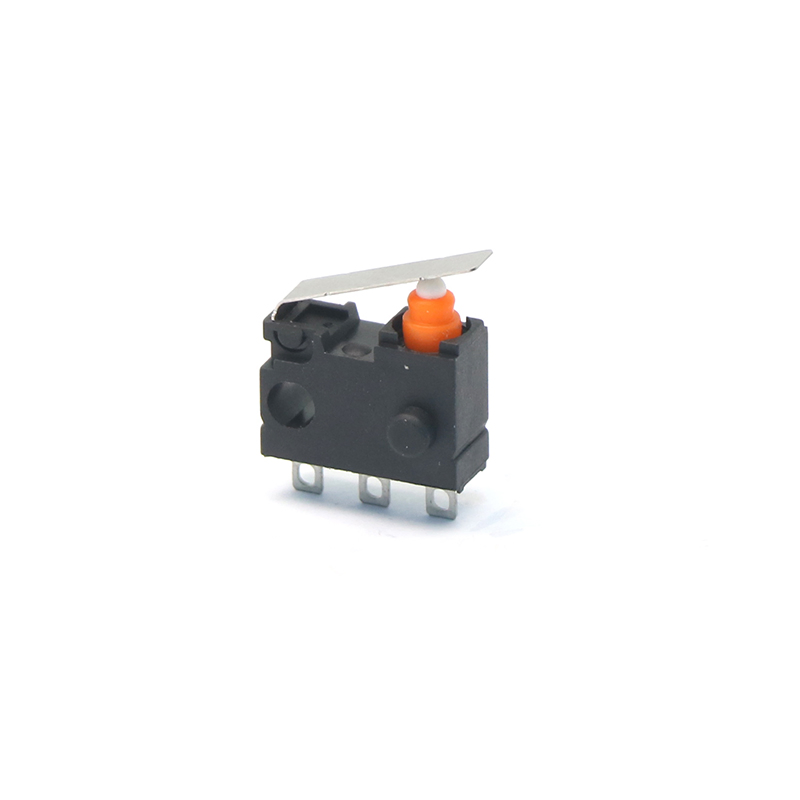

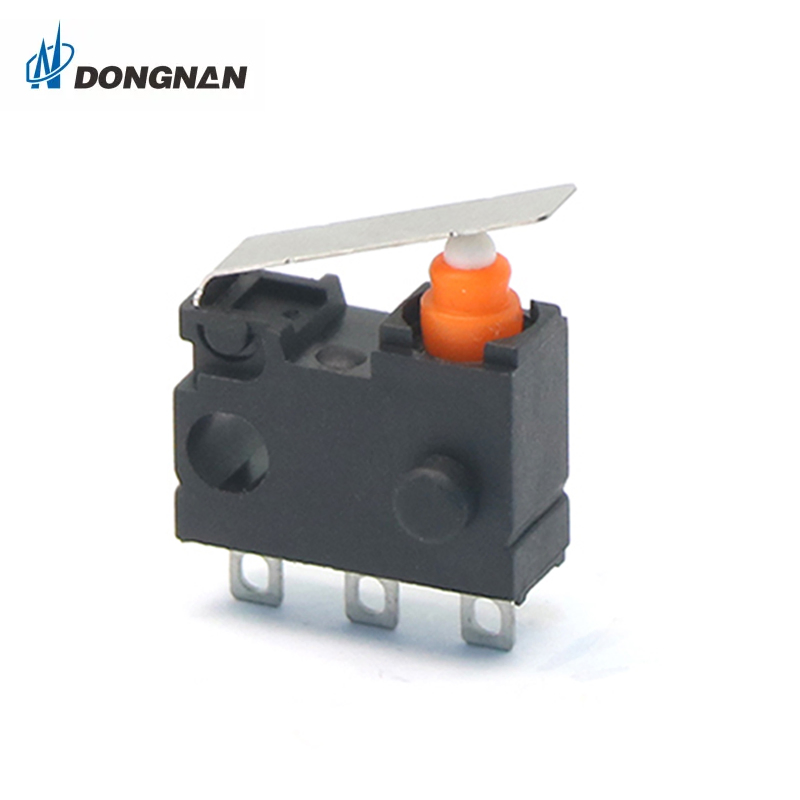

China Ws6-T6n-F150A Dong Nan Automobile Door Lock Electric Suction Door Micro Switch

Product Description

1.To be stably sealed by sealed rubber ring and epoxy resin. Can be used in wet or dusty places.
2.Switch over travel more than 2mm.
3.Mute structure of sliding contact.
4.A variety of contact terminals, provide with variety kinds of wires.
5.A variety of levers.
6. It can be used in automobile , agricultural machinery , large home appliances , office equipment and other
places which haws environmental protection requirements.

Ws6-T6n-F150A Dong Nan Automobile Door Lock Electric Suction Door Micro Switch

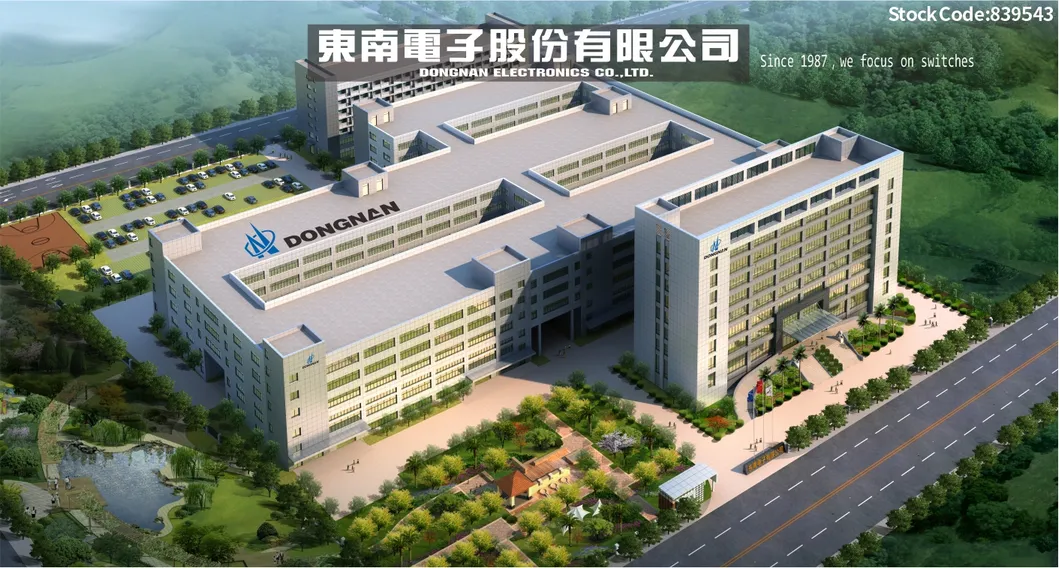

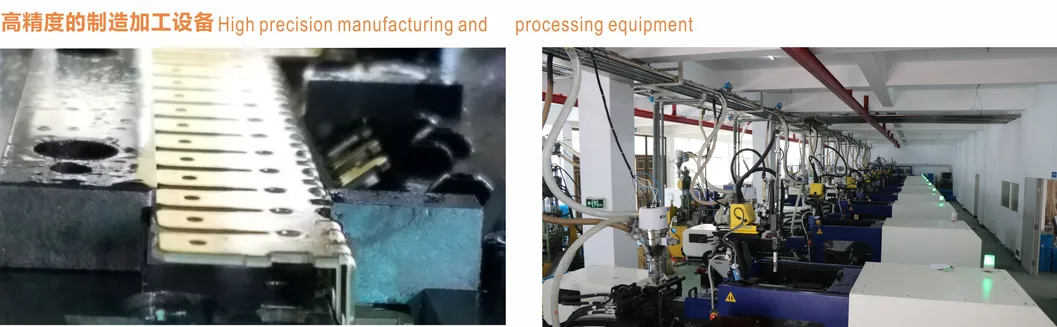

Founded in 1987, Southeast Electronics Co., Ltd. is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 22000 square meters of factory buildings (more than 60000 square meters of factory buildings under construction, expected to be completed in August 2020); the registered capital is 65.28 million yuan, and the total assets are 210 million yuan. The existing leading products are: micro switch series, waterproof switch series, rotary switch series, etc., all of which have obtained UL certification in the United States, VDE / TUV certification. in Germany, four Nordic certification, Ek / KTL certification in South Korea and CQC certification in China, as well as CB report, CE certificate, etc.; the annual production capacity of the instrument is more than 300 million switches.
Ws6-T6n-F150A Dong Nan Automobile Door Lock Electric Suction Door Micro Switch

Item	Value
Environment temperature	-40~+85°C
Operating speed	30mm~600mm/s(no lever)
Operating frequency	Mechanical 60 cycles/min; electrical 25 cycles/min
Insulation resistance	≥100MΩ(500VDC)
Contact resistance	≤500mΩ
(Test voltage) Between terminals of the same polarity	AC600V , 50/60Hz , 1min
(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-current-carrying metal parts.	AC1500V , 50/60Hz , 1min
Vibration resistance	10~55Hz , 1.5mm double amplitude
Shock resistance	endurance:1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)max
Electric shock proof protection grade	I class
Degrees of protection provided by enclosure	IEC IP67(Besides terminal part of terminal type)Or other grades
Electrical Life	≥500,000 cycles (1mADC5V,50mADC16V) ≥200,000 cycles (50mADC 30V)
