Lema 16A Kw7-33 Roller Lever Spdt Snap Action Micro Switch
Lema 16A KW7-33 roller lever SPDT snap action micro switchRating3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDCInitial contact resistance≤25mΩInitial insulation resistance ( At 500V DC)≥100mΩDielectric strengthBetween non-consecutive terminal1000Vrms, 50/60Hz, 1m......
Send Inquiry
Product Description

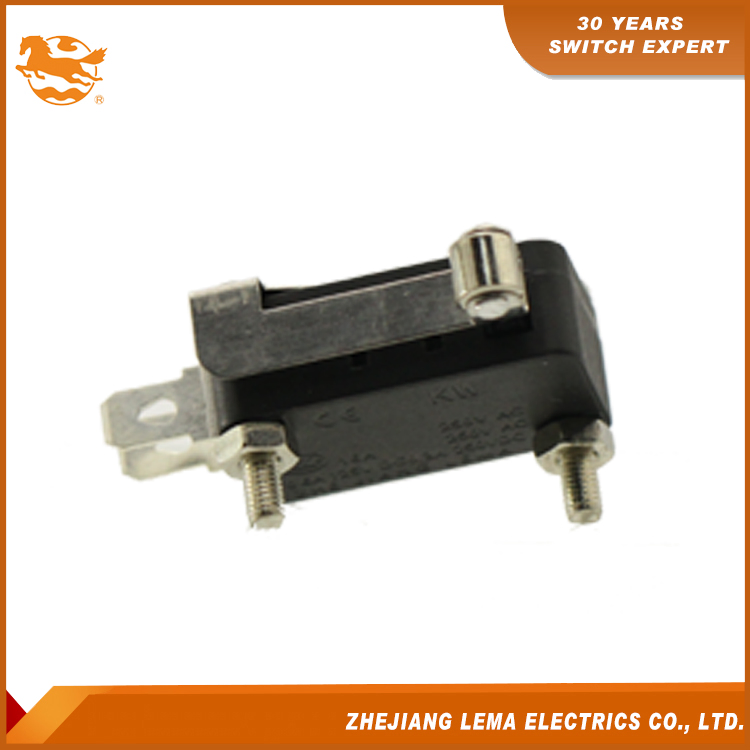

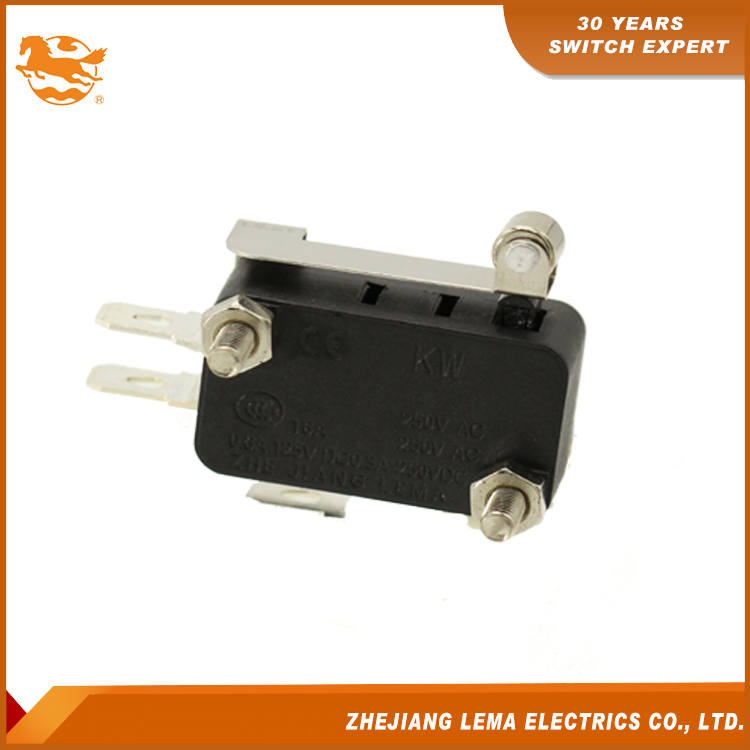

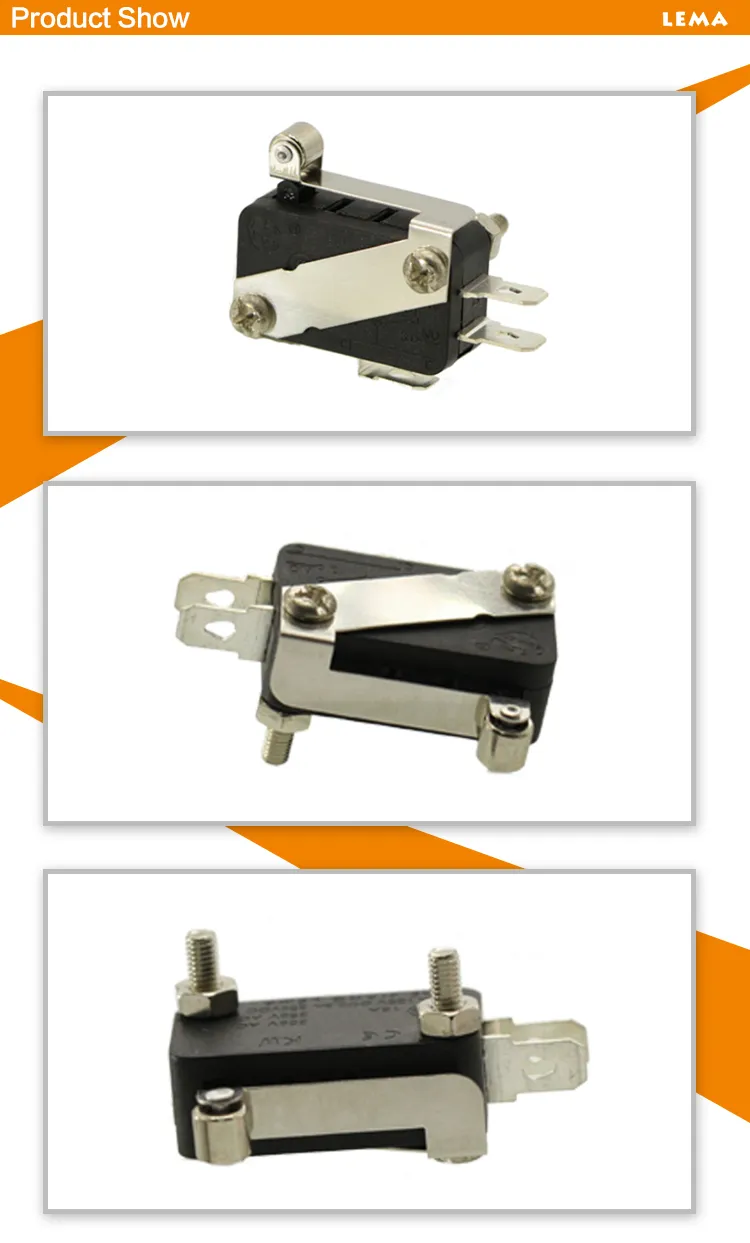

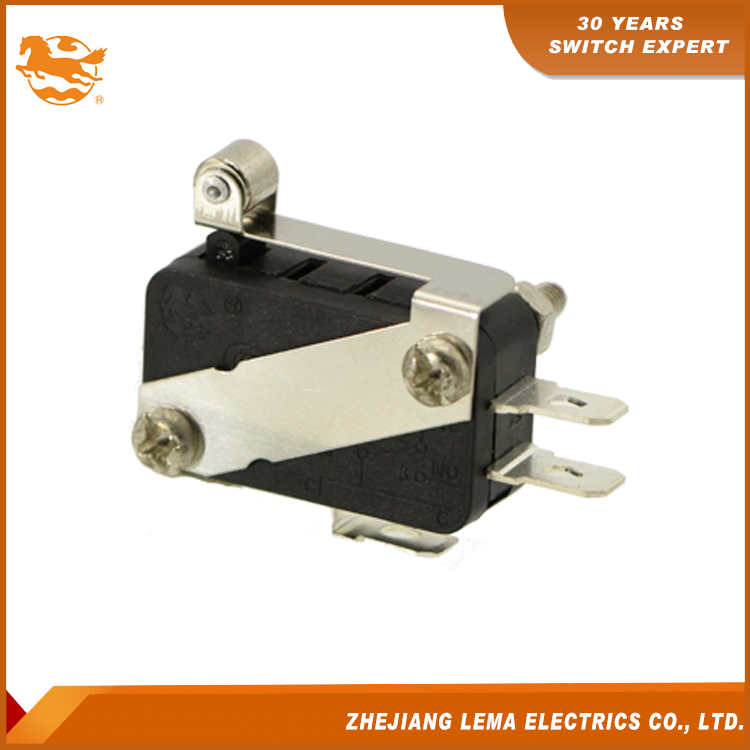

Lema 16A KW7-33 roller lever SPDT snap action micro switch
| Rating | 3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDC | |
| Initial contact resistance | ≤25mΩ | |
| Initial insulation resistance ( At 500V DC) | ≥100mΩ | |
| Dielectric strength | Between non-consecutive terminal | 1000Vrms, 50/60Hz, 1min |
| Between current carrying and non-carry metal parts | 1500Vrms, 50/60Hz, 1min | |
| Between ground and each terminal | 1500Vrms, 50/60Hz, 1min | |
| Max. Shock resistance | Mechanical durable | 1000m/s2 |
| Malfunction | 300m/s2 | |
| Vibration resistance | 10-55Hz, 1.5mm double amplitude | |
| Expected life | Mechanical | 20000000 |
| Electrical | 100000 | |
| Ambient temperature | -25 to +85 | |
| Ambient humidity | 85%RH max | |
| Operating frequency | Mechanical | 60 times/min |
| Electrical | 25 times/min | |
| Operation speed | 0.01mm-1m/s | |

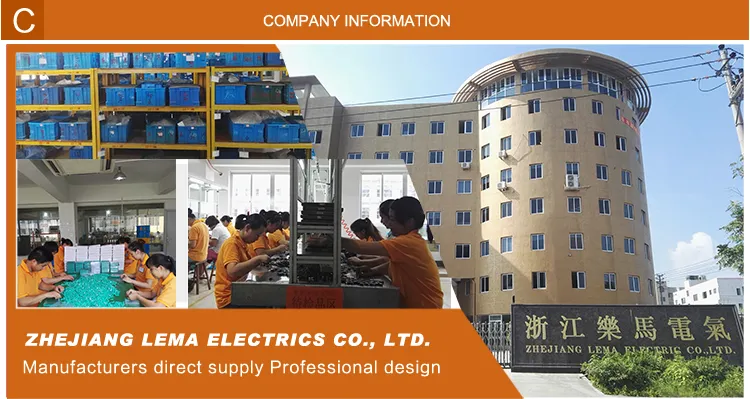

Company Profile:
Zhejiang Lema Electrics Co.,Ltd is located at Wenzhou city of Zhejiang province in China.
LEMA specialized in research and development, manufacture and sales of micro switches,
limit switches, push button switches, foot switches, toggle switches.
With about 30 years professional experience of developing and producing switches, LEMA
has become one of professional control switch manufacture in China with a factory of about
11000 square meters of floor space.
