Approved dB2 Spdt Mini Cherry Micro Switch T125 5e4 with PCB Terminal
Features*Waterproof and dustproof*Tight structure,small contact gap,snap action,highsensitivity*Long life,high precision and reliablity*Widely used in auto,agricultural equipment,applications,office equipment etc_________________ PRODUCT DETAILS _________________Micro switchRatings up to 10A 250VWit......
Send Inquiry
Product Description
Features
*Waterproof and dustproof
*Tight structure,small contact gap,snap action,highsensitivity
*Long life,high precision and reliablity
*Widely used in auto,agricultural equipment,applications,office equipment etc
_________________ PRODUCT DETAILS _________________

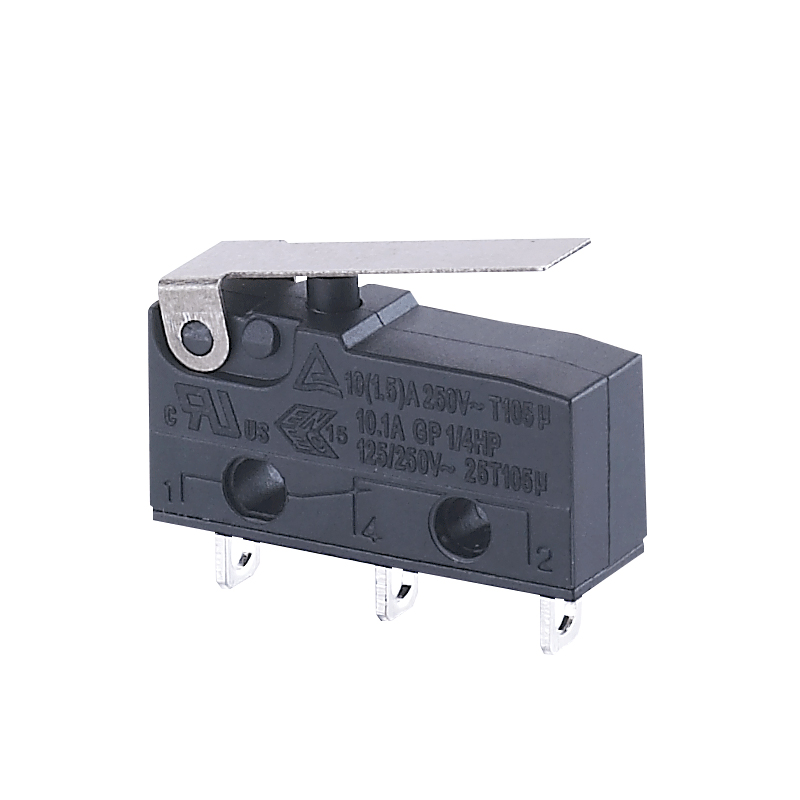

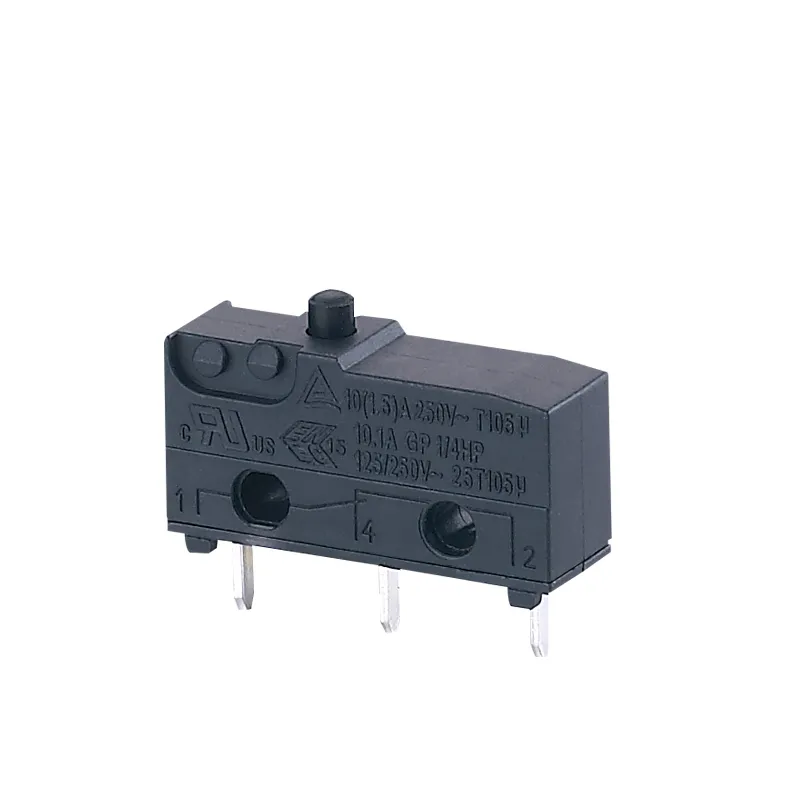

- Micro switch
- Ratings up to 10A 250V

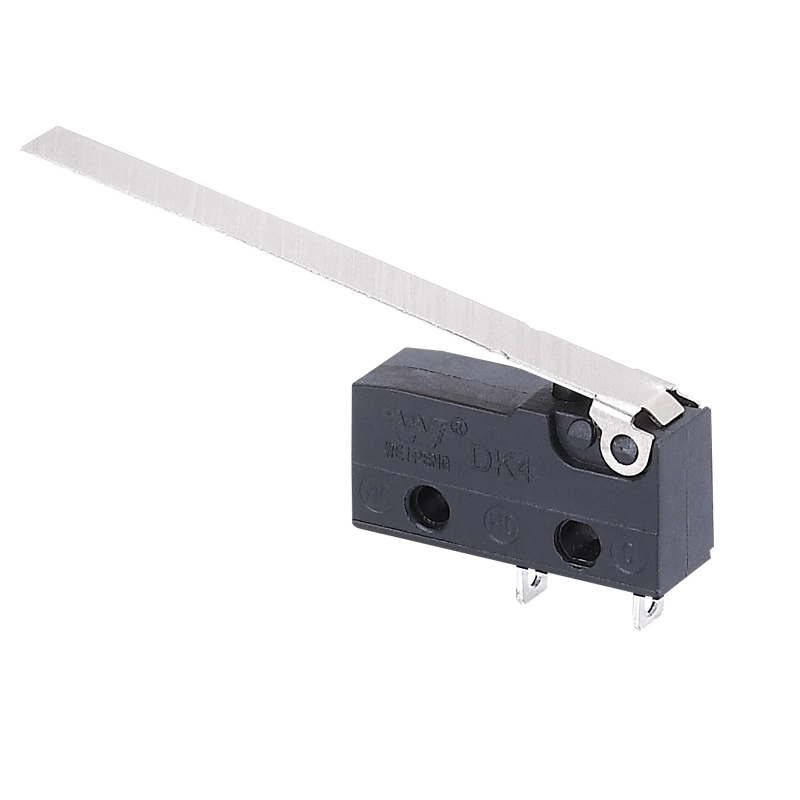

- With or without lever,Roller lever
- Solder and PCB terminals
- 10A 250VAC 10A 125VAC
- Safety Certification
| Items | Standard |
| Rated working voltage¤t | 10A250V,10A125V |
| Contact resistance | less than or equal to 20mΩ |
| Insulation resistance | great than or equal to 100mΩ |
| Withstand Voltage | 2000Vac |
| Operating temperature range | -40°C to 125°C |
Mechanical life | 3,000,000 Cycles |
| Lifetime | 10000 Cycles |
| flame retardancy | 94V0 |
| Environmental humidity | 45%~95% |
| Body material | PA66 |
| contact point material | silver |
| Glowing wire test | 750 °C 850°C |
_________________OUR CUSTOMERS_________________
_________________OUR COMPANY_________________

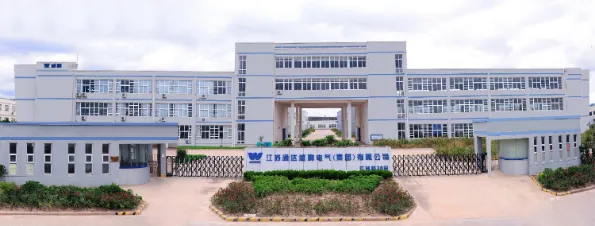

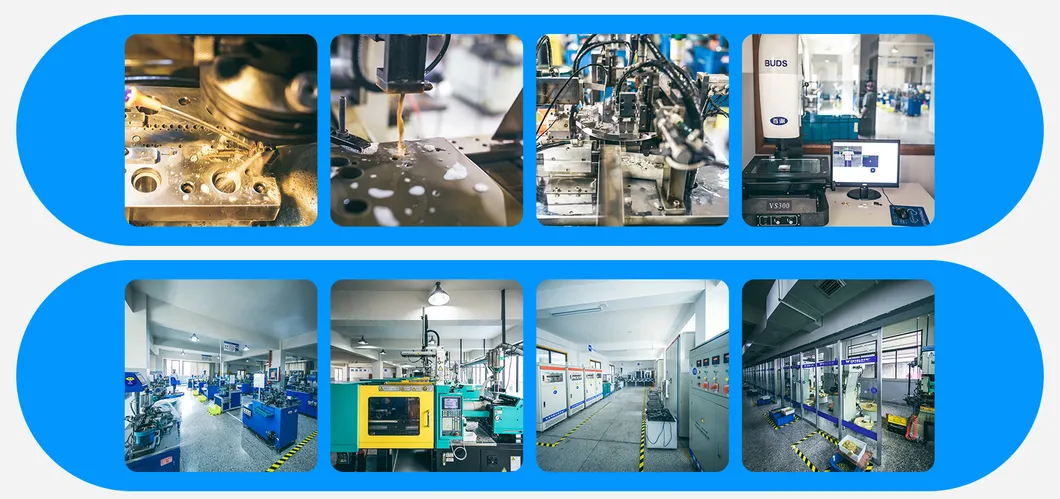

Founded in 1990, Yueqing Tongda Wire Electric Factory is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 28000 square meters of factory buildings ; The existing leading products are: micro switch series, waterproof switch series, rotary switch series, push button switch series, rocker switch seies etc., all of which have obtained UL, cUL, ENEC, VDE, KC, CE, CB, TUV, CQC, EX(explosion-proof cert) etc.; the annual production capacity of the instrument is more than 300 million switches.
_________________FAQ_________________
Q1.:Do you have any certification about your factory or products?
A1:Of course,we have strong system certified,like IATF16949,ISO14001,UL,TUV,VDE,Rohs,Reach and related approvals.
Q2.What is your sample policy?
A2:Free sample could be provided within 3days,but express charge should be paid by customer.
Q3. What is your terms of packing?
A3: Generally, we pack goods in neutral boxes and brown cartons,or customized if qty reached.
Q4. What is your terms of payment?
A4: In common,T/T 30% as deposit, and 70% before delivery.,if the amount >2000USD
Q5. How about your delivery time?
A5: Generally, it will take 3 to 15 days upon receipt of payment. The specific delivery time depends
on the items and the quantity of the order.
Q6. Can you produce according to the samples?
A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A8:1. We keep good quality and competitive price to ensure our customers benefit ;
2.Still take our customer's question be first,quick response and resolve ability if meet quality issue.
