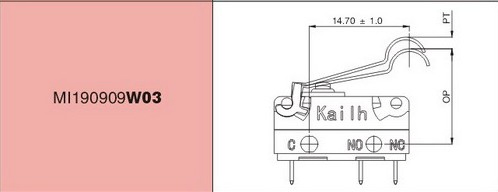

Waterproof and Dustproof of Micro Switch-Mi190909W03

Features:
1. Long life and many operating forces are available.
2. Good feeling and many levers are available.
3. It can drive the contact rapidly and directly in certain travel with certain action force in order to switch over the circuit.
4. The rubber gasket's seal structure has acheived dustproof and waterproof function.

They can use in game machine, home appliance. Electric tools, Injection molding machine etc.

Electrial characteristics:
Rating: DC30V 0.1A
Contact Resistance: ≤ 100mΩ
Insulation Resistance: ≥ 100m Ω DC500V
Withstand voltage: AC1000V 1 Minute
Electrical life: 200, 000 cycles above(Load)

Mechanical/ reliability characteristics:
Operating force range: Max 60gf
Mechanical life: 1, 000, 000 cycles (Non load)
Operating temperature range: -25C° +80C°
Ambient humidity used: ≤ 85%RH
Solder ability: 245° C± 5° C 3S ± 0.5S
Withstand Soldering temperature: 260° C± 5° C 3S ± S
Hand soldering: Iron tip temperatule does not exceed 350° C welding 3S.
