Product Description

1.Features
1)Virous of actuators,the operation position is adjustable.
2)Outer shell covered with intensive plastic,water-proof and oil-proof,the mechanical strenth is better than NM-17&13 series of micro switch,bear hitting.

Current	5A 250V,
Voltage	10-55Hz,
Material	Brass terminal screw, Silver tip.
Protection Level	IP54

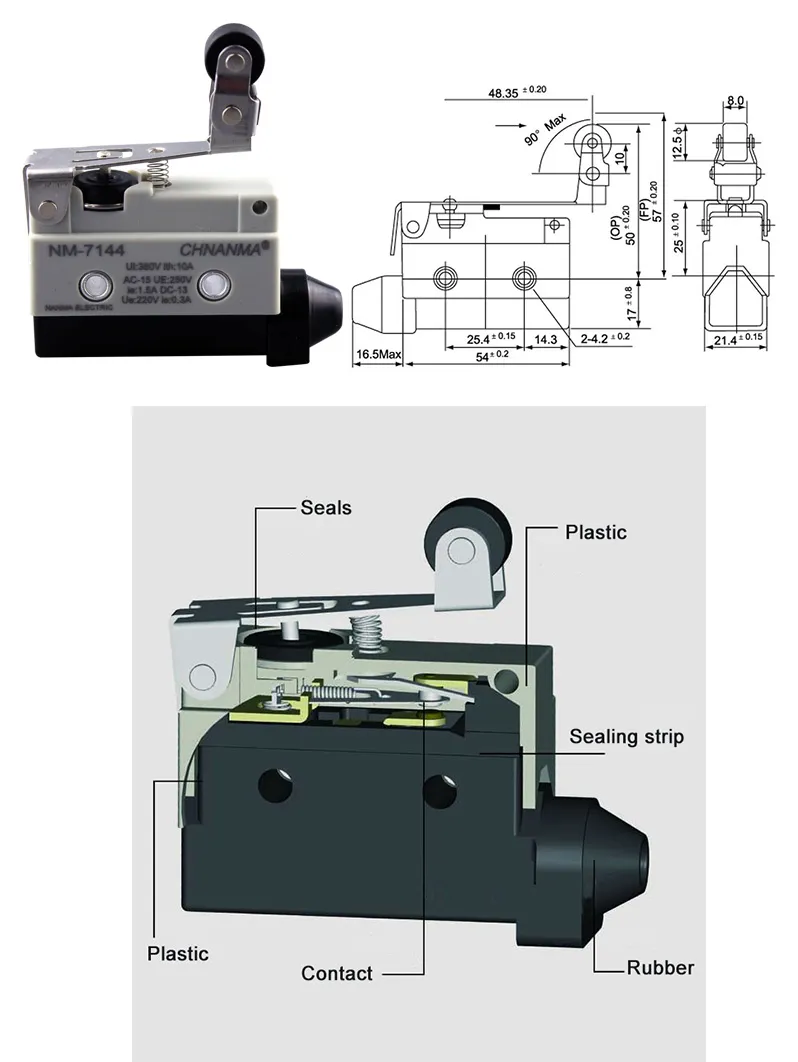

2.Product display &drawing show

3.Specification

Rated voltage	Non-inductive load				Inductive load		Inrush current
	Resistive load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	10		3	1.5	10		5	2.5
250 VAC	10		2.5	1.25	10		3	1.5
480VAC	3		1.5	0.75	2.5		1.5	0.75
8 VDC	10		3	1.5	6		6	5
14 VDC	10		3	1.5	6		6	5
30 VDC	8		3	1.5	6		5	2.5
125 VDC	0.5		0.4		0.05		0.05
250 VDC	0.25		0.2		0.03		0.03

Note:
1.Inductive load has a power factor of 0.4min(AC)and a time constant of 7 msec.Max.(DC)
2.Lamp load has an inrush current of 10 times the steady-state current,while moto load has an inrush current of 6 times the steady-state current.

Rating		10A 125/250VAC
Initial contact resistance		25mΩ max.
		25mΩ
Initial insulation resistance		100 mΩ min. (At 500V DC)
		100 mΩ ( 500V DC)
Dielectric strength	Between non-consecutive terminals	Between non-consecutive terminals	1,000Vrms , 50/60Hz for 1 min
			1,000Vrms , 50/60Hz 1
Between non-current carrying metal parts and each terminal		1,500Vrms, 50/60Hz for 1 min
		1,500Vrms, 50/60Hz 1
Between ground and each terminal		1,500Vrms , 50/60Hz for 1 min
		1,500Vrms , 50/60Hz 1

4.Operating Characteristics

Model	NM-7311
OF Max	600g
RF Min	100g
PT Max	2.0mm
OT Min	6.0mm
MD Max	0.8mm
EP Max
OP mm	33.3±1.2mm
Weight(g)	90

5.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

6.Production line
Double Cicuit Type of Limit Switch

7.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

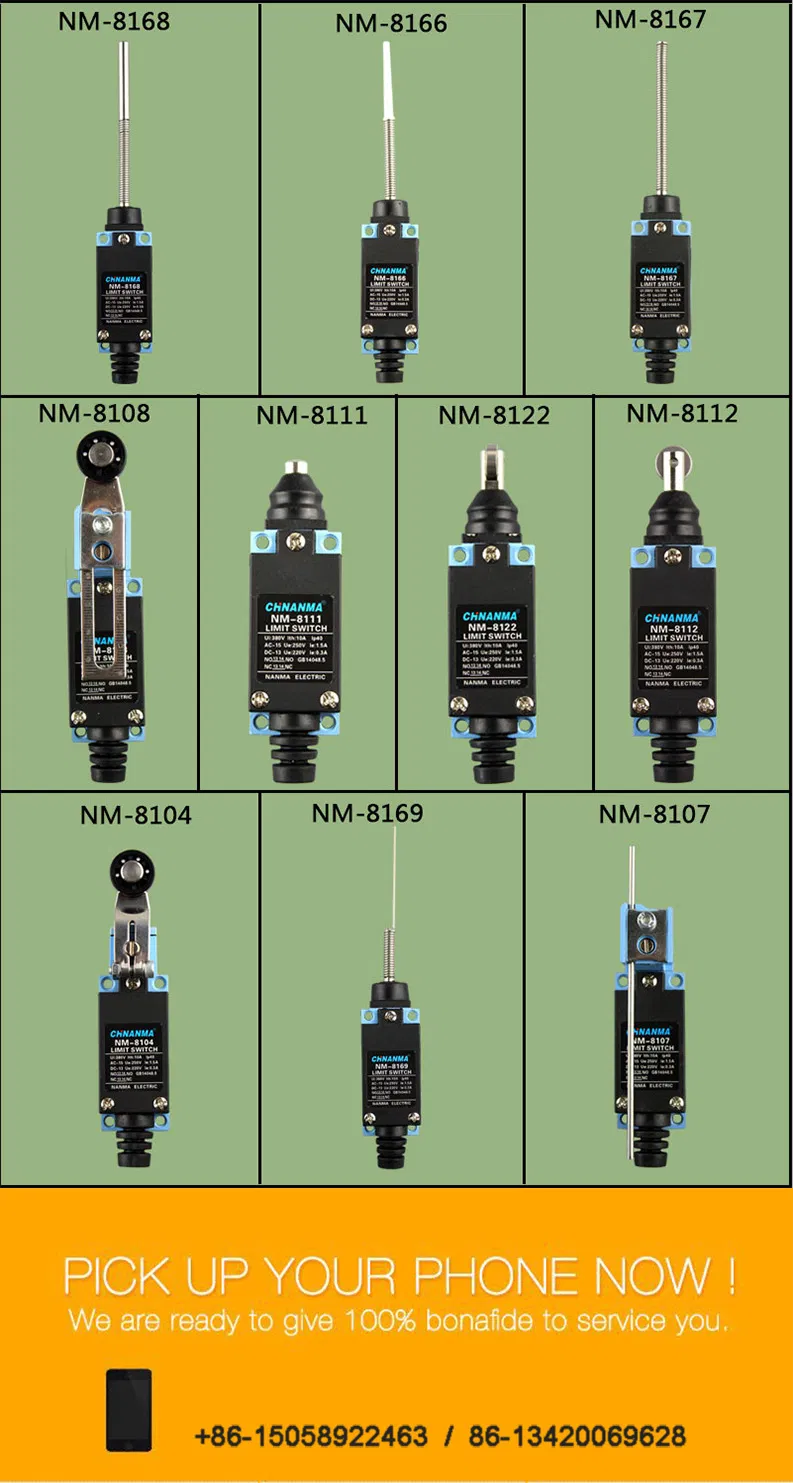

8.You may interesting our more produts
