Product Description

Omron 3pin Spdt 10A 250V Micro Switch for PCB Board

Characteristic & Using:
1. Sate, reliable basic switch
2. Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4. Long lite, high reliablity
5. A variety of contact terminals
6. A varnety of temperature degree
7. A variety of levers
8. Adopt themosetting plastic or themoplastic
9. Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and instument,electric motion tool etc.

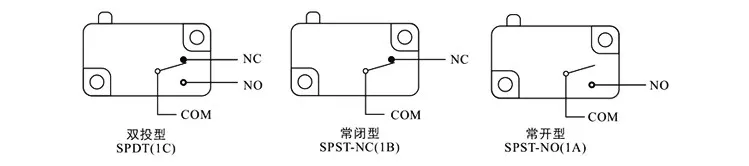

Contact Forms

Omron 3pin Spdt 10A 250V Micro Switch for PCB Board

Technical Specifications:

Operating Speed	0.1mm-1m/s	Operating frequency	Mechanical	600times/min
Insulation resistance	100MΩAbove DC500V	Operating frequency	Electrical	30times/min
Contact resistance	25mΩ initial value	Withstand voltage	Non-connection wire	1000VAC
Protection degree	IP40	Withstand voltage	Every terminal	1500VAC
Operating temperature	-25~+80ºC	Impact	Durable	1000m/s²
Operating humidity	<85%	Impact	Misoperation	300m/s²
Vibration Misoperation	10-55Hz Amplitude 1.5mm	Life	Electrical	100,000 above
Vibration Misoperation	10-55Hz Amplitude 1.5mm	Life	Mechanical	1,000,000 above

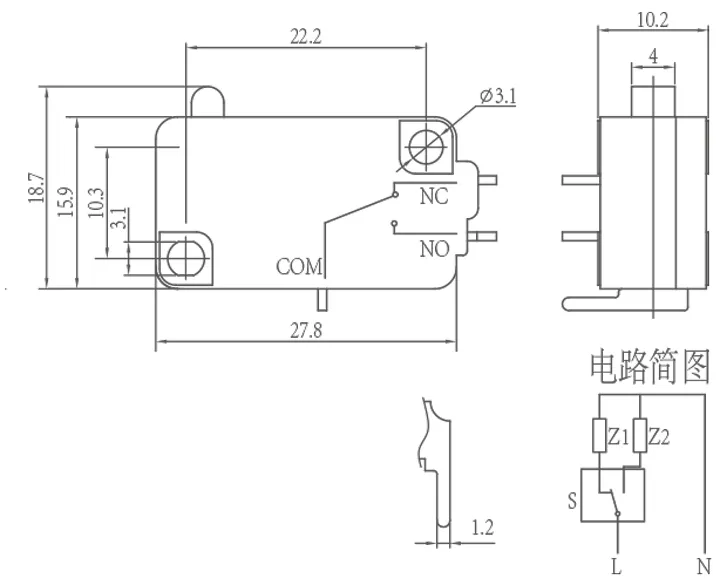

_________________ PRODUCT DETAILS _________________

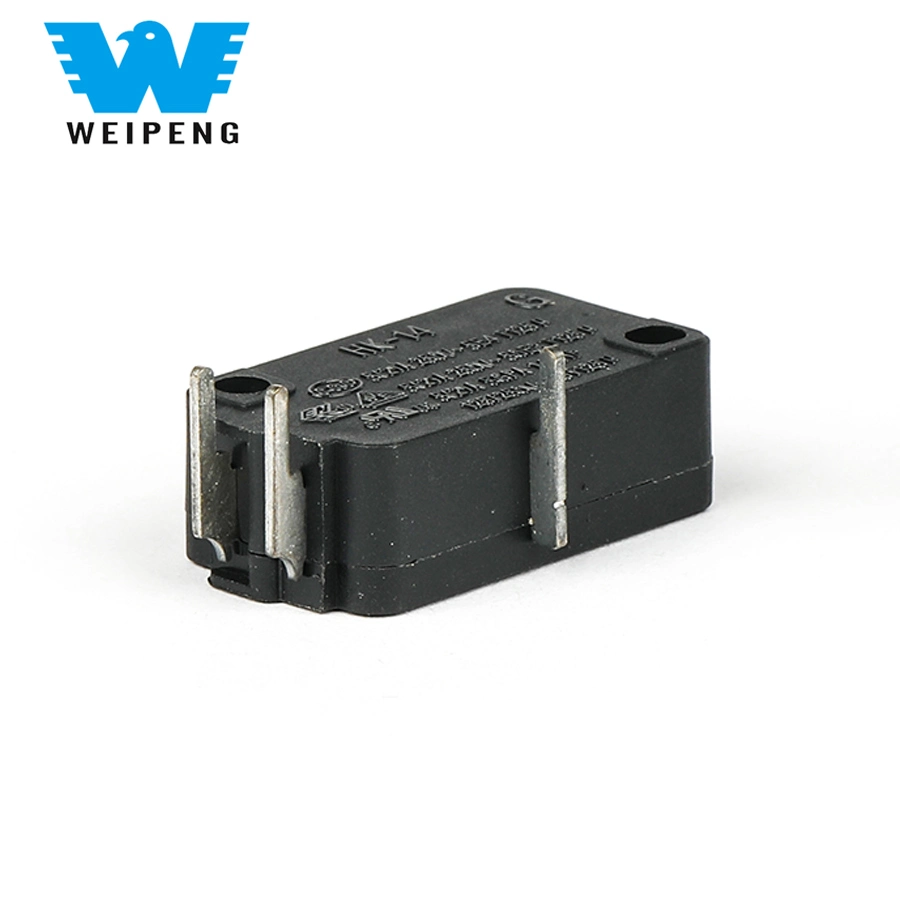

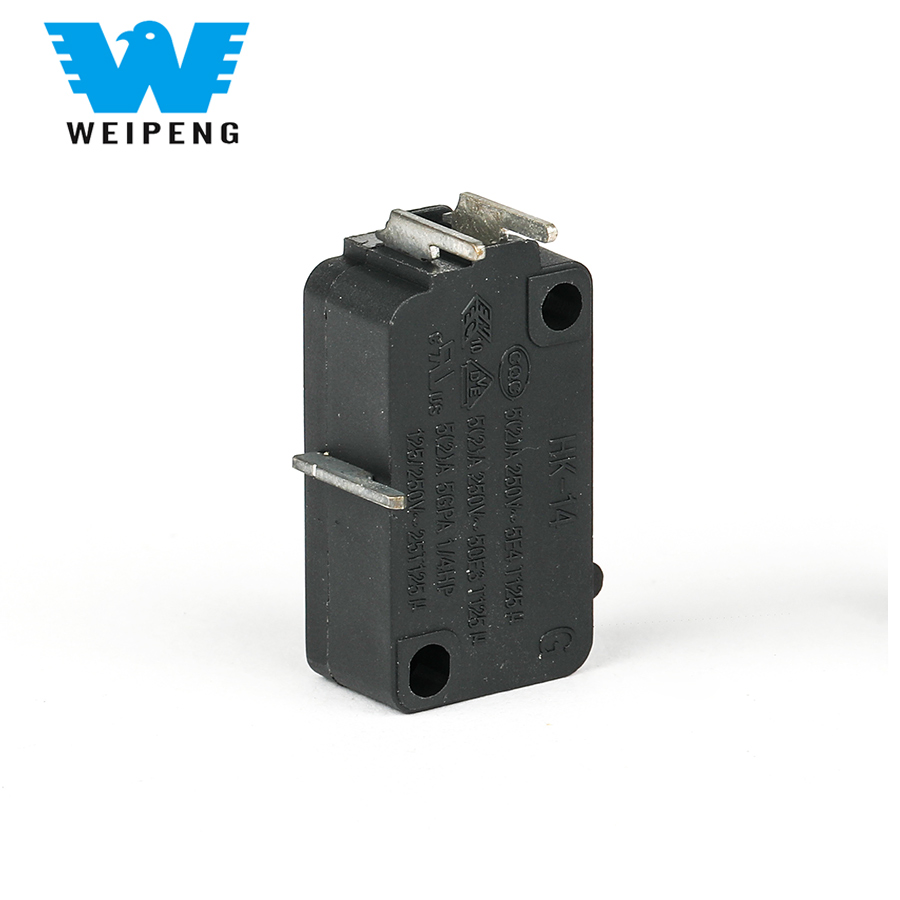

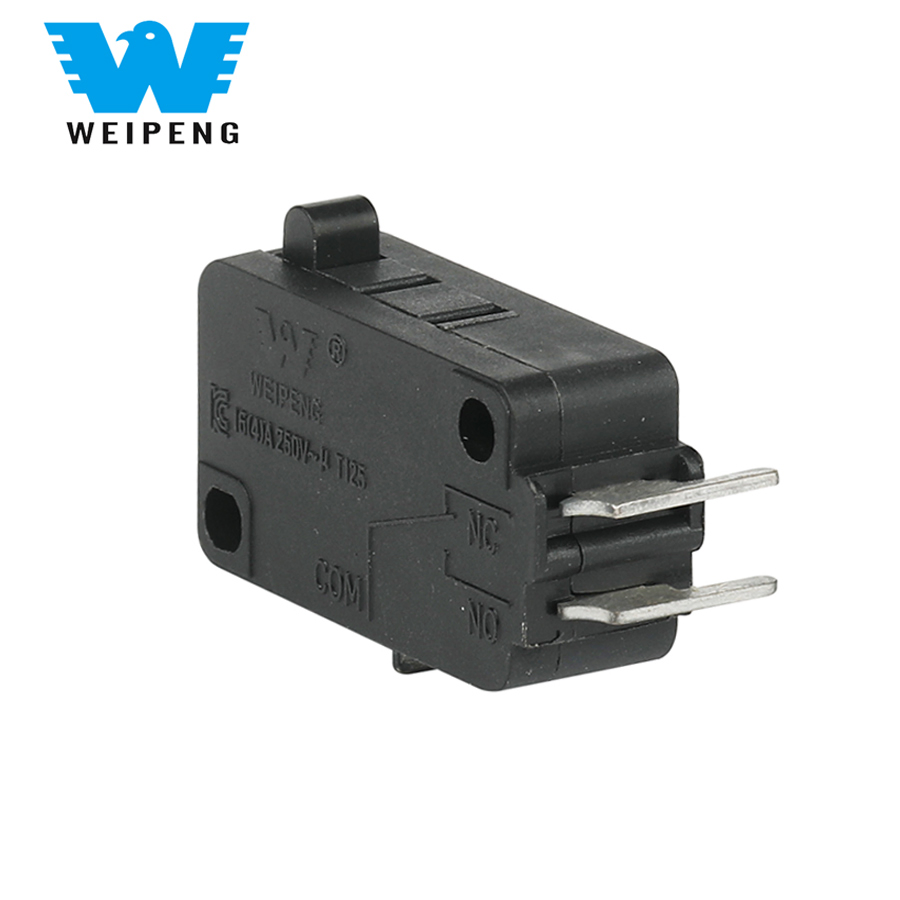

Omron 3pin Spdt 10A 250V Micro Switch for PCB Board

_________________OUR CUSTOMERS_________________

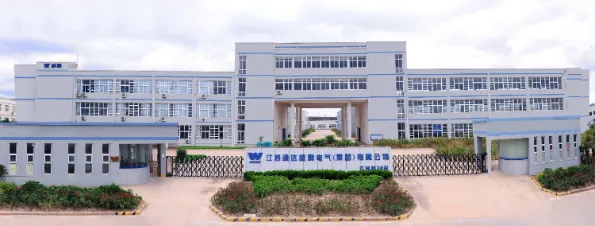

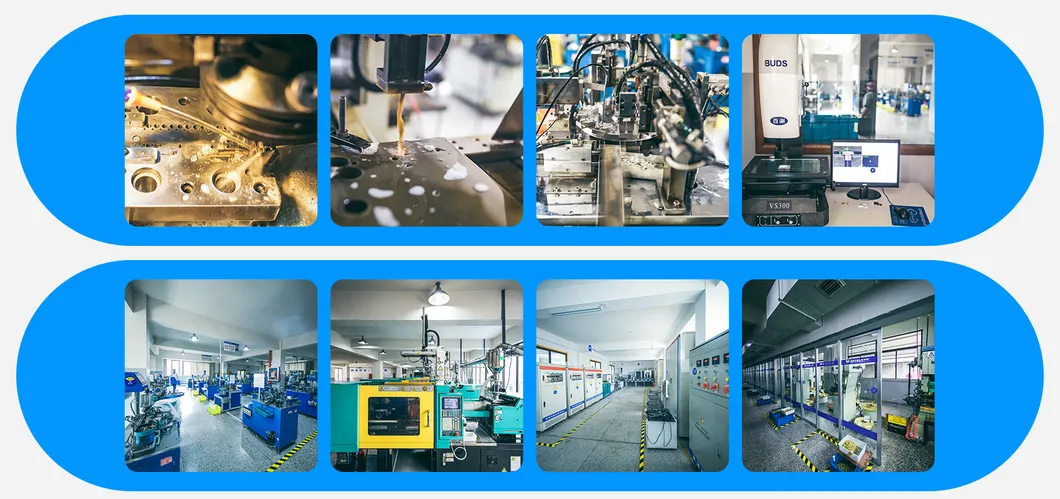

_________________OUR COMPANY_________________

Founded in 1990, Yueqing Tongda Wire Electric Factory is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 28000 square meters of factory buildings ; The existing leading products are: micro switch series, waterproof switch series, rotary switch series, push button switch series, rocker switch seies etc., all of which have obtained UL, cUL, ENEC, VDE, KC, CE, CB, TUV, CQC, EX(explosion-proof cert) etc.; the annual production capacity of the instrument is more than 300 million switches.
