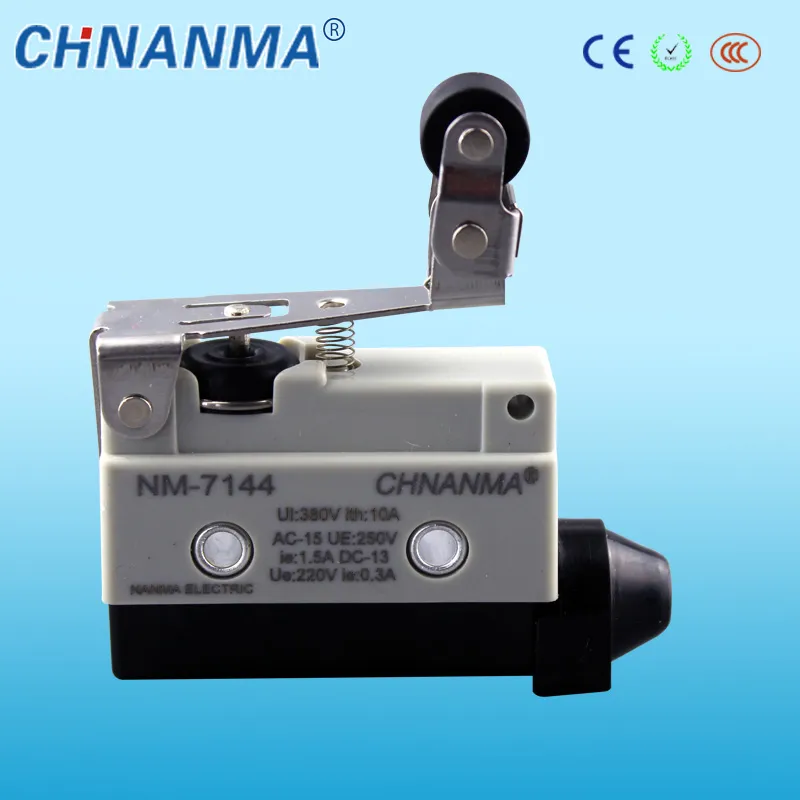

Nm- 7144 Pin Plunger Type Micro Switch with Ce
Virous of actuators, the operation position is adjustable;Outer shell covered with intensive plastic,water-proof and oil-proof; The mechanical strenth is better than TM type of micro switch ,bear hitting.SpecificationRated voltageNoninductive loadLnductive loadLnrush currentResistive loadInductiveMo......
Send Inquiry
Product Description
Virous of actuators, the operation position is adjustable;
Outer shell covered with intensive plastic,water-proof and oil-proof; The mechanical strenth is better than TM type of micro switch ,bear hitting.
Specification
Characterstics
Dimensions/Operating Characteristics
Outer shell covered with intensive plastic,water-proof and oil-proof; The mechanical strenth is better than TM type of micro switch ,bear hitting.
Specification
| Rated voltage | Noninductive load | Lnductive load | Lnrush current | |||||
| Resistive load | Inductive | Motor Load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125VAC | 10 | 3 | 1.5 | 10 | 5 | 2.5 | ||
| 250VAC | 10 | 2.5 | 1.25 | 10 | 3 | 1.5 | ||
| 480VAC | 3 | 1.5 | 0.75 | 2.5 | 1.5 | 0.75 | ||
| 8VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||
| 14VDC | 10 | 3 | 1.5 | 6 | 6 | 5 | ||
| 30VDC | 8 | 3 | 1.5 | 6 | 5 | 2.5 | ||
| 125VDC | 0.5 | 0.4 | 0.05 | 0.05 | ||||
| 250VDC | 0.25 | 0.2 | 0.03 | 0.03 | ||||
Characterstics
| otection | IP67 | |
| Life | Mechanical | 20,000,000times |
| Electrical | 500,000times | |
| Operation speed | 0.01mm-50m/swc | |
| Operation frequency | Mechanical | 120times/min |
| Electrical | 30times/min | |
| Insulation resistance | <100MΩ500VDC | |
| Contact resistance | 25mΩ min.(Intial) | |
| Withatand voltage | Between non-continous terminal | 1,000VAC,50/60HZ for 1mintute |
| Between current-carrying and carrying parts | 2,000VAC,50/60HZ | |
| Between charged metal parts each terminal | 2,000VAC50/60HZ | |
| Vibration | Misoperation | 10-55Hz double-amplitude 1.5mm |
| Impact | Durable:1000m/s2 | |
| misoperation:300m/s2 | ||
| Ambient operating temperature | -10-+70ºC | |
| Humidity | <95%RH | |

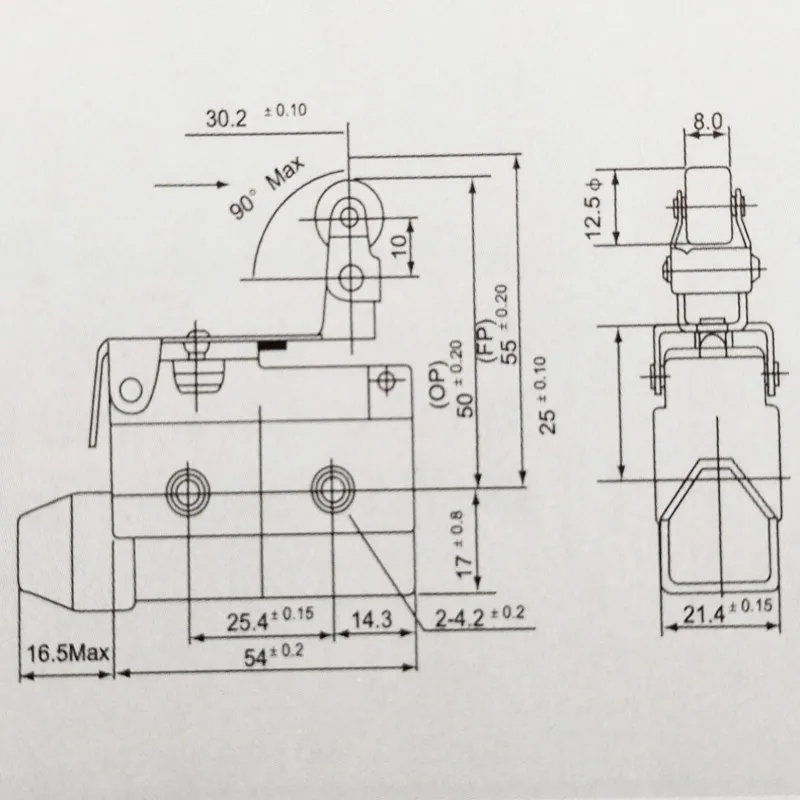

Dimensions/Operating Characteristics
| Max | 250g(2.45N) |
| RF Min | 40g(0.25N) |
| PT Max | 5mm |
| OT Min | 4mm |
| MD Max | 4mm |
| OP | 51.5±1mm |
