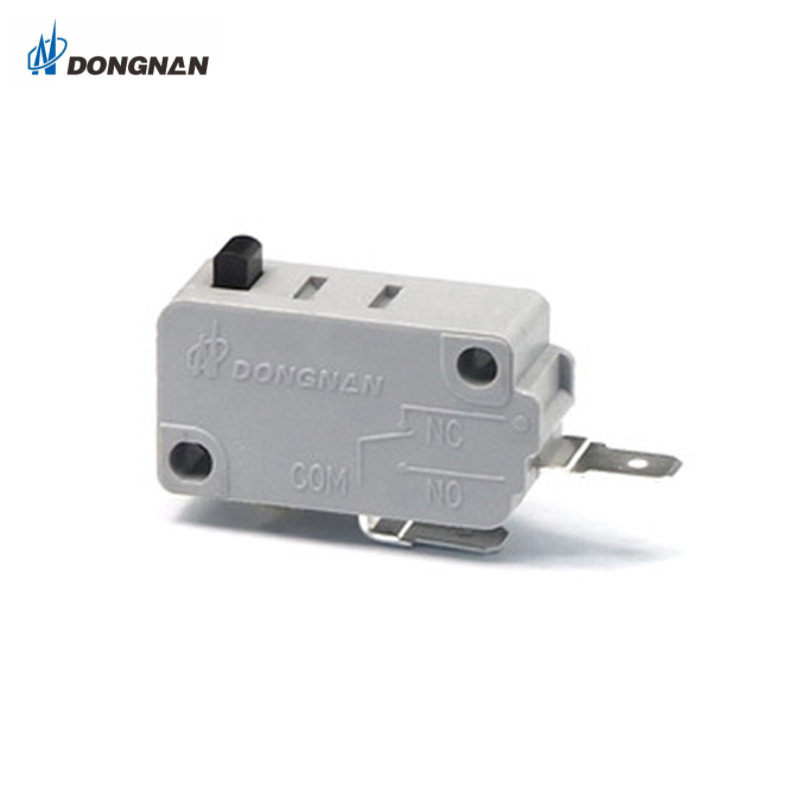

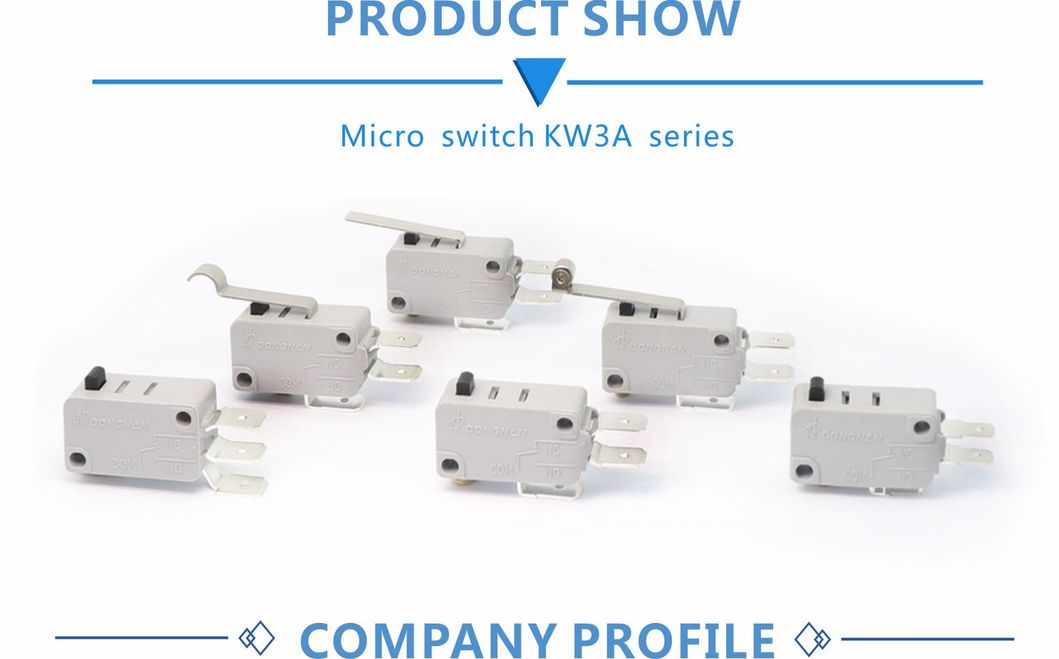

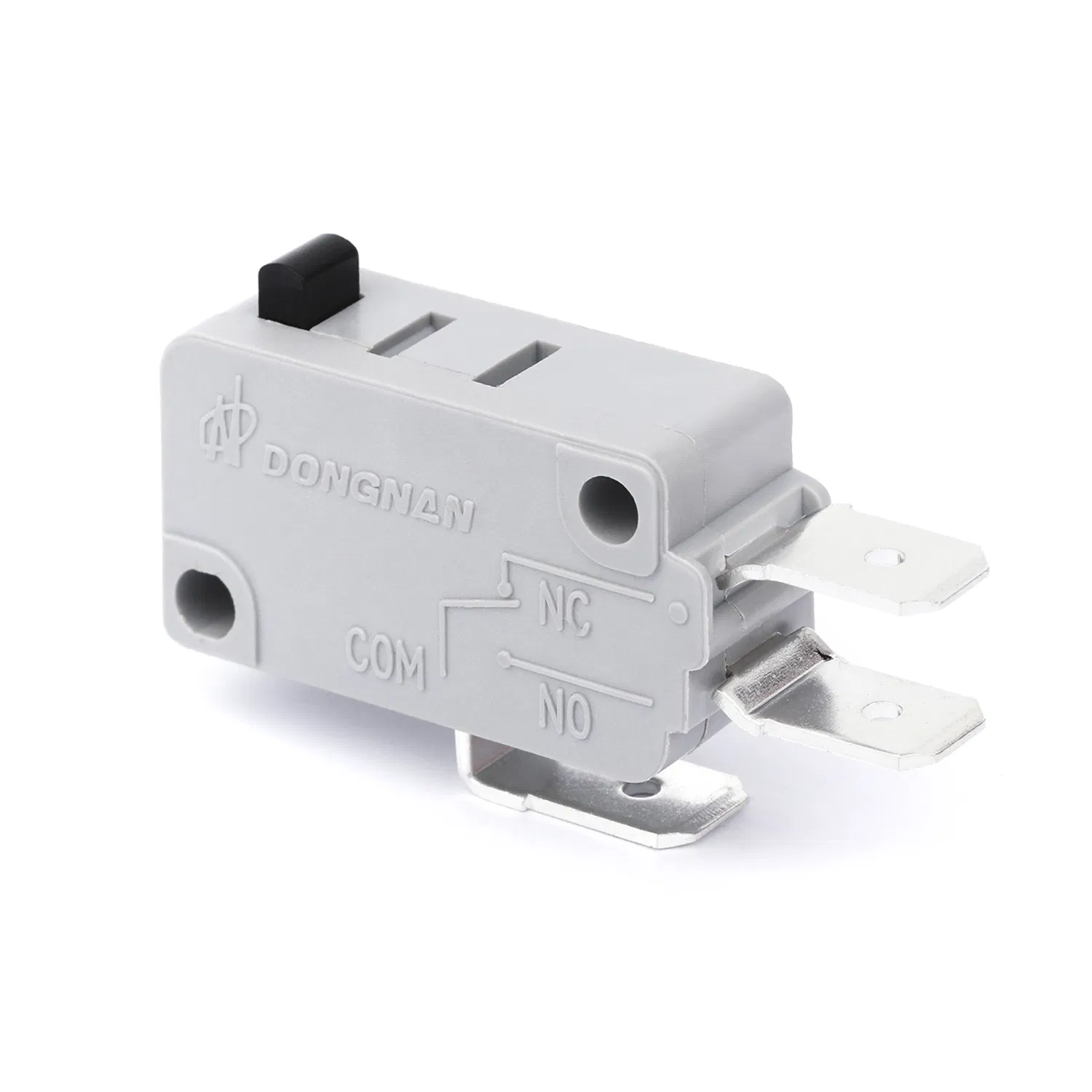

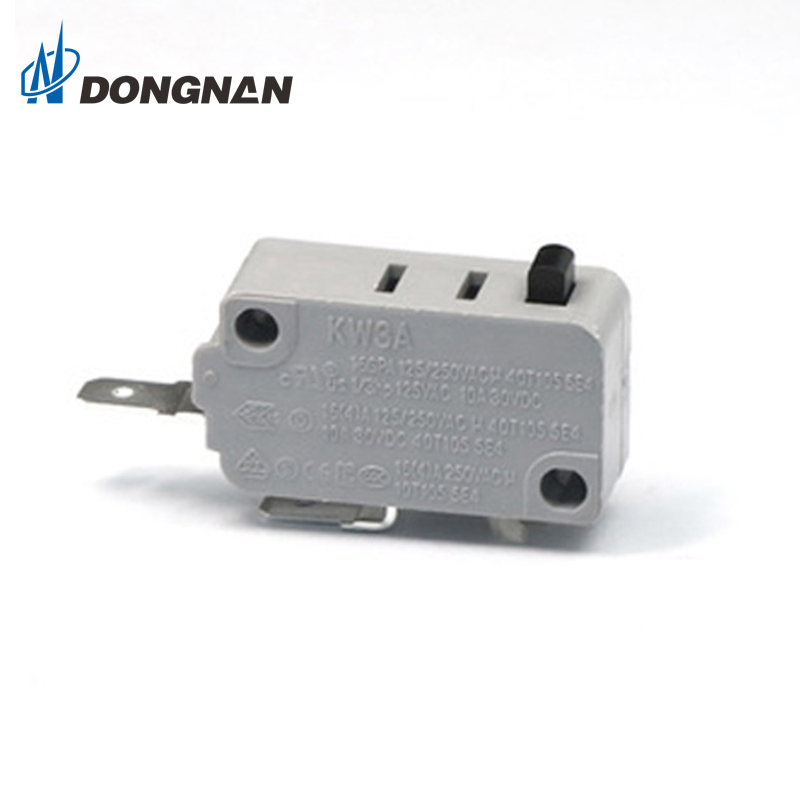

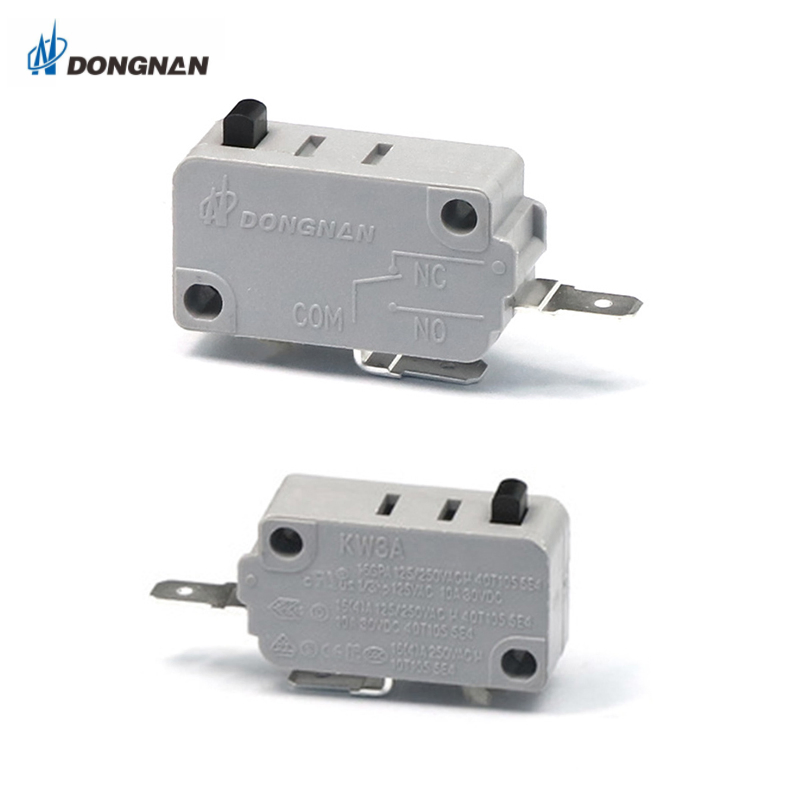

Kw3a Microwave Oven Micro Switch Yueqing Dong Nan Electronic Brand Factory Spot Direct Approval

Product Description

1.Sate, reliable basic switch.
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small.
3.operating travel.
4.Long lite, high reliablity.
5.A variety of contact terminals.
6.A varnety of temperature degree.
7.A variety of levers.
8.Adopt themosetting plastic or themoplastic.
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar .electron,apparatus and 10.instument,electric motion tool etc.

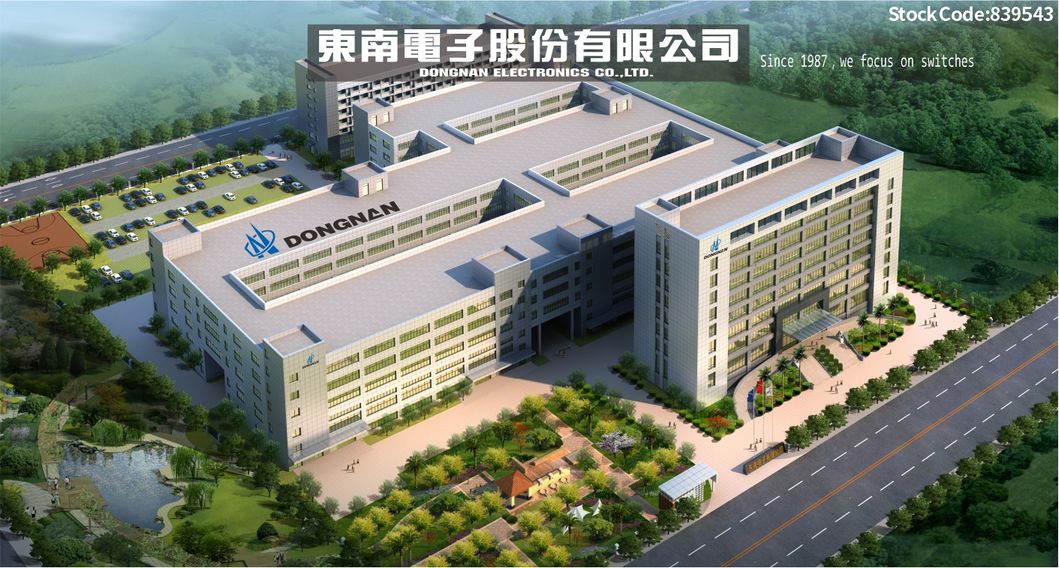

Founded in 1987 Southeast Electronics Co., Ltd. is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 22000 square meters of factory buildings (more than 60000 square meters of factory buildings under construction, expected to be completed in August 2020); the registered capital is 65.28 million yuan, and the total assets are 210 million yuan. The existing leading products are: micro switch series, waterproof switch series, rotary switch series, etc., all of which have obtained UL certification in the United States, VDE / TUV certification. in Germany, four Nordic certification, Ek / KTL certification in South Korea and CQC certification in China, as well as CB report, CE certificate, etc.; the annual production capacity of the instrument is more than 300 million switches.

Item	Value
Operating speed	0.1mm-1m/s(Related with actuator forms)
Operating Frequency	Mechanical 60 cycle/min; Electrical 25 cycles/min
Insulation resistance	≥ 100MΩ(500VDC)
Contact resistance	_{OF>0.75N:≤30mΩ OF≤0.75N:≤100mΩ (initial value)}
(Test voltage) Between terminals of the same polarity	AC1000V,50/60Hz,1min
(Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-cueeent-carrying metal parts.	AC3750V,50/60Hz,1min
Vibration resistance	10-55Hz,1.5mm Double amplitude
Shock resistance	Destruction:OF>0.5N:1000m/s²(approx.100G)max OF≤0.5N:400m/s²(approx.40G)max Malfunction:OF>0.5N:200m/s²(approx.20G)max OF≤0.5N:100m/s²(approx.10G)max
Life	Mechanical≥2,000,000 cycles Electrical≥50,000 cycles
Weight	Approx.6.2g(No lever)
Safety approvals	UL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,CE,EK , CQC
