ENEC Approval 25t85 Push Button Electric Parts Micro Switch with Straight Lever Omron D2FC 3 Pin Micro Switch
Characteristic & Using:1. Sate, reliable basic switch2. Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.4. Long lite, high reliablity5. A variety of contact terminals6. A varnety of temperature degree7. A vari......
Send Inquiry
Product Description
Characteristic & Using:
1. Sate, reliable basic switch
2. Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4. Long lite, high reliablity
5. A variety of contact terminals
6. A varnety of temperature degree
7. A variety of levers
8. Adopt themosetting plastic or themoplastic
9. Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and instument,electric motion tool etc.

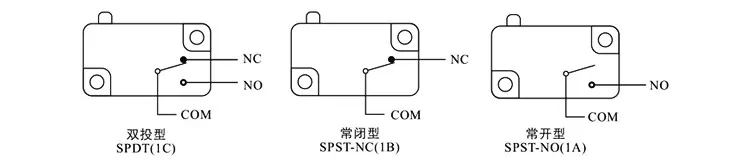

Contact Forms
Technical Specifications:
| Operating Speed | 0.1mm-1m/s | Operating frequency | Mechanical | 600times/min |
| Insulation resistance | 100MΩAbove DC500V | Electrical | 30times/min | |
| Contact resistance | 25mΩ initial value | Withstand voltage | Non-connection wire | 1000VAC |
| Protection degree | IP40 | Every terminal | 1500VAC | |
| Operating temperature | -25~+80ºC | Impact | Durable | 1000m/s² |
| Operating humidity | <85% | Misoperation | 300m/s² | |
| Vibration Misoperation | 10-55Hz Amplitude 1.5mm | Life | Electrical | 100,000 above |
Mechanical | 1,000,000 above |

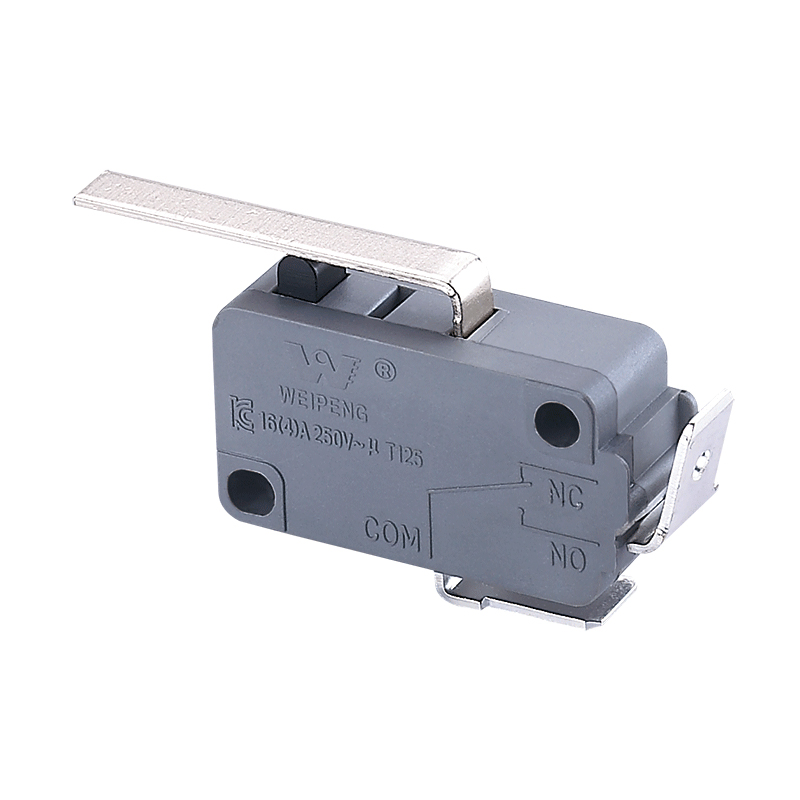

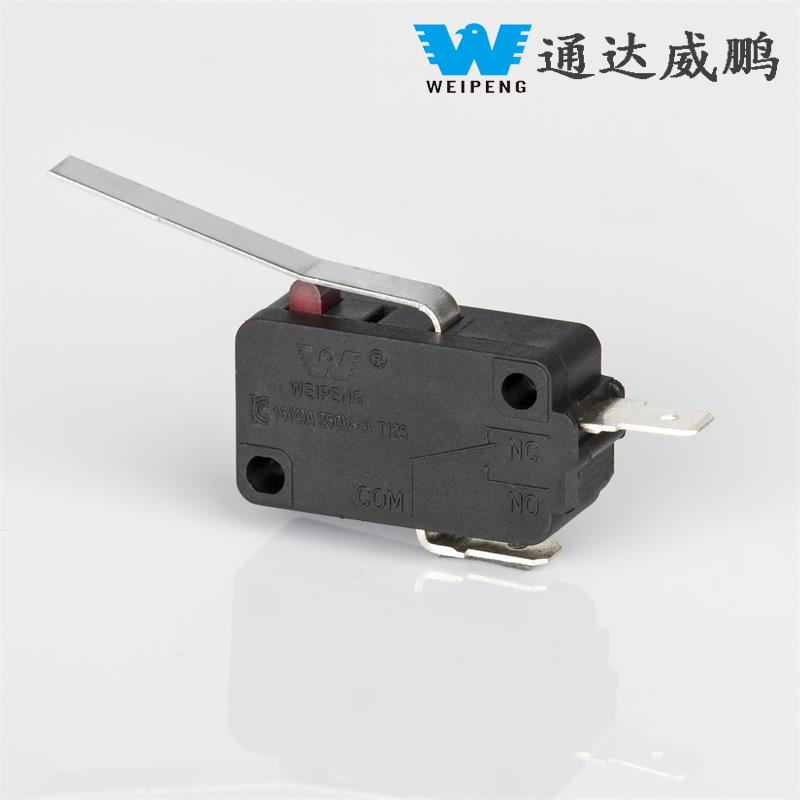

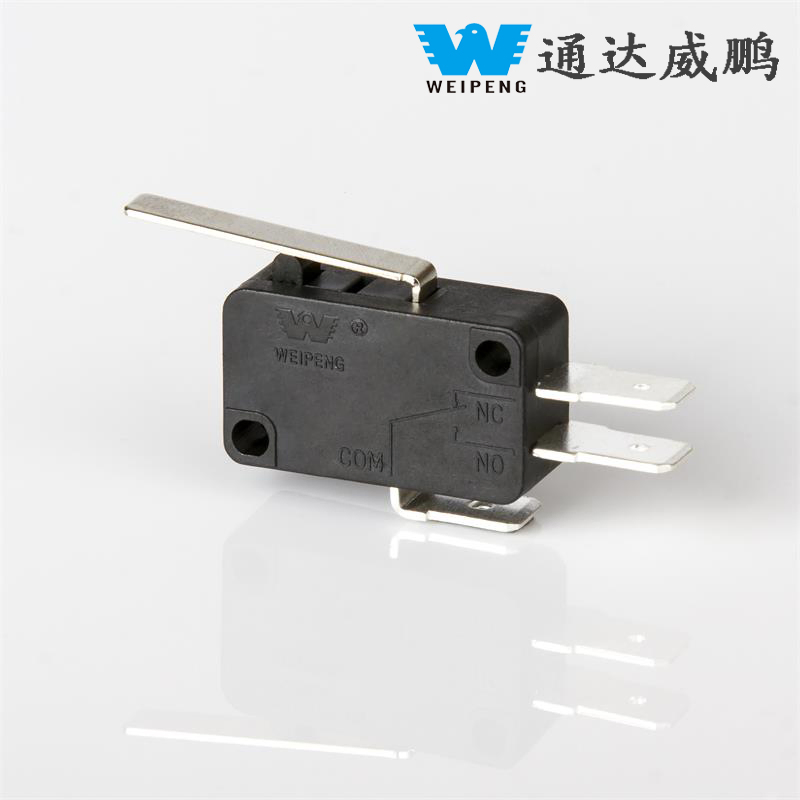

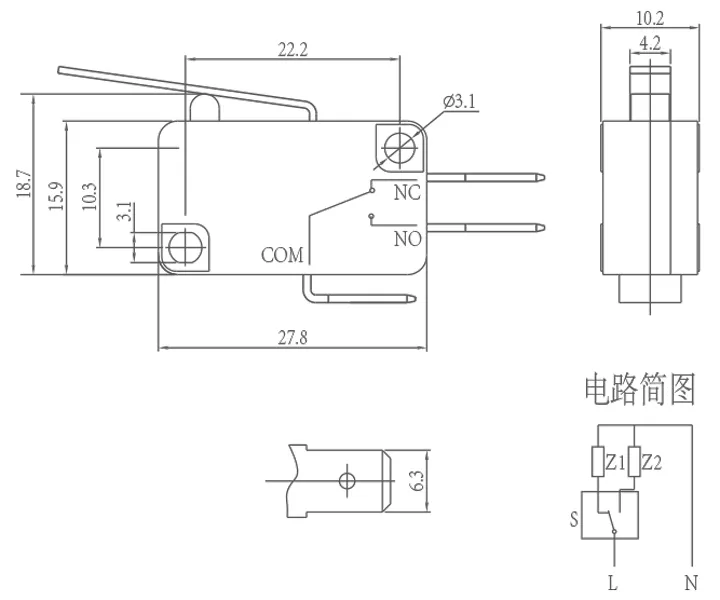

_________________ PRODUCT DETAILS _________________
_________________OUR CUSTOMERS_________________

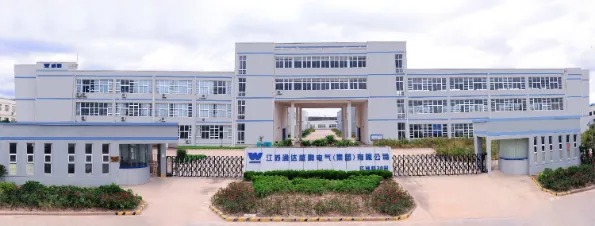

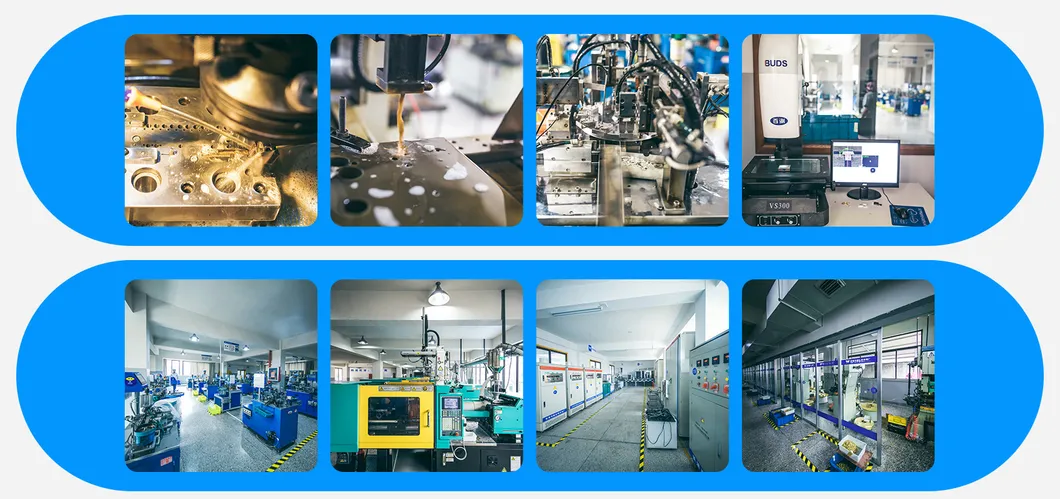

_________________OUR COMPANY_________________
Founded in 1990, Yueqing Tongda Wire Electric Factory is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 28000 square meters of factory buildings ; The existing leading products are: micro switch series, waterproof switch series, rotary switch series, push button switch series, rocker switch seies etc., all of which have obtained UL, cUL, ENEC, VDE, KC, CE, CB, TUV, CQC, EX(explosion-proof cert) etc.; the annual production capacity of the instrument is more than 300 million switches.
_________________FAQ_________________
Q1.:Do you have any certification about your factory or products?
A1:Of course,we have strong system certified,like IATF16949,ISO14001,UL,TUV,VDE,Rohs,Reach and related approvals.
Q2.What is your sample policy?
A2:Free sample could be provided within 3days,but express charge should be paid by customer.
Q3. What is your terms of packing?
A3: Generally, we pack goods in neutral boxes and brown cartons,or customized if qty reached.
Q4. What is your terms of payment?
A4: In common,T/T 30% as deposit, and 70% before delivery.,if the amount >2000USD
Q5. How about your delivery time?
A5: Generally, it will take 3 to 15 days upon receipt of payment. The specific delivery time depends
on the items and the quantity of the order.
Q6. Can you produce according to the samples?
A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A8:1. We keep good quality and competitive price to ensure our customers benefit ;
2.Still take our customer's question be first,quick response and resolve ability if meet quality issue.
